Room Lamp Assy No.1 Does Not Light Up
Room Lamp Assy No.1 Does Not Light Up
ROOM LAMP ASSEMBLY NO.1 DOES NOT LIGHT UP

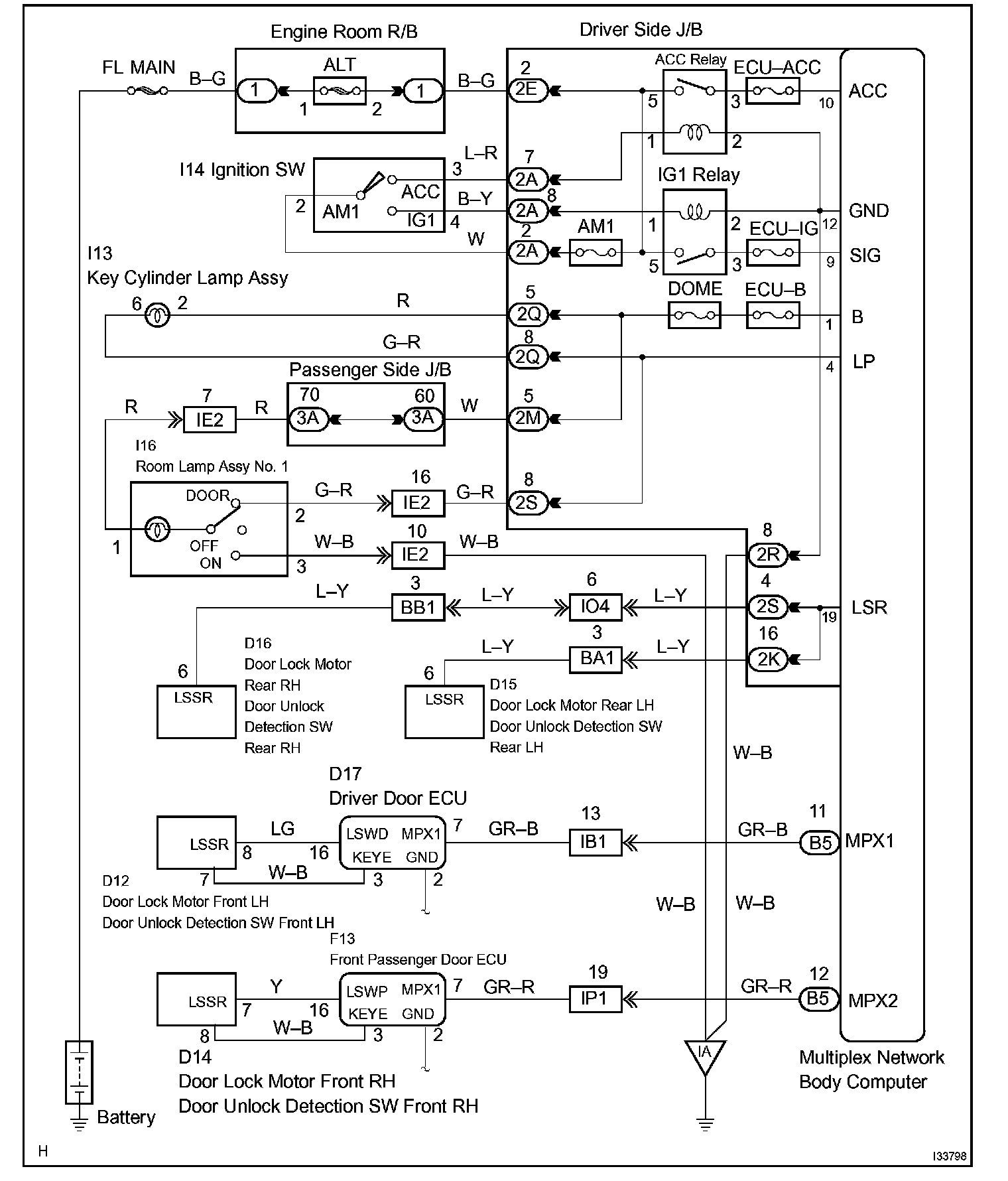

Wiring Diagram:

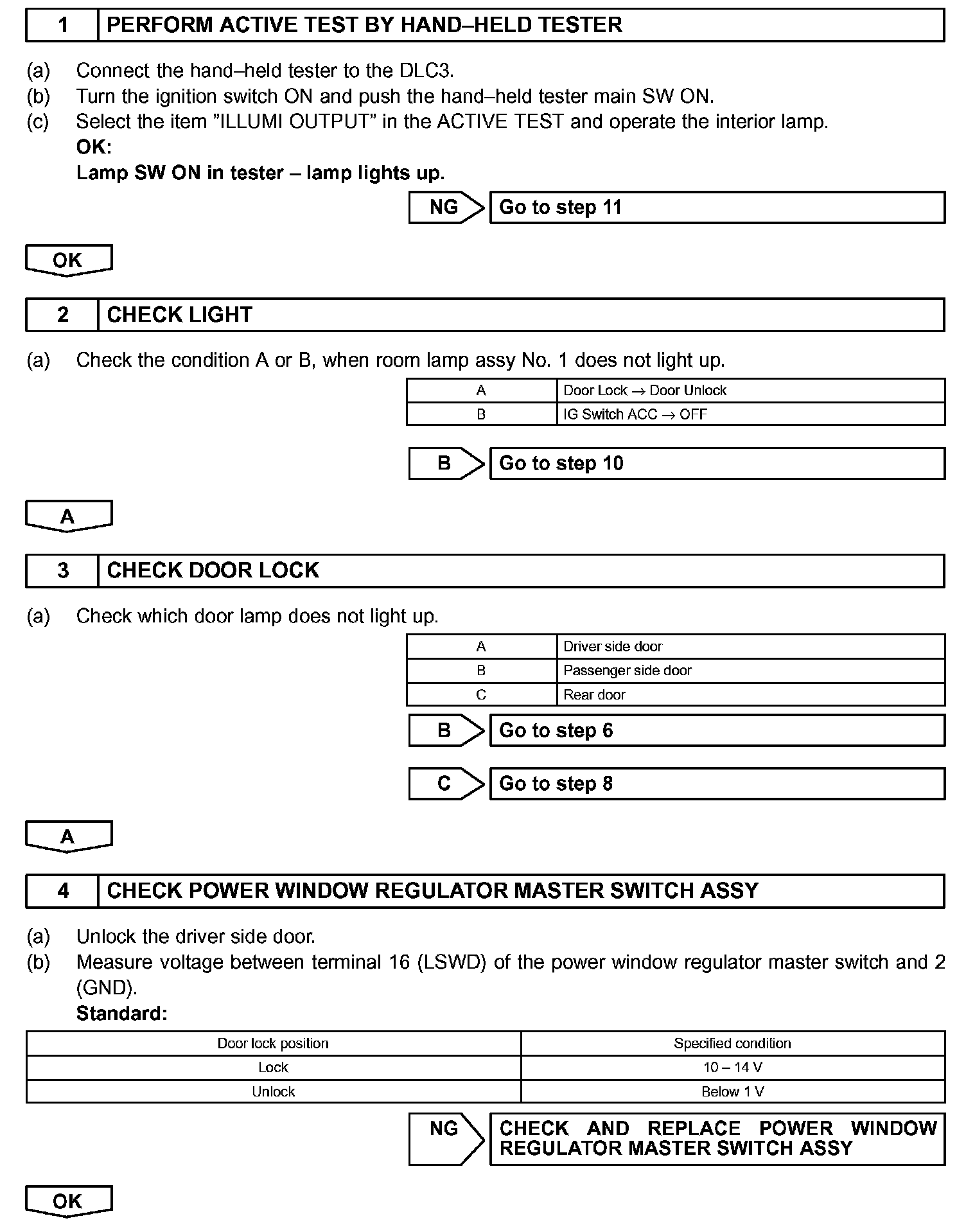

Step 1 - 4:

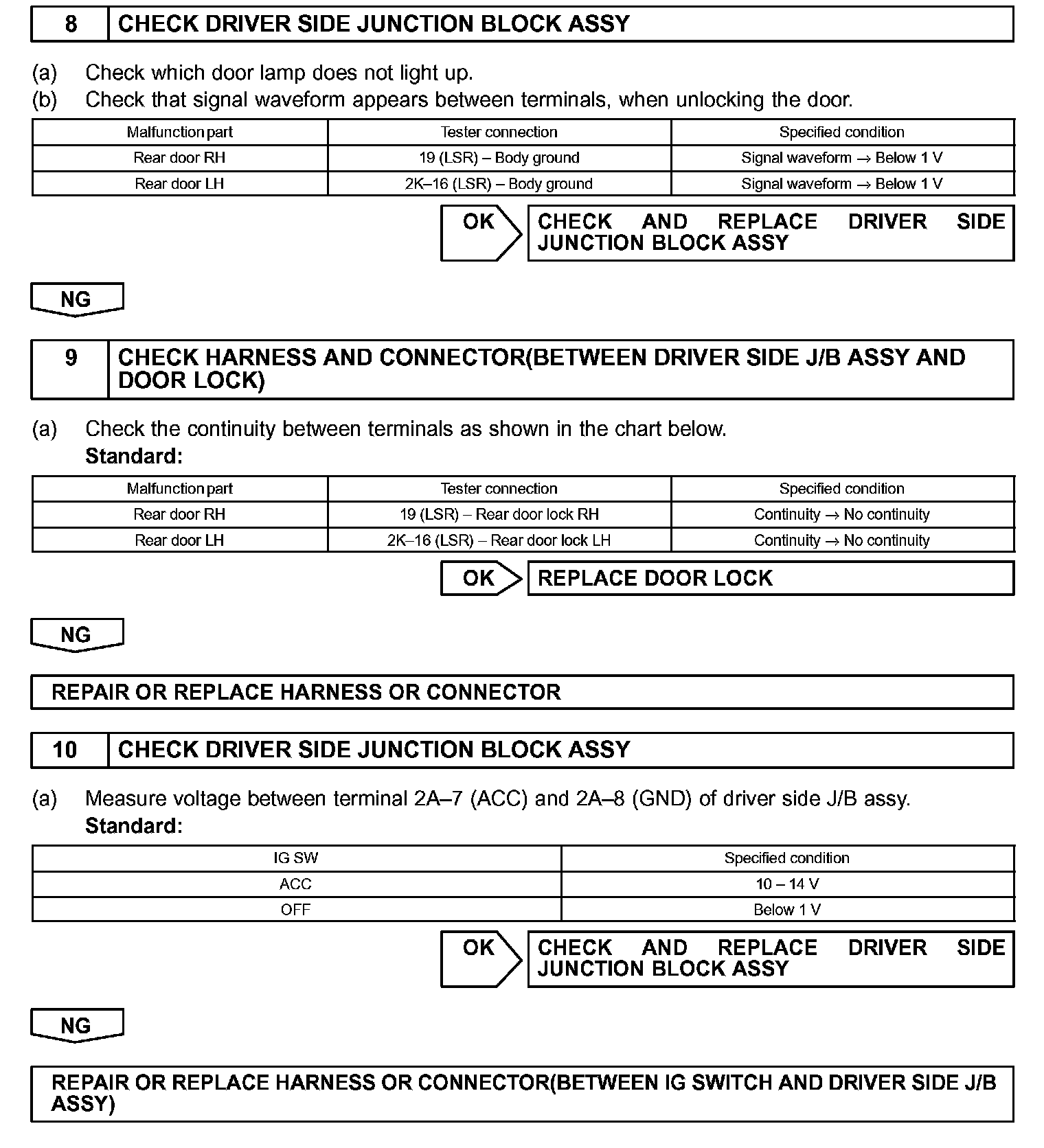

Step 5 - 7:
Step 8 - 10:

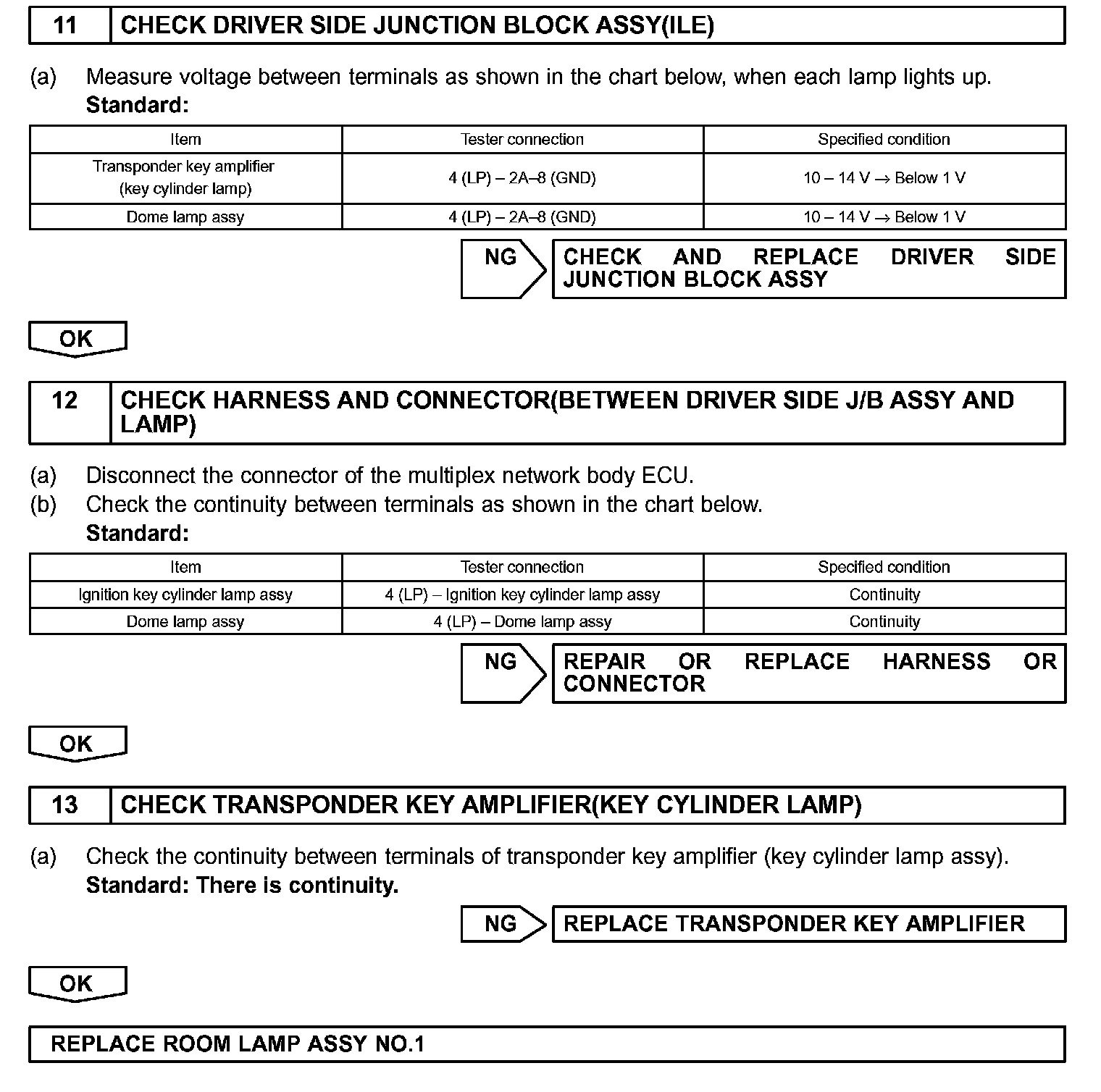

Step 11 - 13:
INSPECTION PROCEDURE
