Initial Set Control Function Does Not Operate (Warning Lamp Goes Off)
Initial Set Control Function Does Not Operate (Warning Lamp Goes Off)
INITIAL SET CONTROL FUNCTION DOES NOT OPERATE (WARNING LAMP GOES OFF)

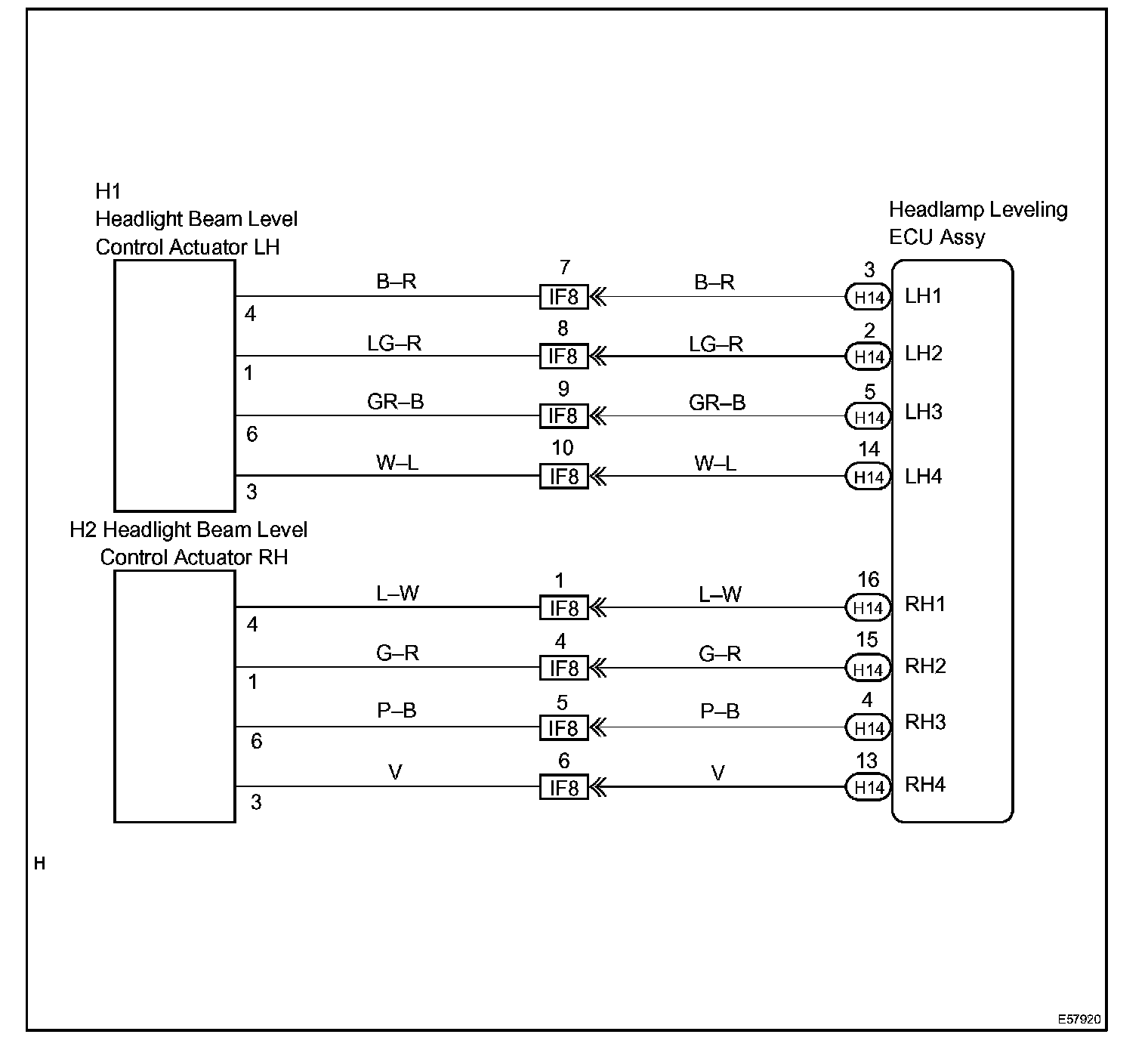

Wiring Diagram:

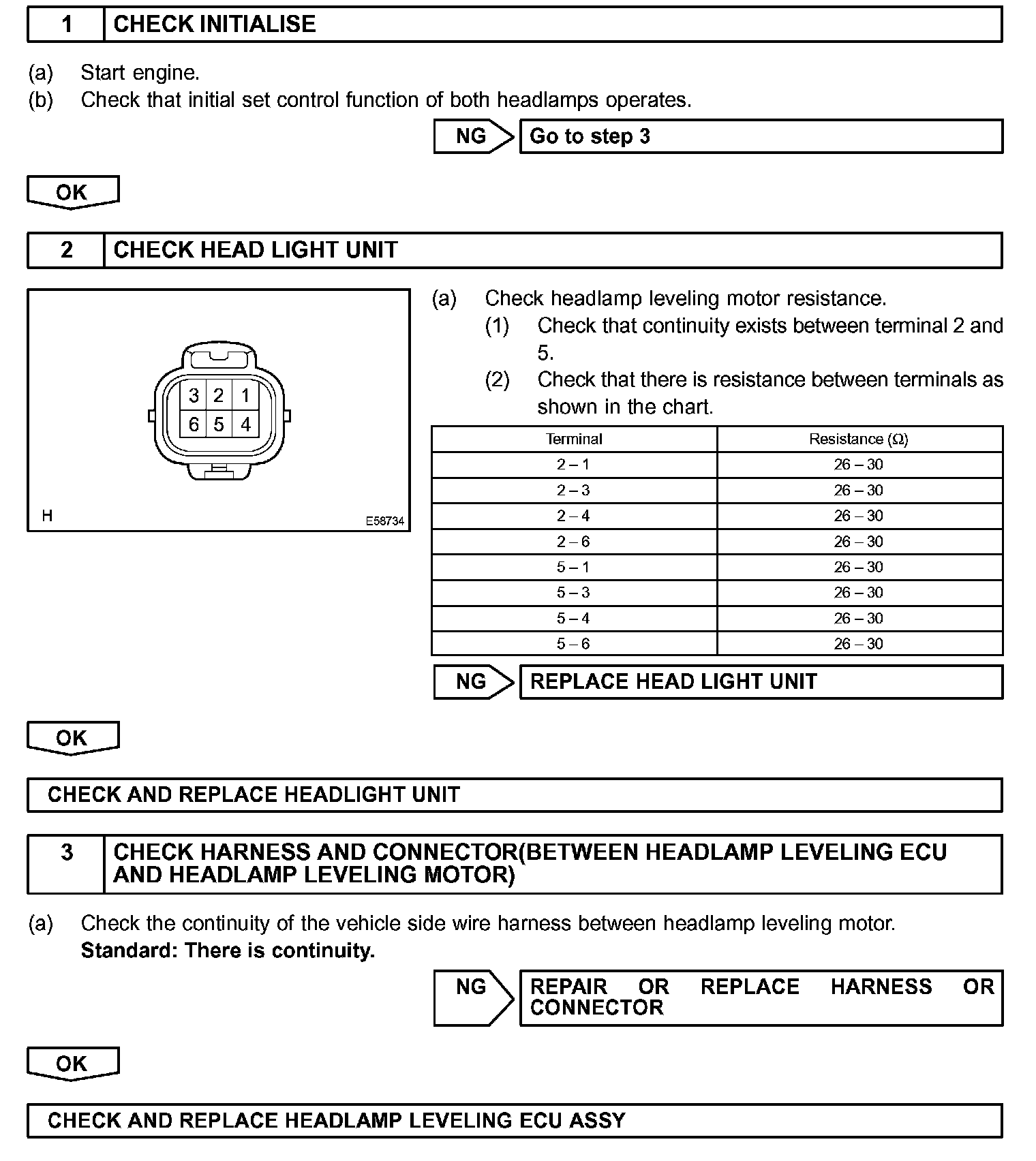

Step 1 - 3:
INSPECTION PROCEDURE
