Headlamp Alignment Sensor: Service and Repair

HEIGHT CONTROL SENSOR SUB-ASSEMBLY REAR RH

REPLACEMENT

1. REMOVE HEIGHT CONTROL SENSOR SUB-ASSEMBLY REAR RH
a. Disconnect the connector.
b. Align match mark with the one on the height control sensor sub-assembly rear RH and bracket.

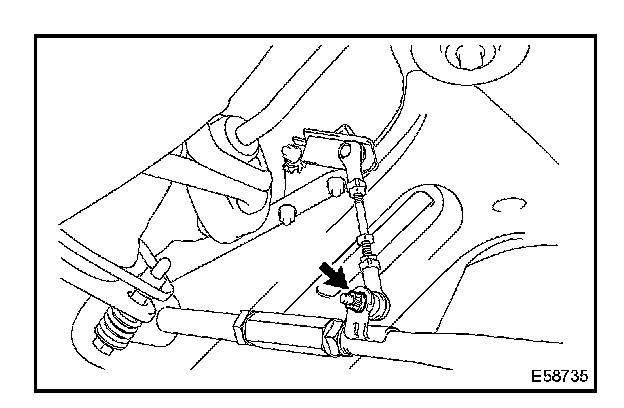

c. Remove a nut.

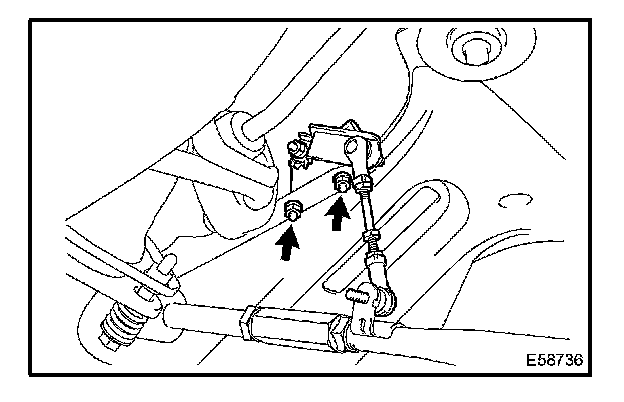

d. Remove the 2 nuts and height control sensor sub-assembly rear RH.

2. INSTALL HEIGHT CONTROL SENSOR SUB-ASSEMBLY REAR RH
a. Install the height control sensor link rear RH with the 2 nuts.

Torque: 8.0 N.m (81 kgf.cm, 71 in.lbf)

b. Align the match mark with the one on the height control sensor sub-assembly rear RH and bracket.
c. Install the height control sensor sub-assembly rear RH

Torque: 5.4 N.m (55 kgf.cm, 48 in.lbf)

d. Connect the connector.
e. When the work like the vehicle height may be changed is performed, for example, removal and installation of the height control sensor, or replacement of the suspension, etc., initialize the sensor, then adjust the optical axis.

3. HEADLIGHT AIM ONLY
