VSC Warning Light Circuit (Remains On)

VSC WARNING LIGHT CIRCUIT (REMAINS ON)

CIRCUIT DESCRIPTION
If the ECU stores DTC, the VSC warning light illuminate the combination meter.

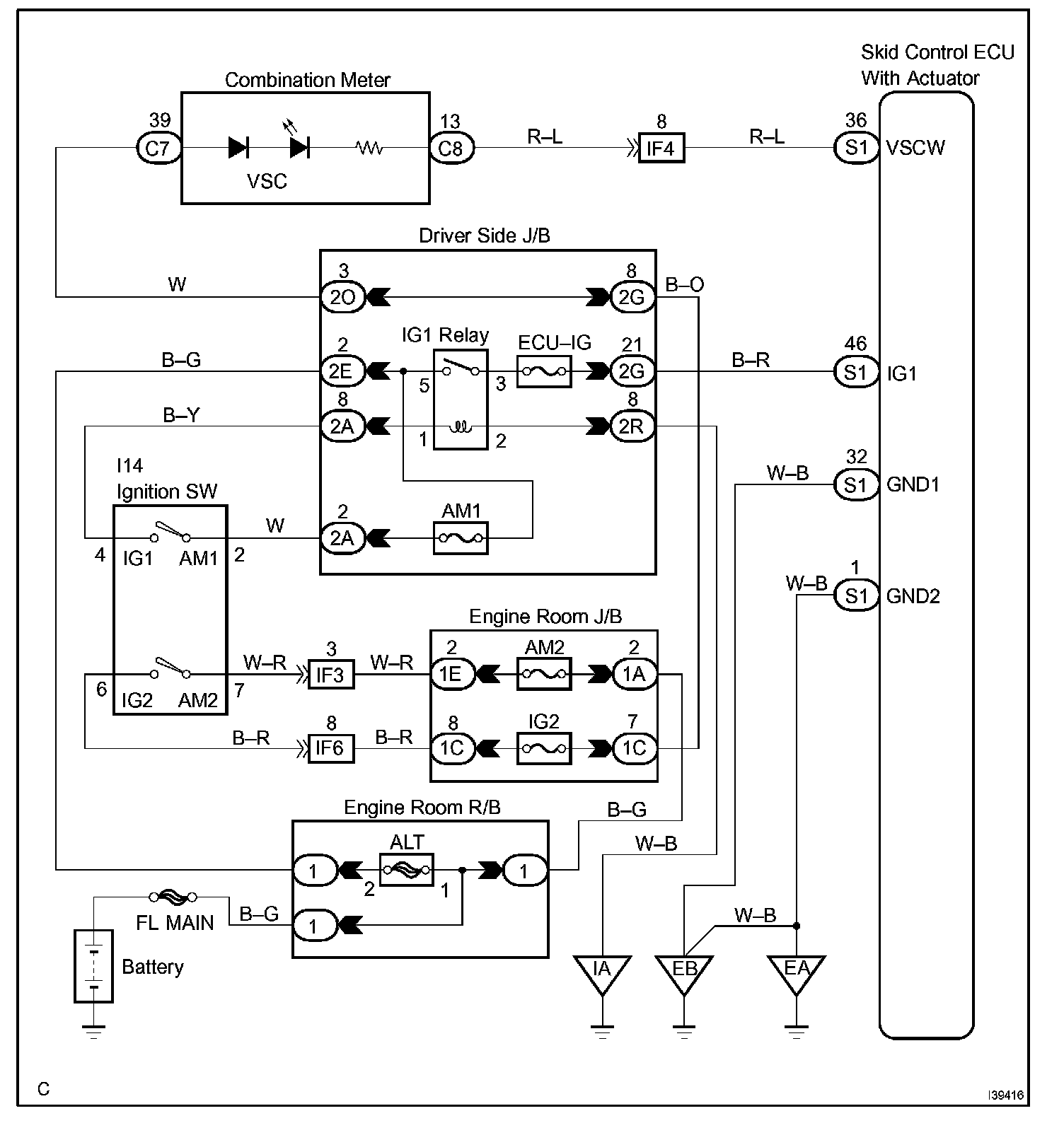

Wiring Diagram:

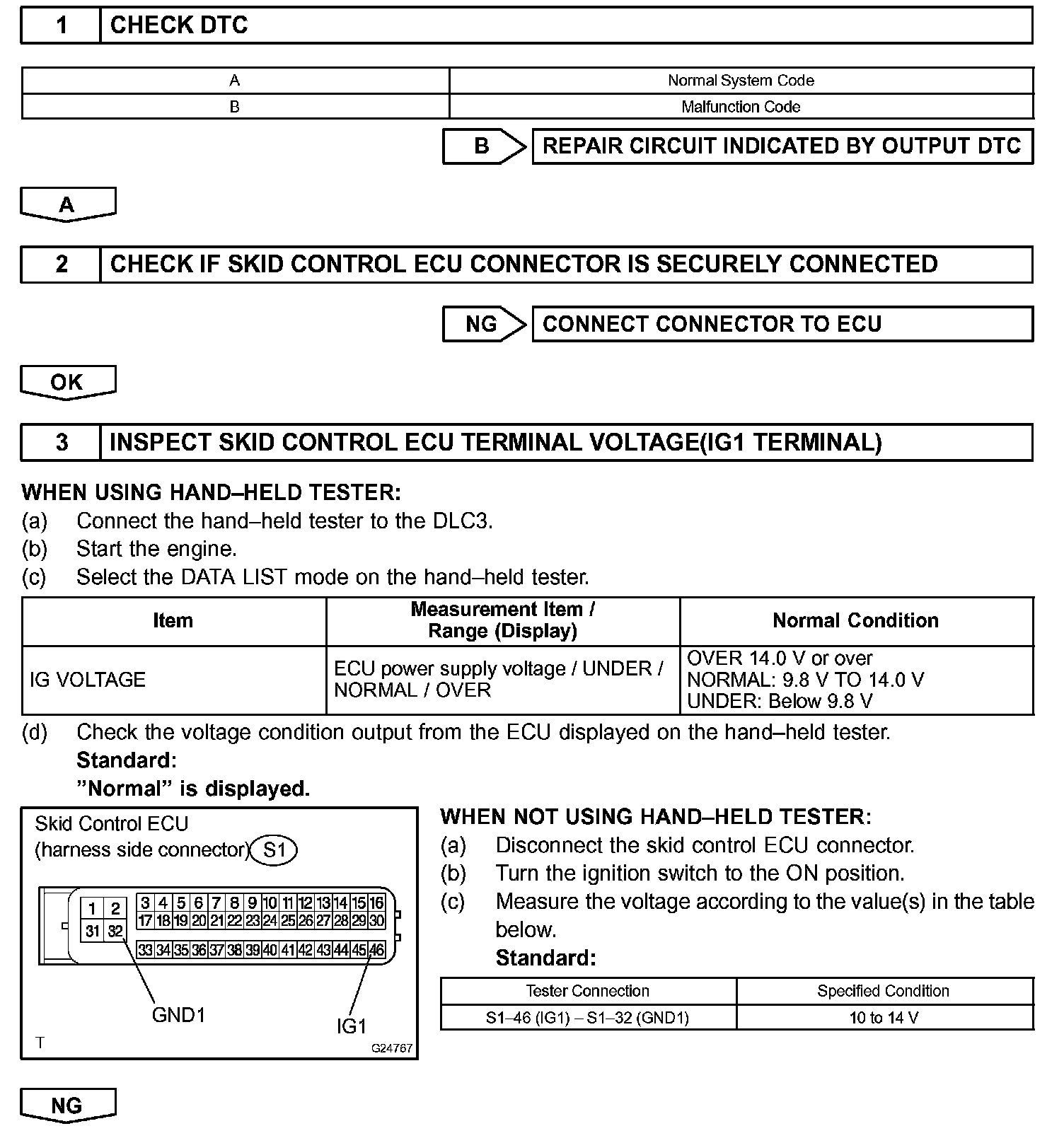

Step 1 - 3:

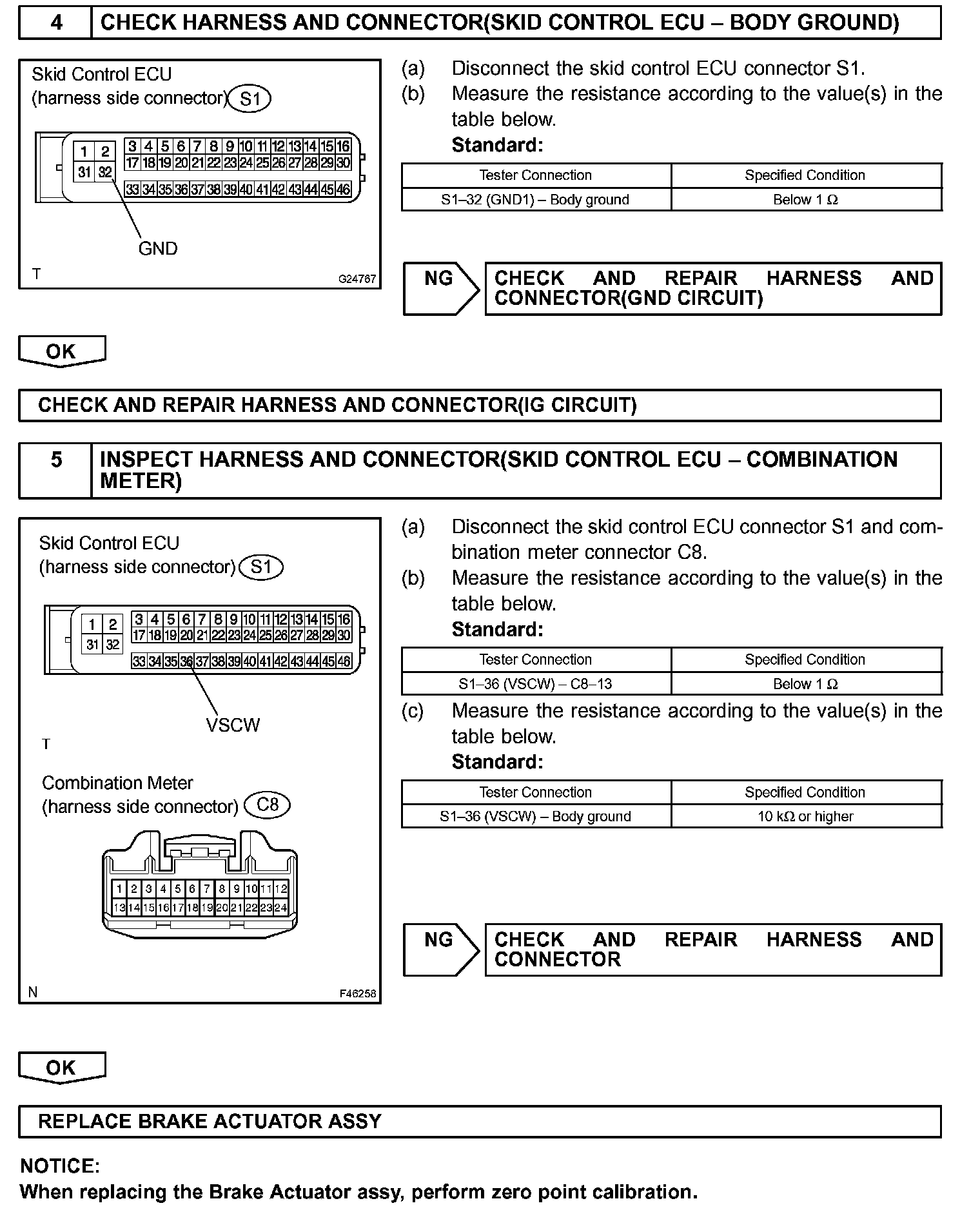

Step 4 - 5:

INSPECTION PROCEDURE
