Buzzer Does Not Sound (Key Reminder Warning, Seat Belt Warning)
Buzzer Does Not Sound (Key Reminder Warning, Seat Belt Warning)
BUZZER DOES NOT SOUND (KEY REMINDER WARNING, SEAT BELT WARNING)

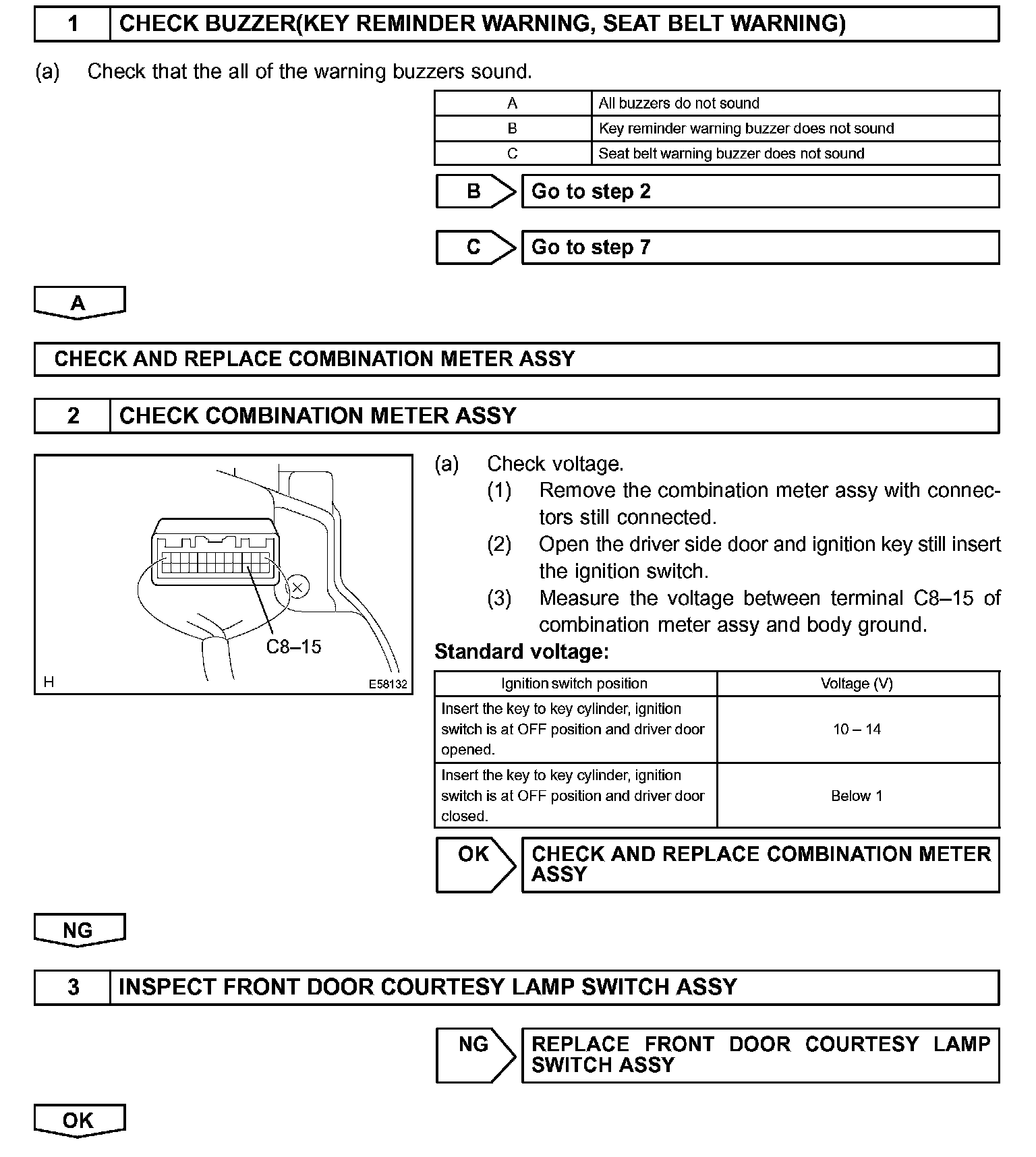

Step 1 - 3:

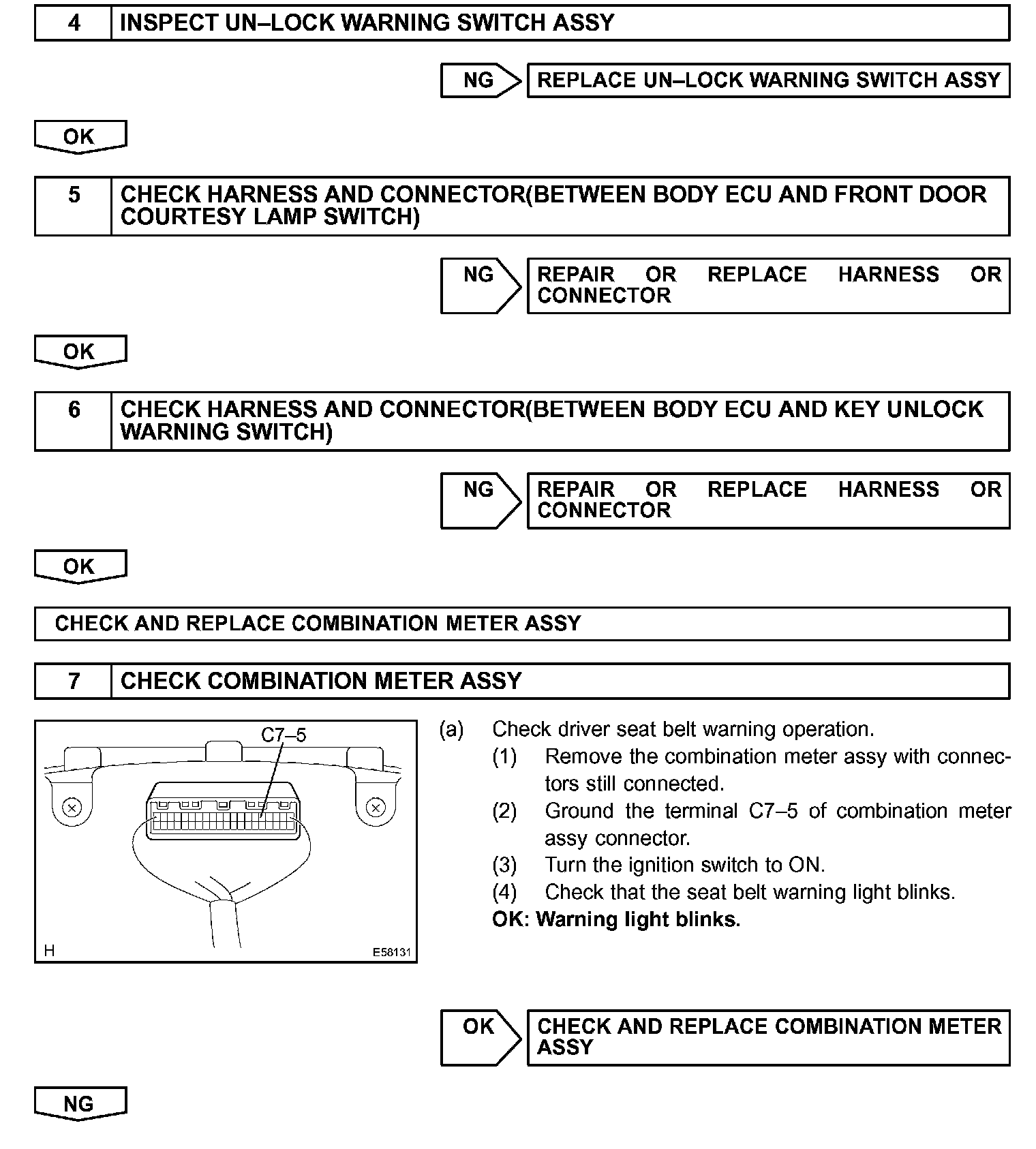

Step 4 - 7:

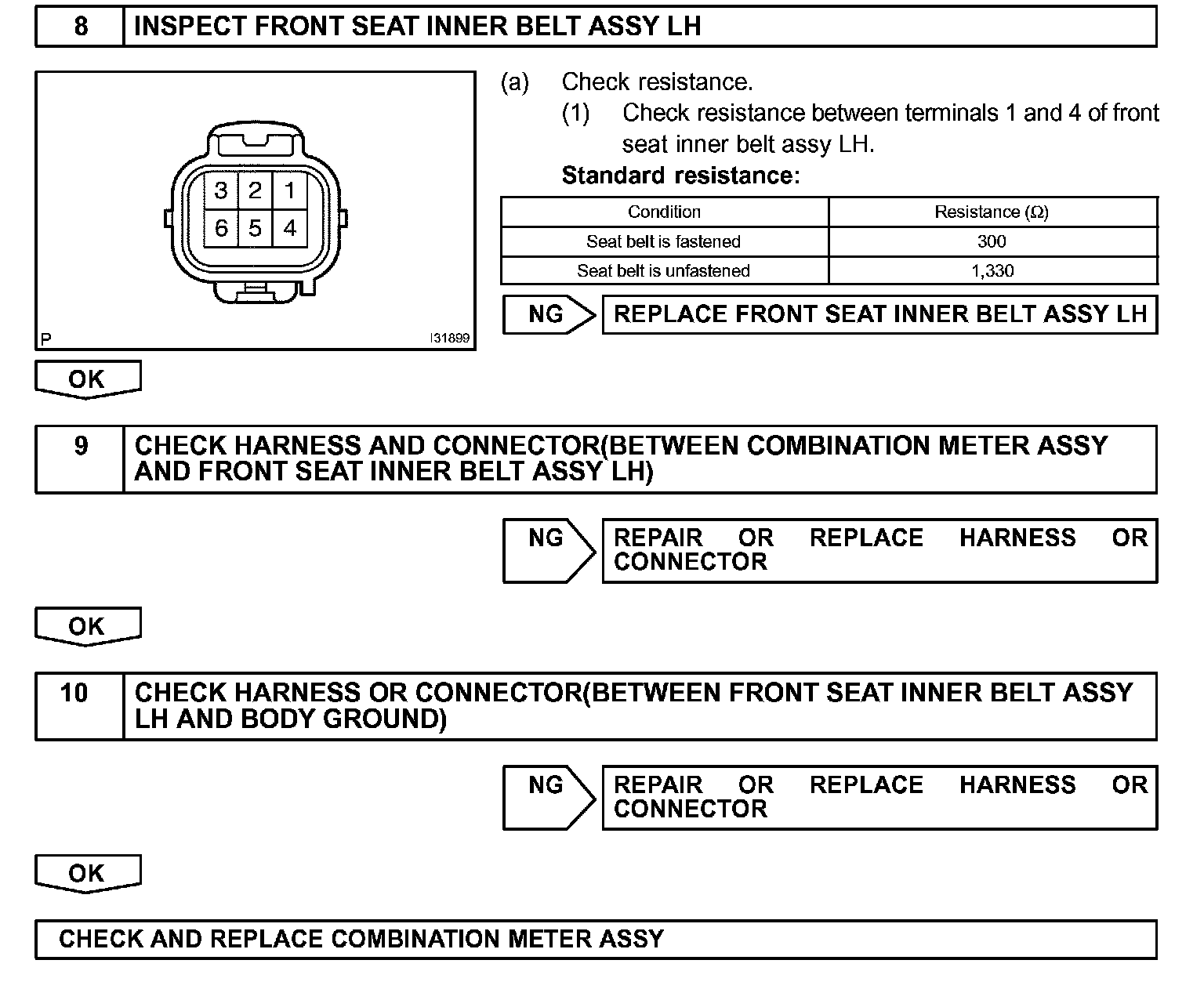

Step 8 - 10:
INSPECTION PROCEDURE
