Cigarette Lighter: Service and Repair

CIGARETTE LIGHTER ASSEMBLY

REPLACEMENT

1. REMOVE CONSOLE PANEL SUB-ASSEMBLY UPPER
2. REMOVE CONSOLE PANEL UPPER REAR
3. REMOVE FRONT ASH RECEPTACLE ASSEMBLY

4. REMOVE CIGARETTE LIGHTER ASSEMBLY

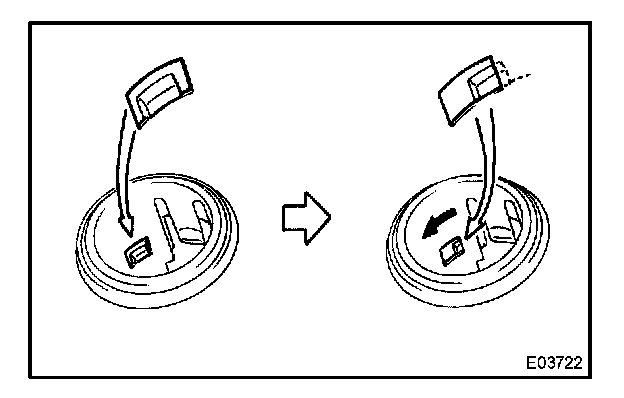

a. Turn the socket in the circumference direction as shown the illustration, disengage the claw between the socket and the cigarette lighter indicator lens, and push out the socket to the room side.




b. Disengage the 2 claws and remove the cigarette lighter indicator lens.

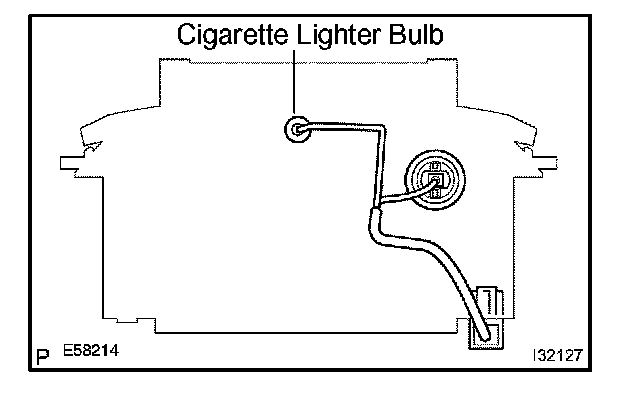

c. Remove the cigarette lighter bulb.

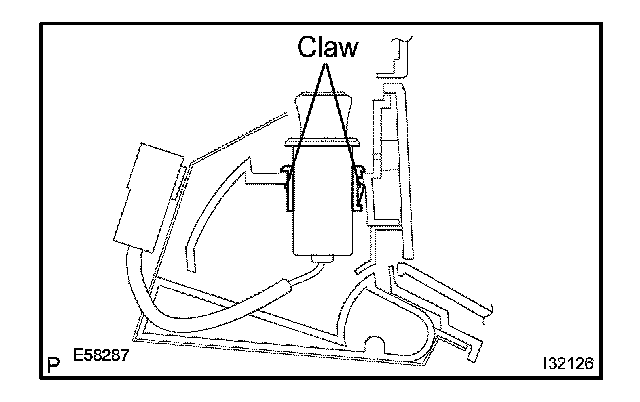

d. Remove the cigarette lighter assembly.
