Engine Mount: Testing and Inspection

ACTIVE CONTROL ENGINE MOUNT

SFI System:

CIRCUIT DESCRIPTION

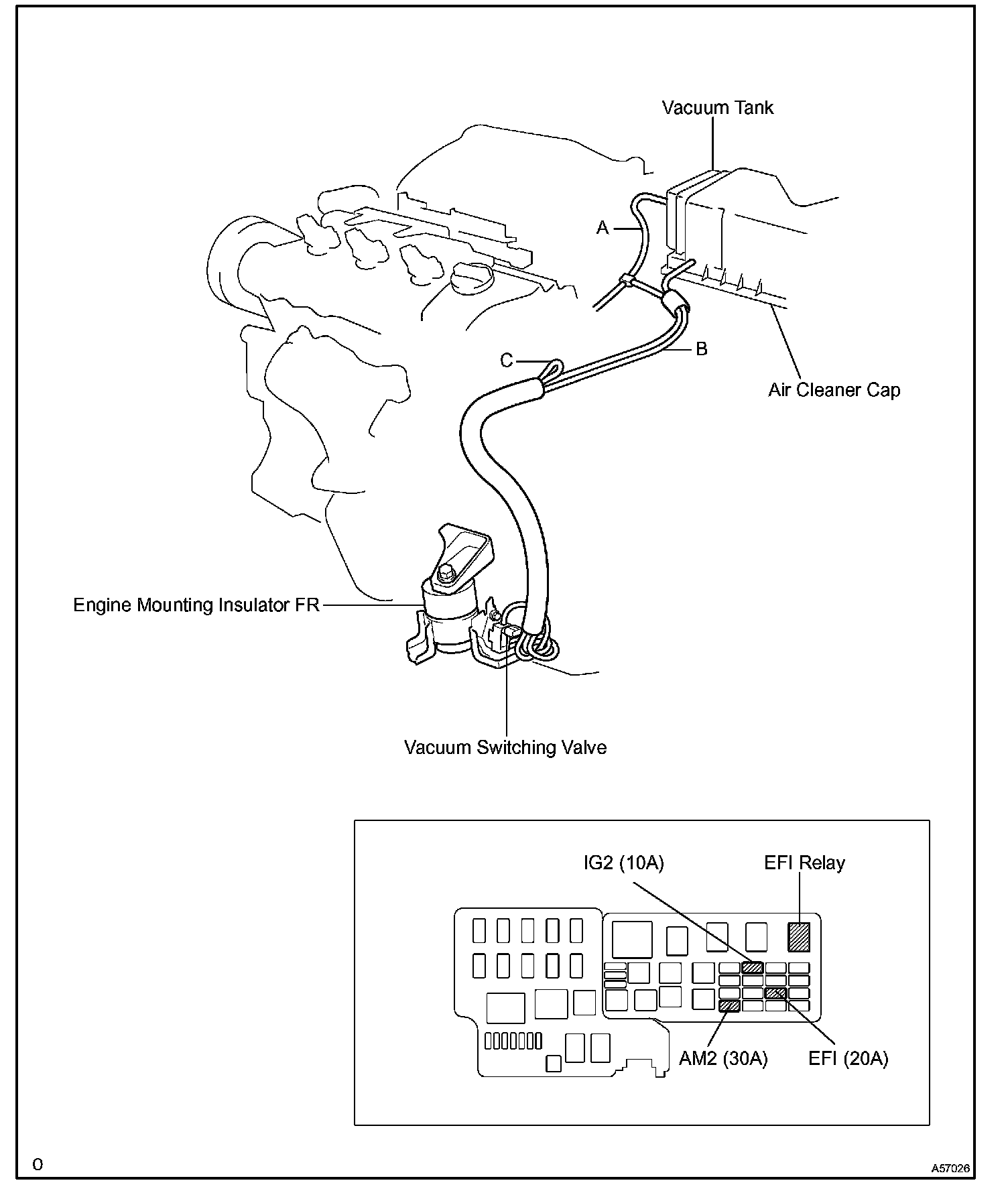

The Active Control Engine Mount (ACM) system decreases engine vibration at low engine speed using the ACM VSV. The VSV is controlled by a pulse signal transmitted to the VSV from the ECM. The frequency of this pulse signal is matched to the engine speed to decrease engine vibration.

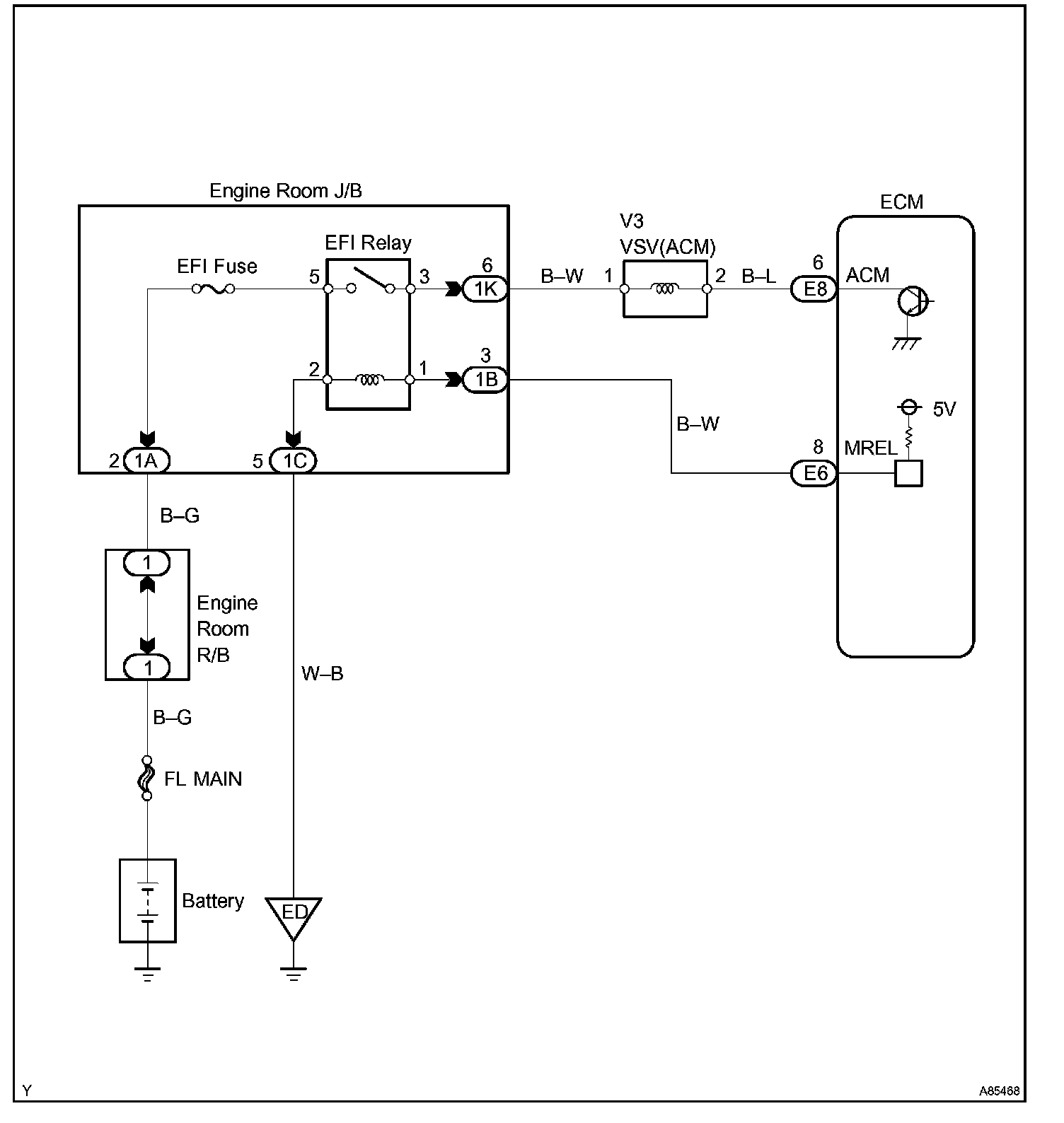

Wiring Diagram:

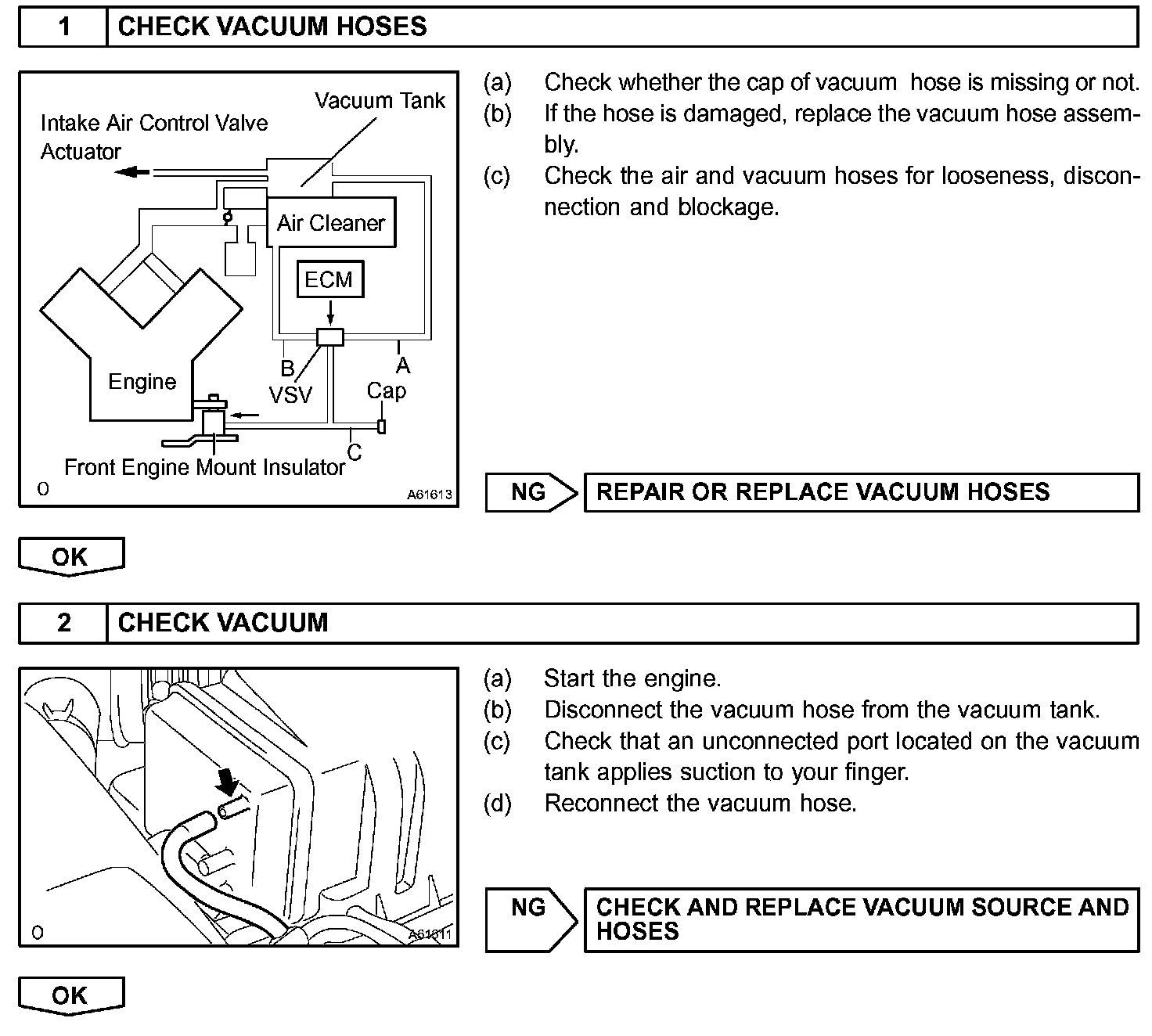

Step 1 - 2:

Step 3 - 4:

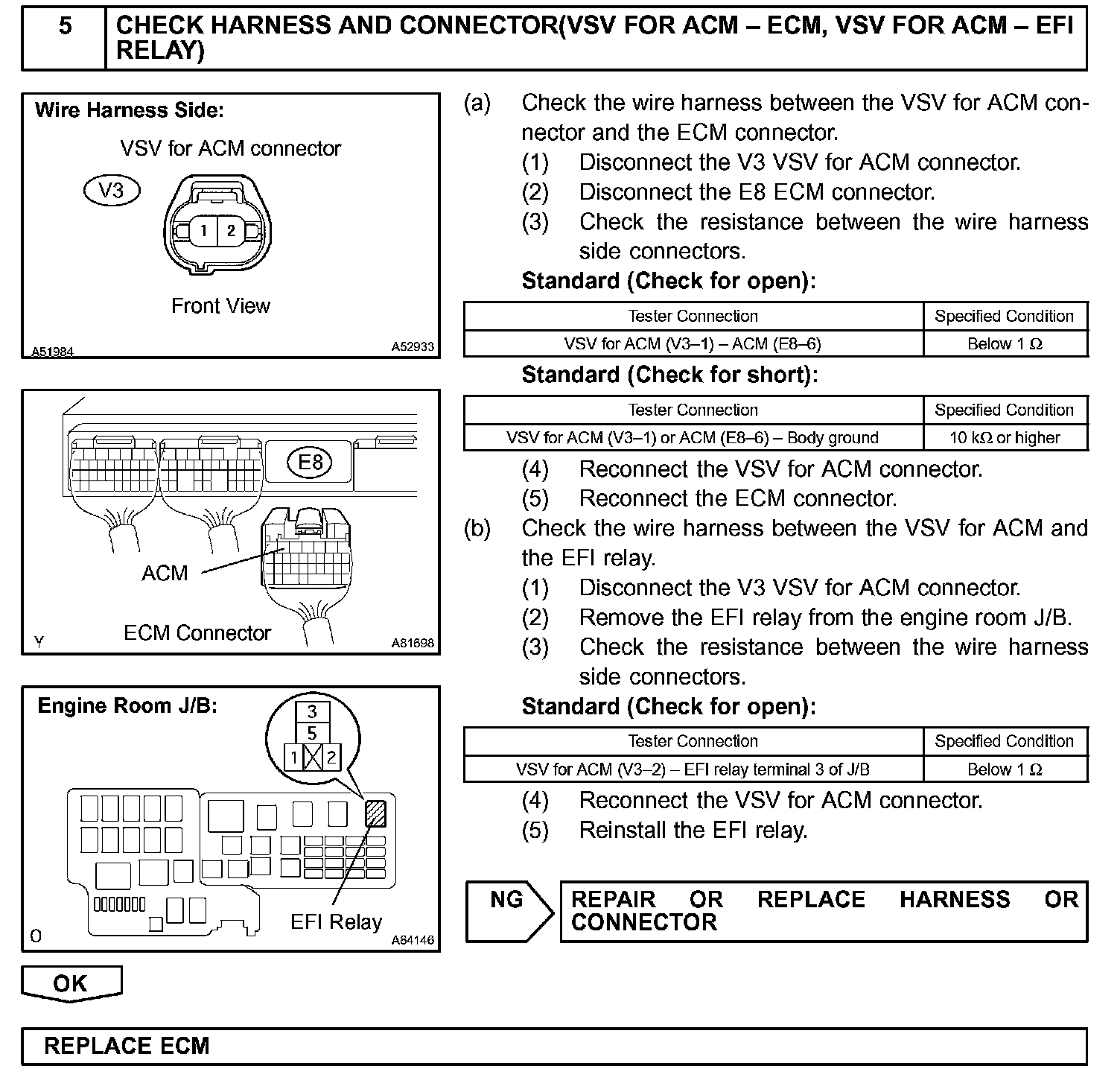

Step 5:

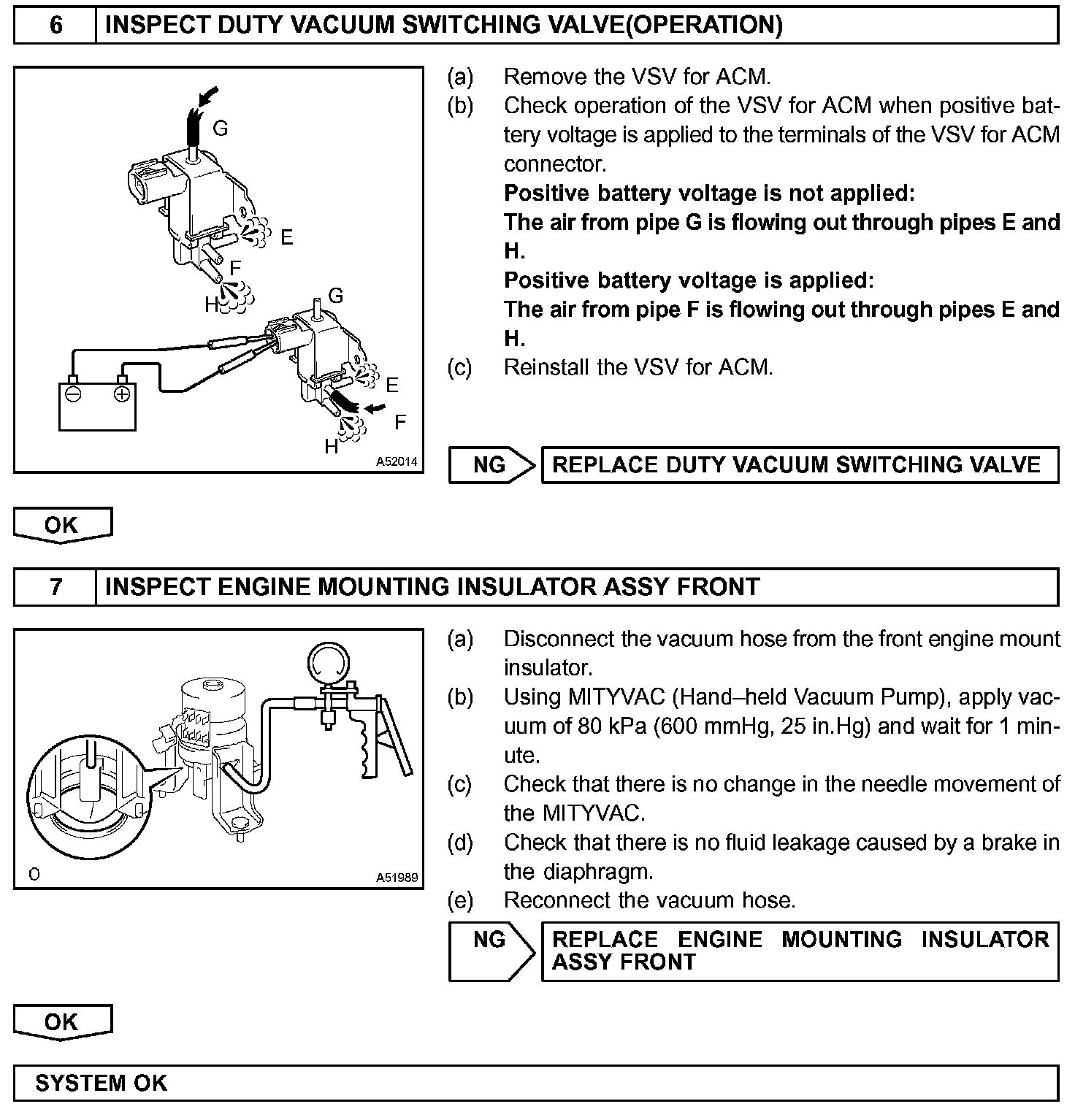

Step 6 - 7:

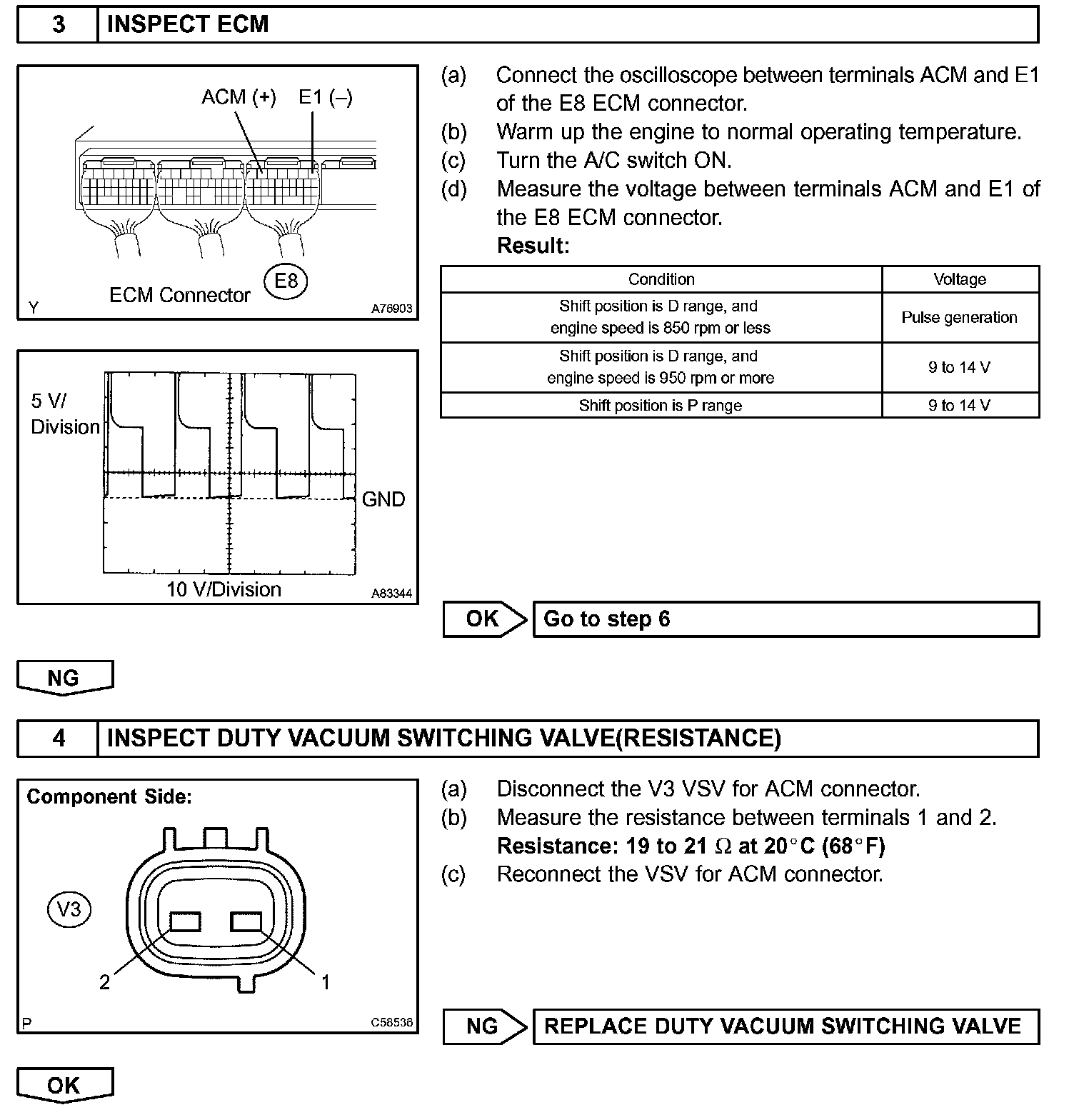

INSPECTION PROCEDURE
