Canada - Engine - Main Bearing Journal Diameter Stamping

Bulletin
TSB2045

Issue Date
October 26, 2004

Title
MAIN BEARING JOURNAL DIAMETER STAMPING LOCATION REVISION

Component
GENERAL INFORMATION

Models
'04 - '05 ES 330 & RX 330

The main bearing journal diameter stamp location has been changed on some 2004 and 2005 model year vehicles with 3MZ-FE engines. The stamping on the front of the block has been discontinued. Review this TSB for the stamping location.

APPLICABLE VEHICLES:
- 2004 - 2005 model year ES 330 and RX 330 vehicles meeting the following specifications:
- 3MZ-FE equipped vehicles with engine serial numbers starting after 0138096.

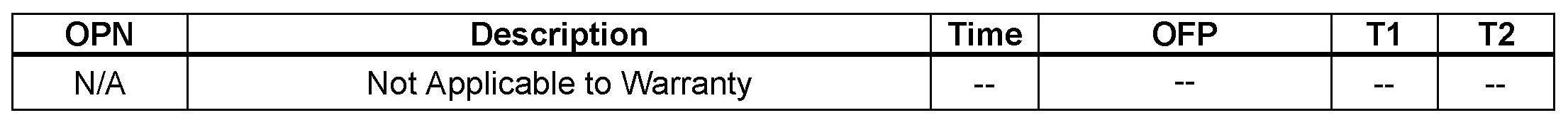

WARRANTY INFORMATION:

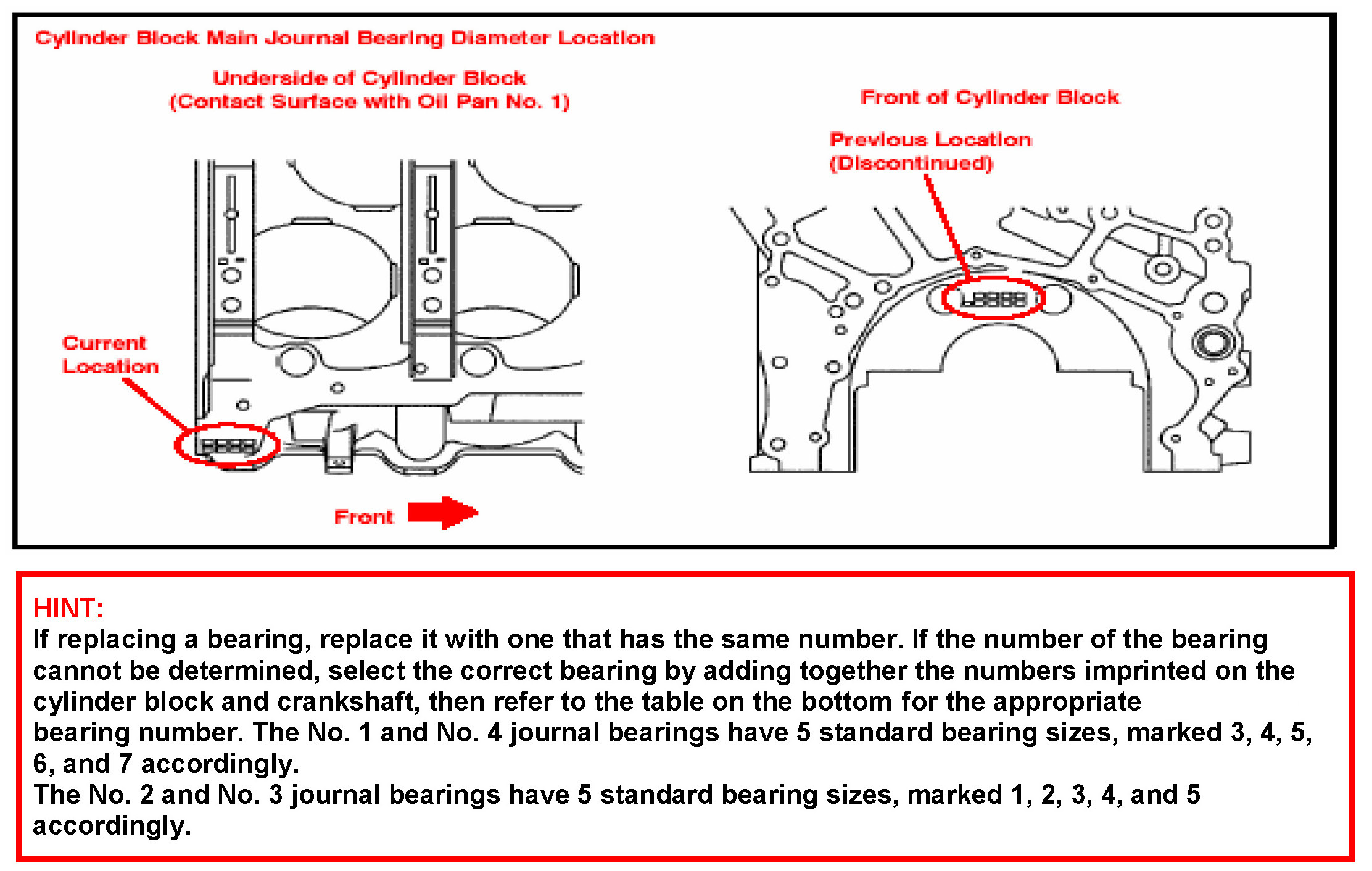

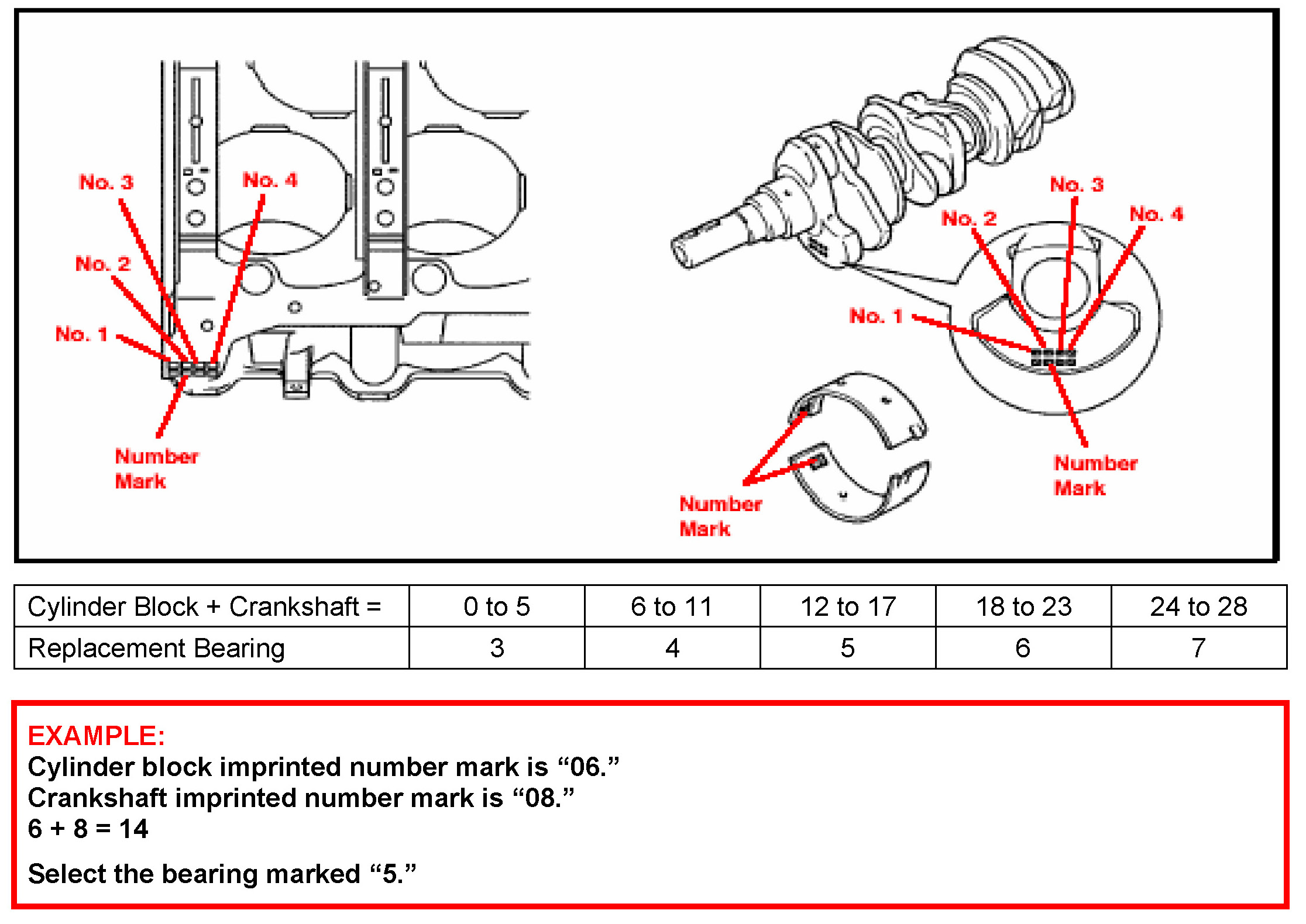

MAIN BEARING LOCATION:
