ABS Warning Light Circuit (Remains On)

ABS WARNING LIGHT CIRCUIT (REMAINS ON)

CIRCUIT DESCRIPTION
If the ECU detect trouble, it will prohibit ABS control, turn on the ABS warning light, and store the DTC. Connect terminals TC and CG of the DLC3 to make the ABS warning light blink and output the DTC.

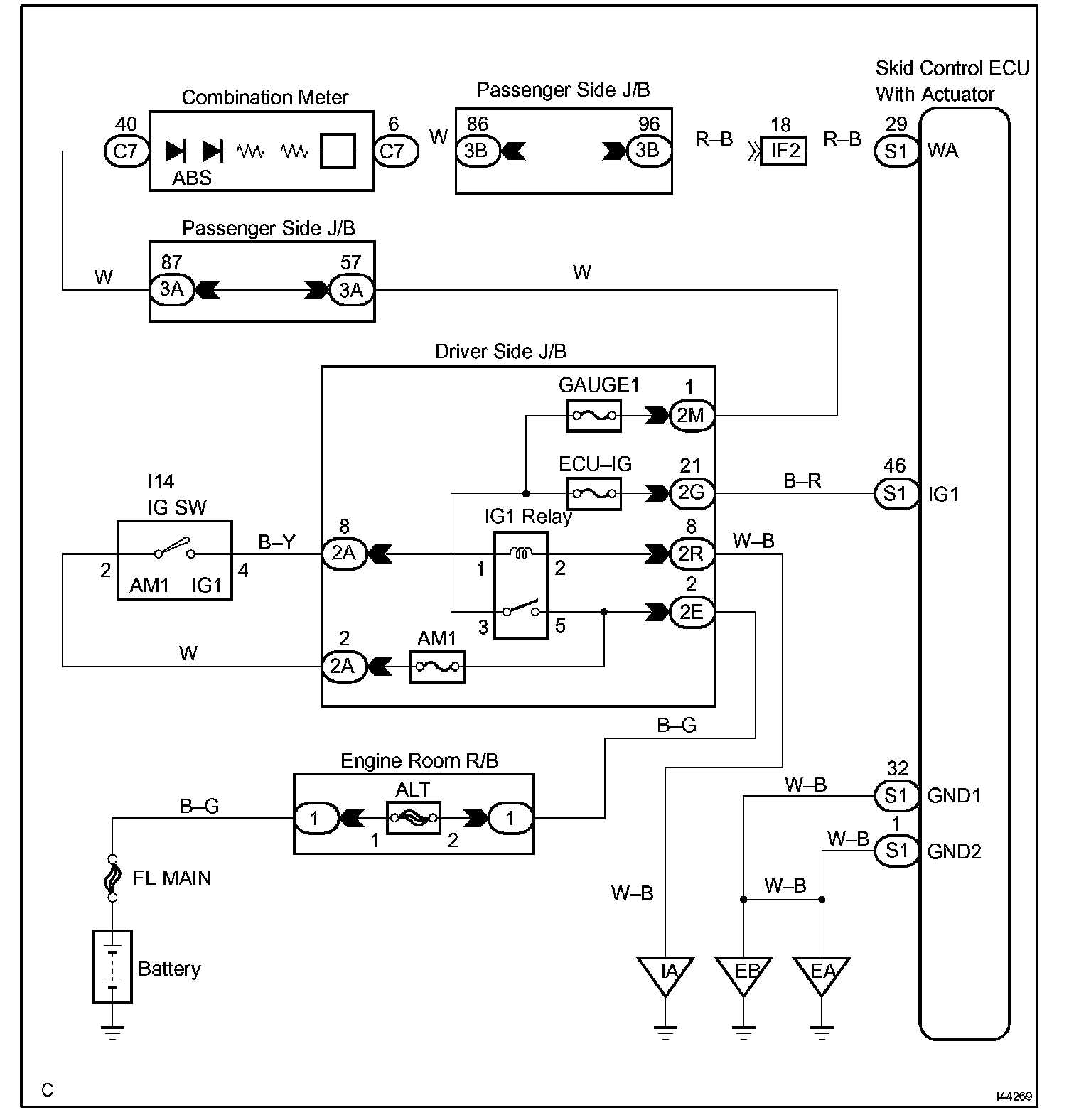

Wiring Diagram:

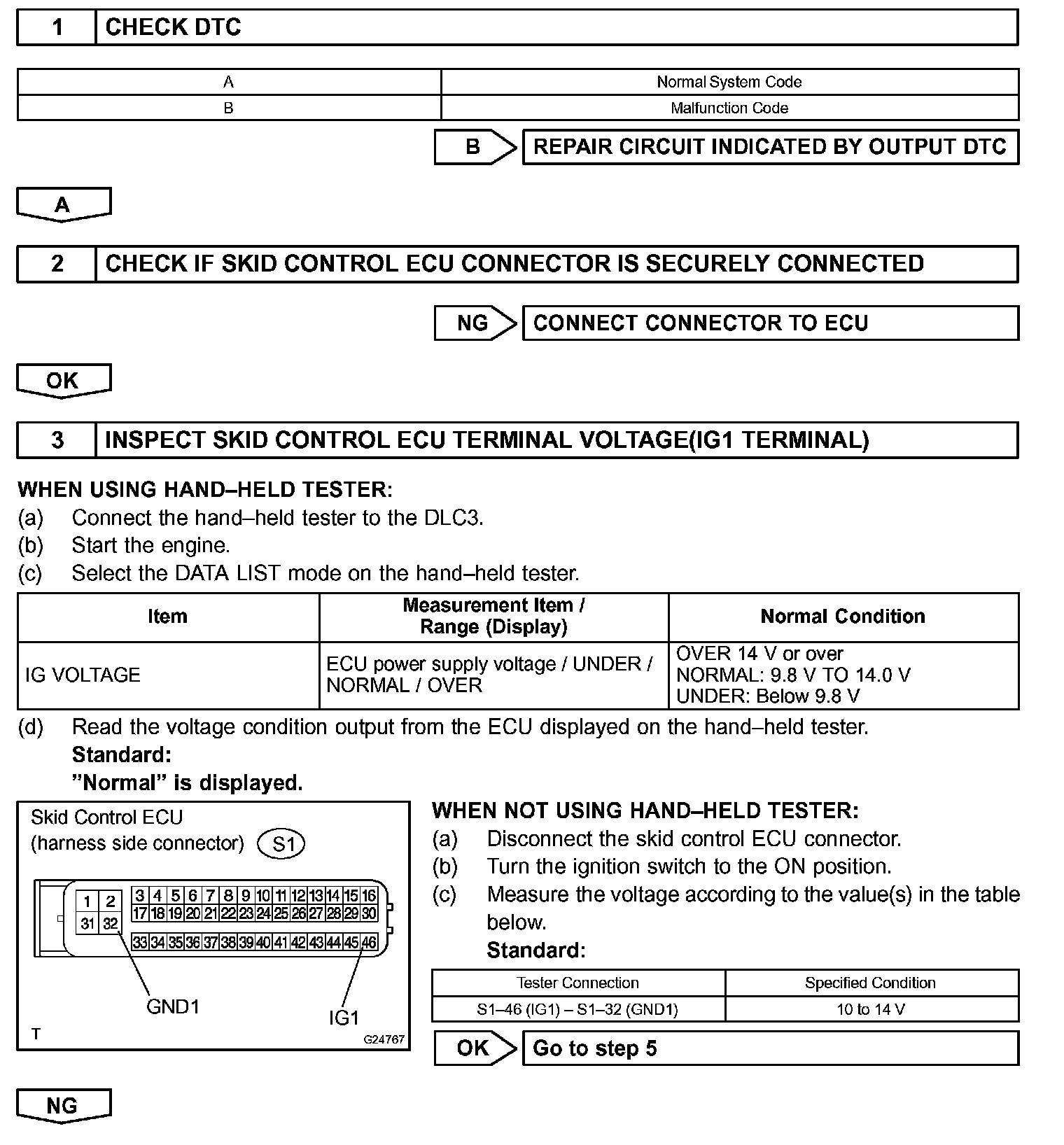

Step 1 - 3:

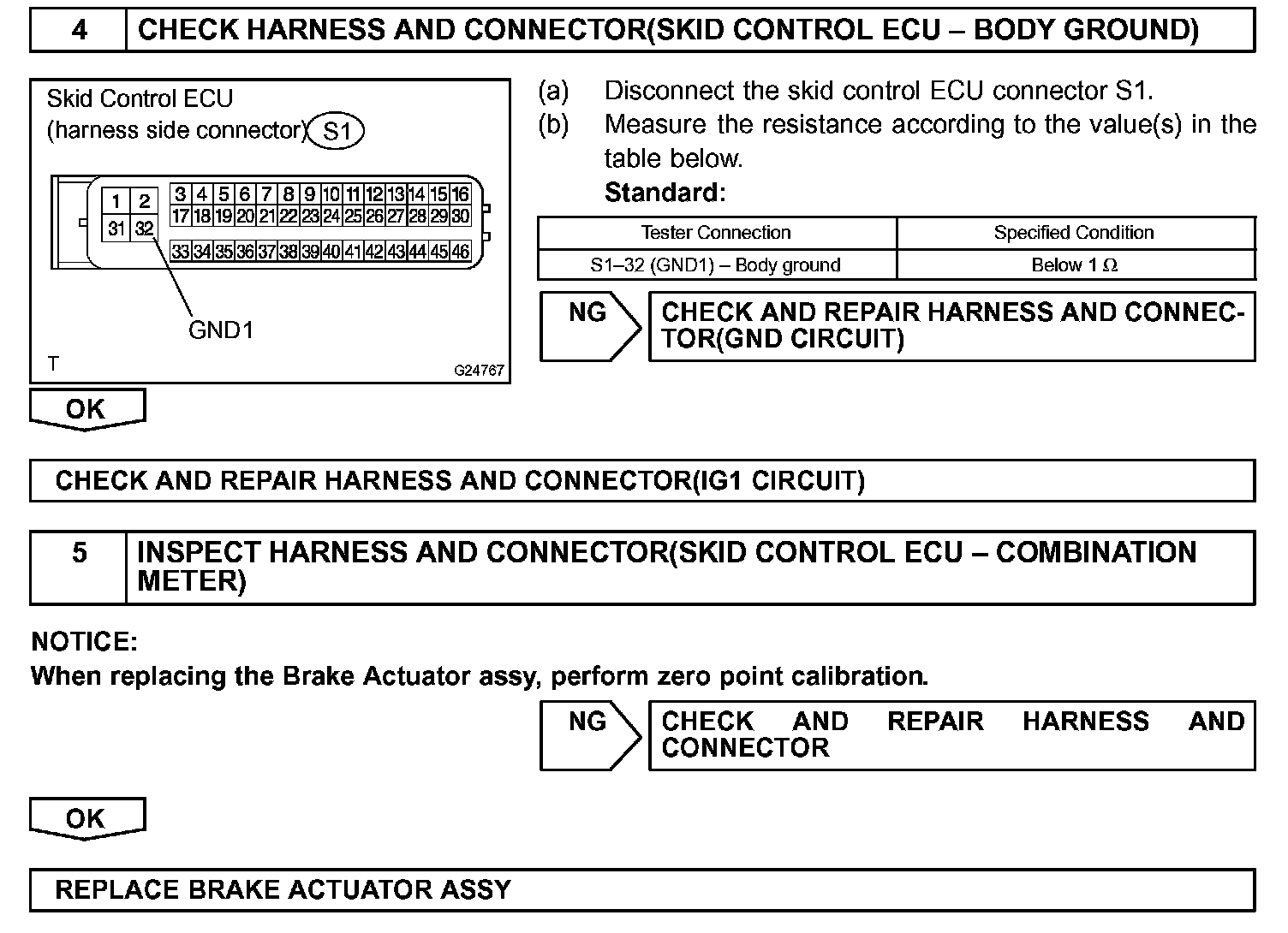

Step 4 - 5:

INSPECTION PROCEDURE
