Home >> Lexus >> 2005 >> ES 330 V6-3.3L (3MZ-FE) >> Repair and Diagnosis >> Brakes and Traction Control >> Antilock Brakes / Traction Control Systems >> Testing and Inspection >> Pinout Values and Diagnostic Parameters >> ABS W/EBD System

ABS W/EBD System

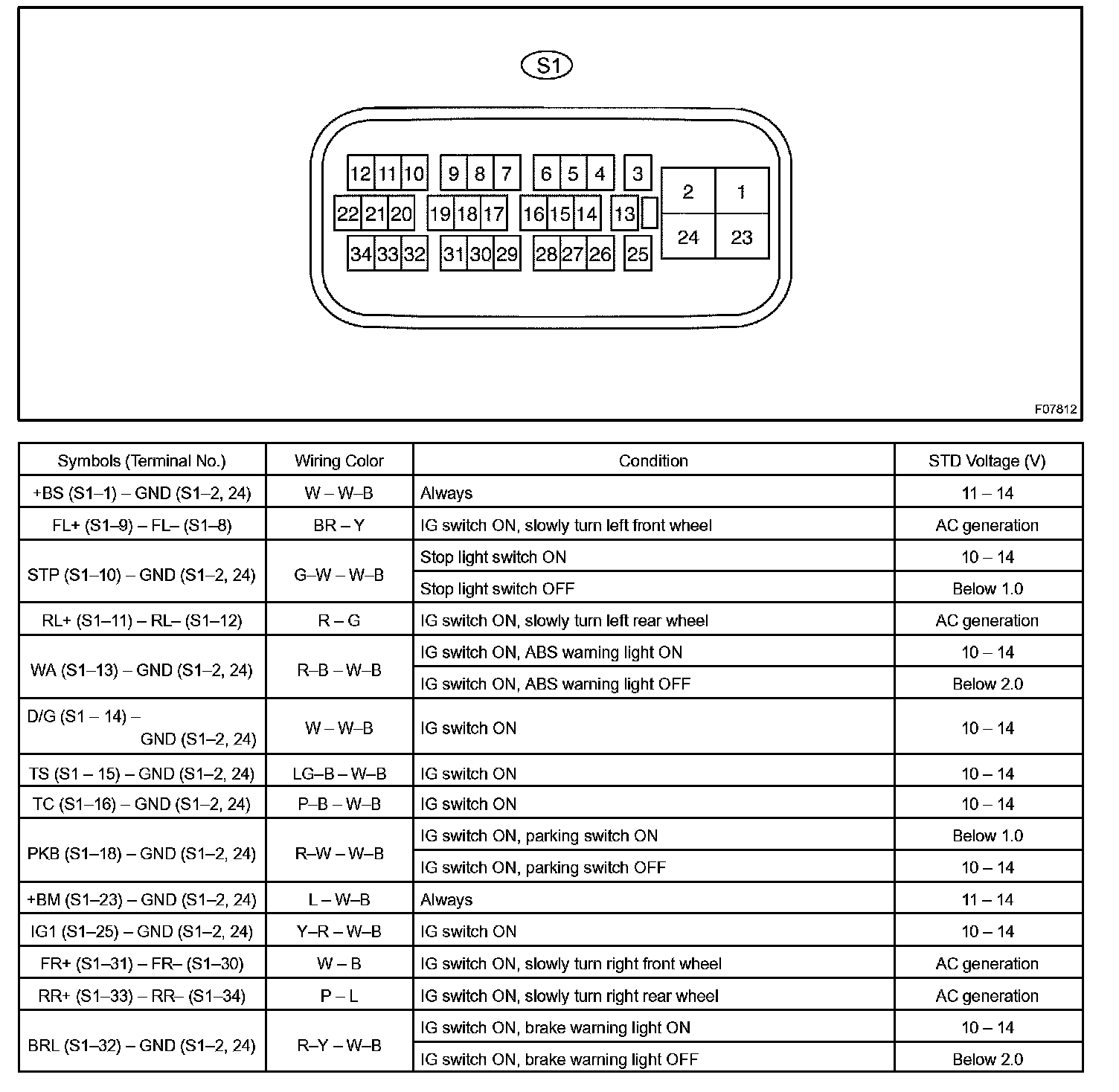

Terminals Of Control Module/Pinouts:



Terminals Of Control Module/Pinouts Part 1:

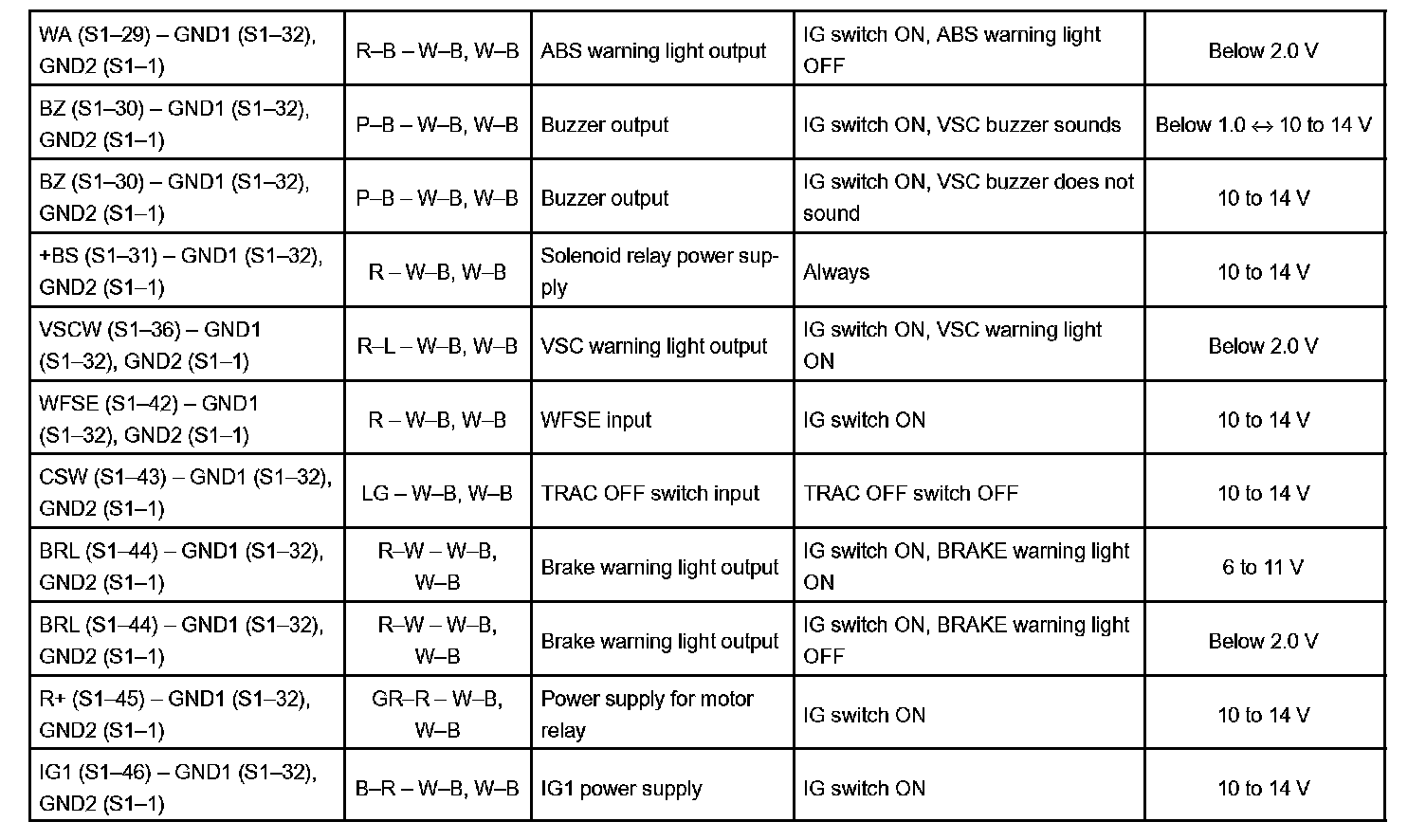

Terminals Of Control Module/Pinouts Part 2:
