Brake Warning Light Circuit

BRAKE WARNING LIGHT CIRCUIT

CIRCUIT DESCRIPTION
The brake warning light lights up when the brake fluid is insufficient, the EBD is abnormal, or the parking brake is applied.

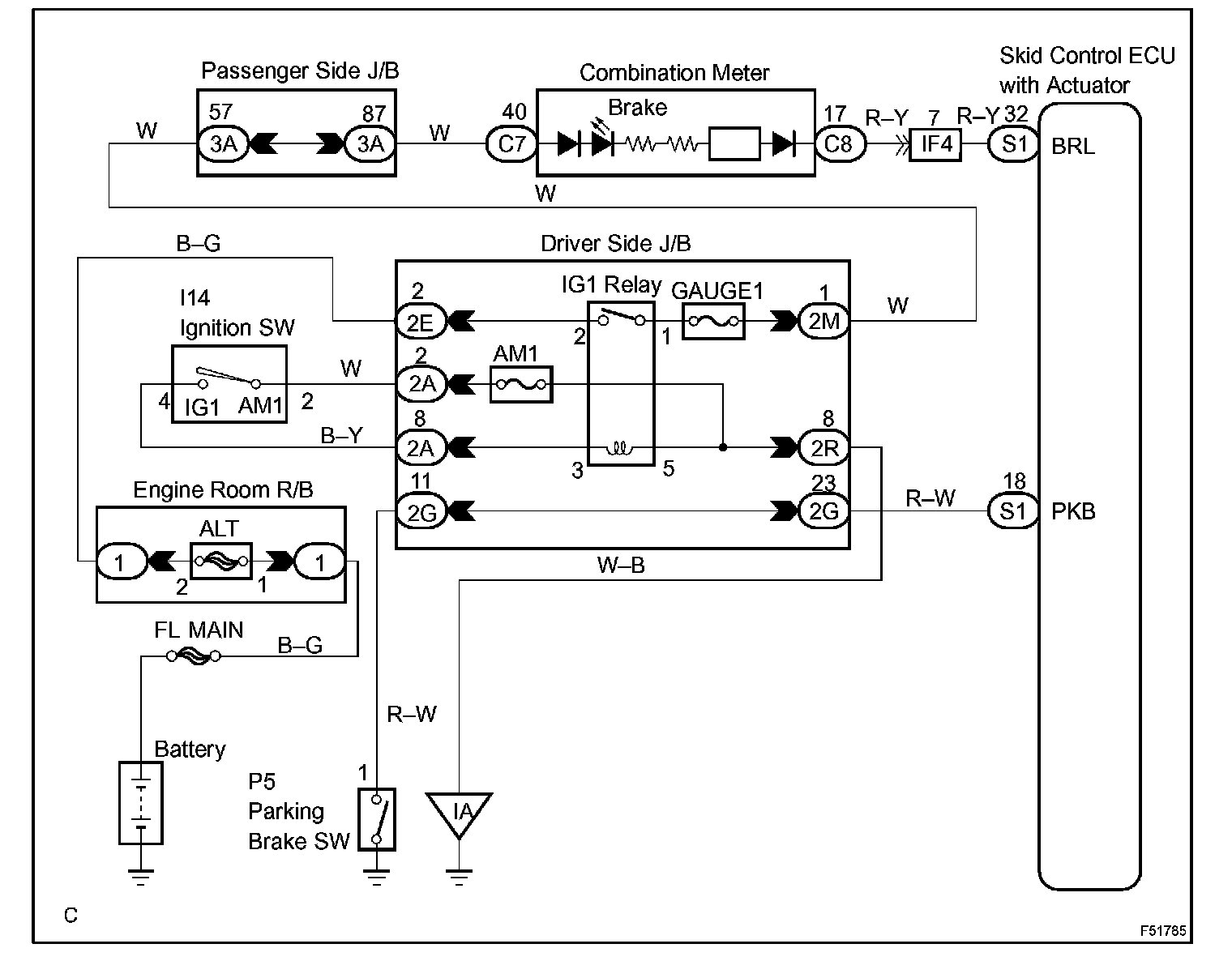

Wiring Diagram:

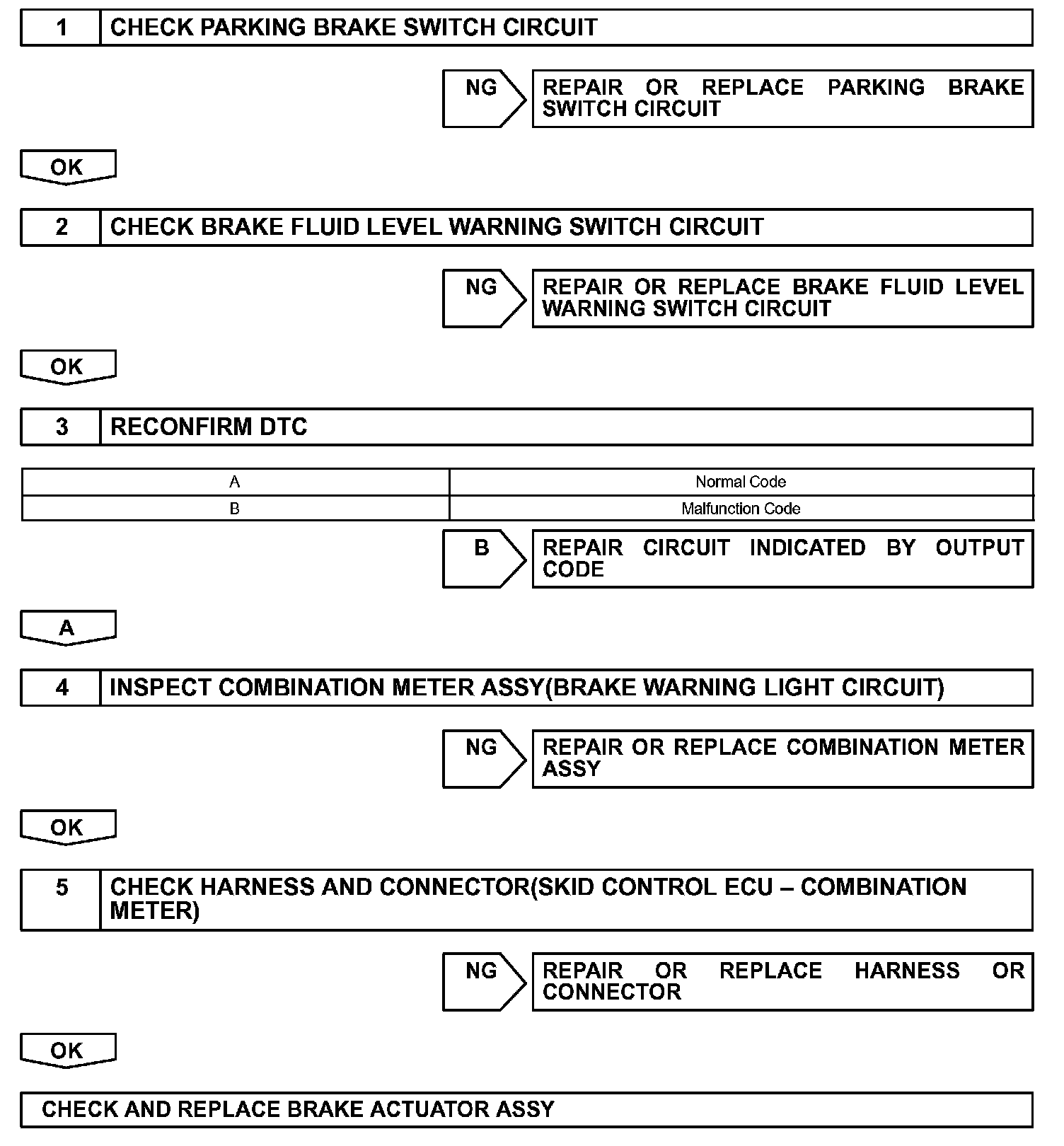

Step 1 - 5:




INSPECTION PROCEDURE
