Sound Quality Is Bad In All Modes (Volume Is Too Low)

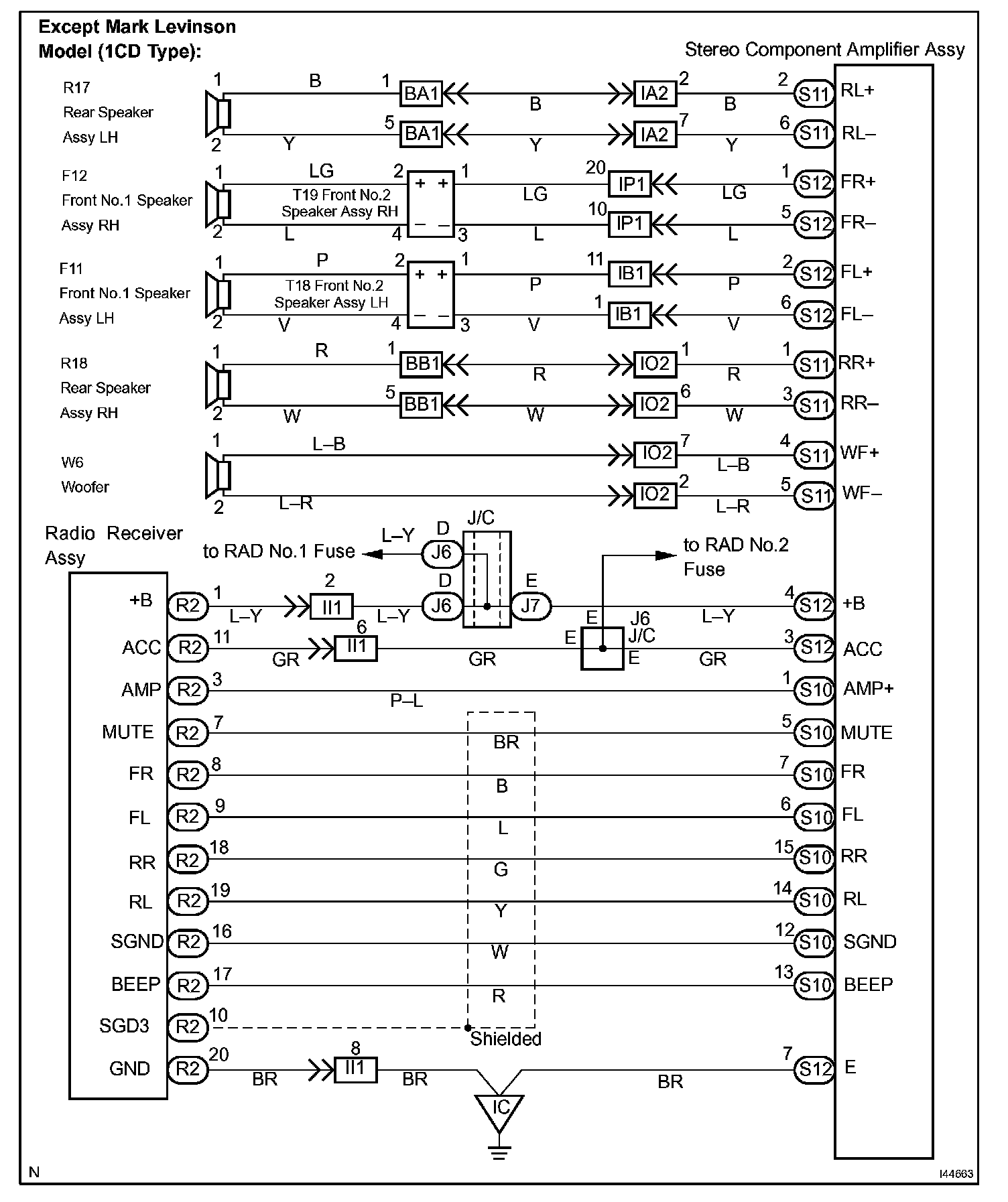

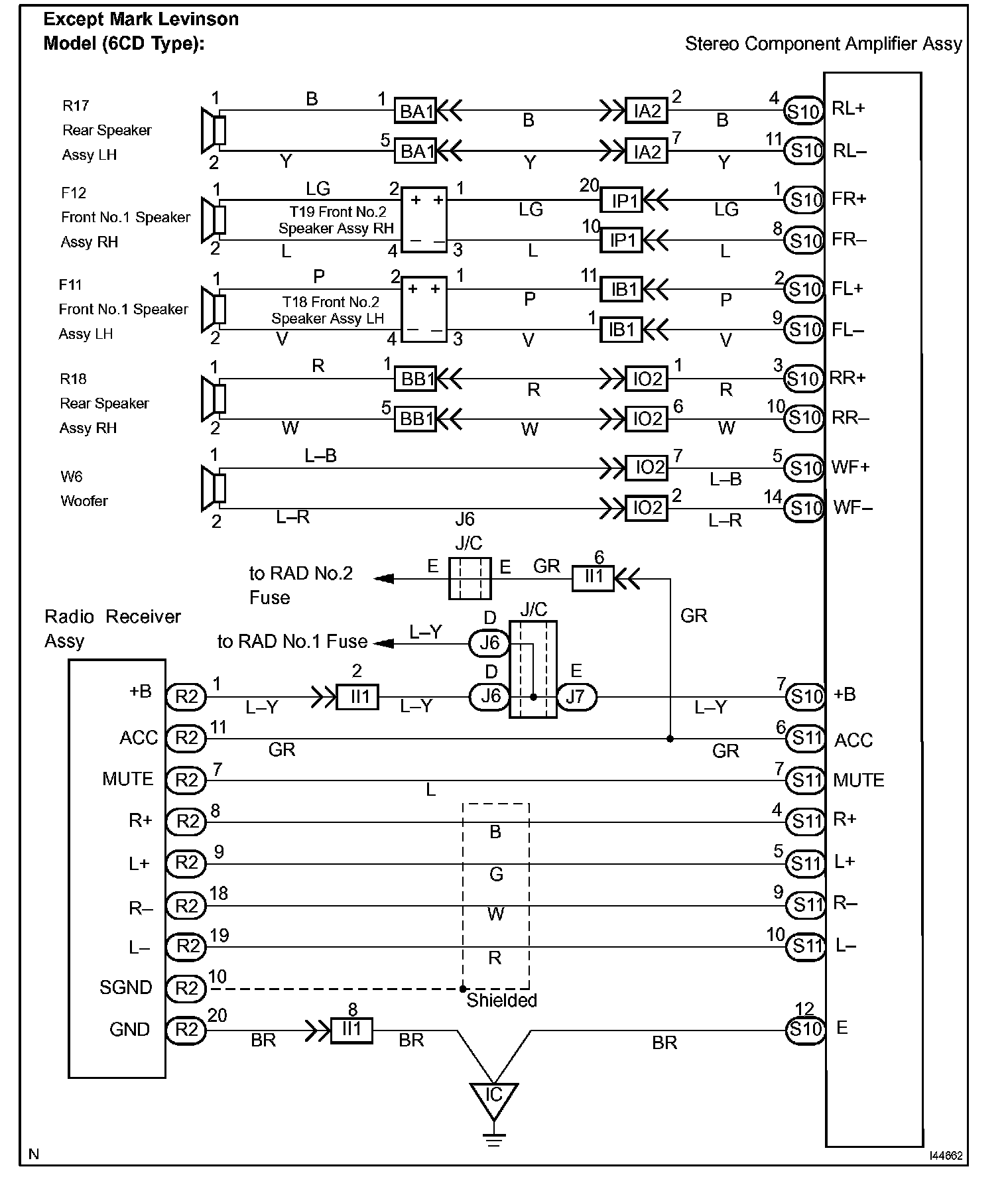

Wiring Diagram:

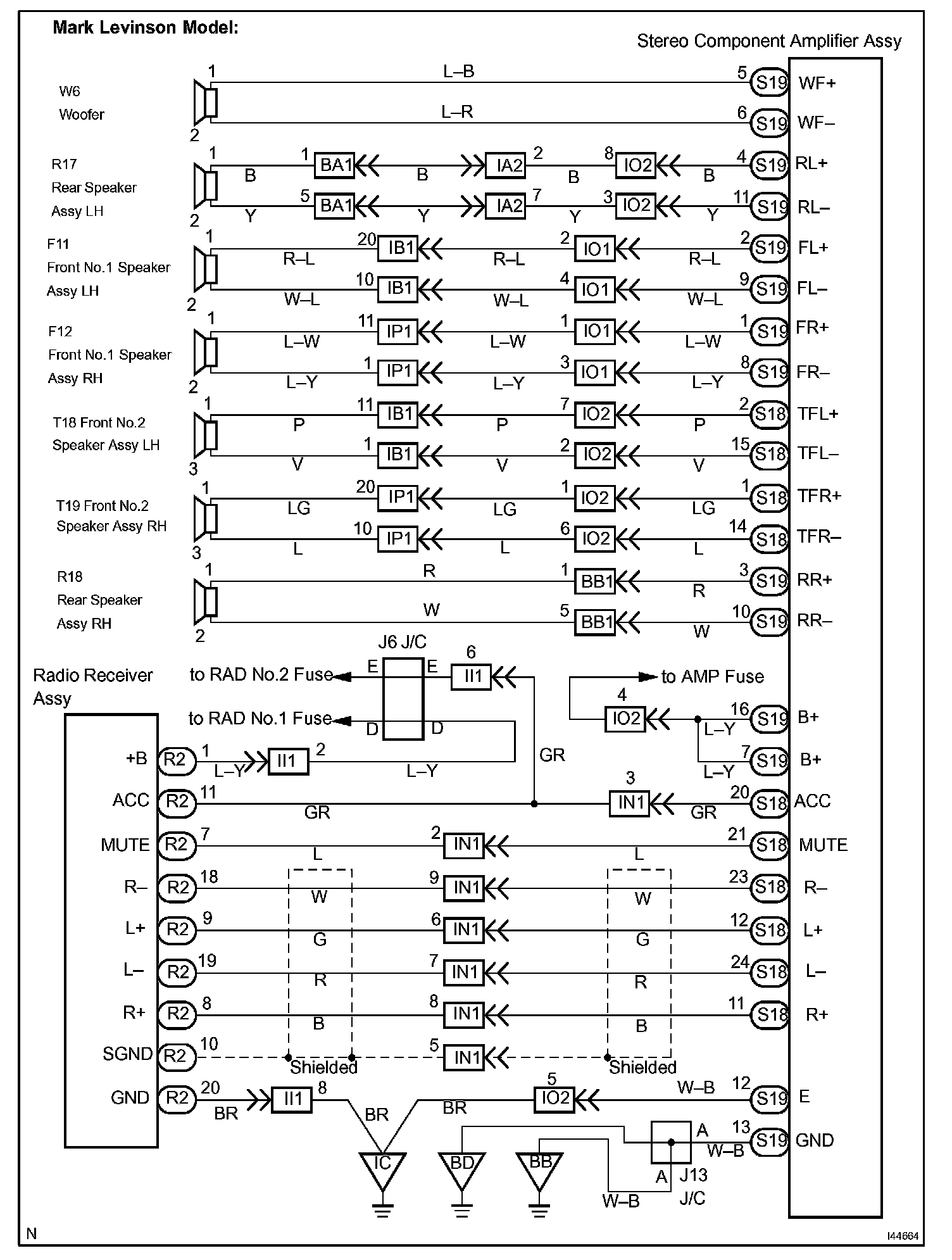

Wiring Diagram:

Wiring Diagram:

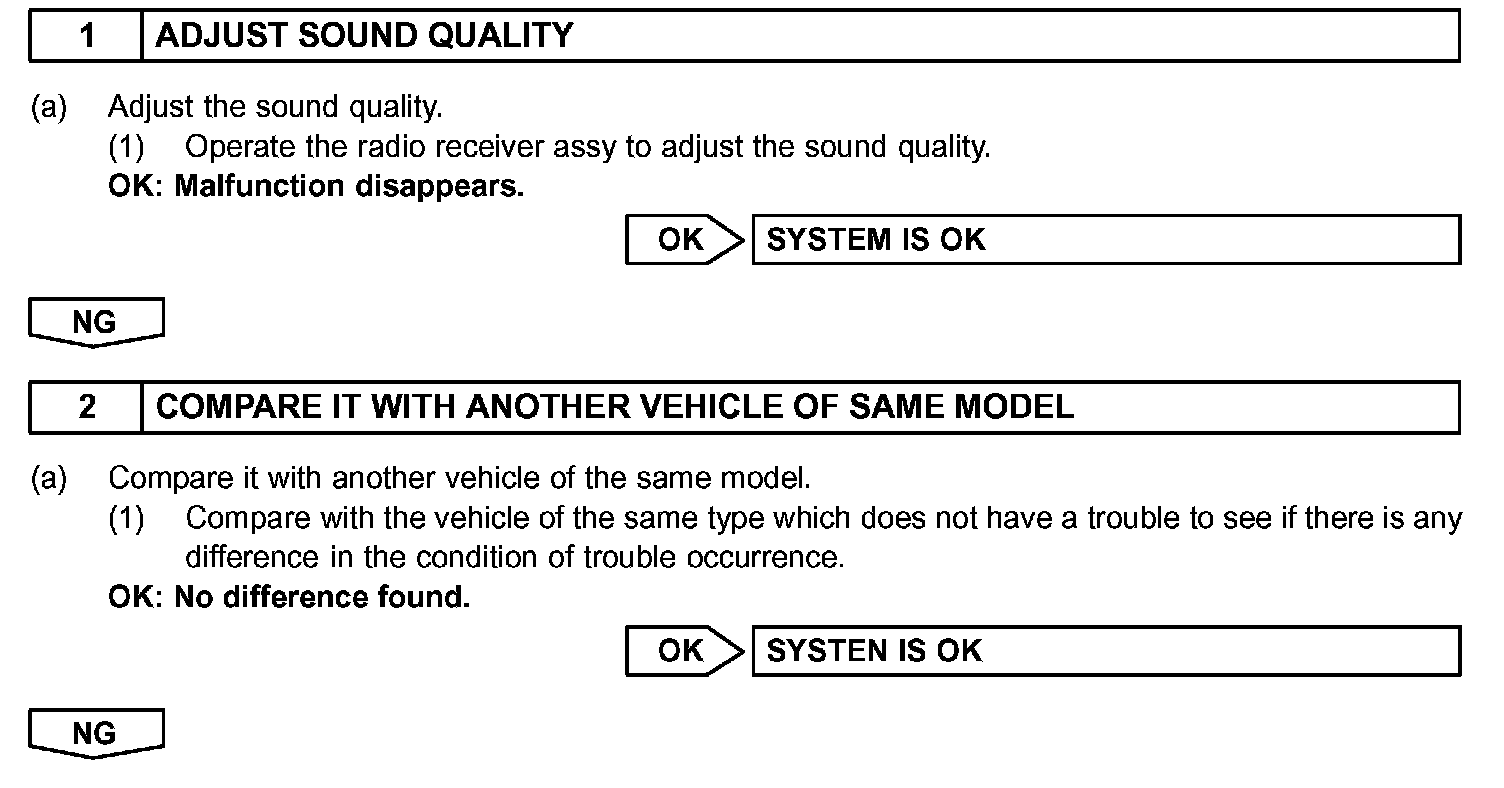

Step 1 - 2:

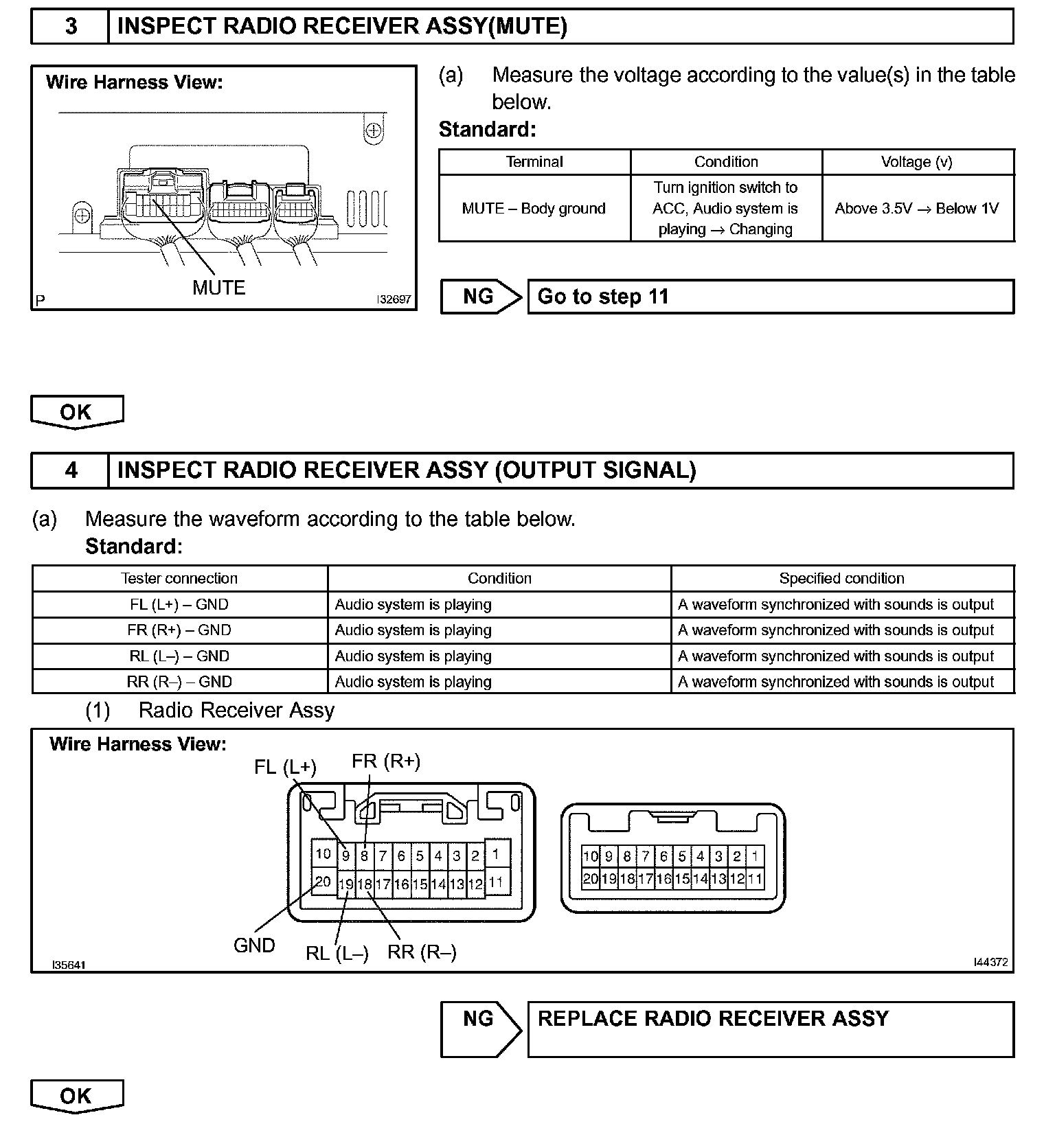

Step 3 - 4:

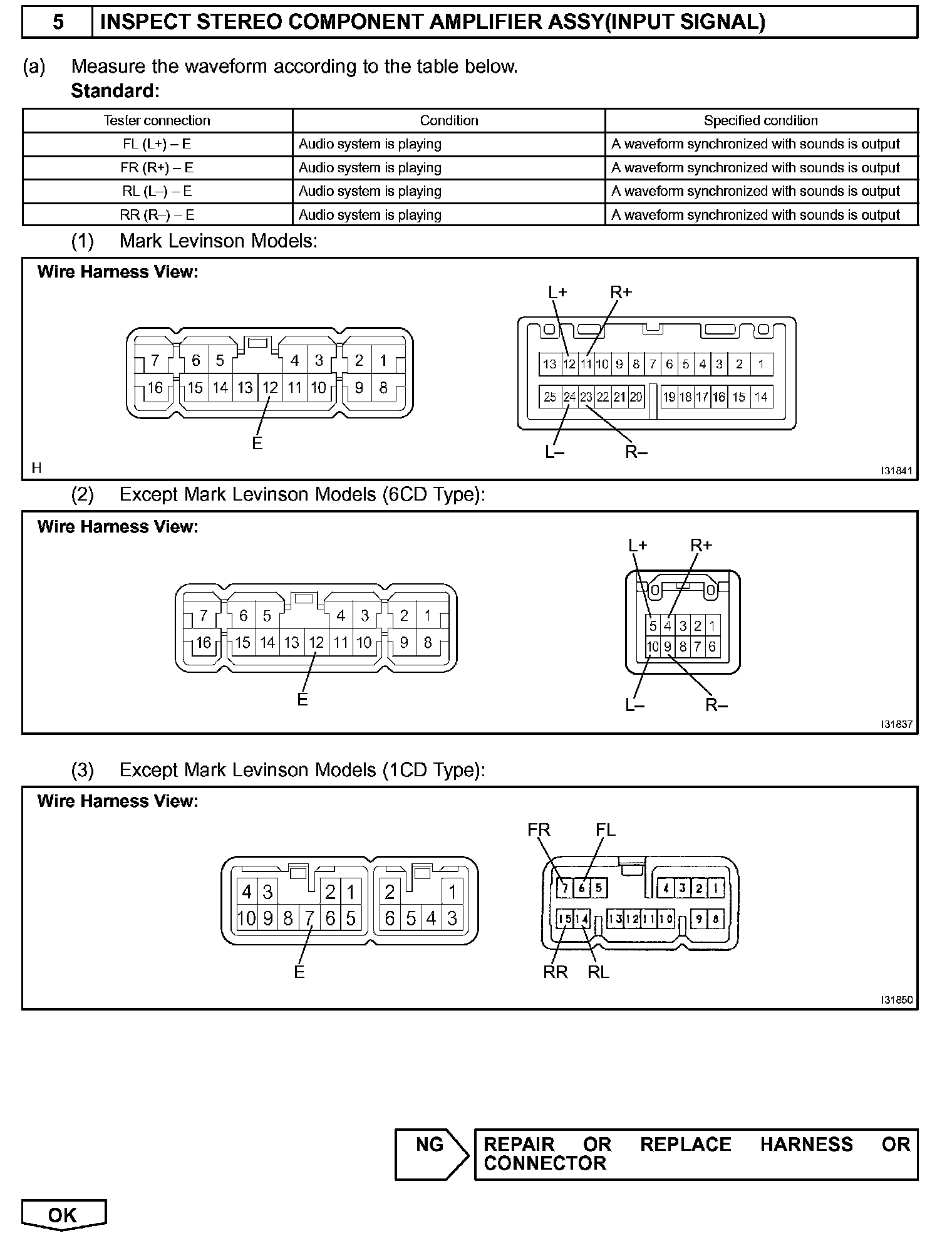

Step 5:

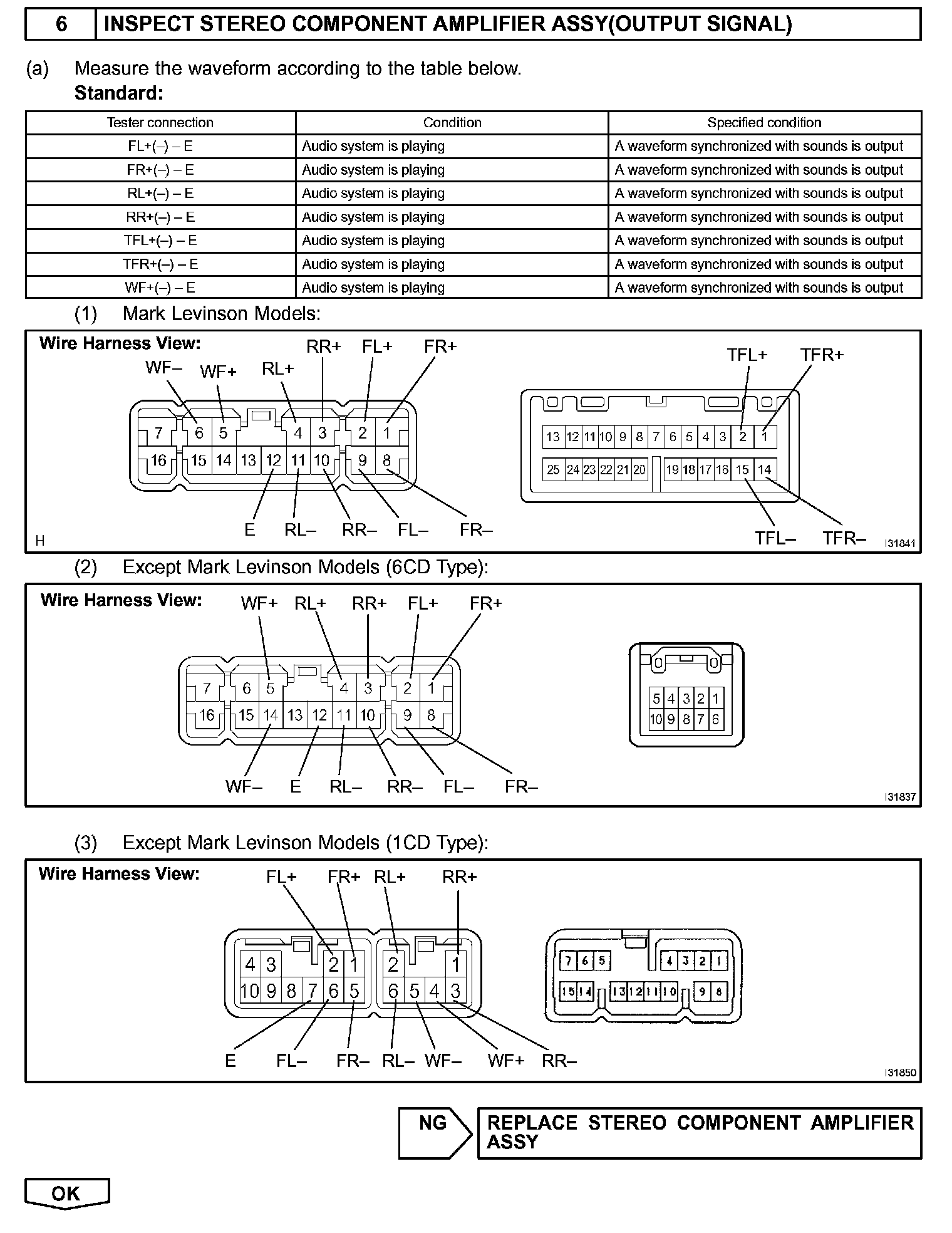

Step 6:

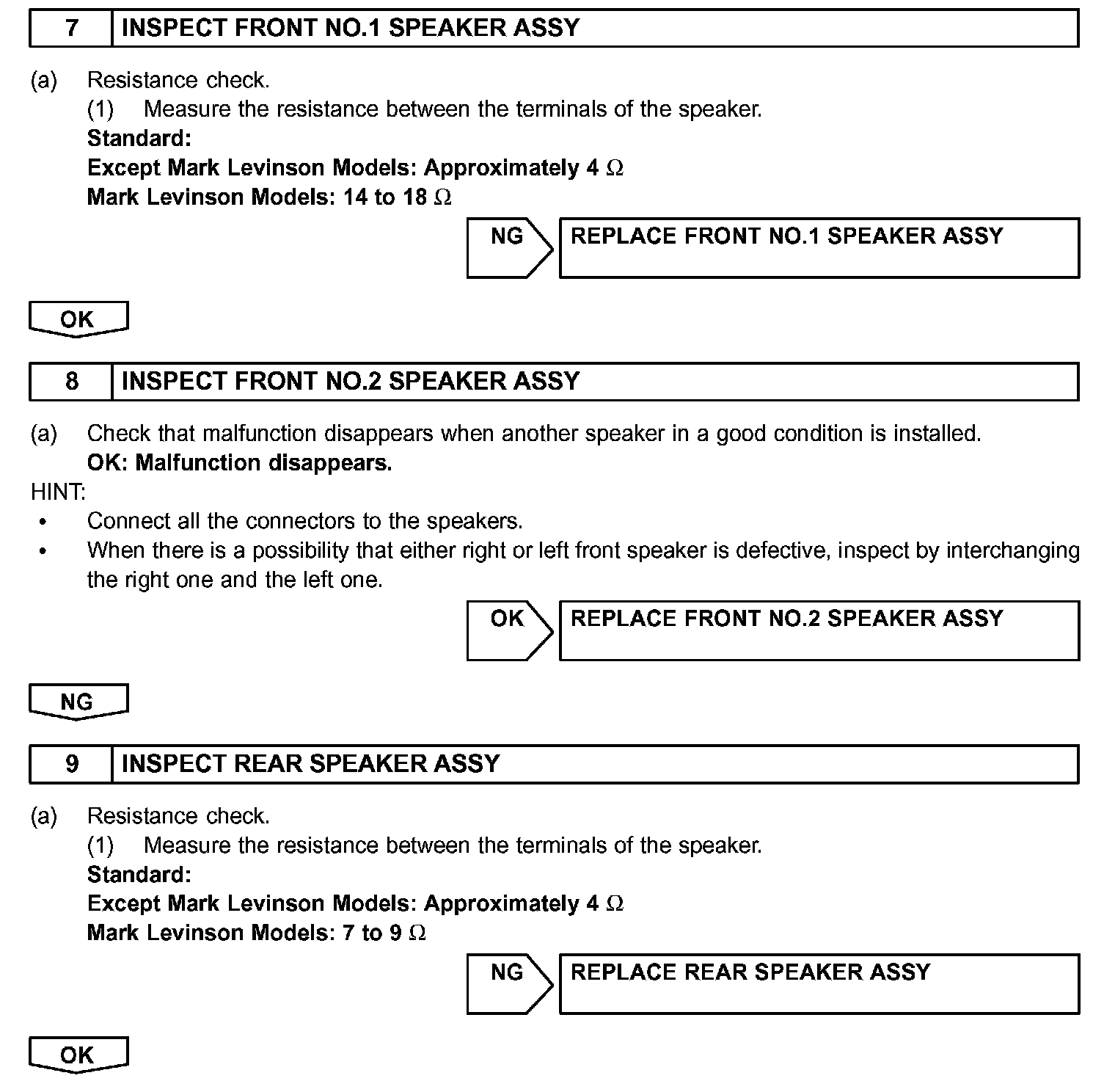

Step 7 - 9:

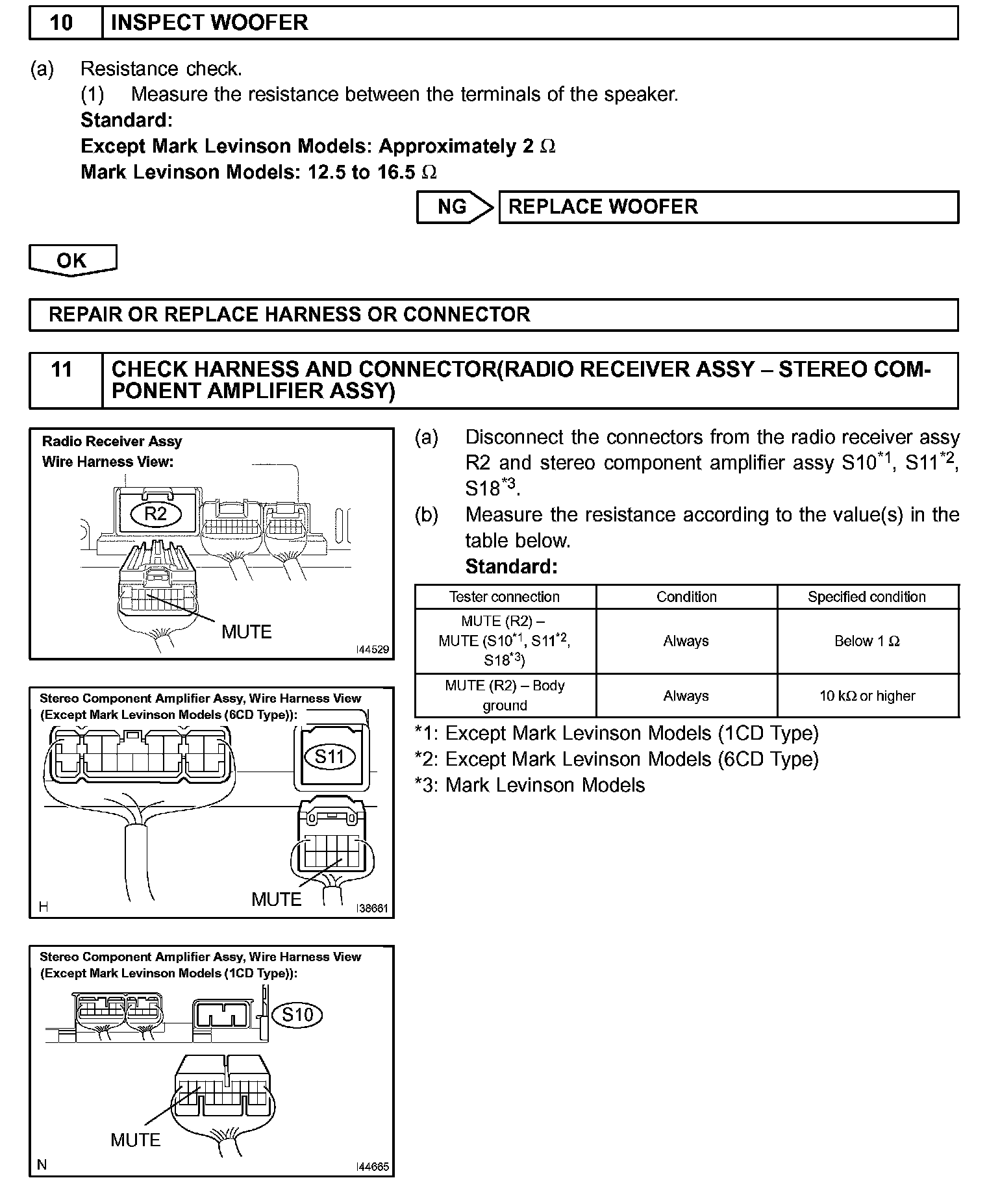

Step 10 - 11:

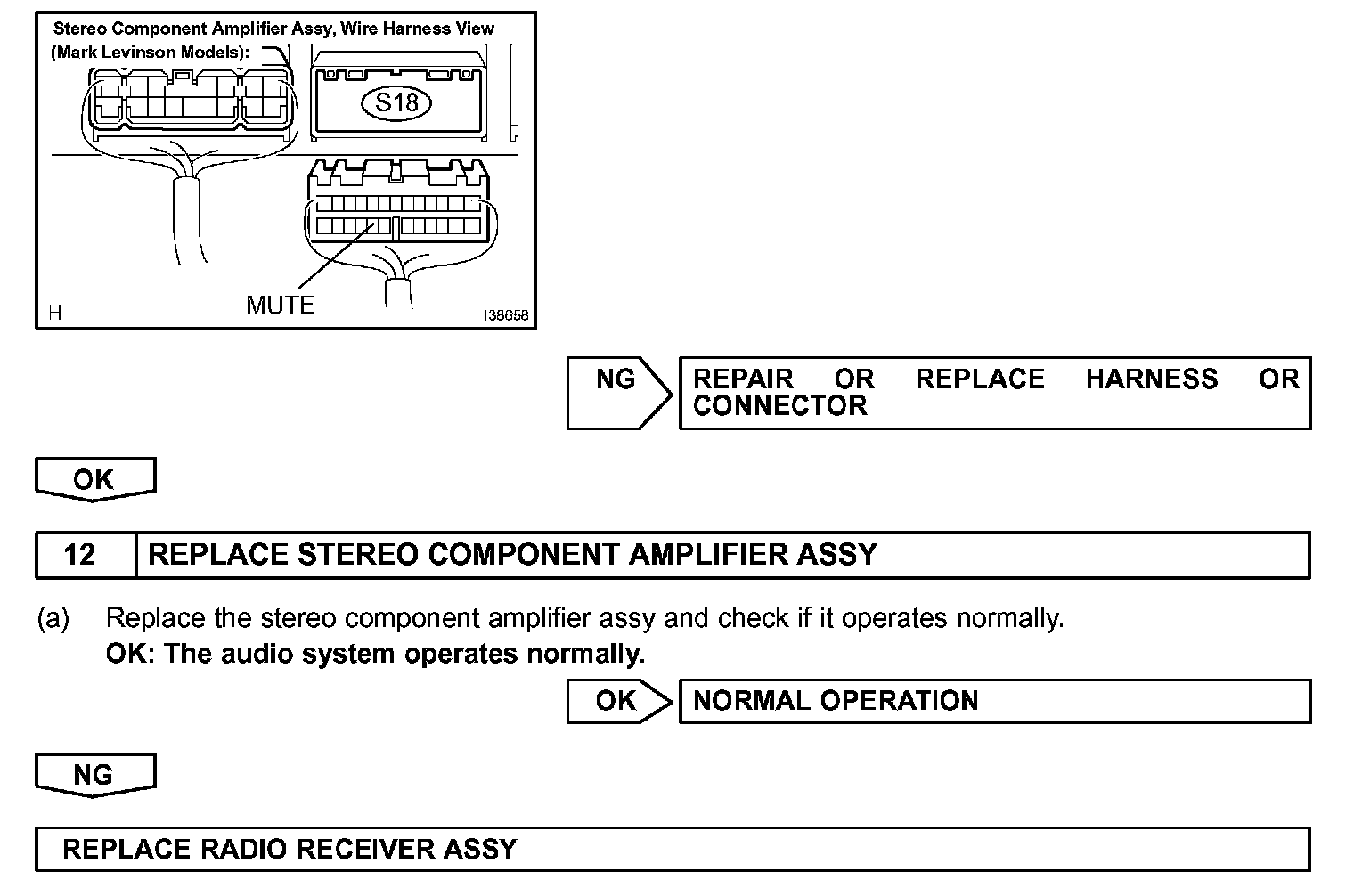

Step 11 (Contd.) - 12:
