Pinout Values and Diagnostic Parameters

TERMINALS OF ECU

Terminals Of Control Module/Pinouts:

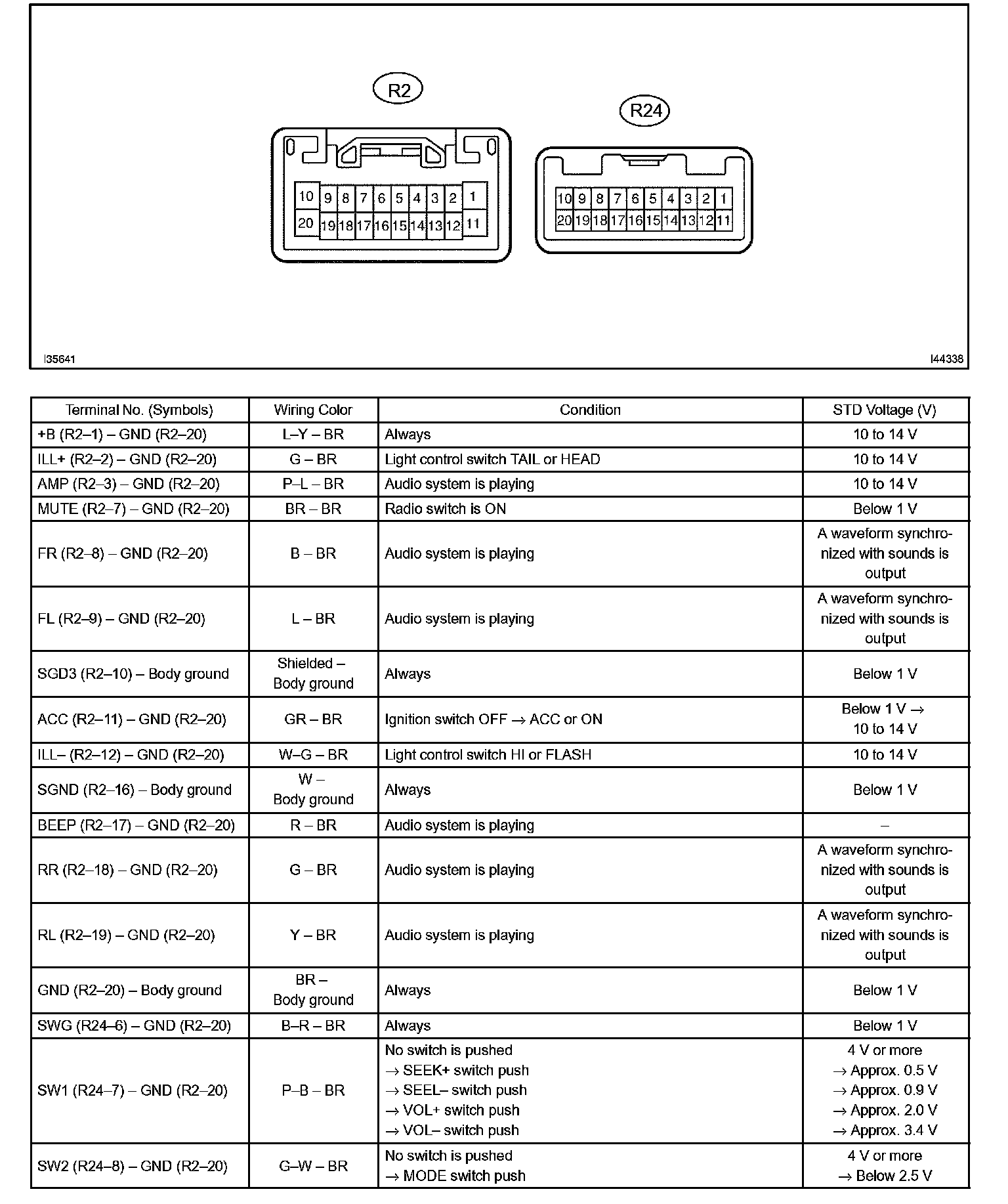

1. RADIO RECEIVER ASSY (6 CD TYPE)

Terminals Of Control Module/Pinouts:

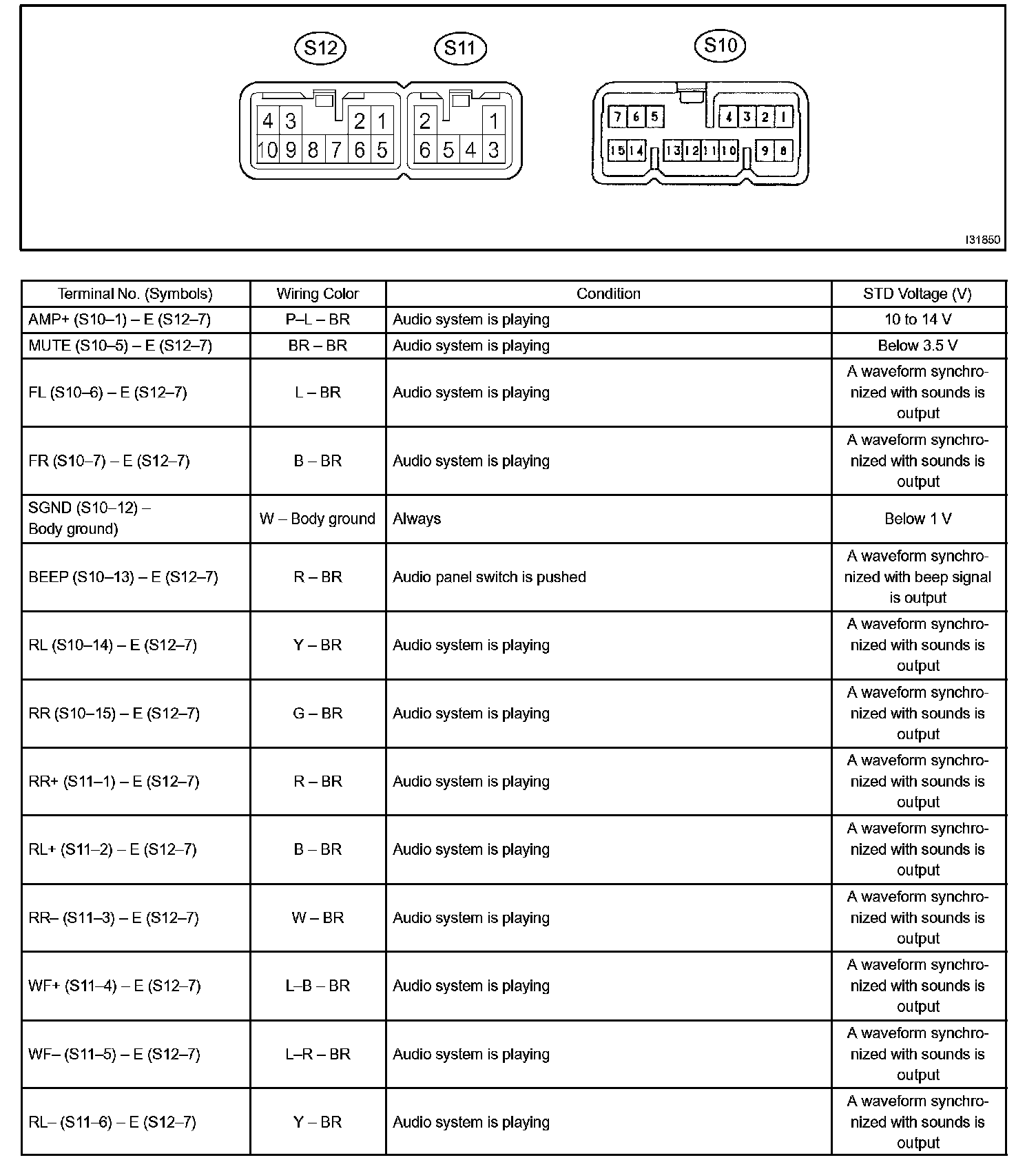

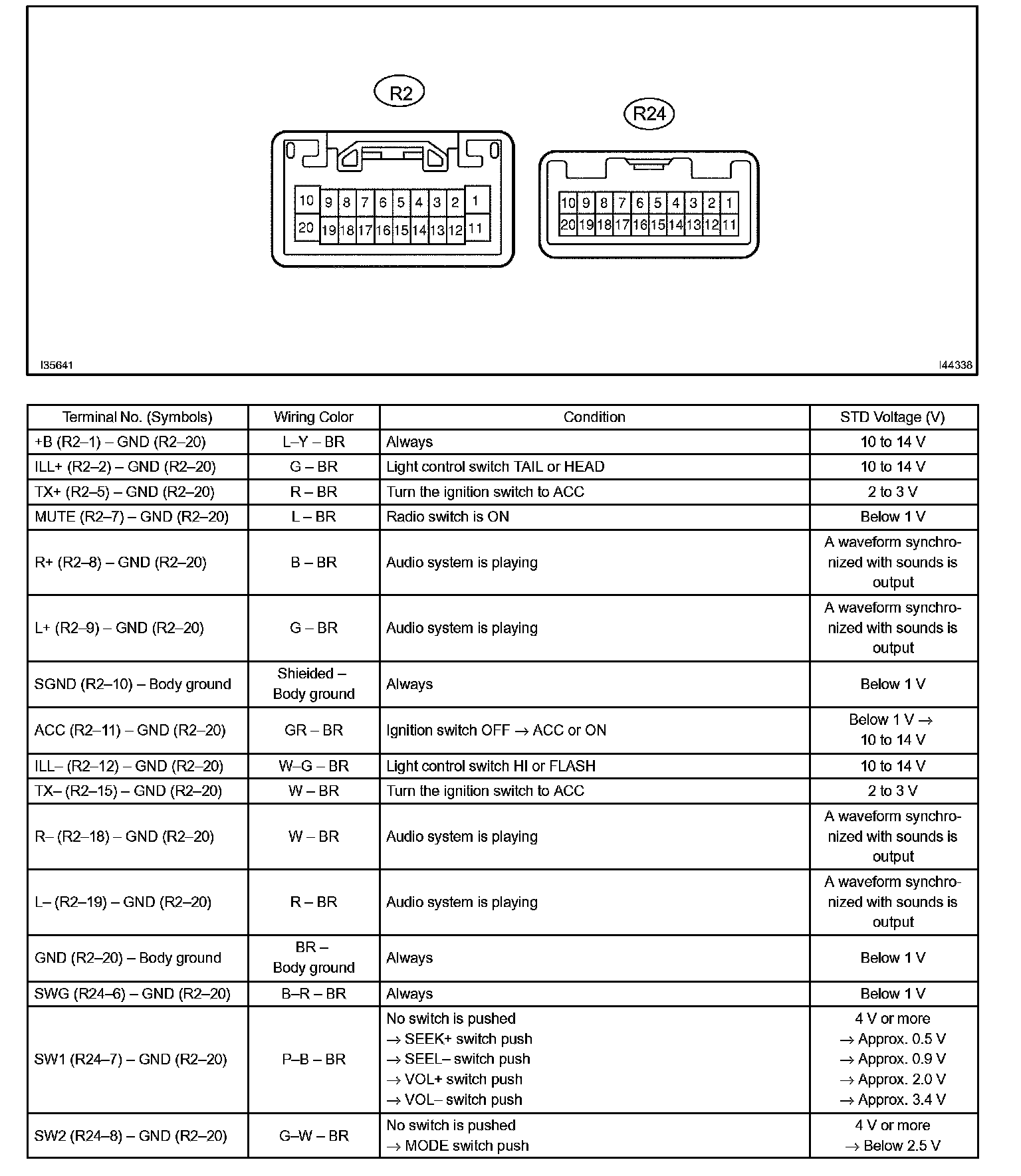

2. RADIO RECEIVER ASSY (1 CD TYPE)

Terminals Of Control Module/Pinouts Part 1:

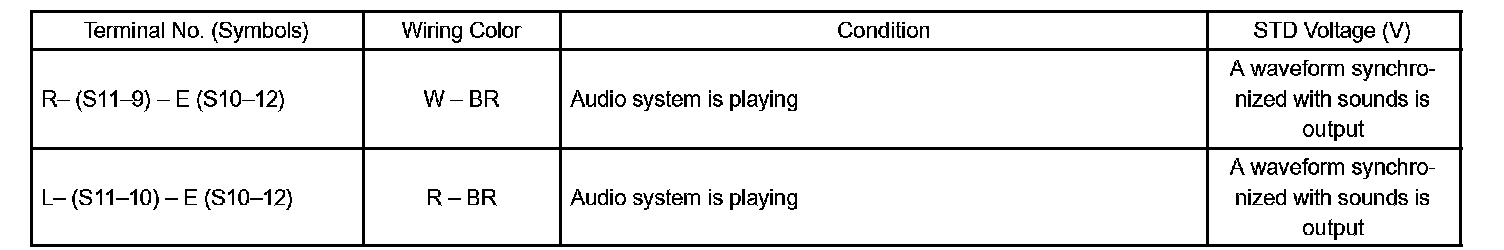

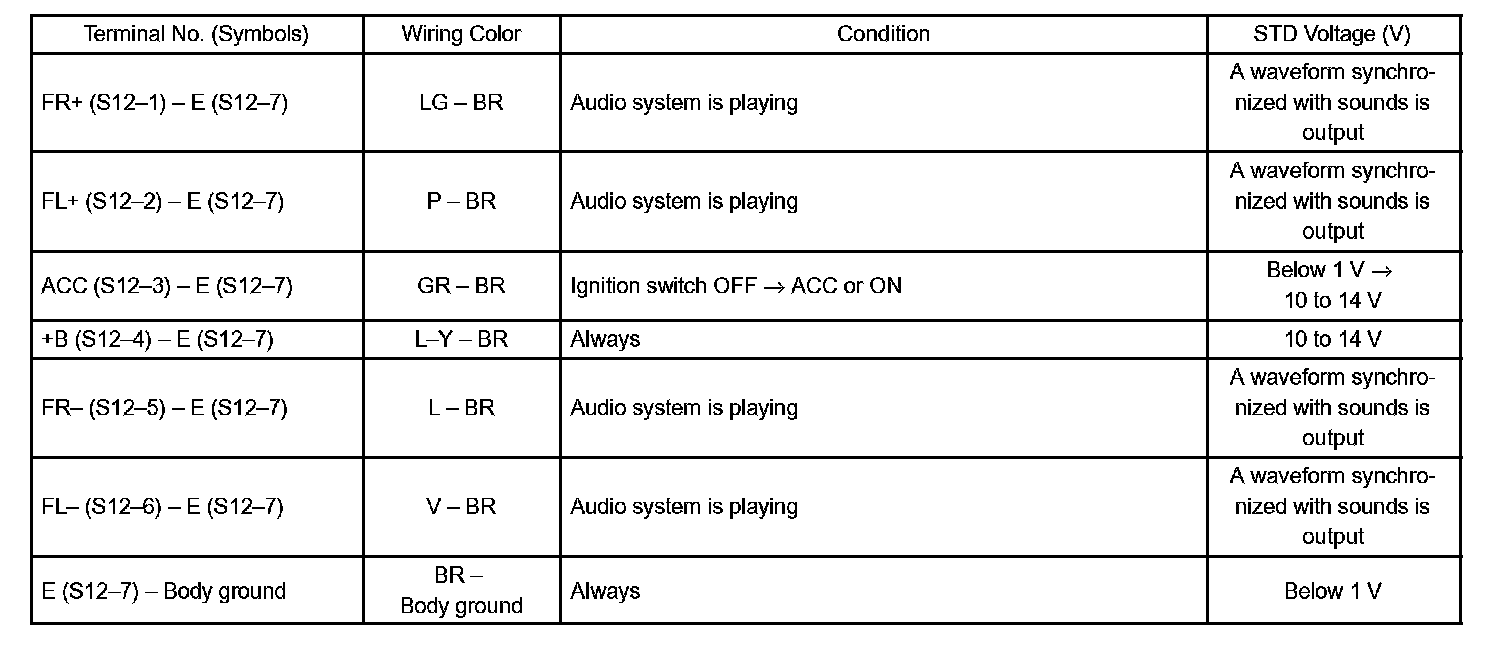

Terminals Of Control Module/Pinouts Part 2:

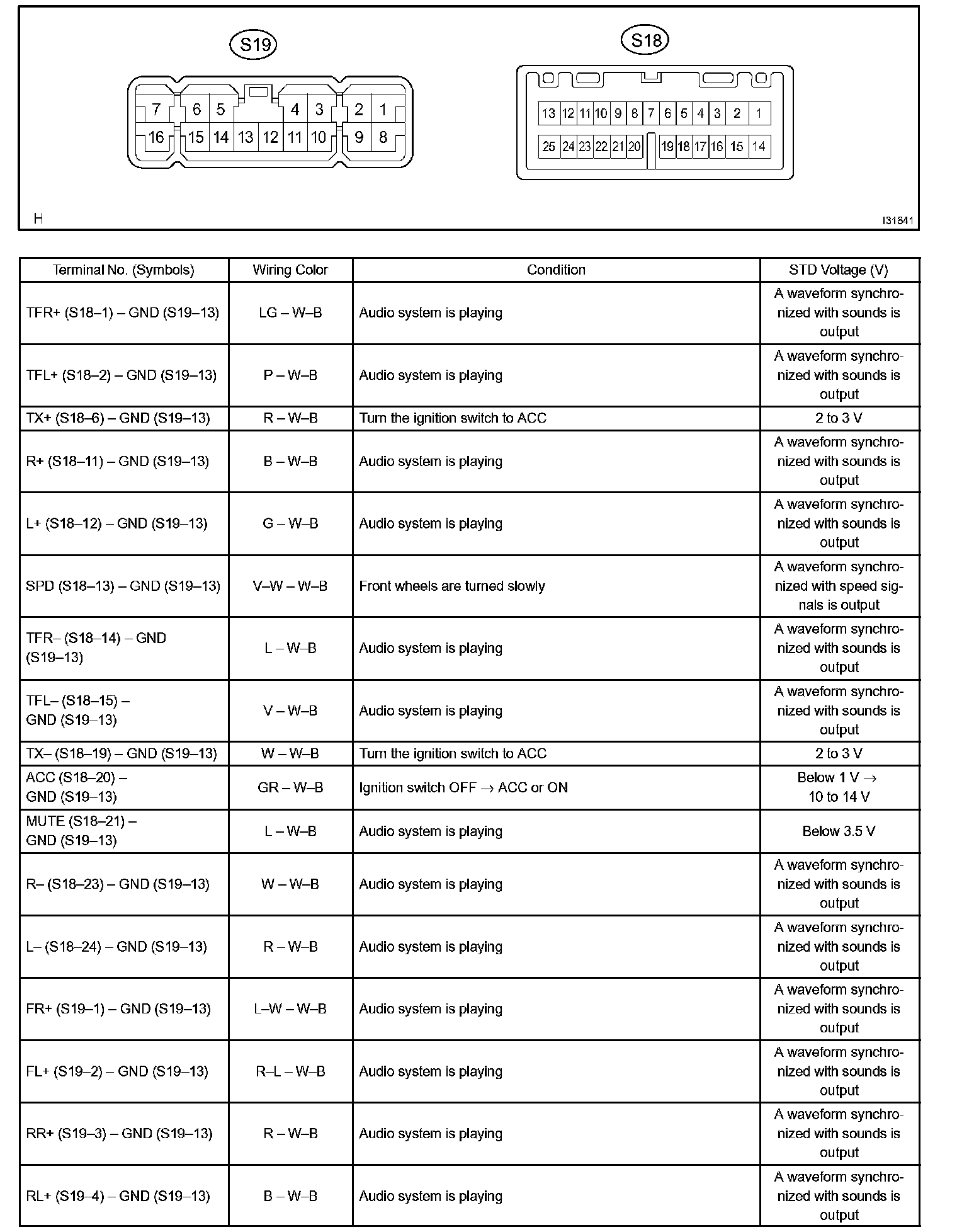

3. STEREO COMPONENT AMPLIFIER ASSY (MARK LEVINSON TYPE)

Terminals Of Control Module/Pinouts Part 1:

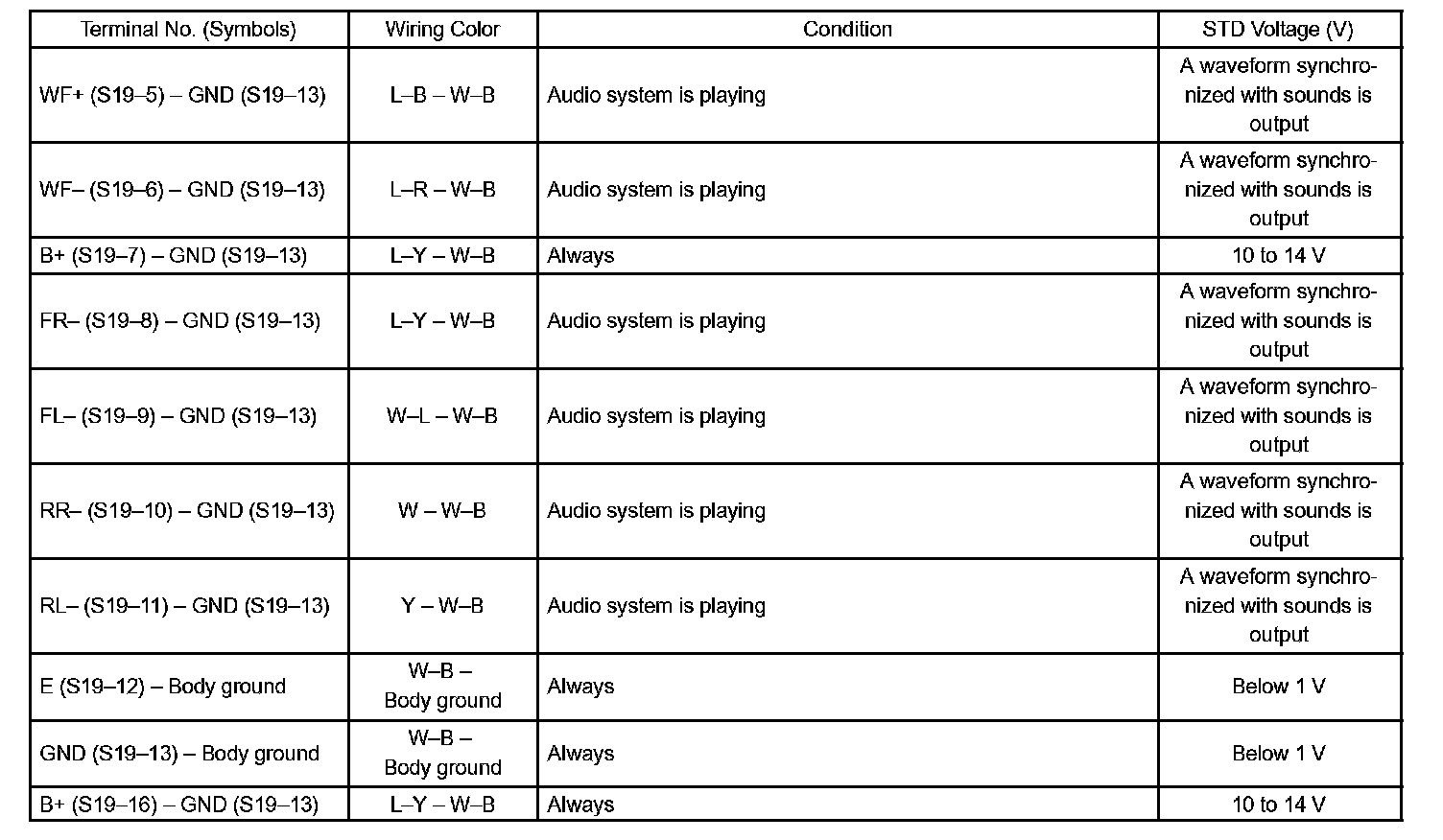

Terminals Of Control Module/Pinouts Part 2:

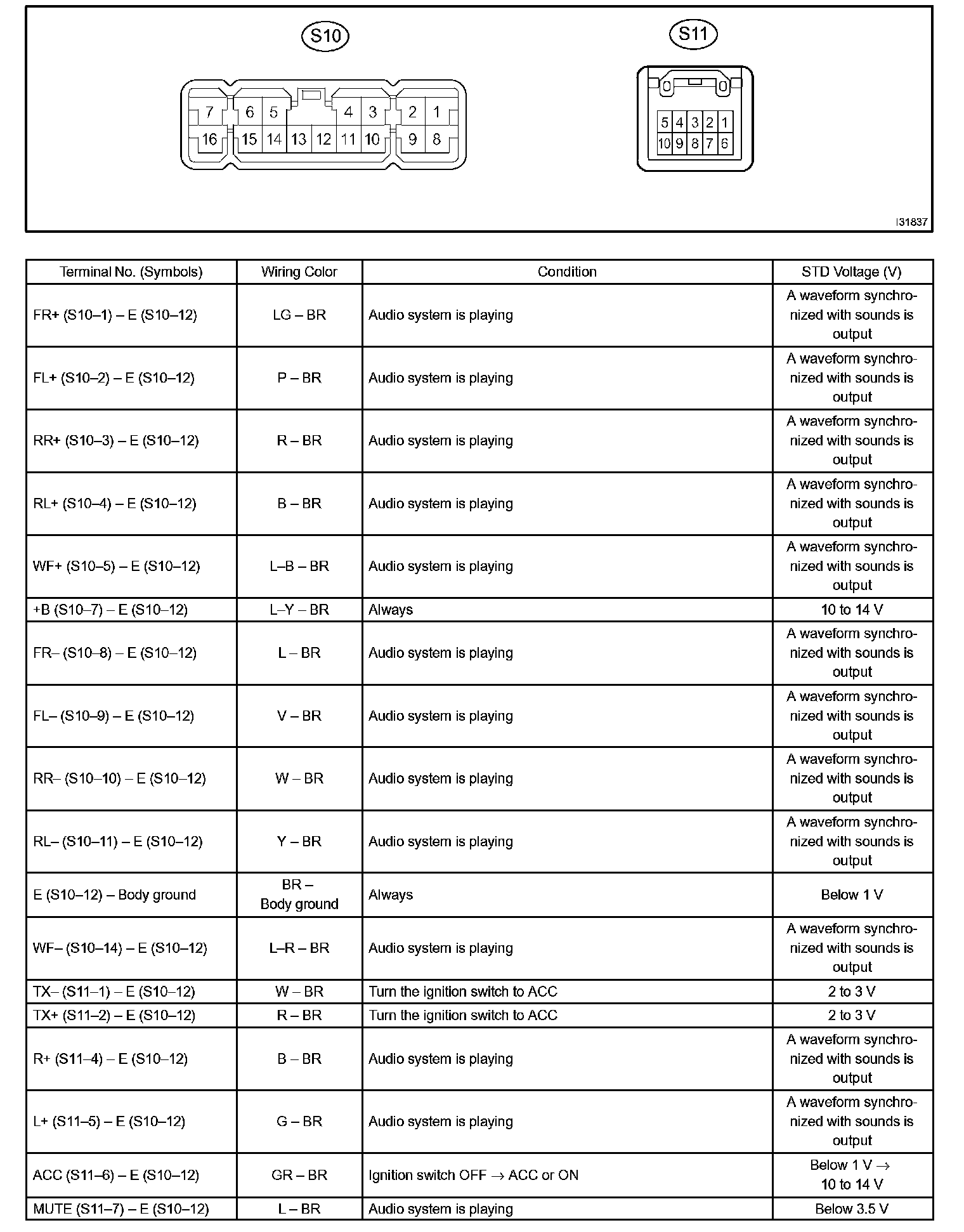

4. STEREO COMPONENT AMPLIFIER ASSY (EXCEPT MARK LEVINSON, 6 CD Type)

Terminals Of Control Module/Pinouts Part 1:

Part 2:

5. STEREO COMPONENT AMPLIFIER ASSY (EXCEPT MARK LEVINSON, 1 CD Type)
