Speaker Circuit (Driver Side Speaker)

SPEAKER CIRCUIT (DRIVER SIDE SPEAKER)

CIRCUIT DESCRIPTION
When the vehicle is equipped with a navigation system, a sound signal on the driver's side is sent to the speaker from the stereo component amplifier via the navigation voice amplifier assy.

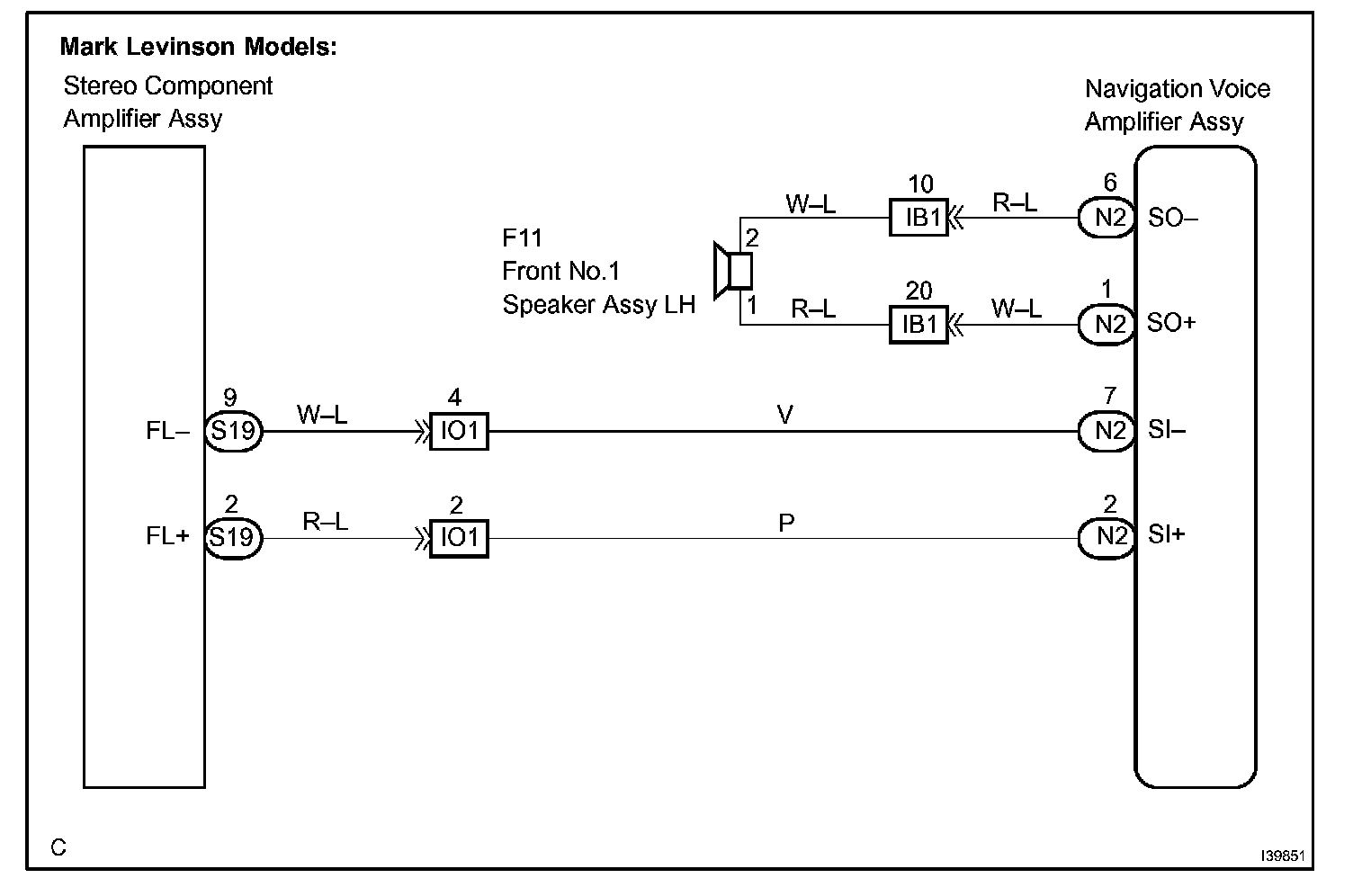

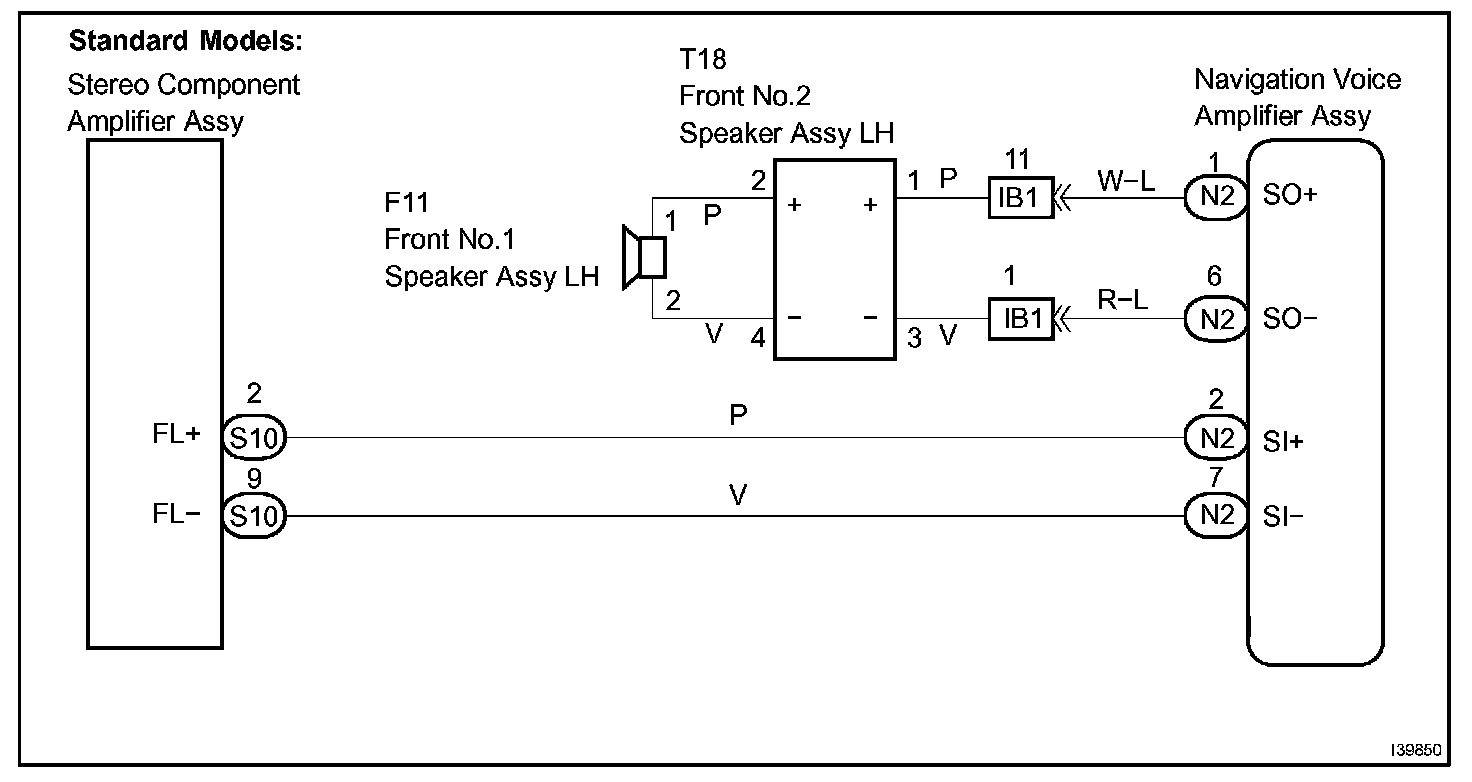

Wiring Diagram:

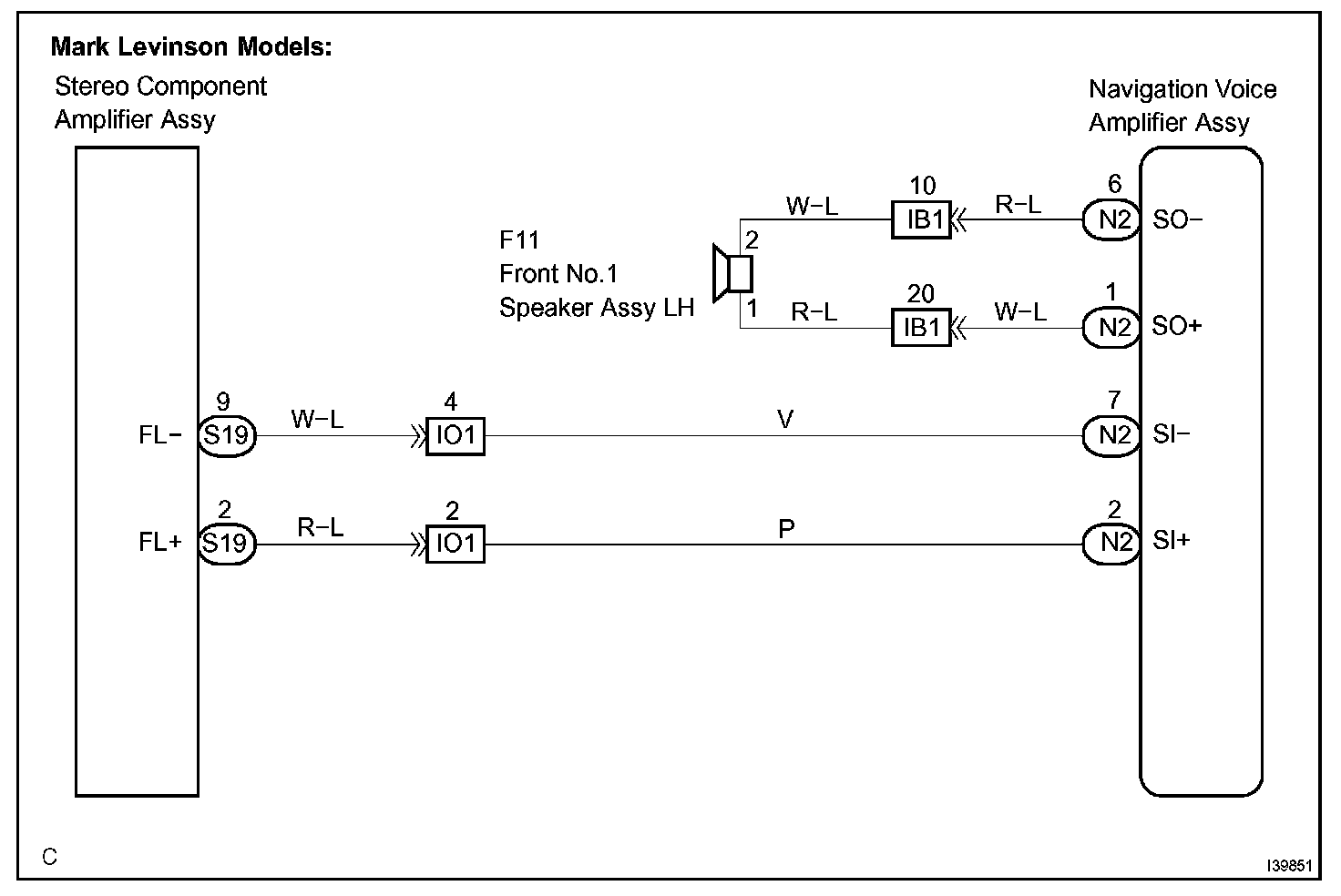

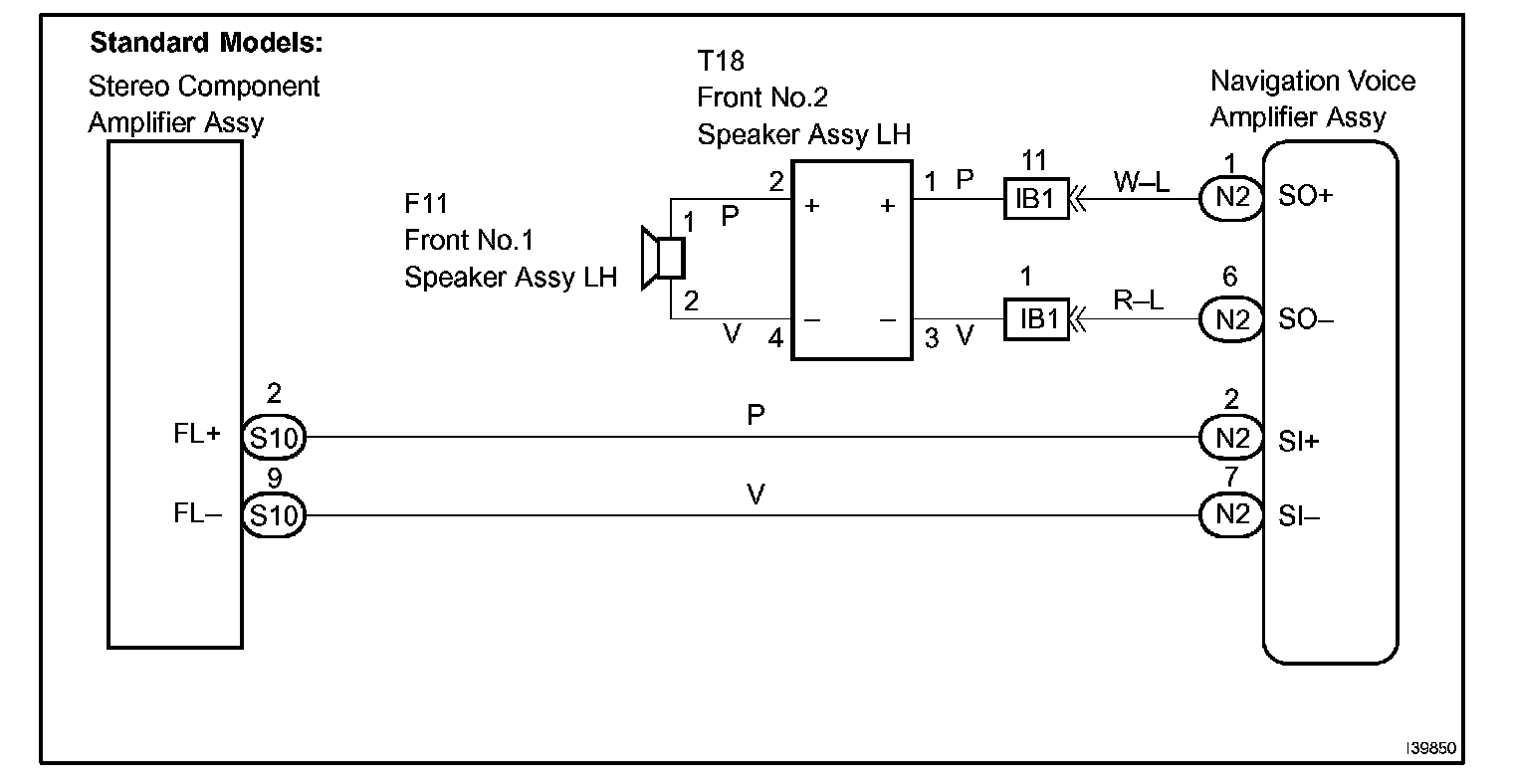

Wiring Diagram:

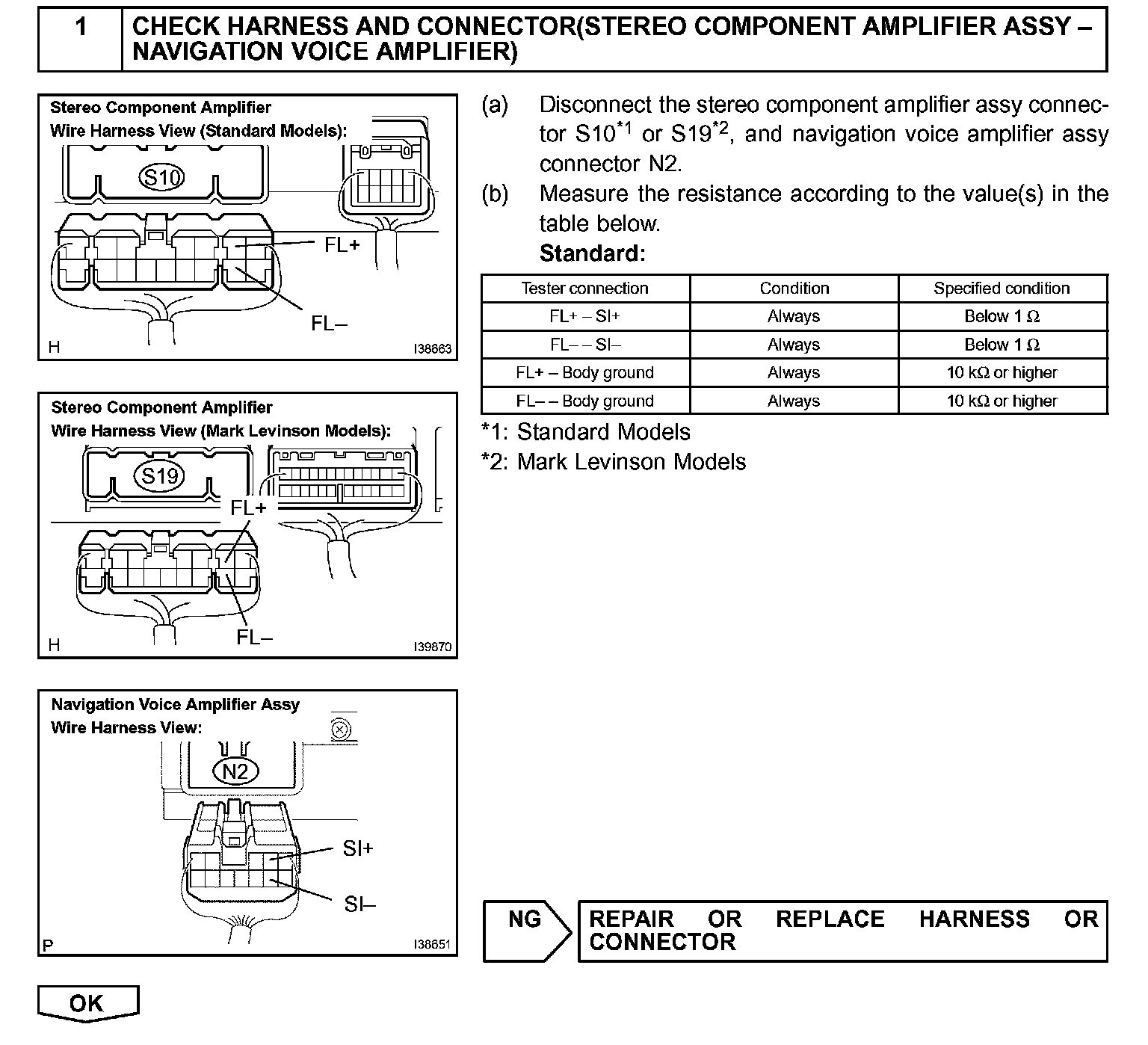

Step 1:

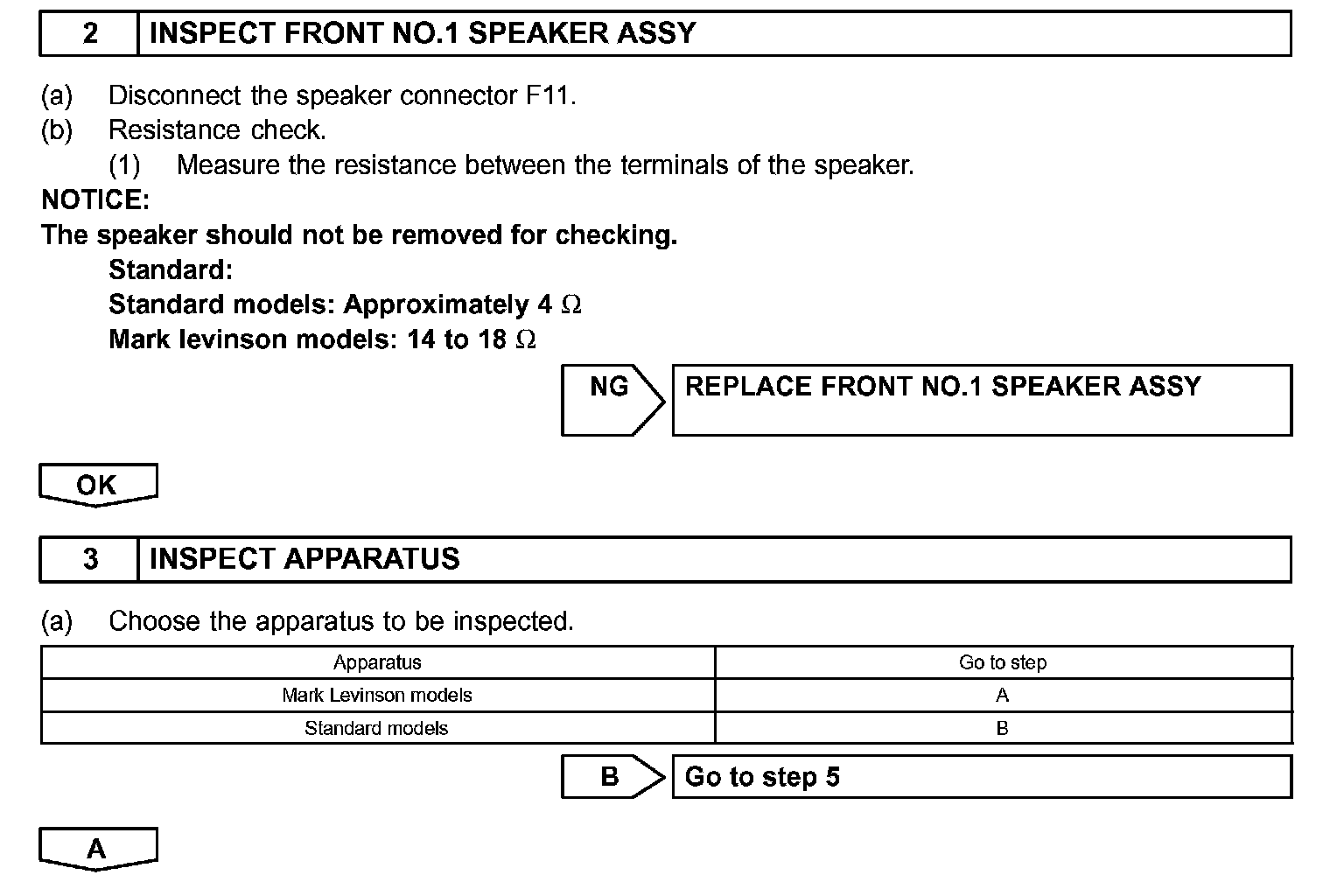

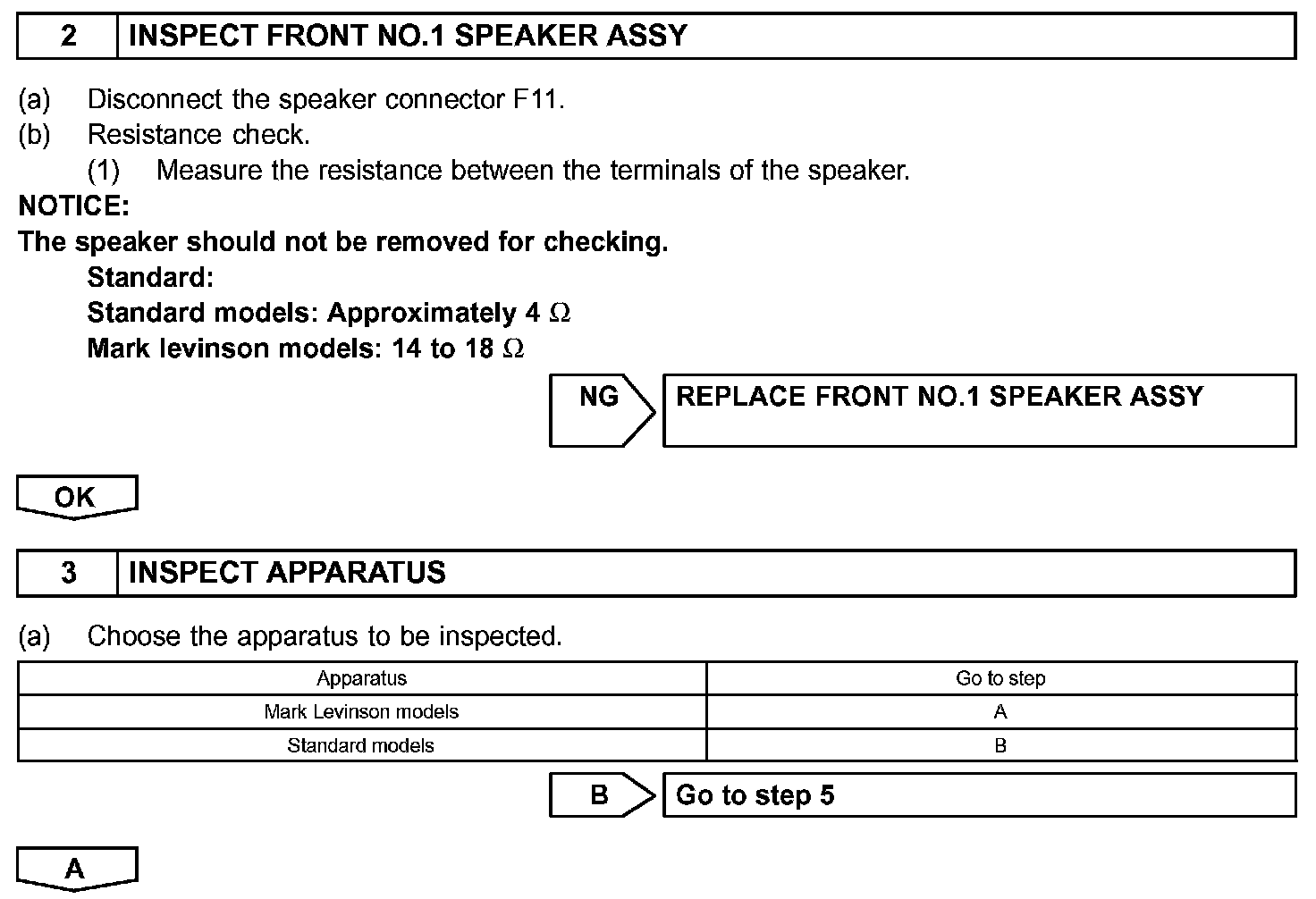

Step 2 - 3:

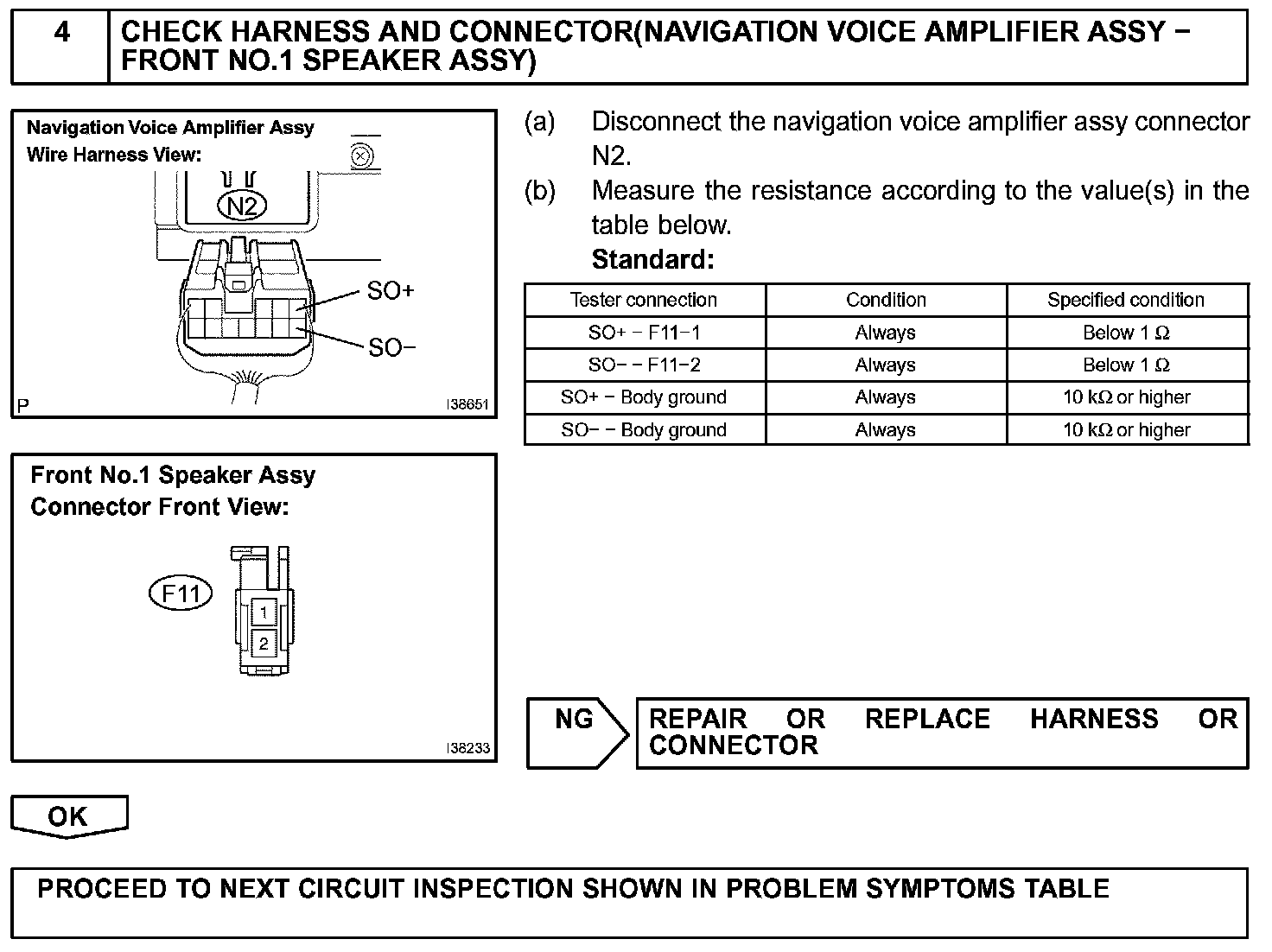

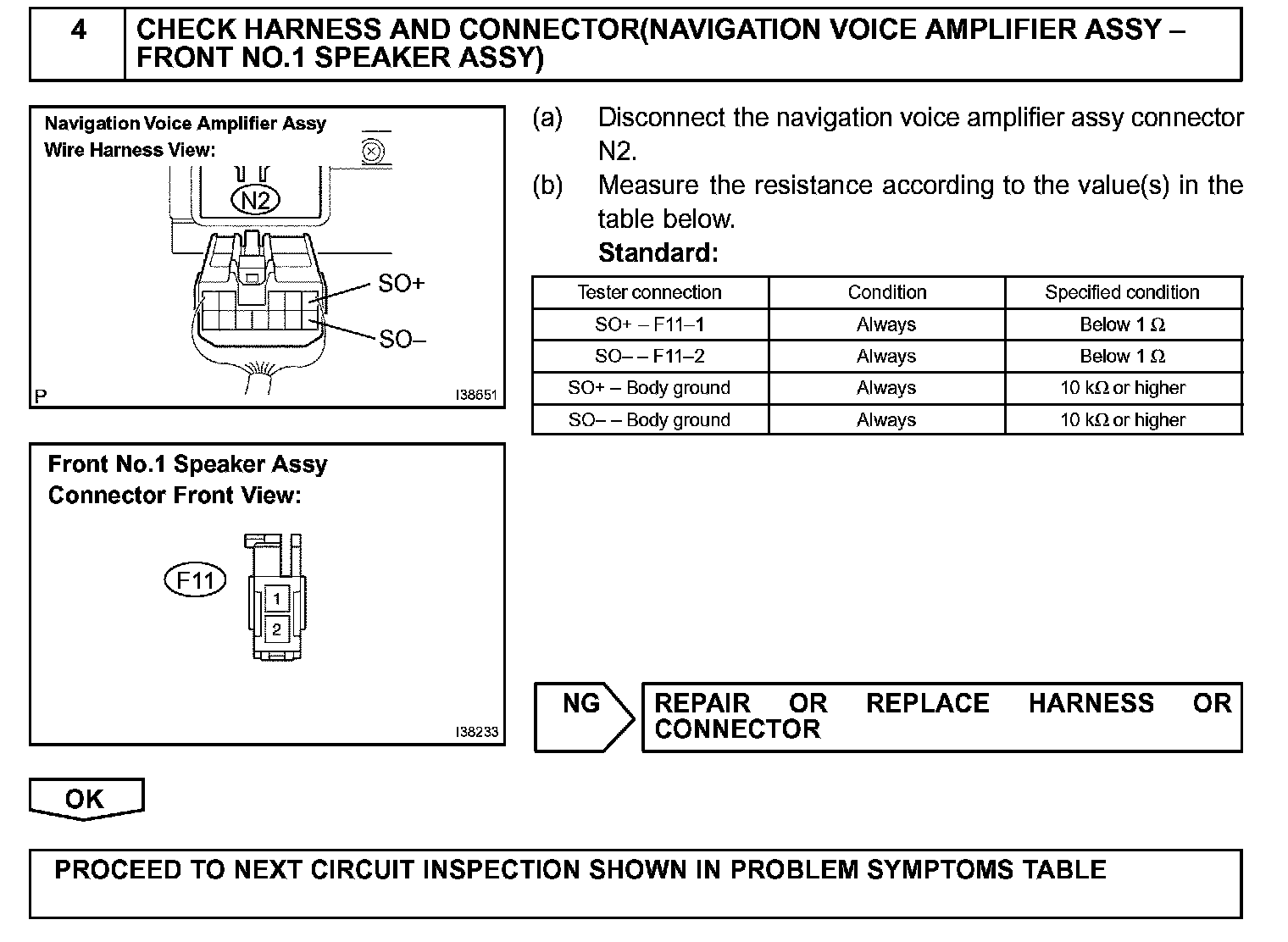

Step 4:

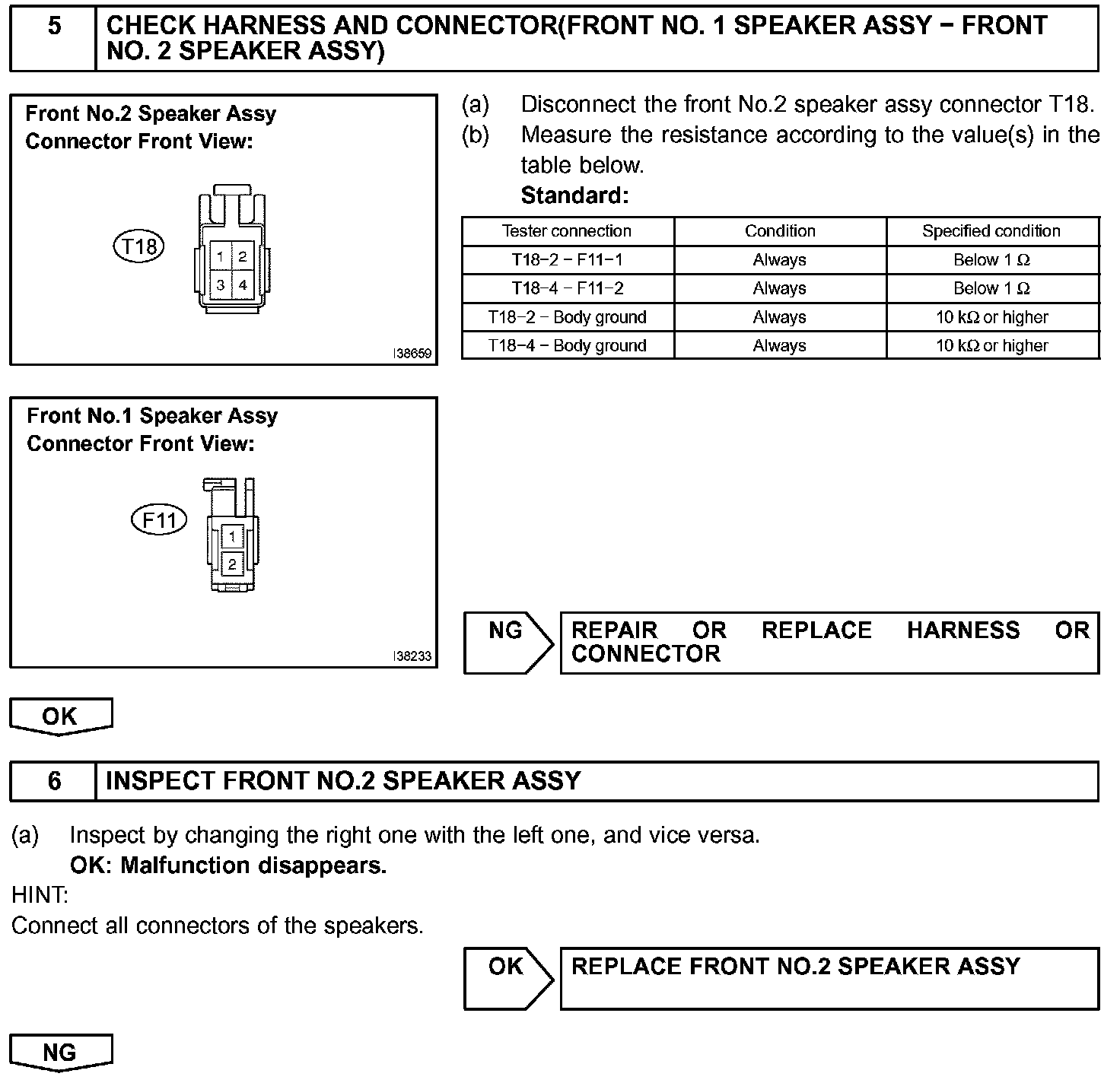

Step 5 - 6:

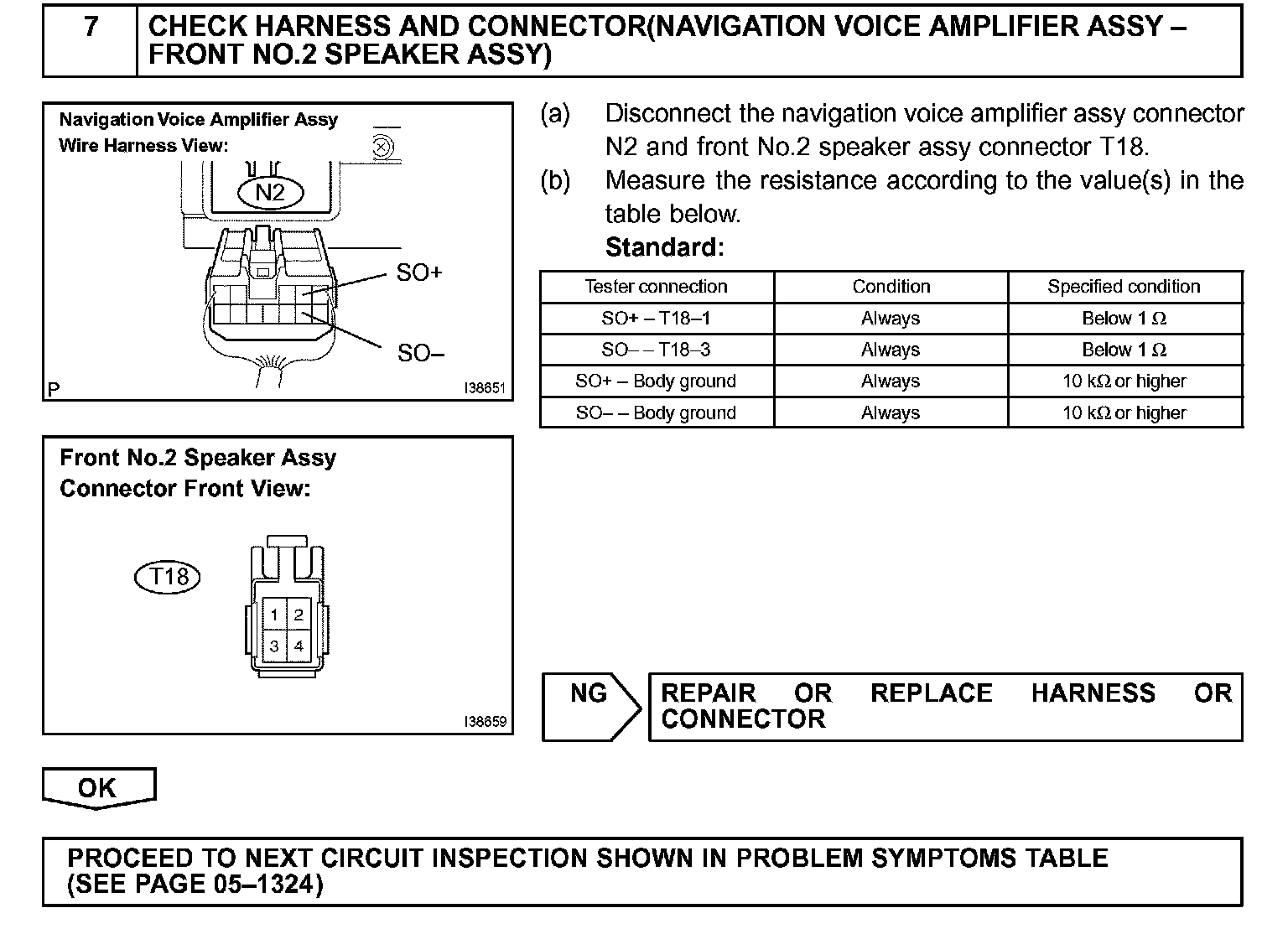

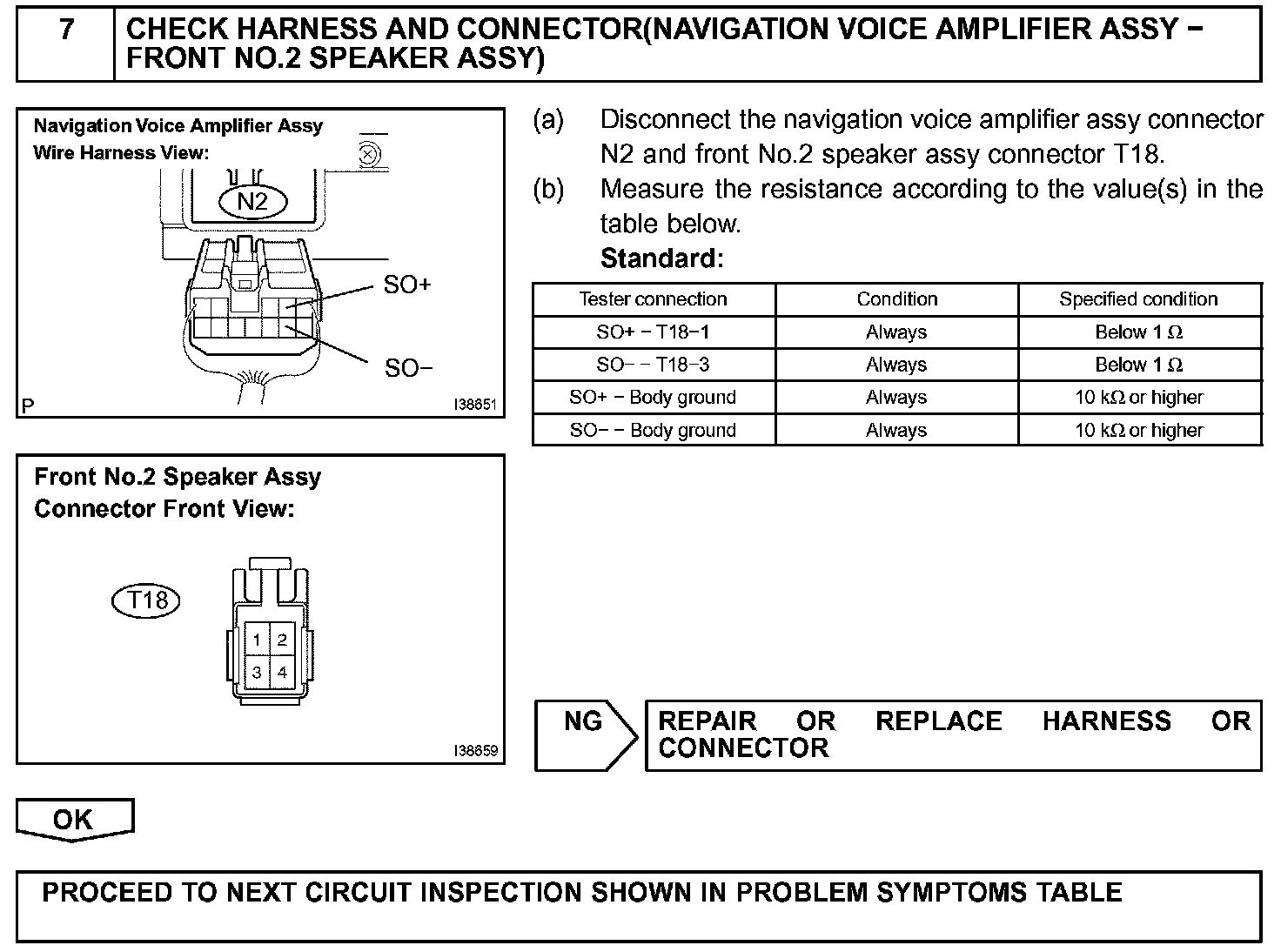

Step 7:

INSPECTION PROCEDURE
