Navigation Check Mode (Microphone Check)

NAVIGATION CHECK MODE (MICROPHONE CHECK)

HINT:
- The microphone is checked in the Navigation Check (Microphone Check) mode.
- Illustrations may differ from the actual vehicle depending on vehicle specifications.

1. Enter diagnostic mode.

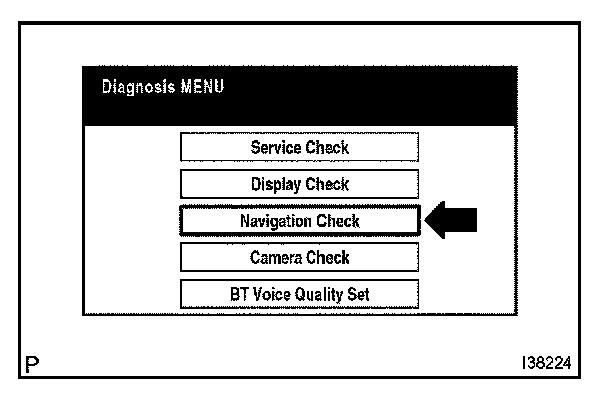

2. Select Navigation Check from the Diagnosis MENU screen.

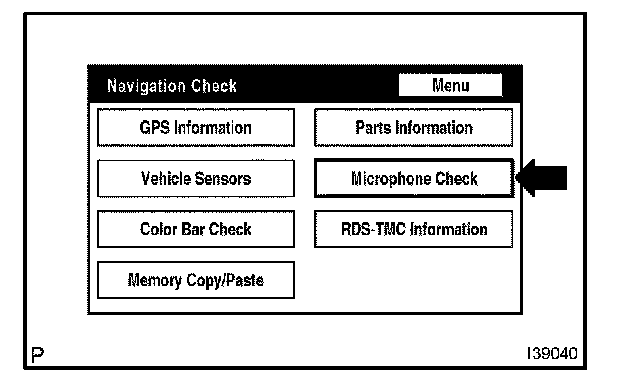

3. Select Microphone Check from the Navigation Check screen.

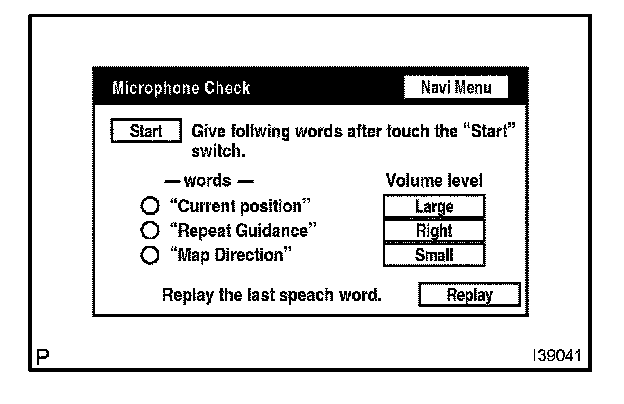

4. Perform the microphone check by following the directions on the Microphone Check screen.
