Pinout Values and Diagnostic Parameters

TERMINALS OF ECU

Terminals Of Control Module/Pinouts Part 1:

Terminals Of Control Module/Pinouts Part 2:

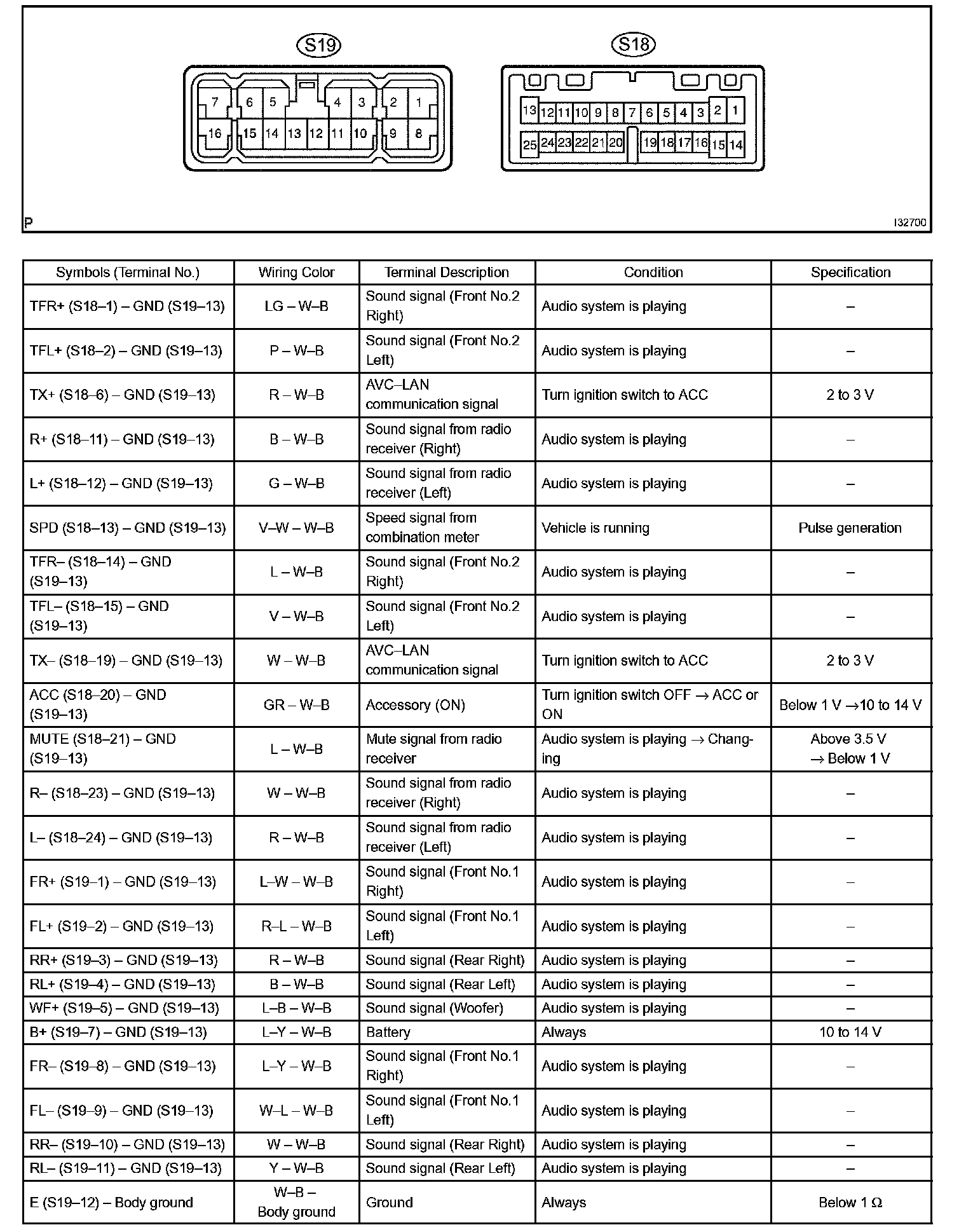

1. RADIO AND NAVIGATION ASSY

Terminals Of Control Module/Pinouts Part 1:

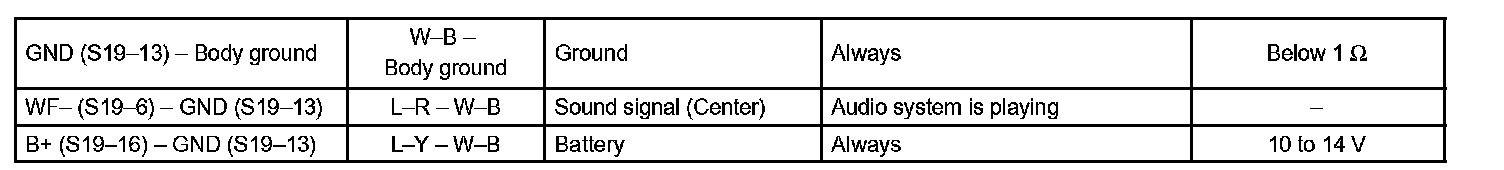

Part 2:

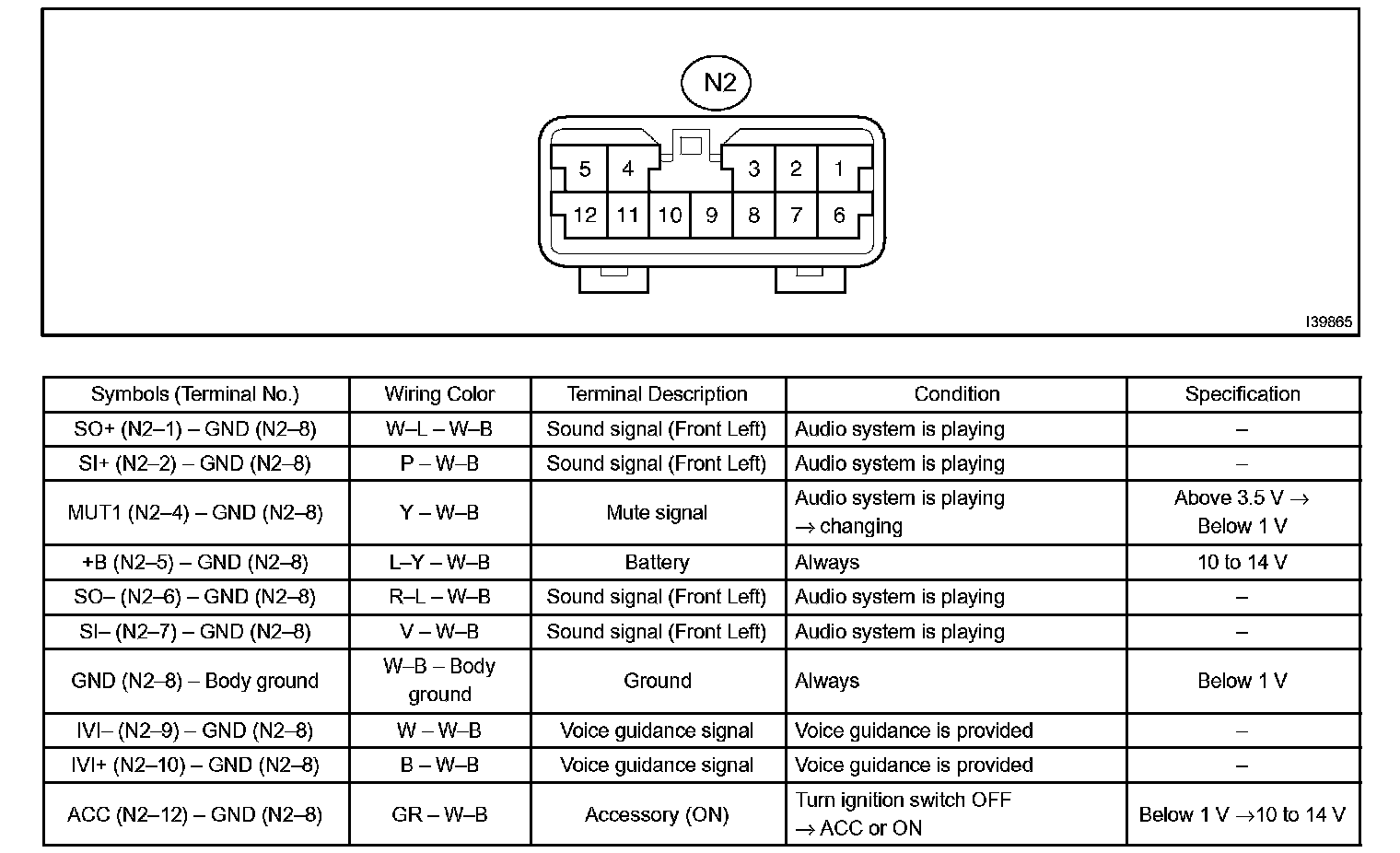

2. STEREO COMPONENT AMPLIFIER ASSY (MARK LEVINSON MODELS)

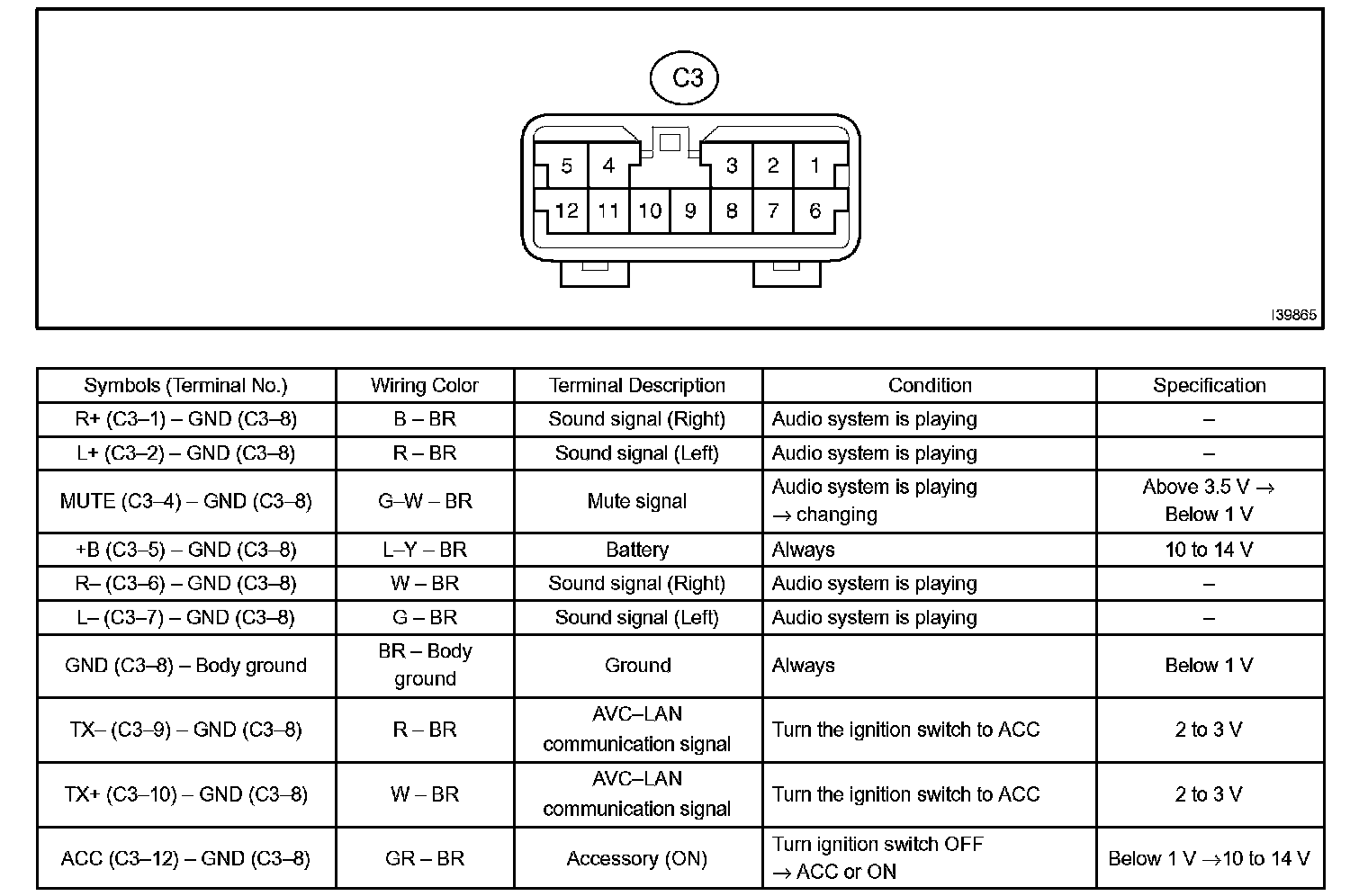

3. STEREO COMPONENT AMPLIFIER ASSY (STANDARD MODELS)

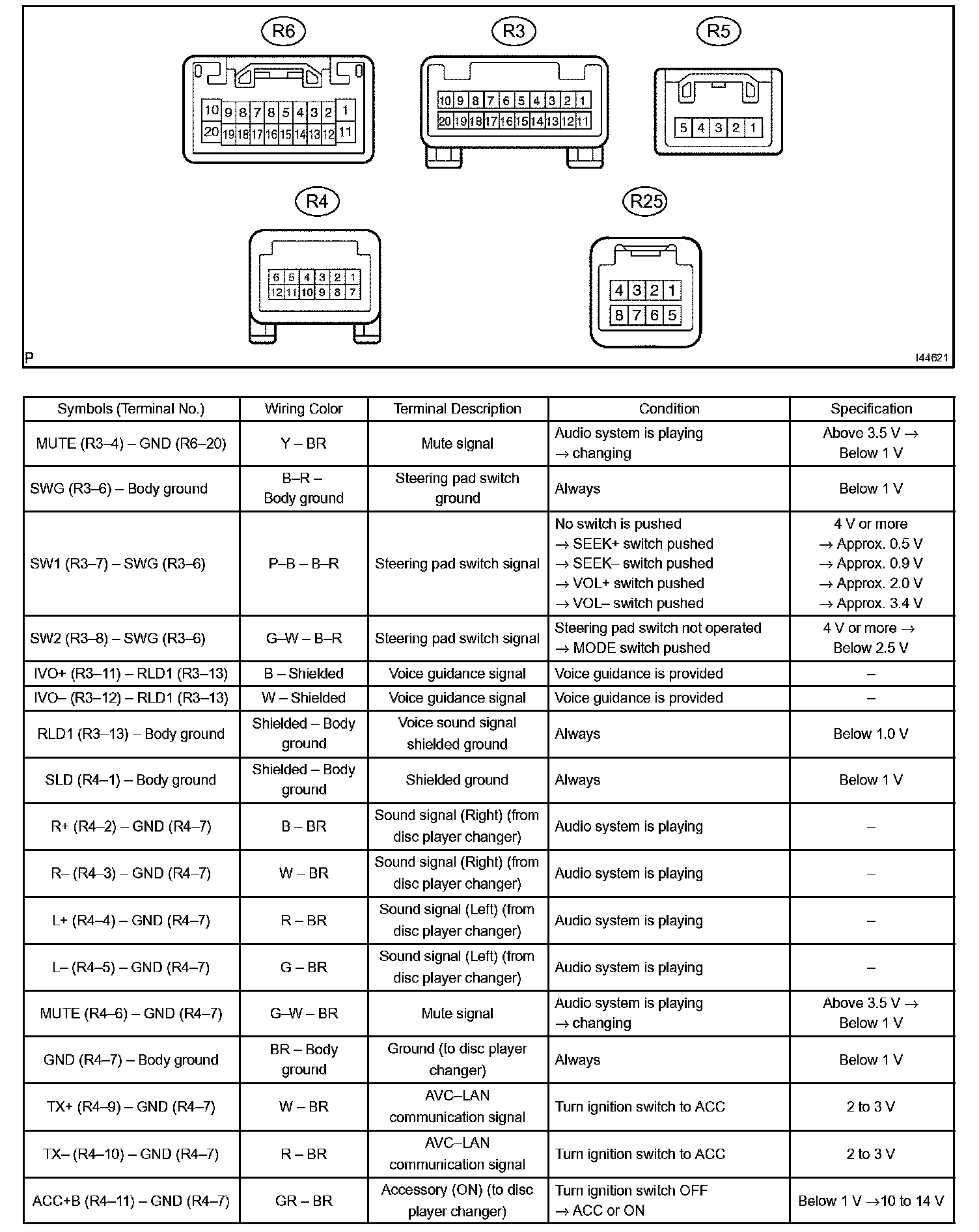

4. DISC PLAYER CHANGER

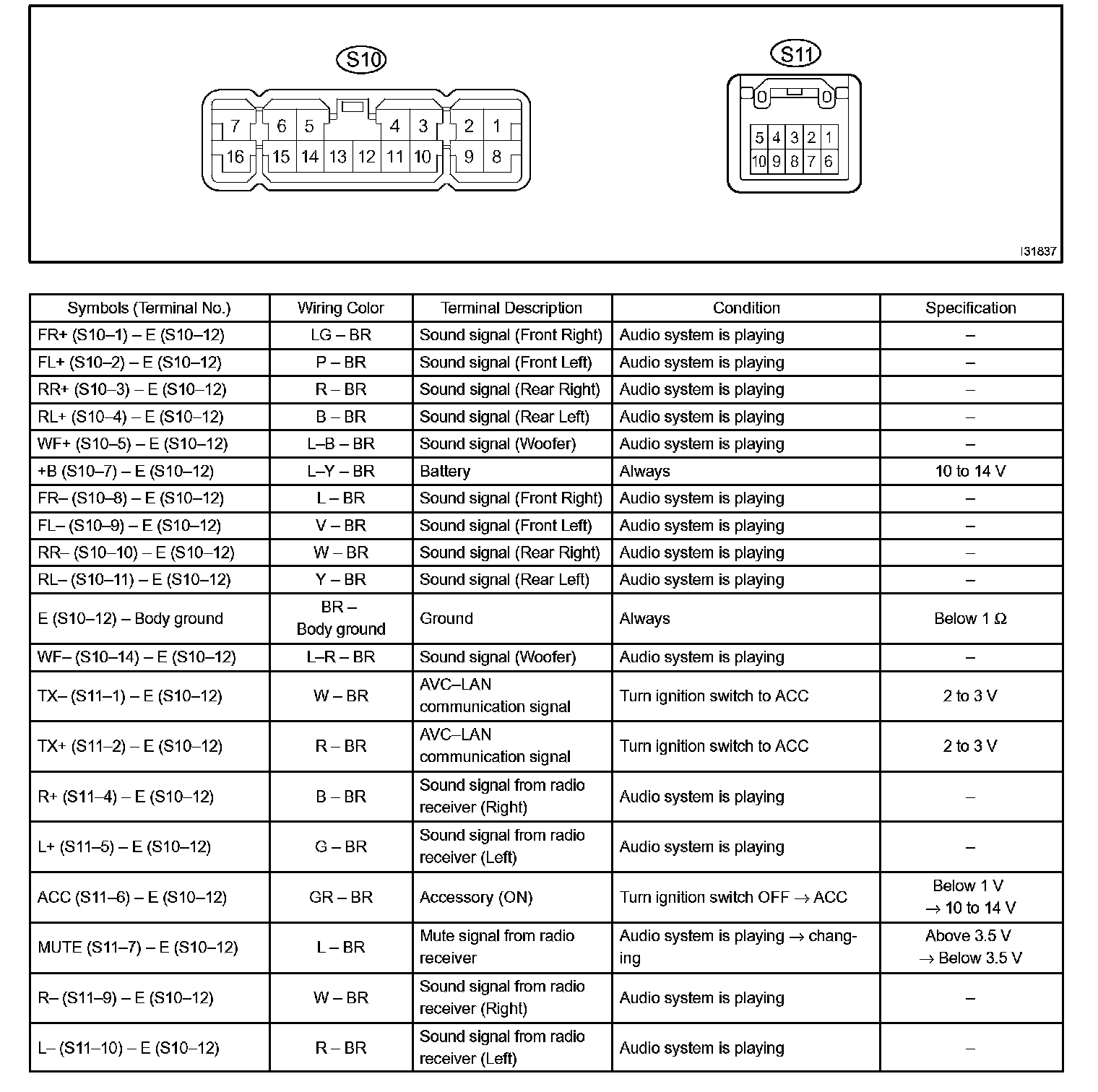

5. NAVIGATION VOICE AMPLIFIER ASSY
