Navigation Module: Service and Repair

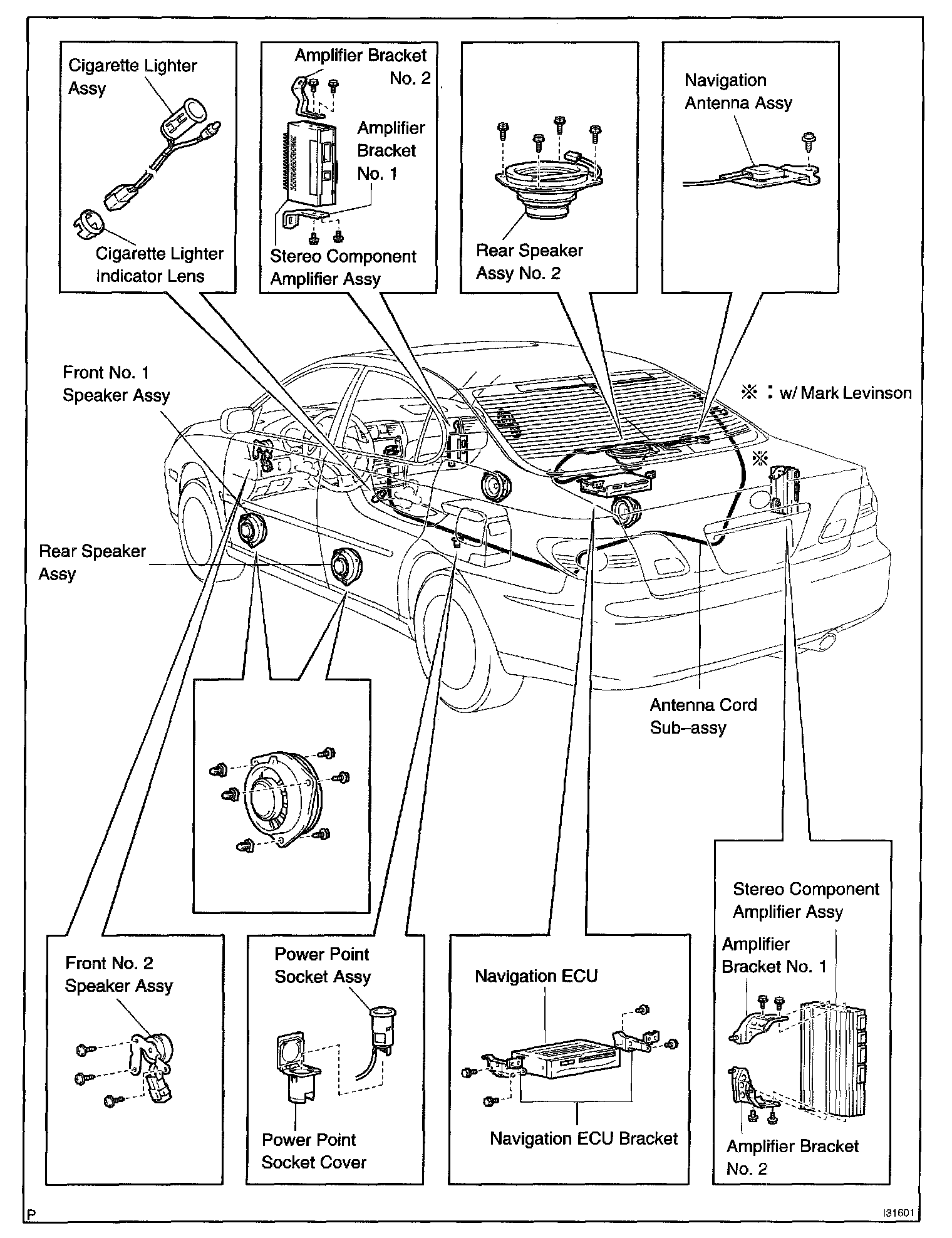

Audio & Visual System Part 1:

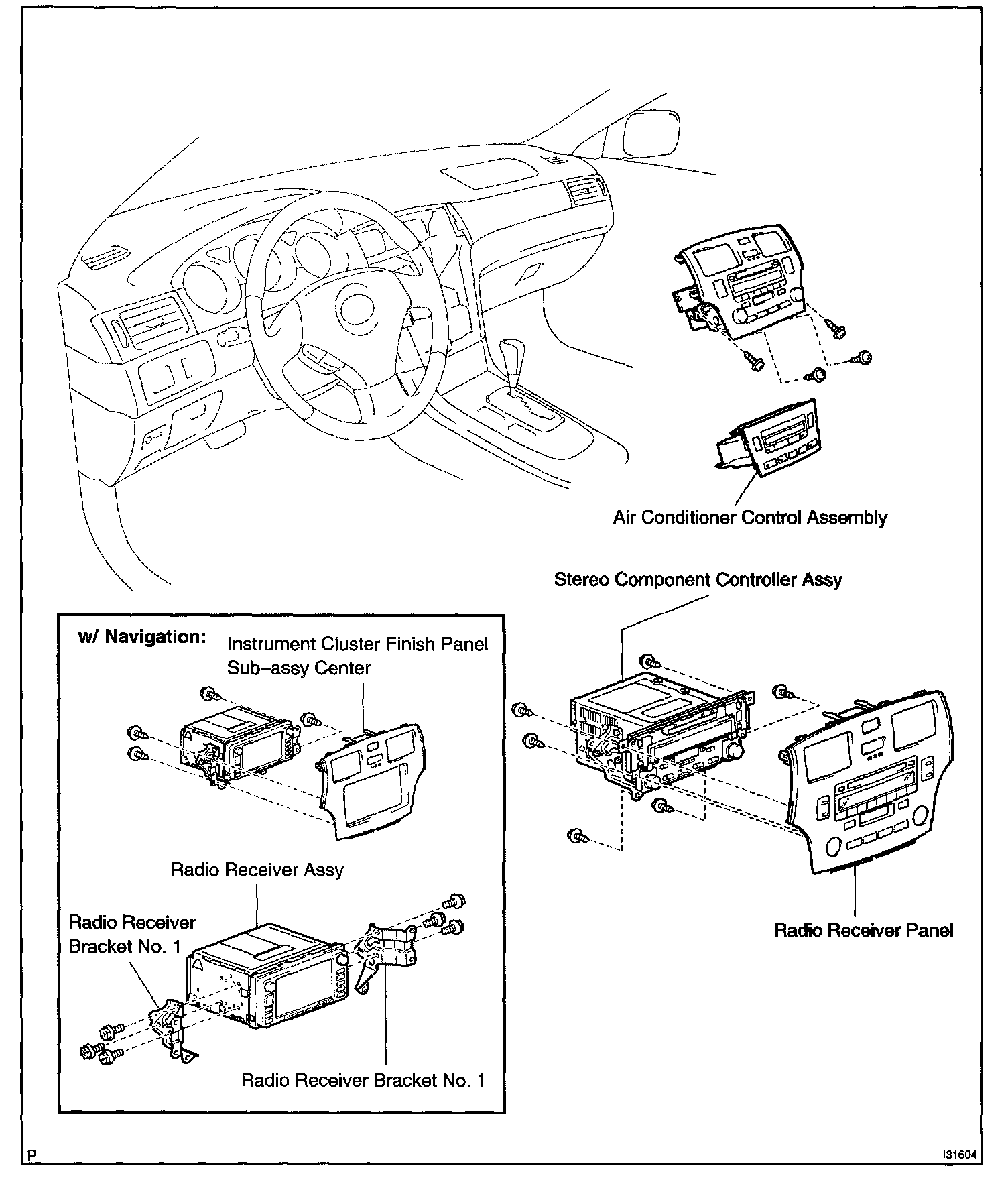

Audio & Visual System Part 2:

RADIO RECEIVER ASSEMBLY

REPLACEMENT

1. REMOVE AIR CONDITIONER CONTROL ASSEMBLY

2. REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY CENTER

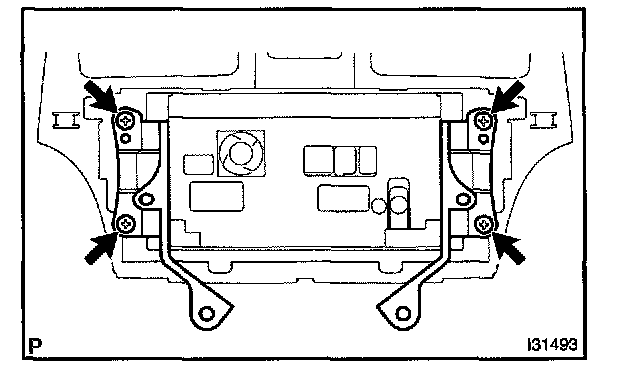

3. REMOVE NAVIGATION RECEIVER ASSEMBLY
a. Remove the 4 screws and navigation receiver assembly.

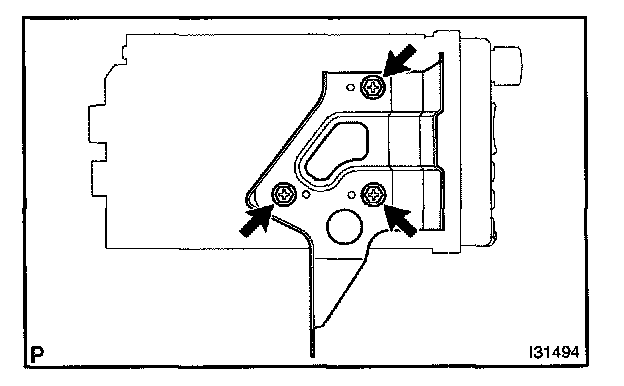

4. REMOVE RADIO RECEIVER BRACKET NO.1
a. Remove the 3 screws and radio receiver bracket No.1.

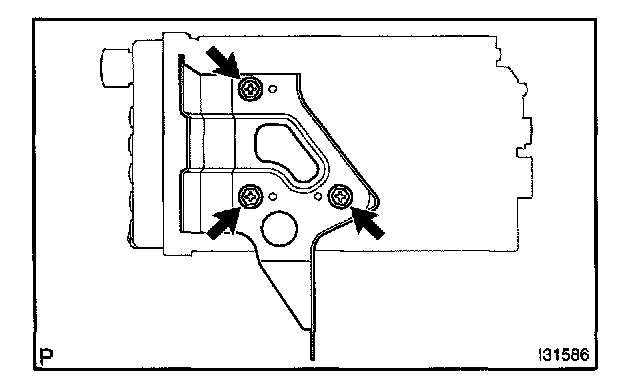

5. REMOVE RADIO RECEIVER BRACKET NO.1
a. Remove the 3 screws and radio receiver bracket No.1.
