ECU Power Source Circuit

ECU POWER SOURCE CIRCUIT

CIRCUIT DESCRIPTION
This circuit provides power to operate the theft warning ECU assembly.

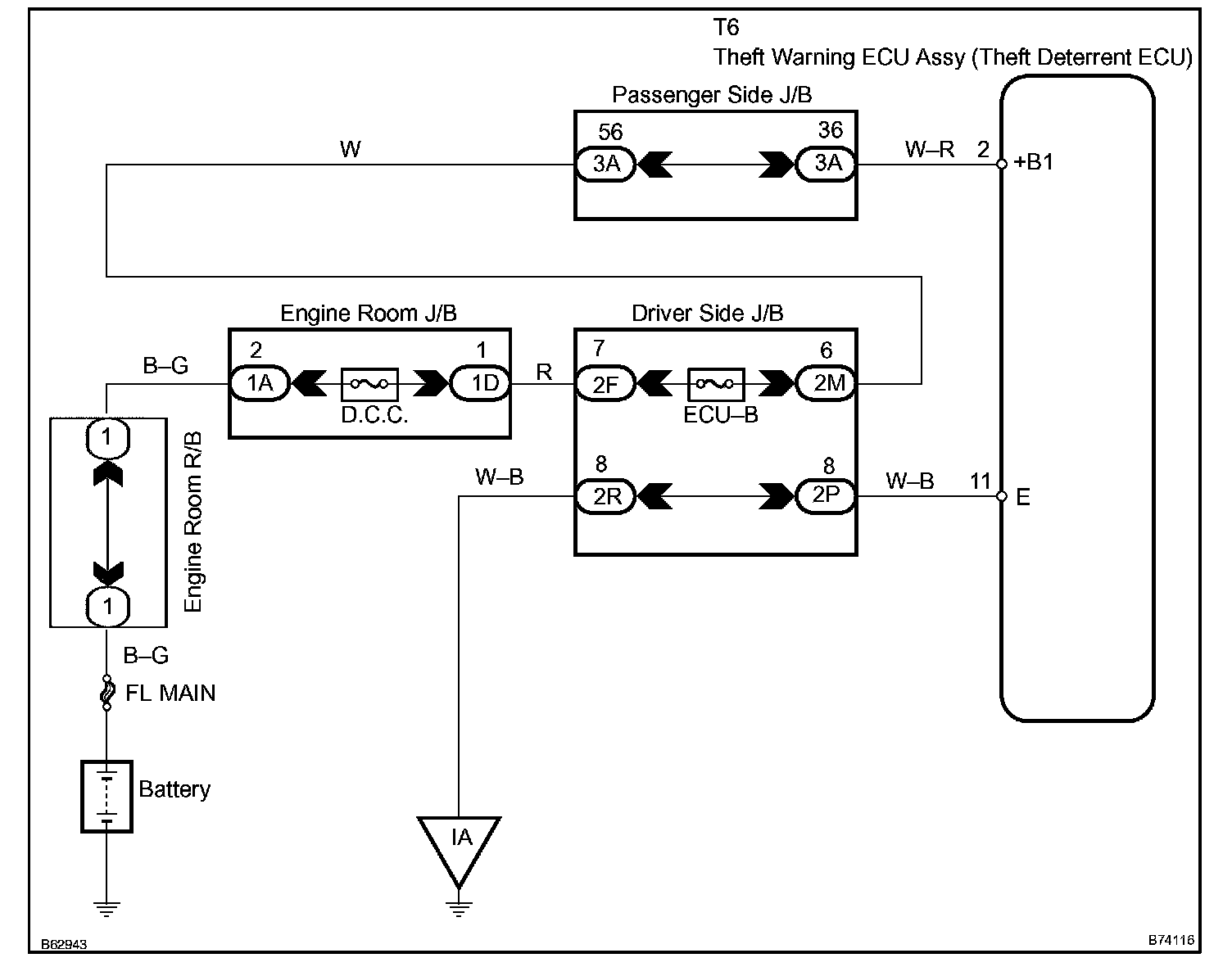

Wiring Diagram:

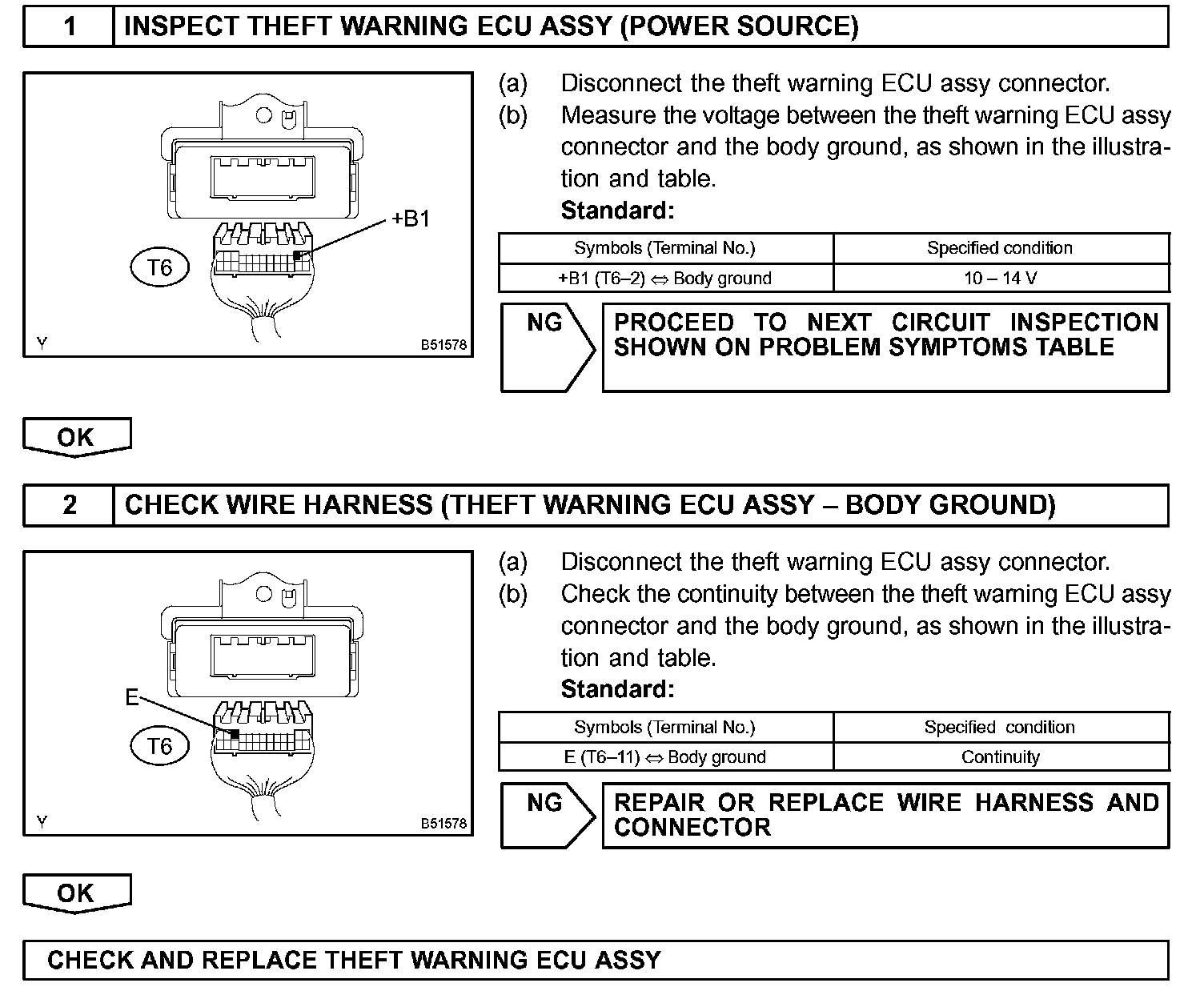

Step 1 - 2:




INSPECTION PROCEDURE
