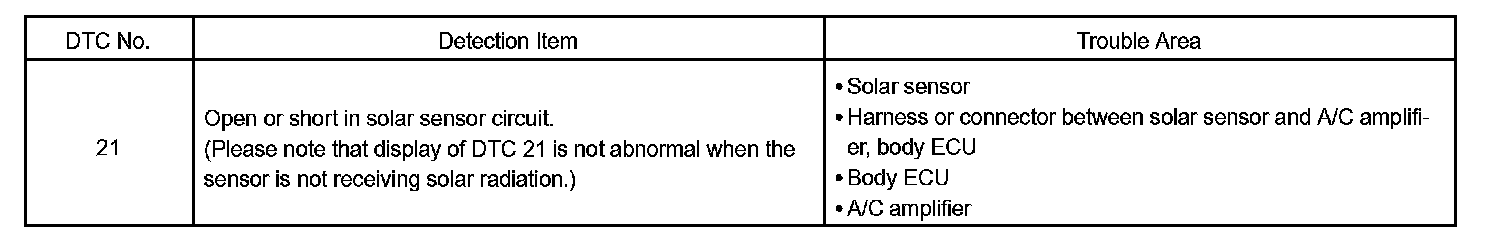

DTC 21

DTC 21 SOLAR SENSOR CIRCUIT (PASSENGER SIDE)

CIRCUIT DESCRIPTION

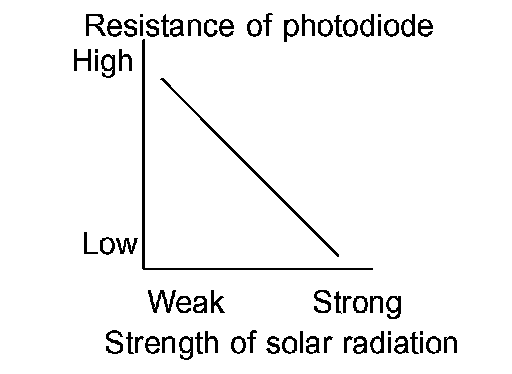

A photo diode in the solar sensor detects solar radiation and sends signals to the A/C amplifier. The driver side and passenger side is contained in one sensor.

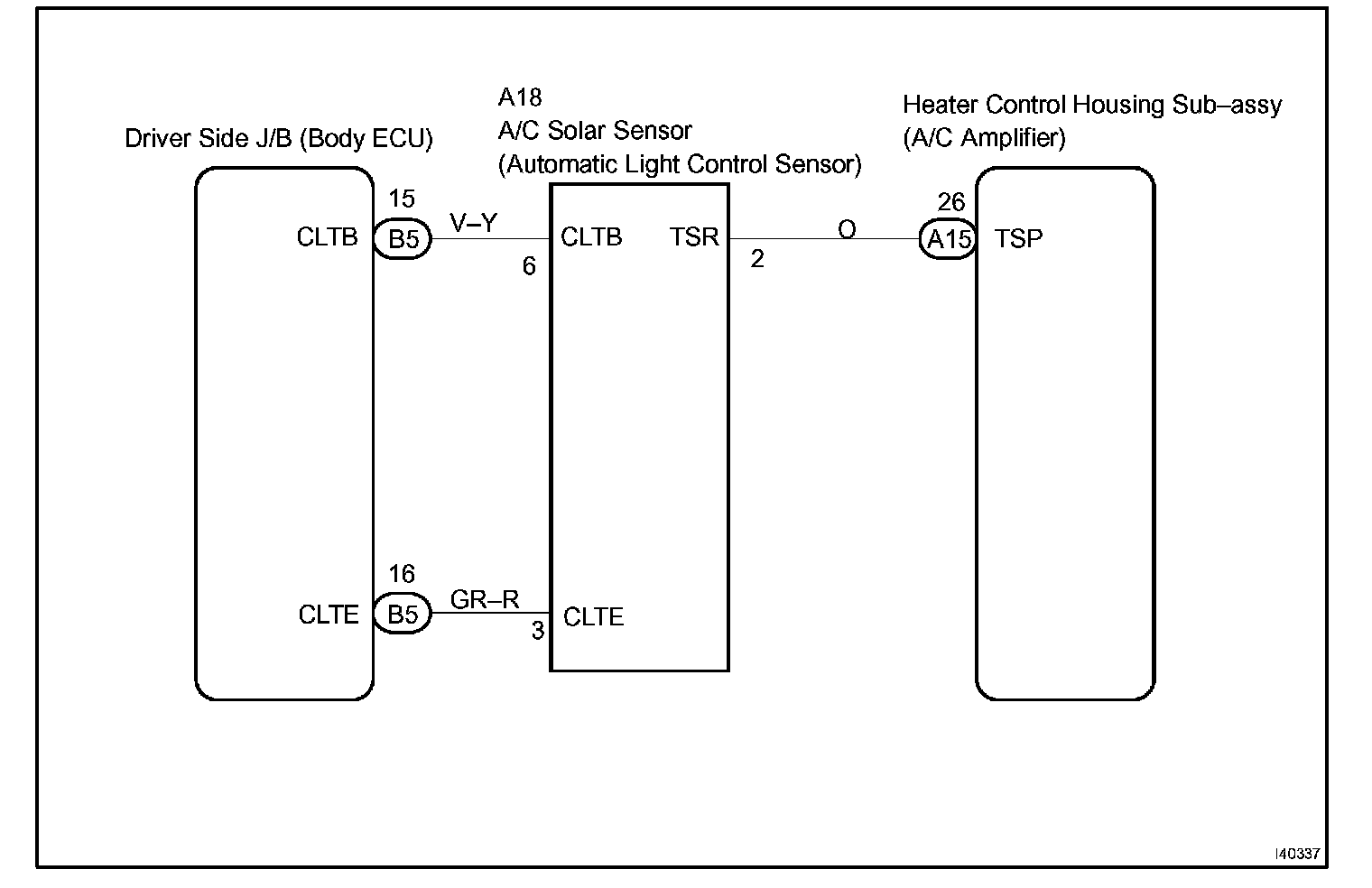

Wiring Diagram:

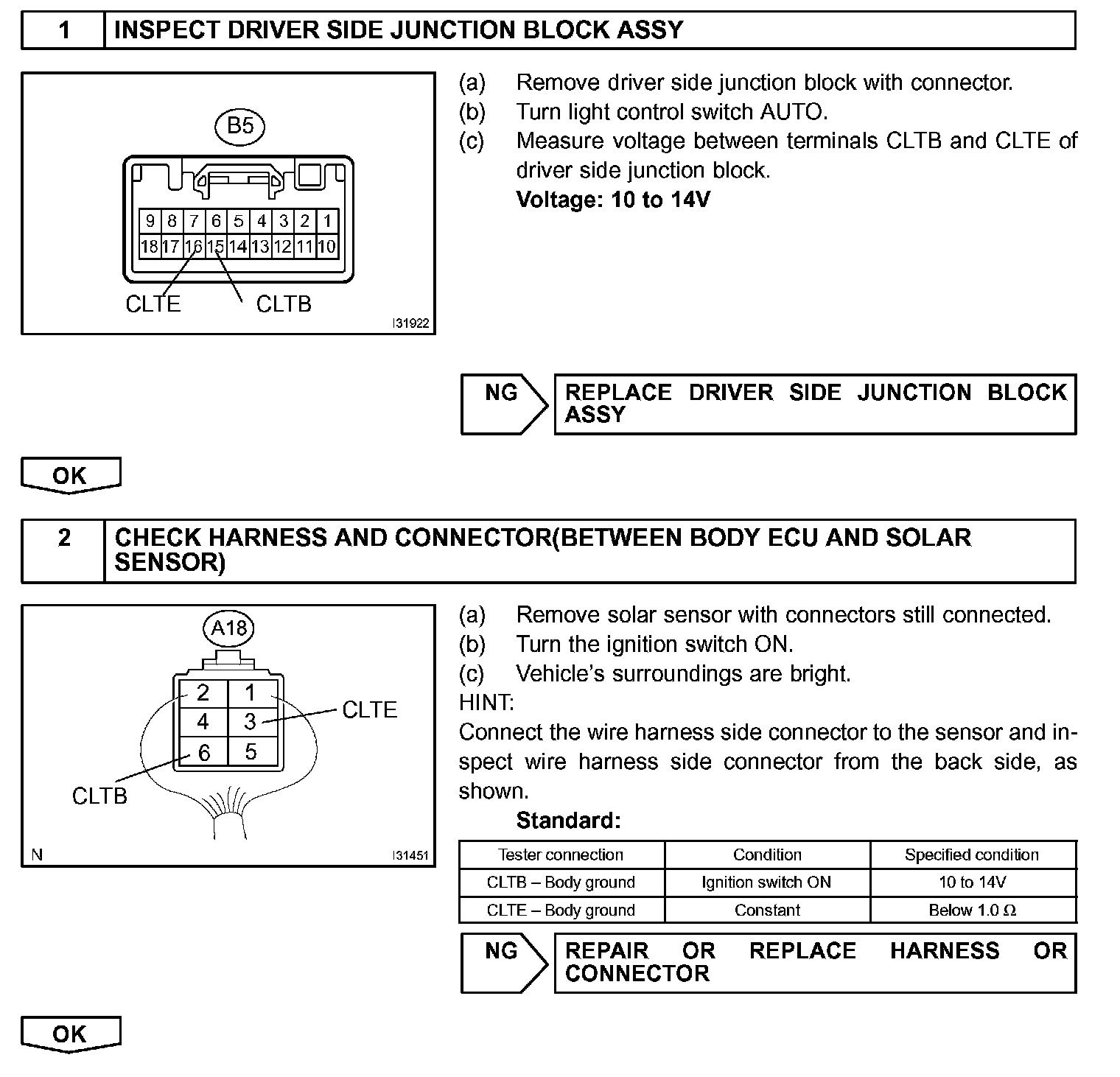

Step 1 - 2:

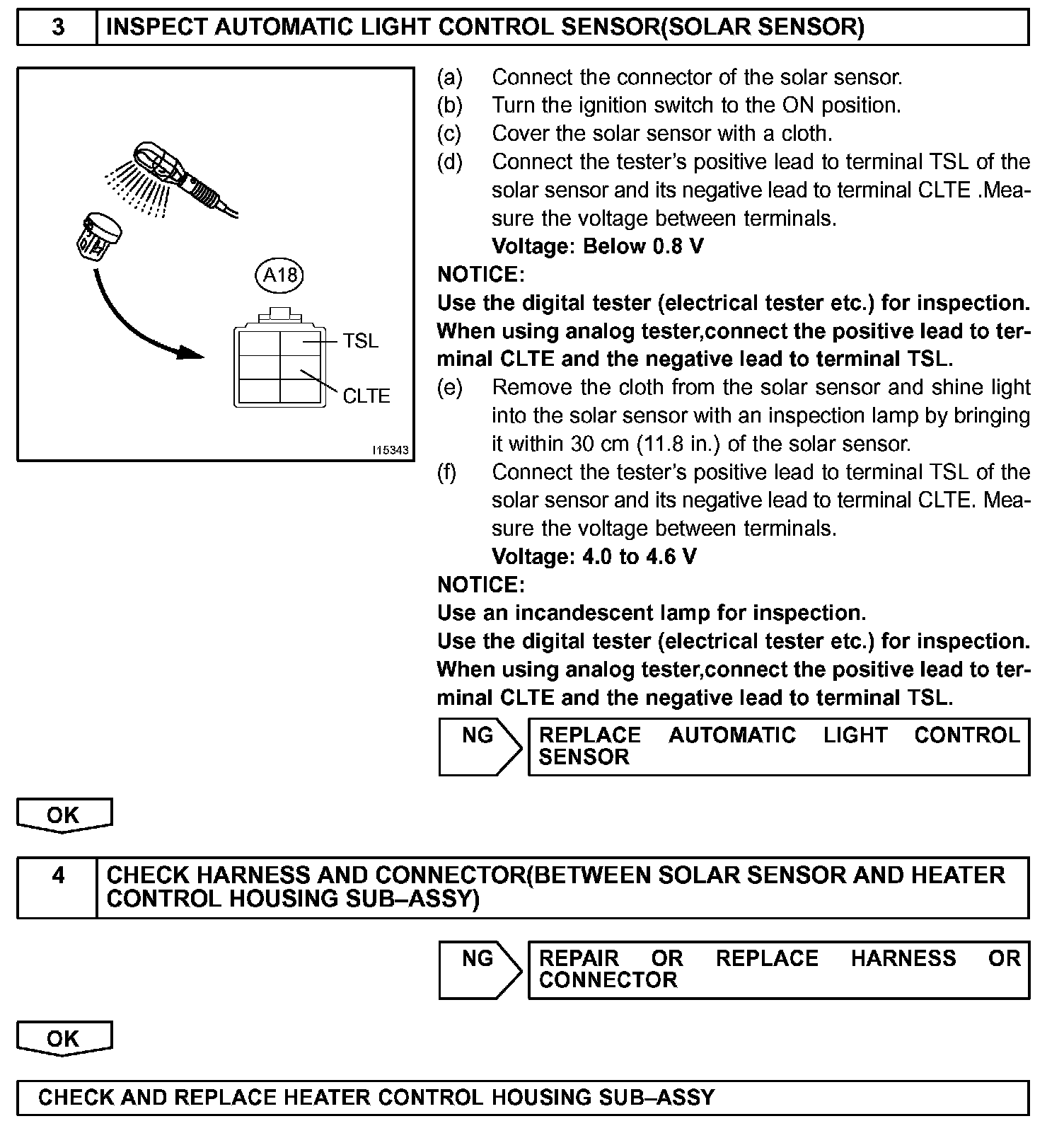

Step 3 - 4:

INSPECTION PROCEDURE
