ABS W/EBD & BA & TRAC & VSC System

DTC C1251 PUMP MOTOR IS LOCKED/OPEN CIRCUIT IN PUMP MOTOR GROUND

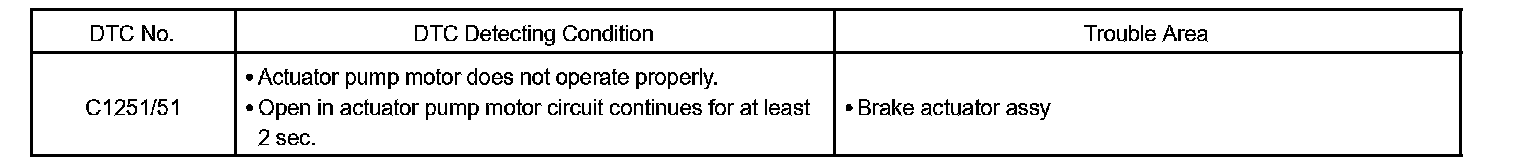

DTC Detecting Condition:

CIRCUIT DESCRIPTION

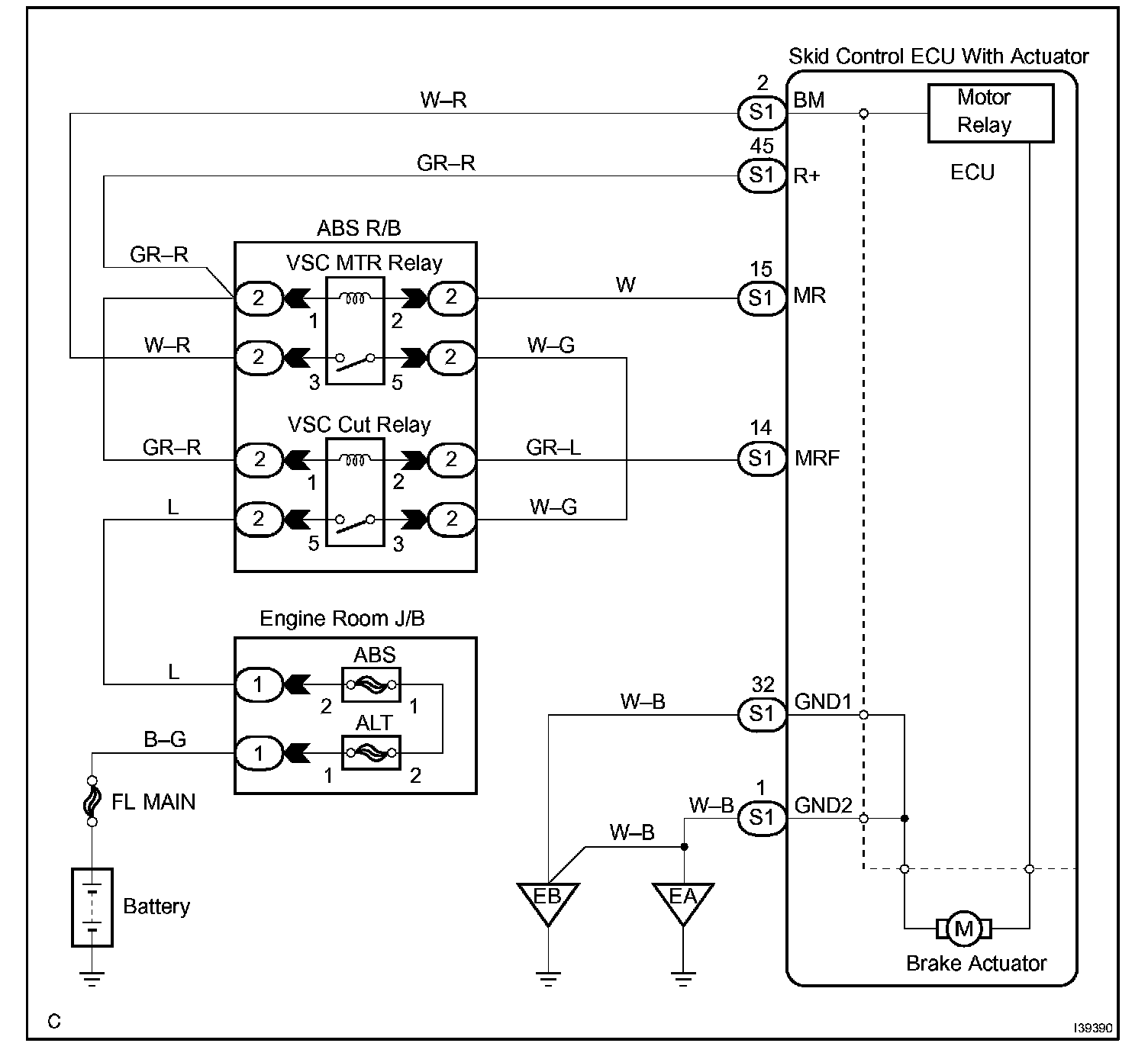

Wiring Diagram:

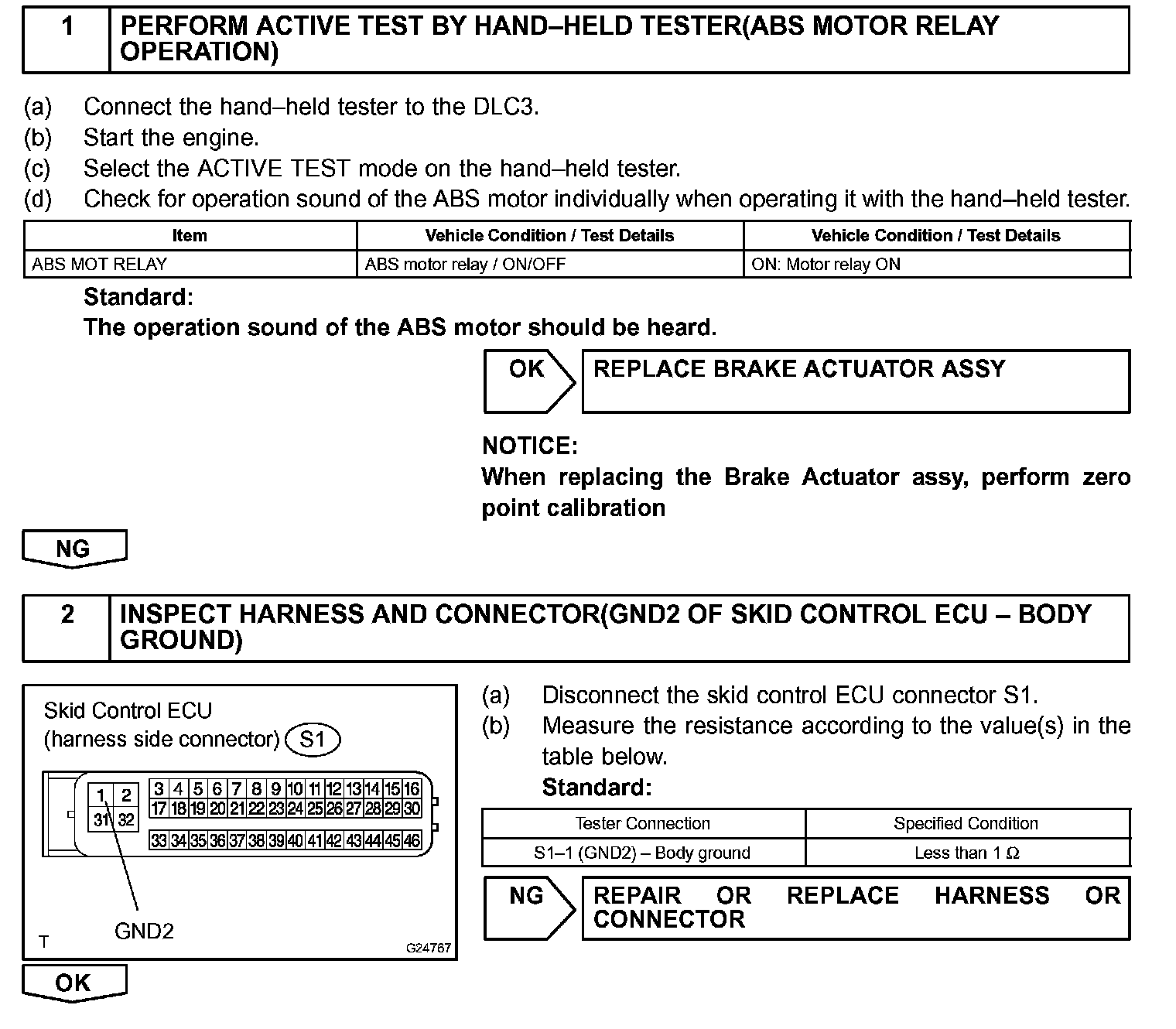

Step 1 - 2:

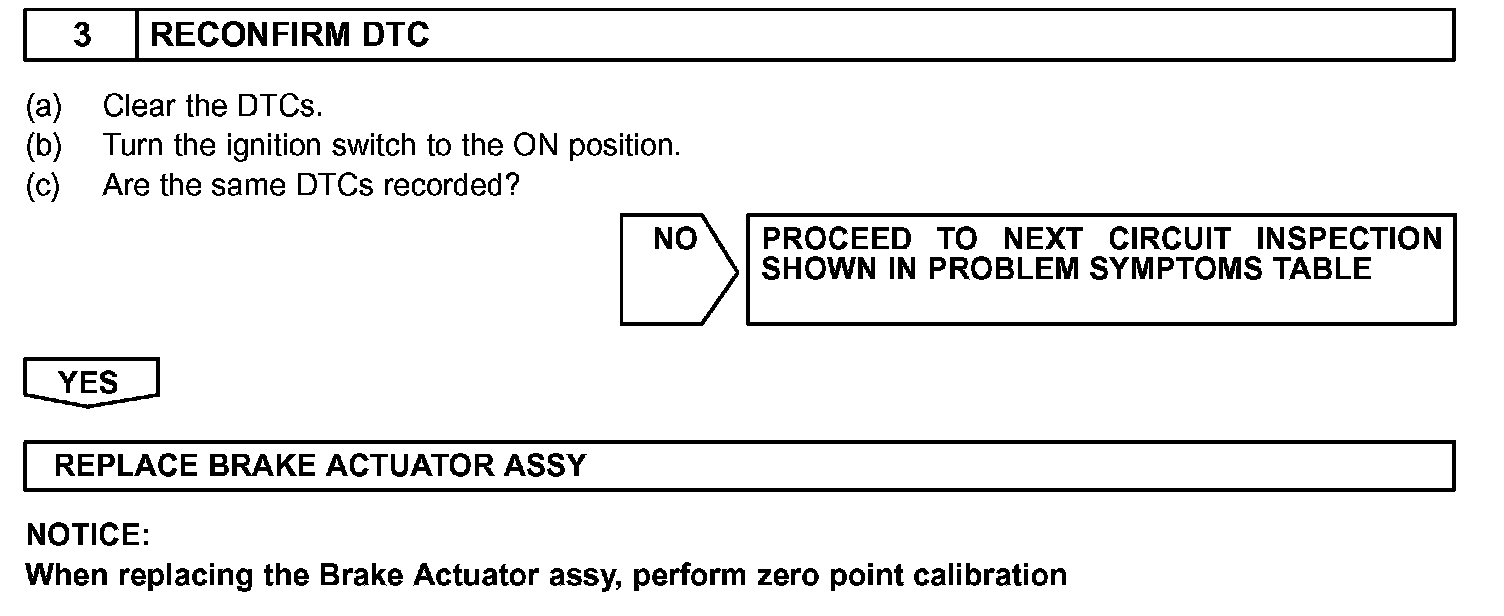

Step 3:

INSPECTION PROCEDURE

HINT: Start the inspection from step 1 when using the hand-held tester and start from step 2 when not using handheld tester.
