B2793

DTC B2793 TRANSPONDER CHIP MALFUNCTION

CIRCUIT DESCRIPTION

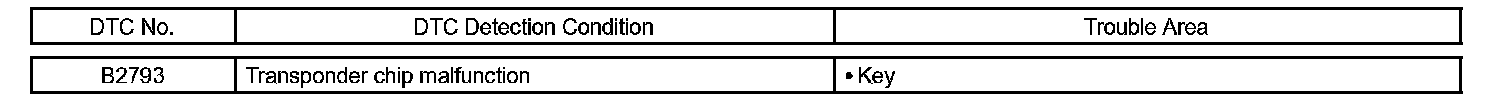

DTC Detection Condition:

This DTC is output when a malfunction is found in a key during the key code registration or the key code is not registered normally. Replace the key when the key code registration is not performed normally and this DTC is detected.

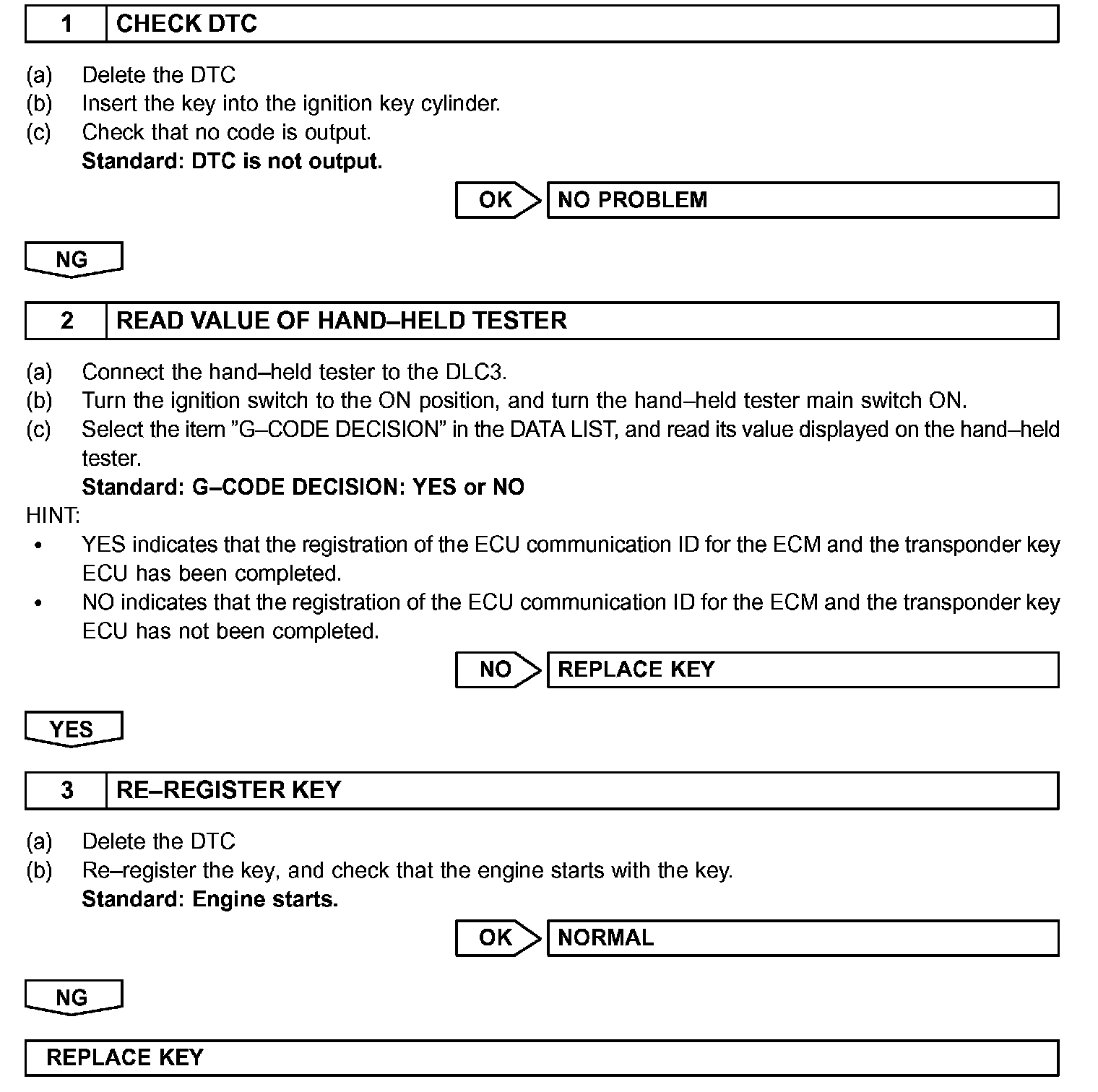

Step 1 - 3:

INSPECTION PROCEDURE
