B1795

DTC B1795 OCCUPANT CLASSIFICATION ECU MALFUNCTION

CIRCUIT DESCRIPTION

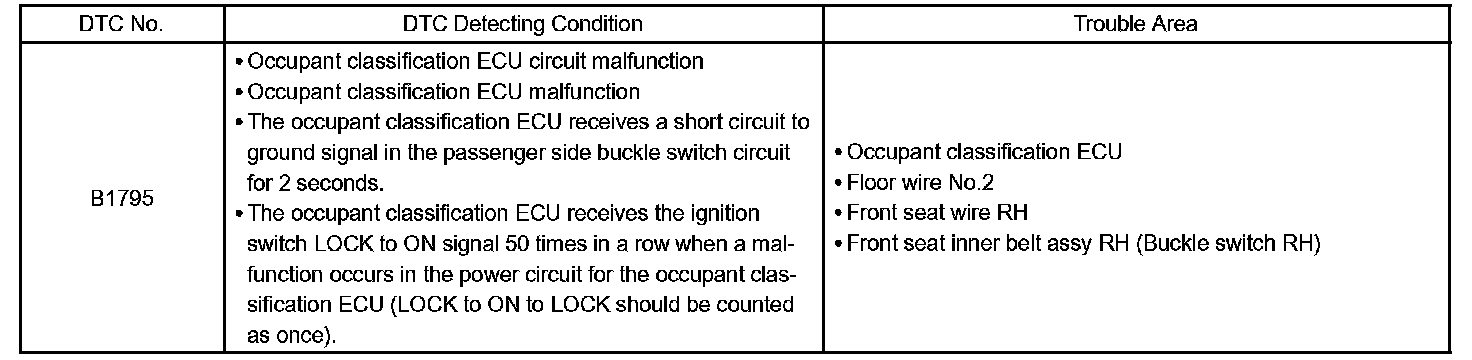

DTC Detecting Condition:

DTC B1795 is recorded when a malfunction is detected in the occupant classification ECU. Troubleshoot DTC B1771 first when the DTC B1771 and B1795 are output simultaneously.

HINT:
- When DTC B1650/32 is detected as a result of troubleshooting for the supplemental restraint system, perform troubleshooting for DTC B1795 of the occupant classification system.
- Use the hand-held tester to check the DTC of the occupant classification ECU, otherwise the DTC cannot be read.

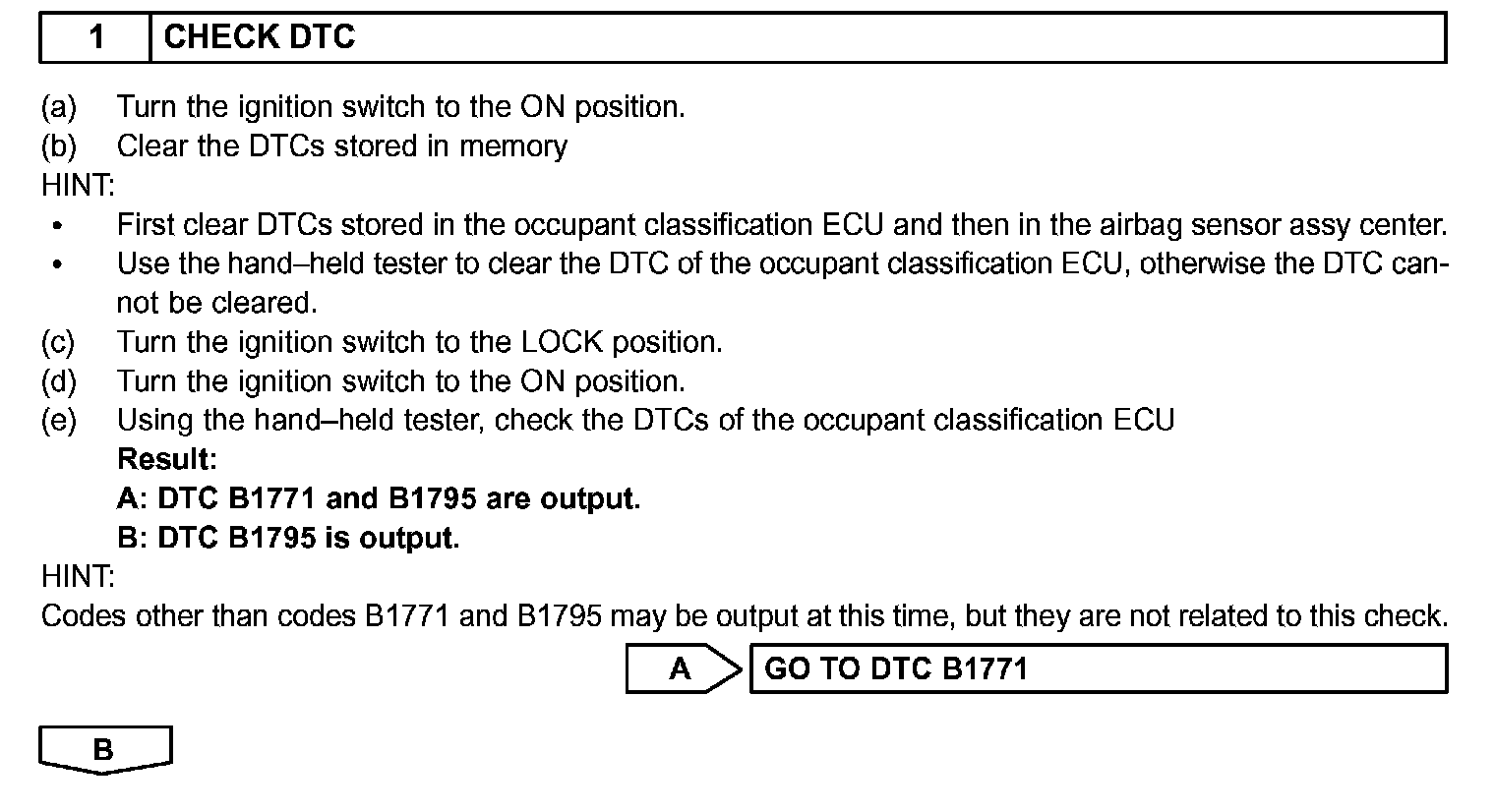

Step 1:

Step 2 - 5:

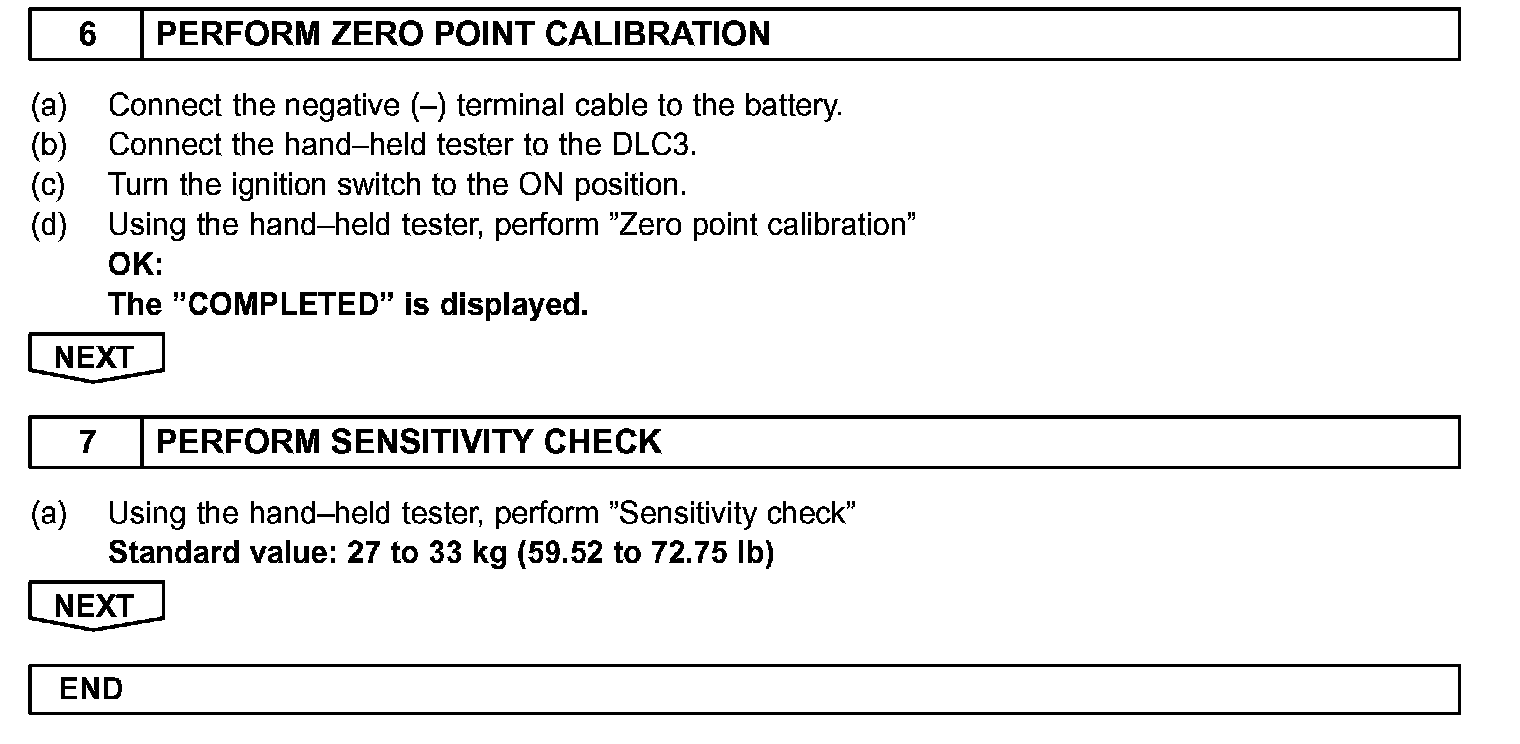

Step 6 - 7:

INSPECTION PROCEDURE
