B1785

DTC B1785 OCCUPANT CLASSIFICATION SENSOR FRONT LH COLLISION DETECTION

CIRCUIT DESCRIPTION

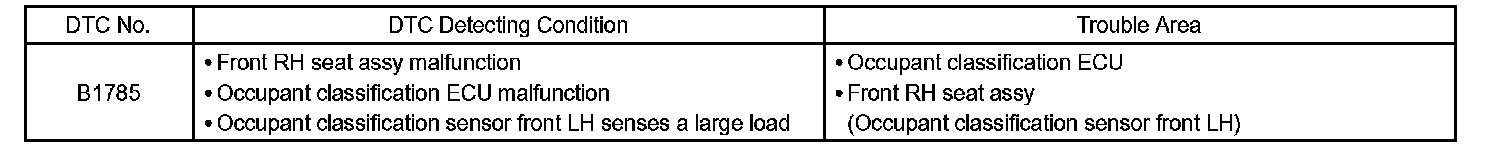

DTC Detecting Condition:

DTC B1785 is output when the occupant classification ECU receives a collision detection signal sent by the occupant classification sensor front LH if an accident occurs.

DTC B1785 is also output when the front RH seat assembly is subjected to a strong impact, even if an actual accident does not occur.

However, when the occupant classification ECU outputs a collision detection signal, even if the vehicle is not in a collision, DTC B1785 can be cleared by "Zero point calibration" and "Sensitivity check". Therefore, if DTC B1785 is output, first perform "Zero point calibration" and "Sensitivity check".

HINT:
- When DTC B1650/32 is detected as a result of troubleshooting for the supplemental restraint system, perform troubleshooting for DTC B1785 of the occupant classification system.
- Use the hand-held tester to check the DTC of the occupant classification ECU, otherwise the DTC cannot be read.

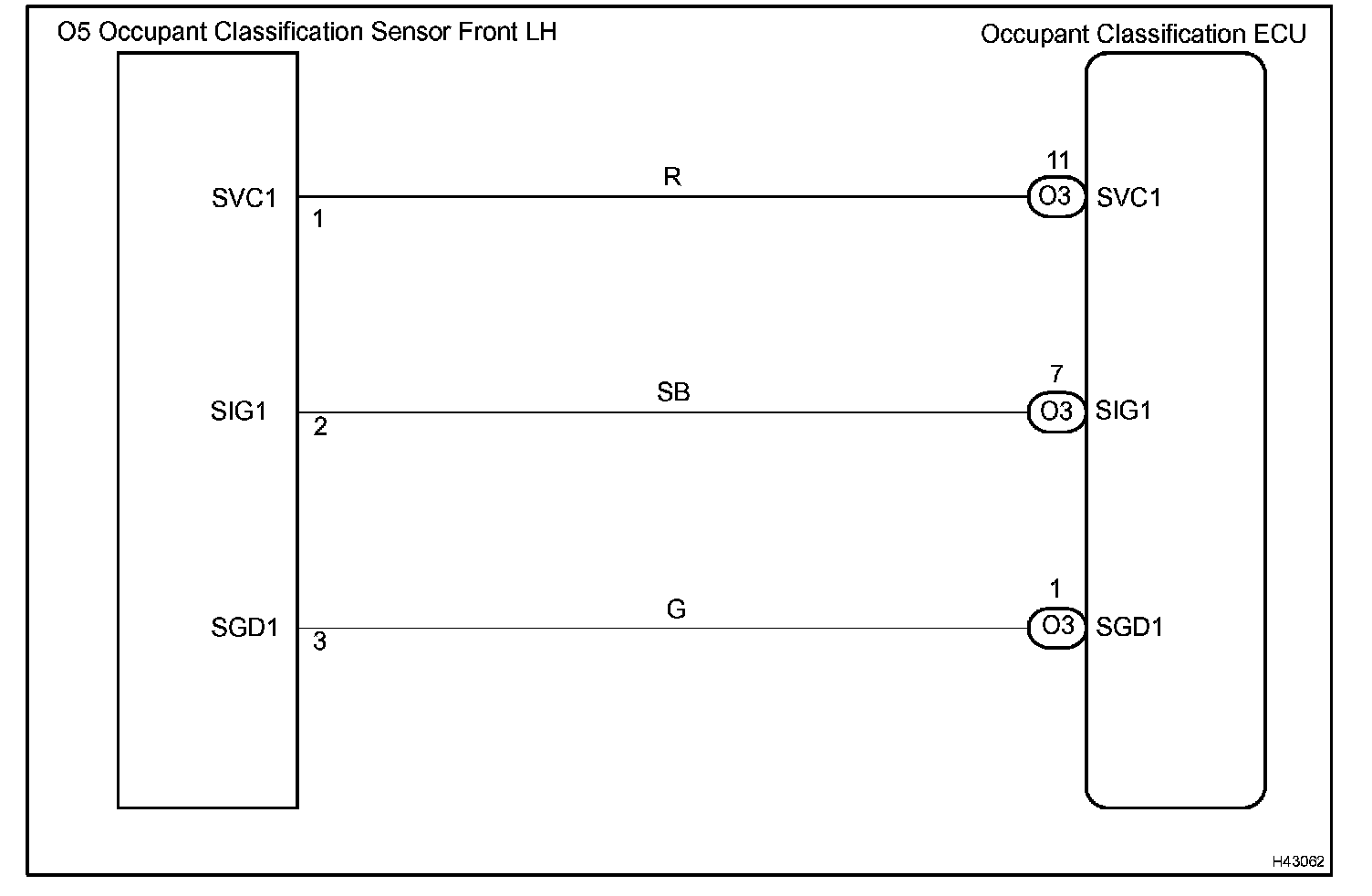

Wiring Diagram:

Step 1 - 2:

Step 3 - 5:

Step 6 - 9:

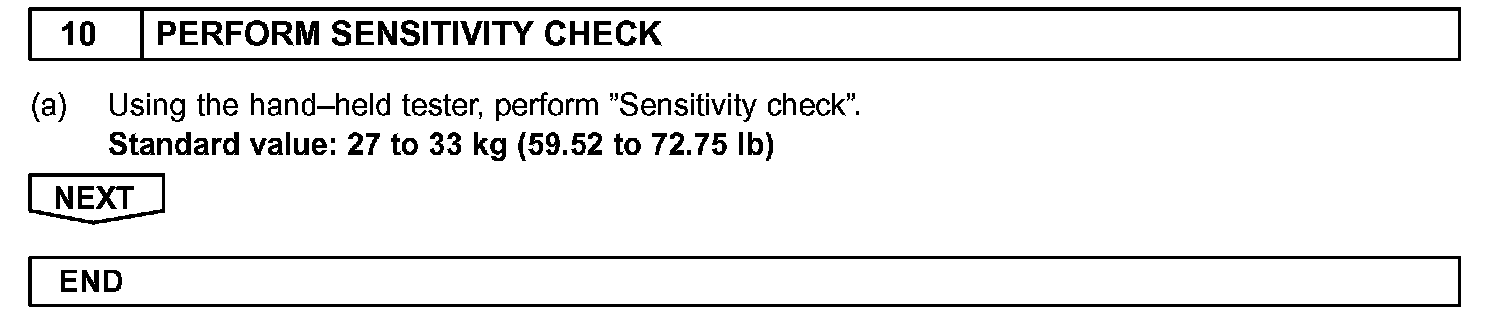

Step 10:

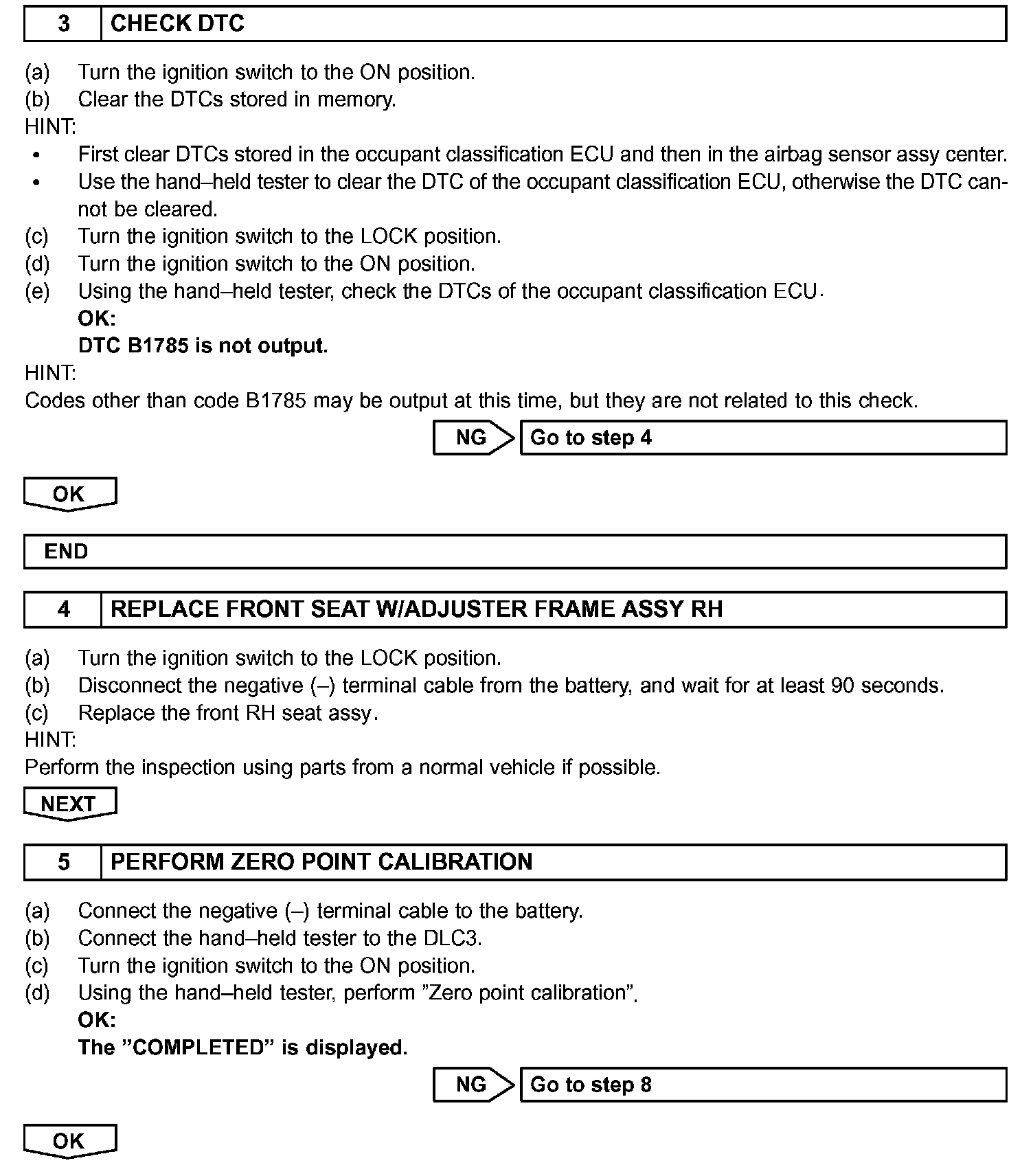

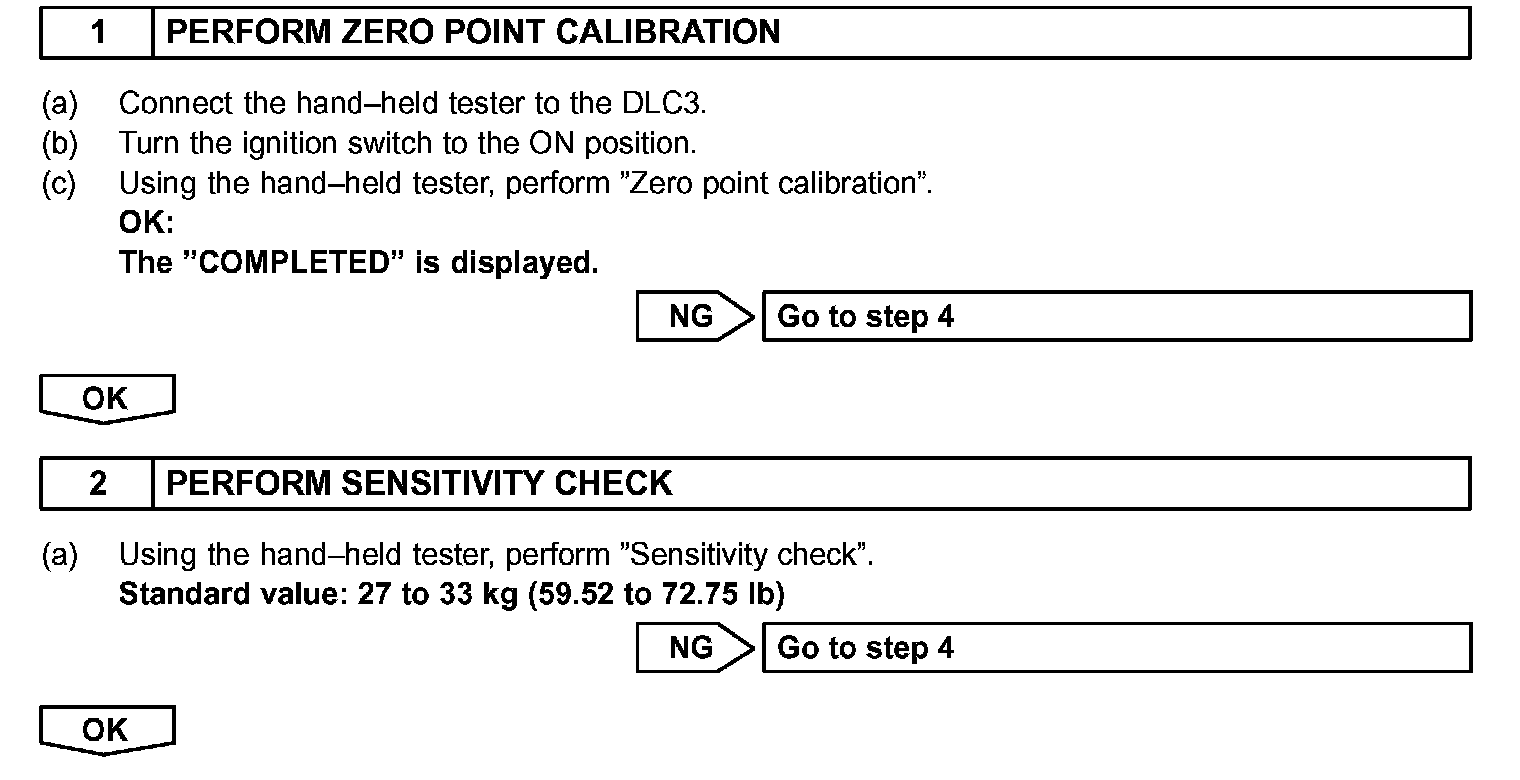

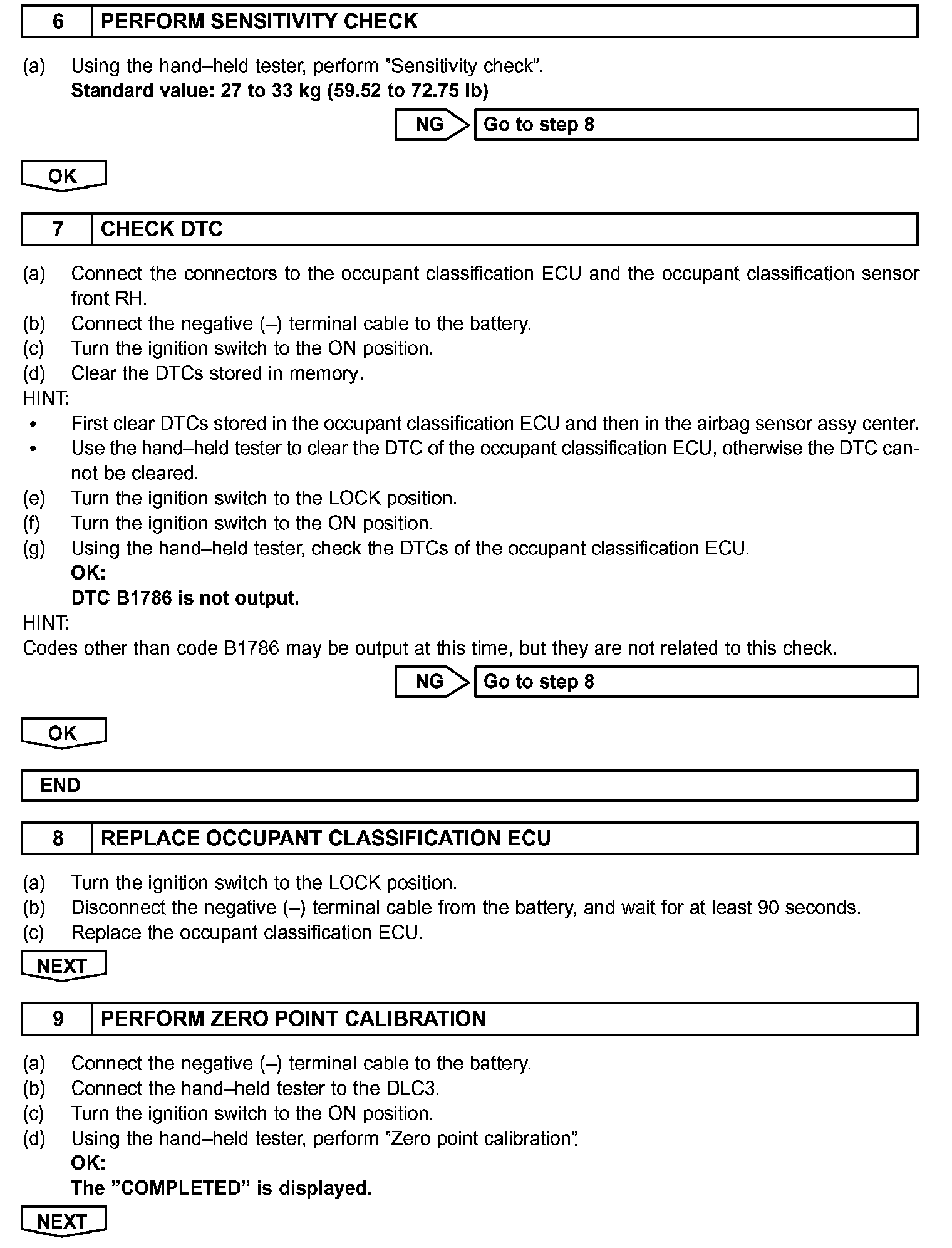

INSPECTION PROCEDURE
