B1780

DTC B1780 OCCUPANT CLASSIFICATION SENSOR FRONT LH CIRCUIT MALFUNCTION

CIRCUIT DESCRIPTION

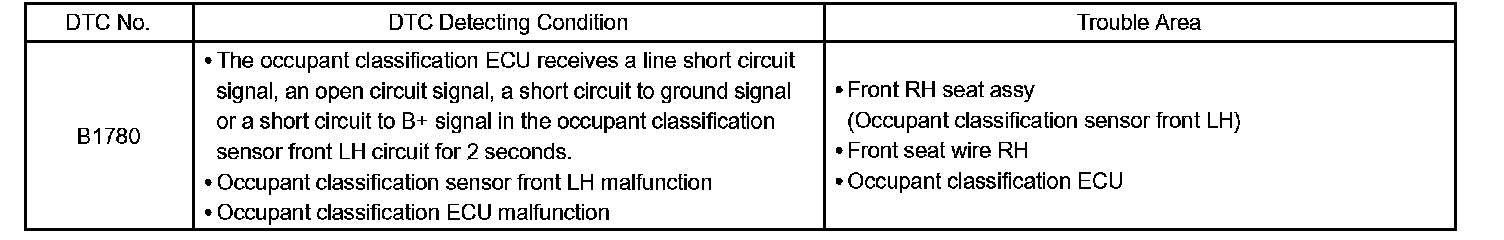

DTC Detecting Condition:

The occupant classification sensor front LH circuit consists of the occupant classification ECU and the occupant classification sensor front LH.

DTC B1780 is recorded when a malfunction is detected in the occupant classification sensor front LH circuit.

HINT:
- When DTC B1650/32 is detected as a result of troubleshooting for the supplemental restraint system,perform troubleshooting for DTC B1780 of the occupant classification system.
- Use the hand-held tester to check the DTC of the occupant classification ECU, otherwise the DTC cannot be read.

Wiring Diagram:

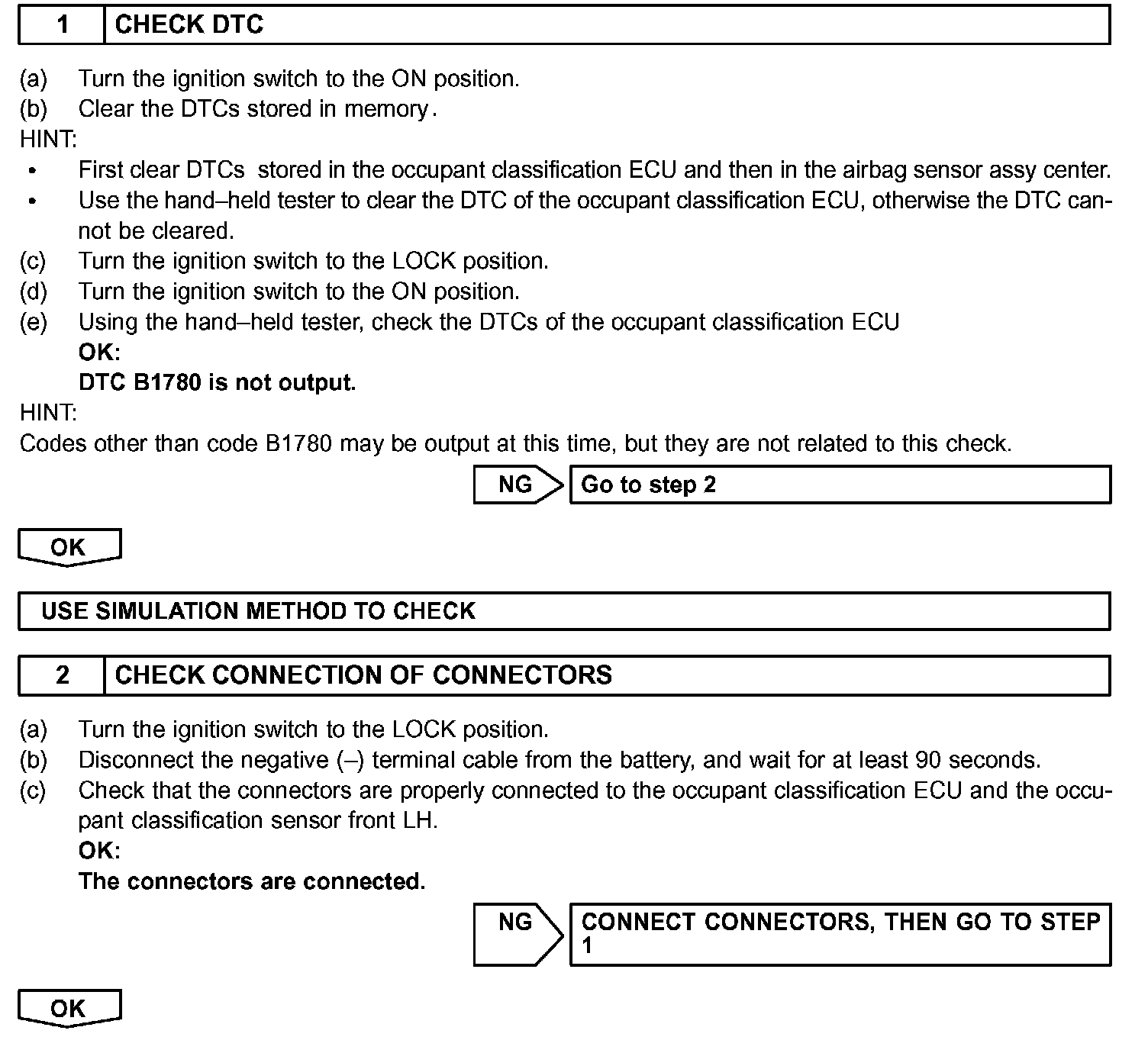

Step 1 - 2:

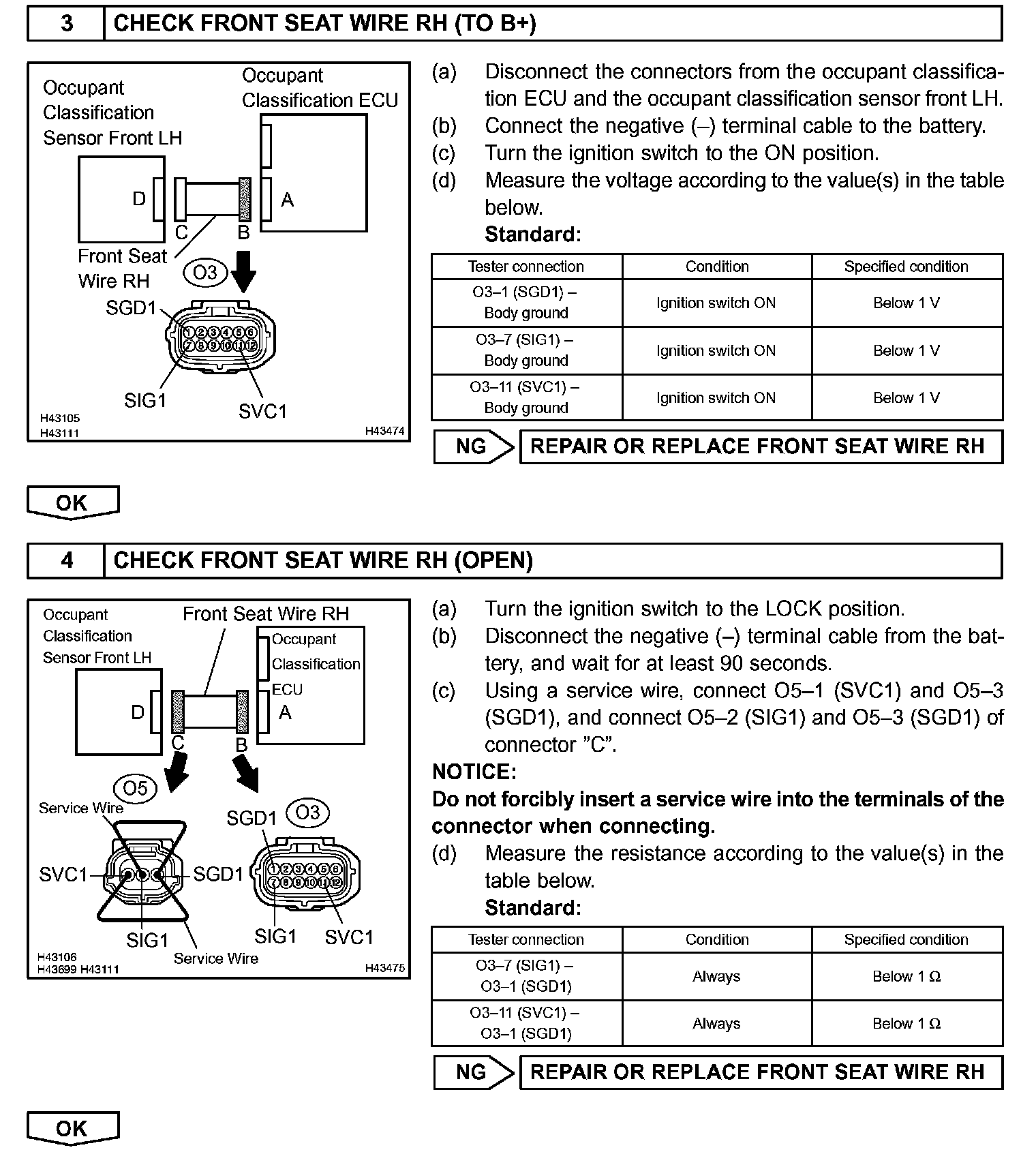

Step 3 - 4:

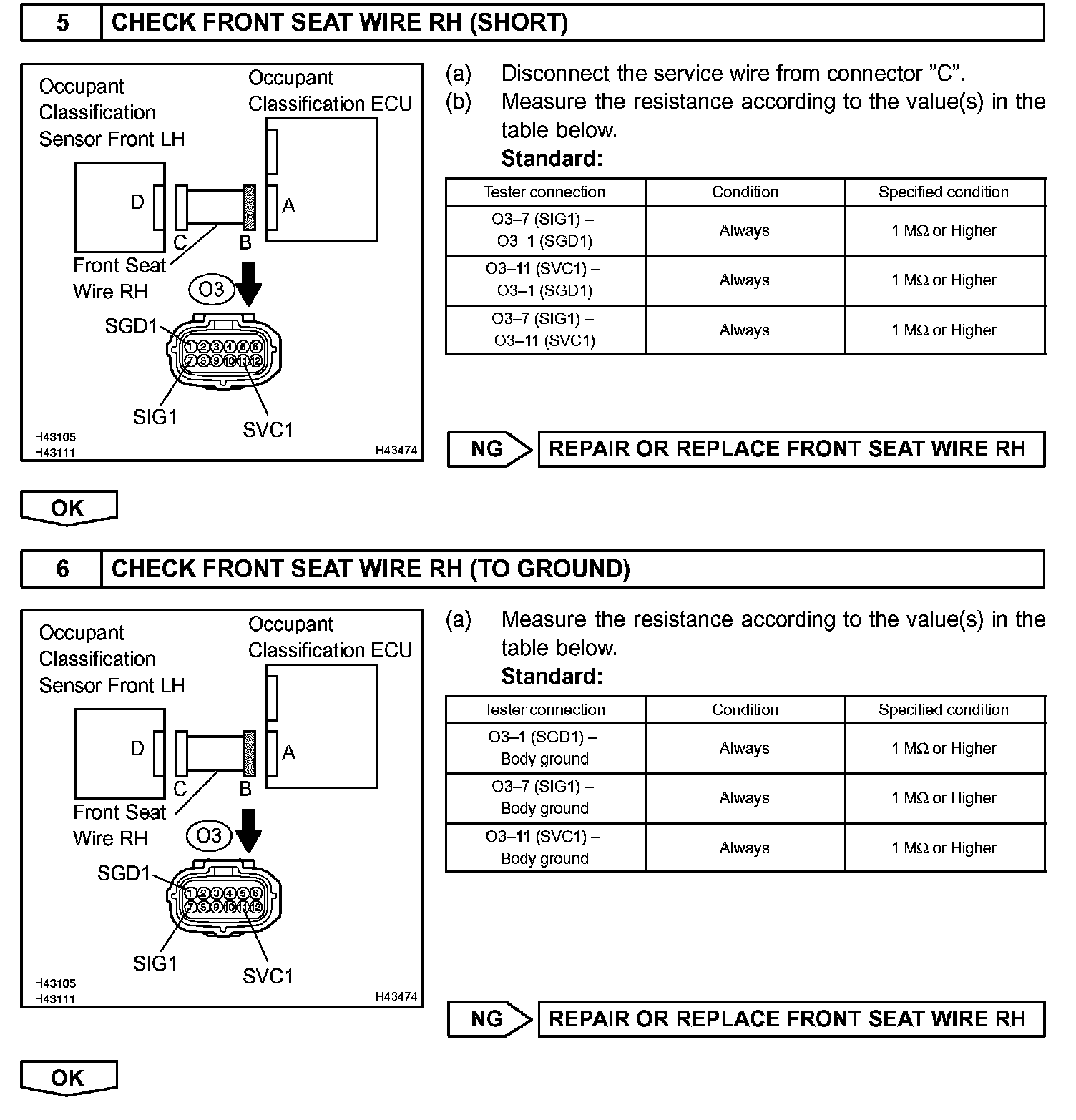

Step 5 - 6:

Step 7 - 9:

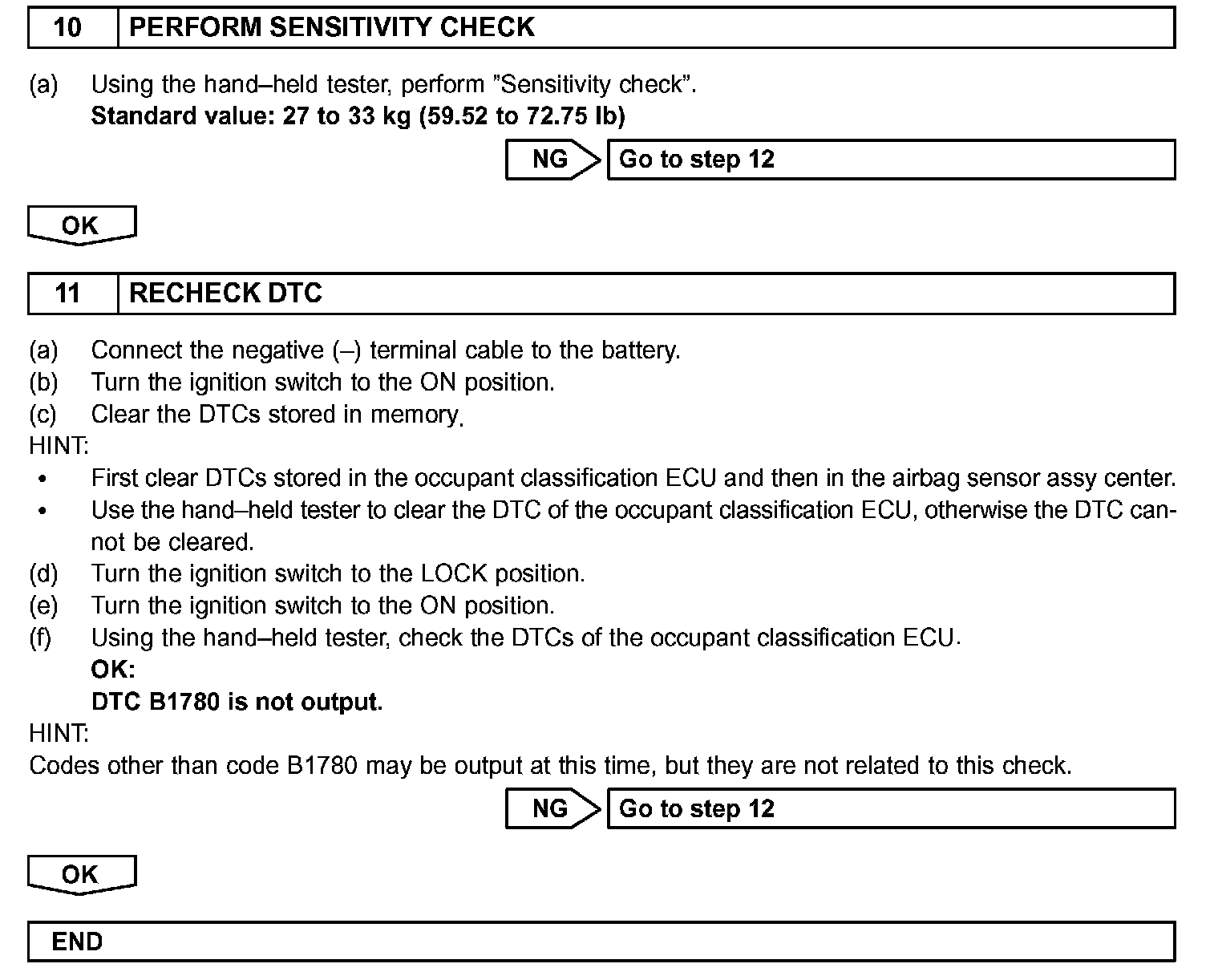

Step 10 - 11:

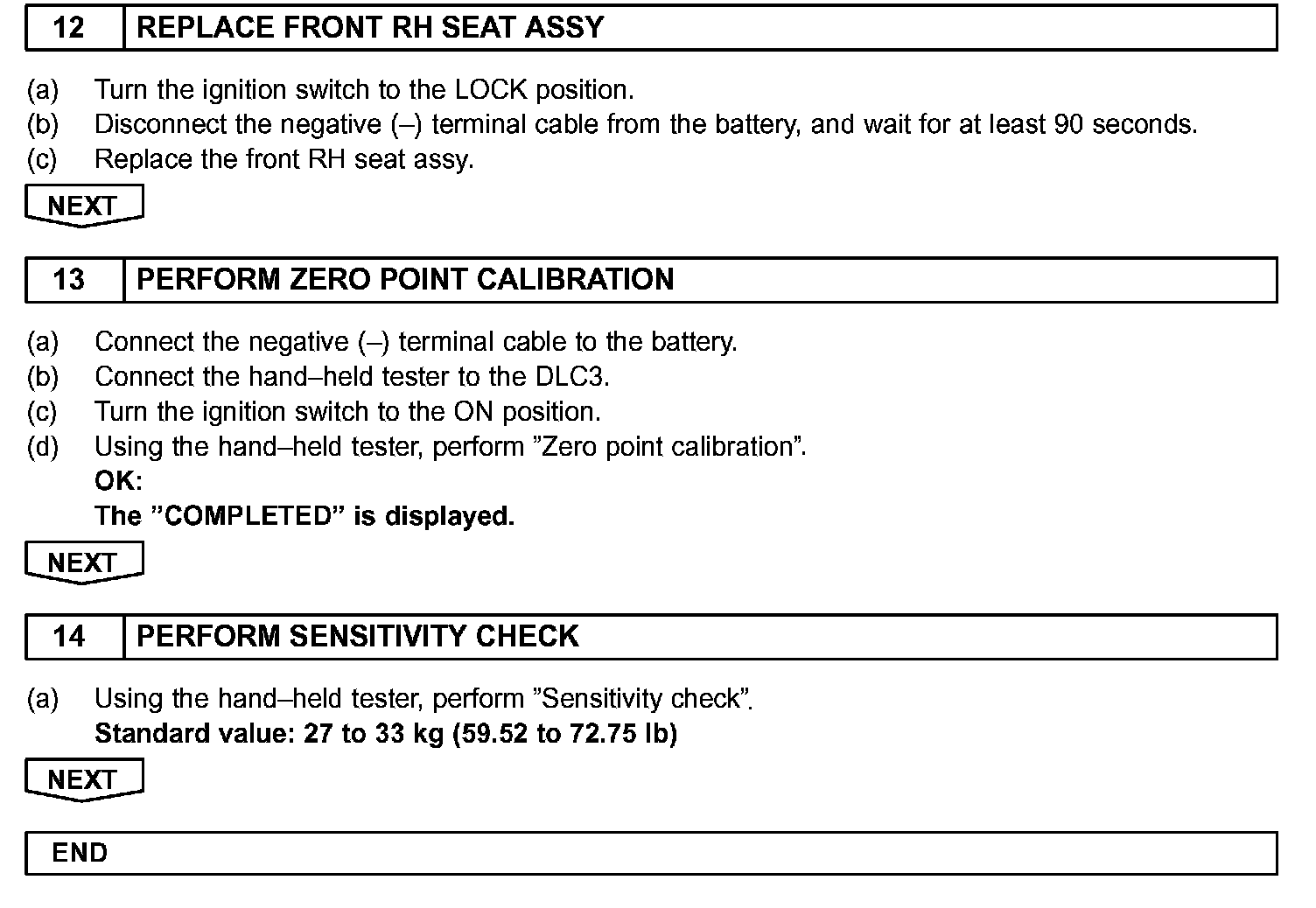

Step 12 - 14:

INSPECTION PROCEDURE

HINT:
- If troubleshooting (wire harness inspection) is difficult to perform, remove the front RH seat assembly installation bolts to see the under surface of seat cushion.
- In the above case, hold the seat so that it does not fall down. Holding the seat for a long period of time may cause a problem, such as seat rail deformation. Hold the seat only as necessary.
