B1655

DTC B1655 SEAT BELT BUCKLE SWITCH (D SEAT SIDE) MALFUNCTION

CIRCUIT DESCRIPTION

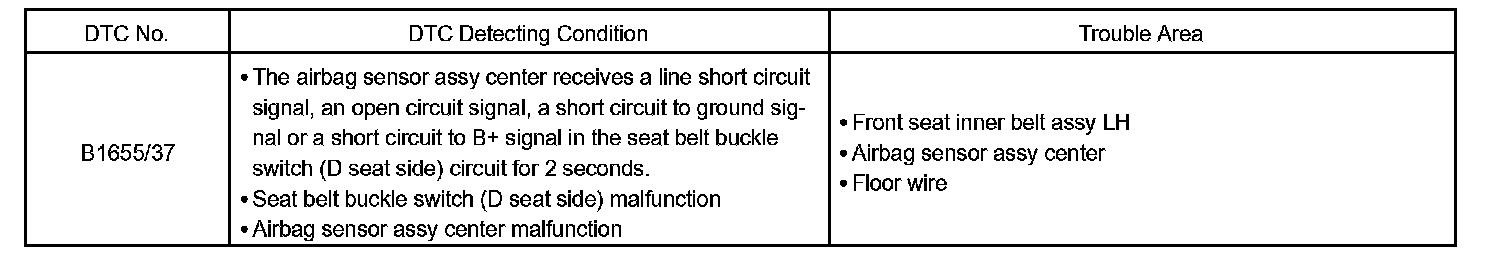

DTC Detecting Condition:

The seat belt buckle switch (D seat side) circuit consists of the airbag sensor assembly center and the front seat inner belt assembly LH.

DTC B1655/37 is recorded when a malfunction is detected in the seat belt buckle switch (D seat side) circuit.

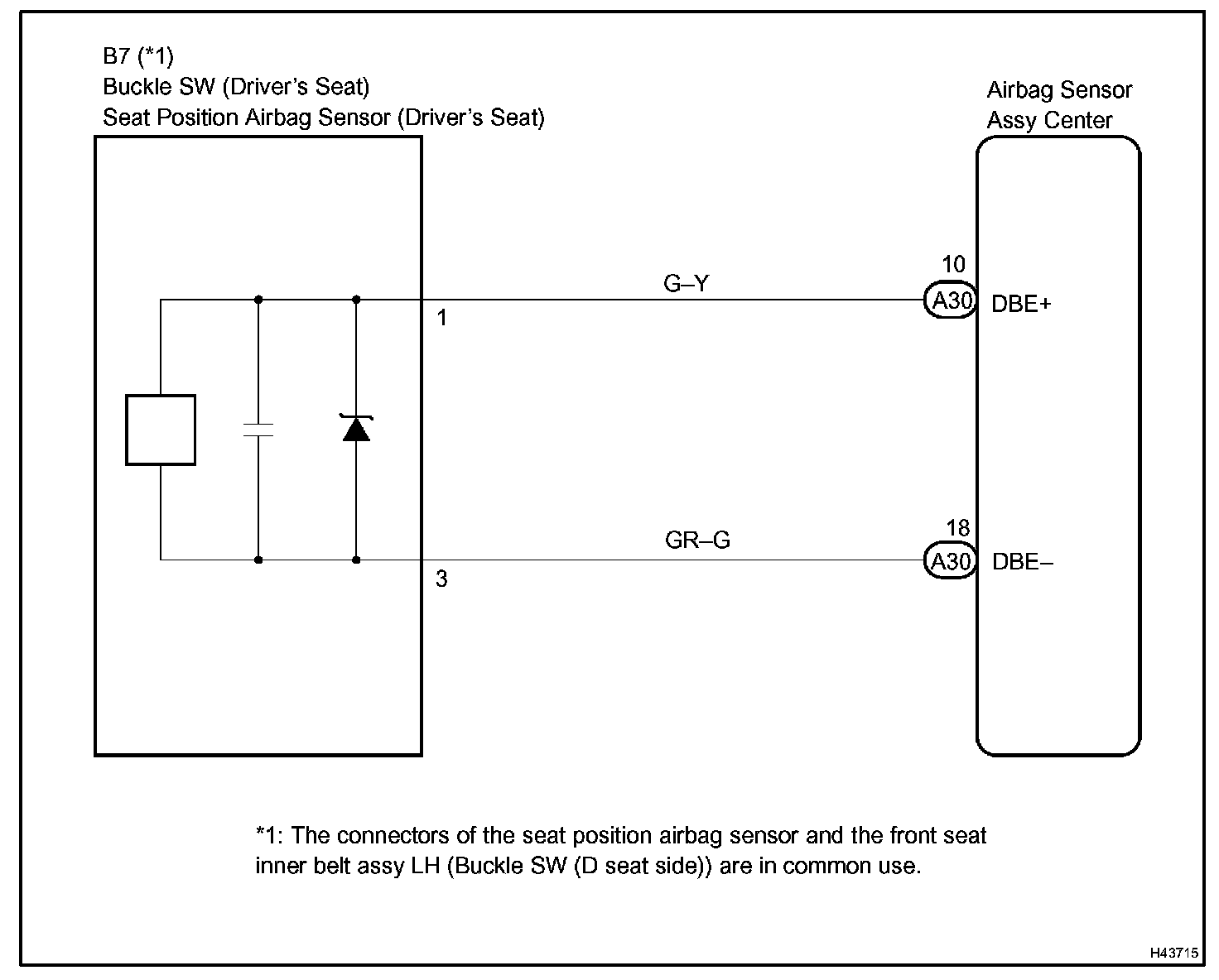

Wiring Diagram:

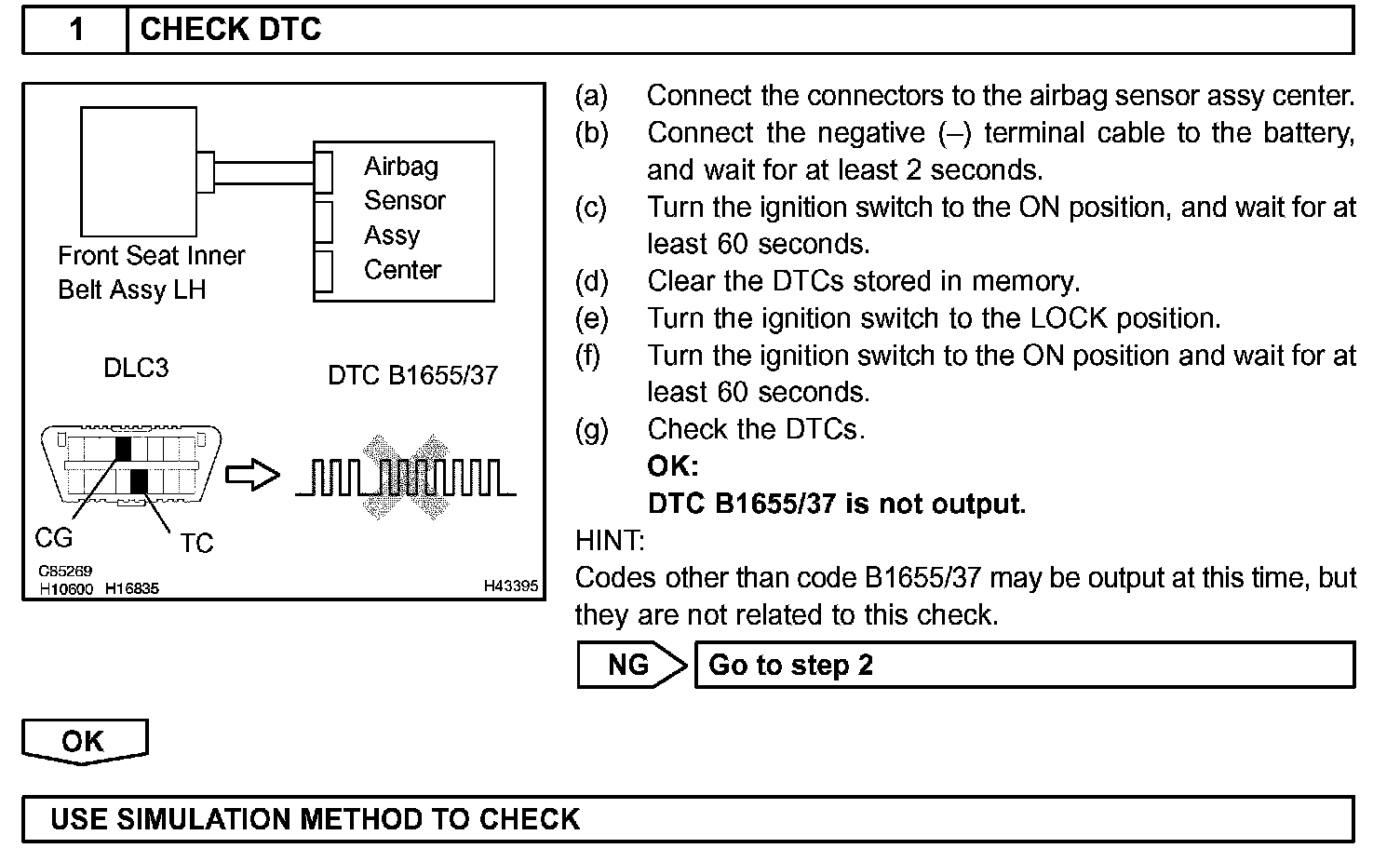

Step 1:

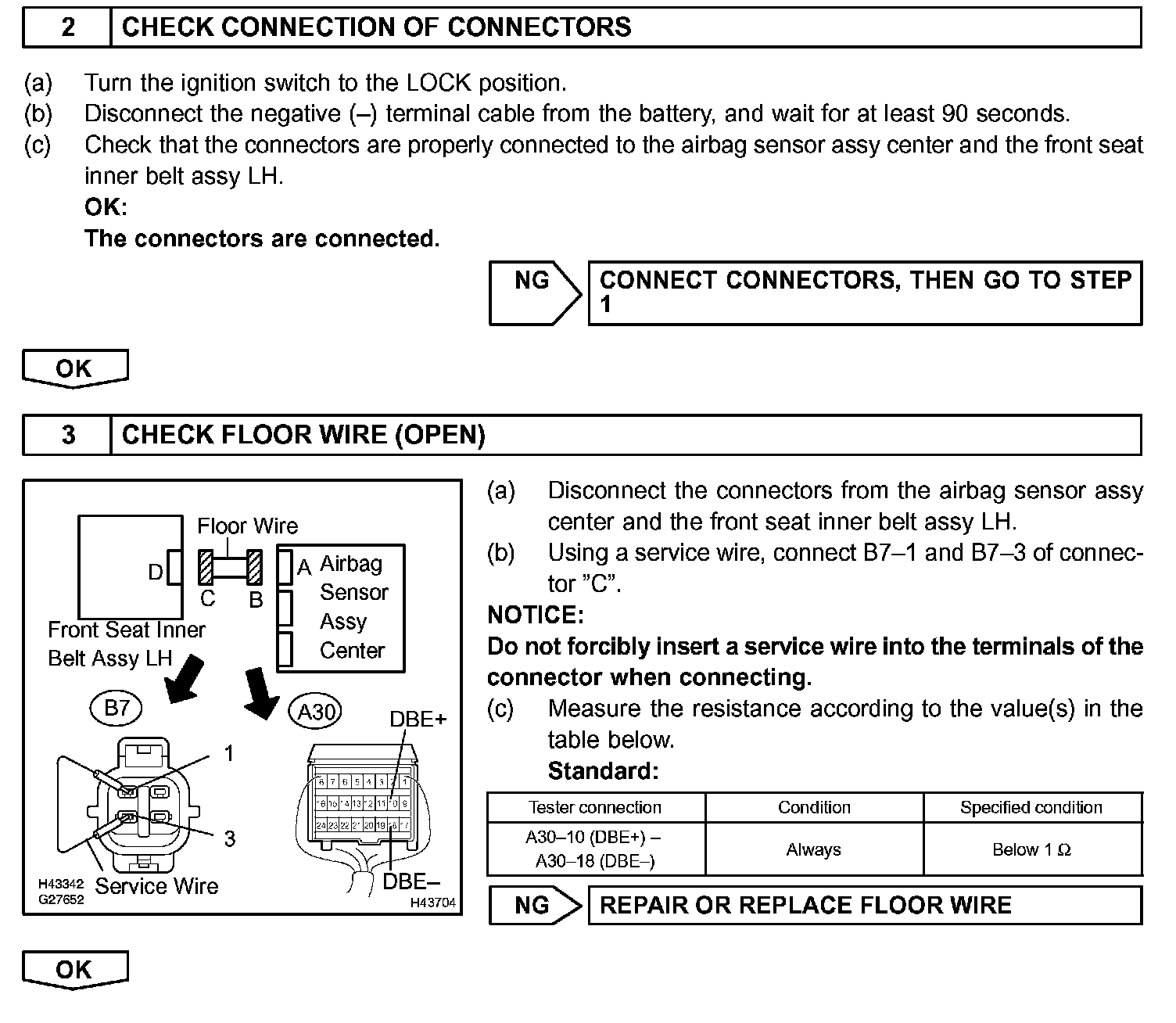

Step 2 - 3:

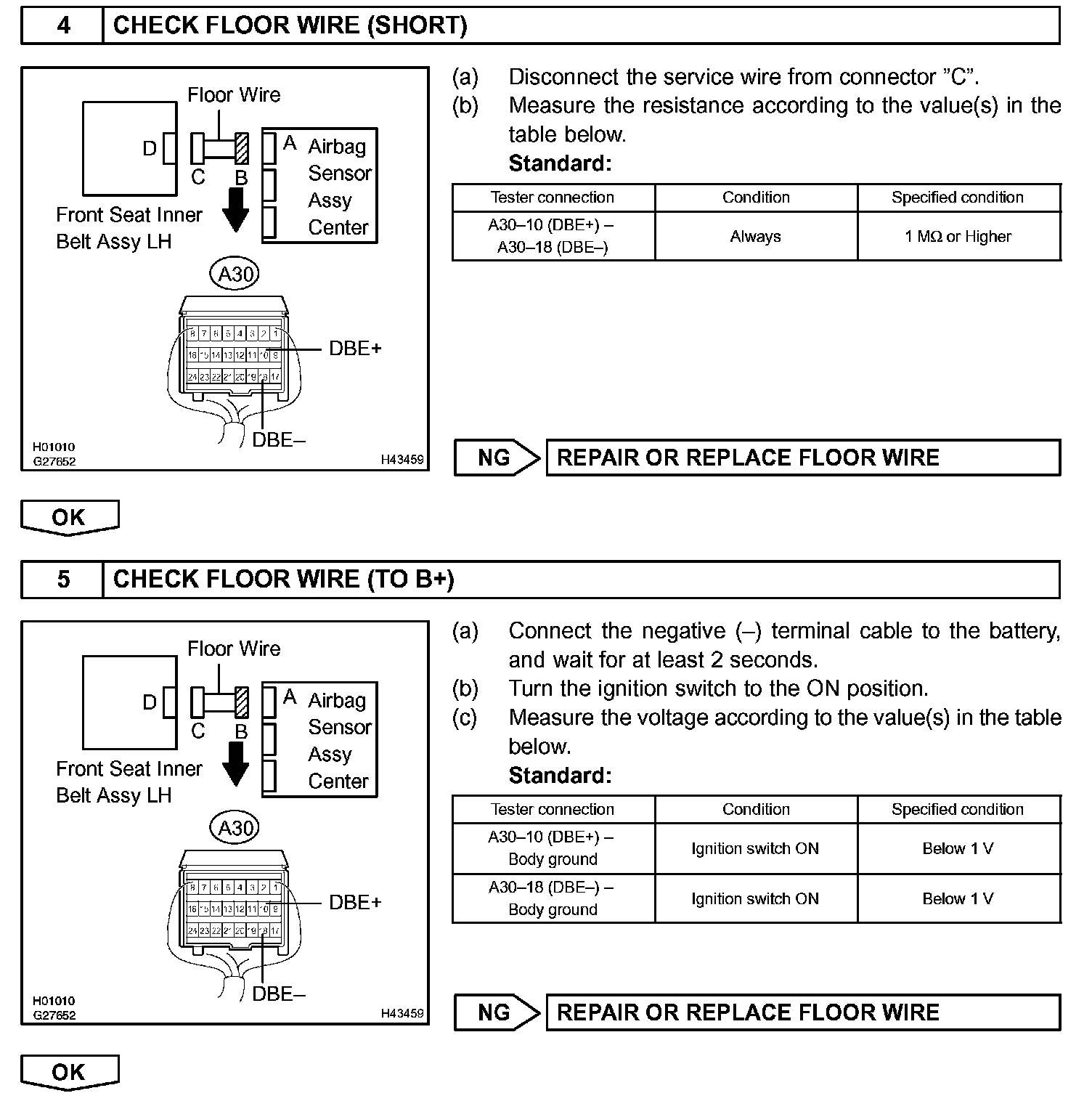

Step 4 - 5:

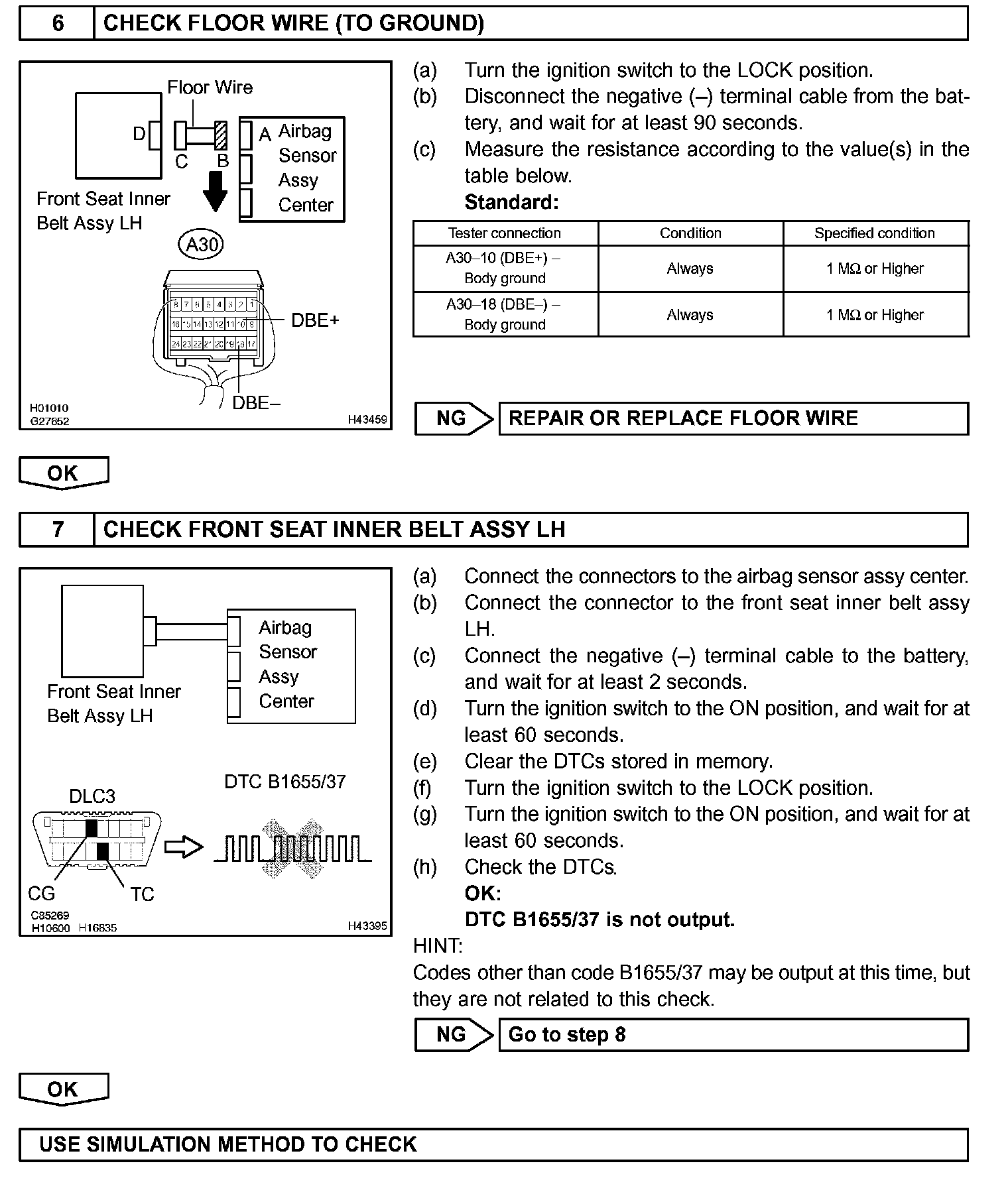

Step 6 - 7:

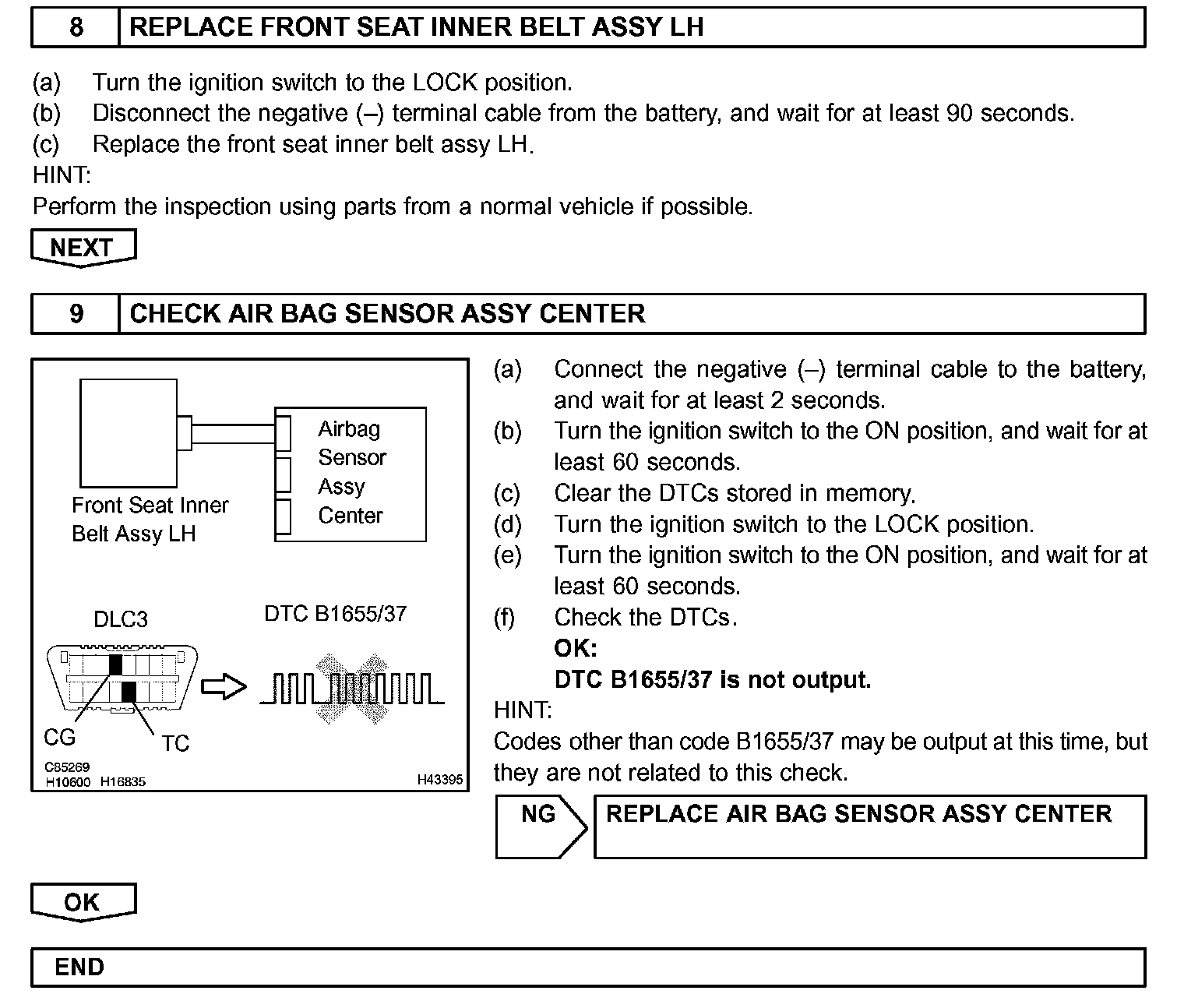

Step 8 - 9:

INSPECTION PROCEDURE

CAUTION: Be sure to perform the following procedures before troubleshooting to avoid unexpected airbag deployment.

a. Turn the ignition switch to the LOCK position.
b. Disconnect the negative (-) terminal cable from the battery, and wait for at least 90 seconds.
c. Disconnect the connectors from the airbag sensor assembly center.
d. Disconnect the connectors from the horn button assembly.
e. Disconnect the connectors from the front passenger airbag assembly.
f. Disconnect the connector from the front seat airbag assembly LH.
g. Disconnect the connector from the front seat airbag assembly RH.
h. Disconnect the connector from the curtain shield airbag assembly LH.
i. Disconnect the connector from the curtain shield airbag assembly RH.
j. Disconnect the connector from the front seat outer belt assembly LH.
k. Disconnect the connector from the front seat outer belt assembly RH.
l. Disconnect the connector from the rear seat 3 point type belt assembly outer LH.
m. Disconnect the connector from the rear seat 3 point type belt assembly outer RH.
