Home >> Lexus >> 2004 >> LS 430 V8-4.3L (3UZ-FE) >> Repair and Diagnosis >> Technical Service Bulletins >> All Technical Service Bulletins >> Recall - Automatic Transmission Replacement >> Technical Instructions

Technical Instructions

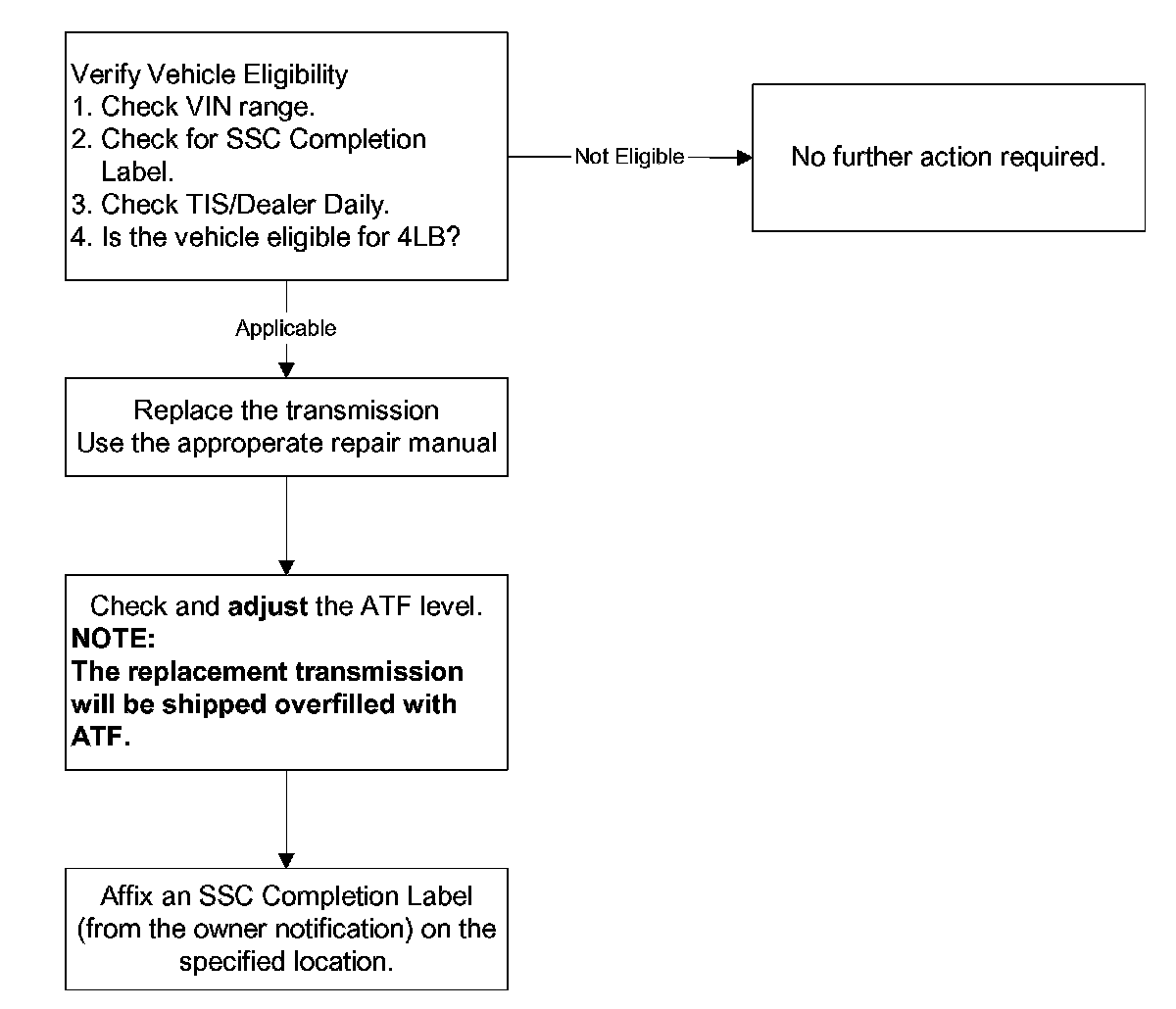

I. Operation Flow Chart





II. Identification of Affected Vehicles

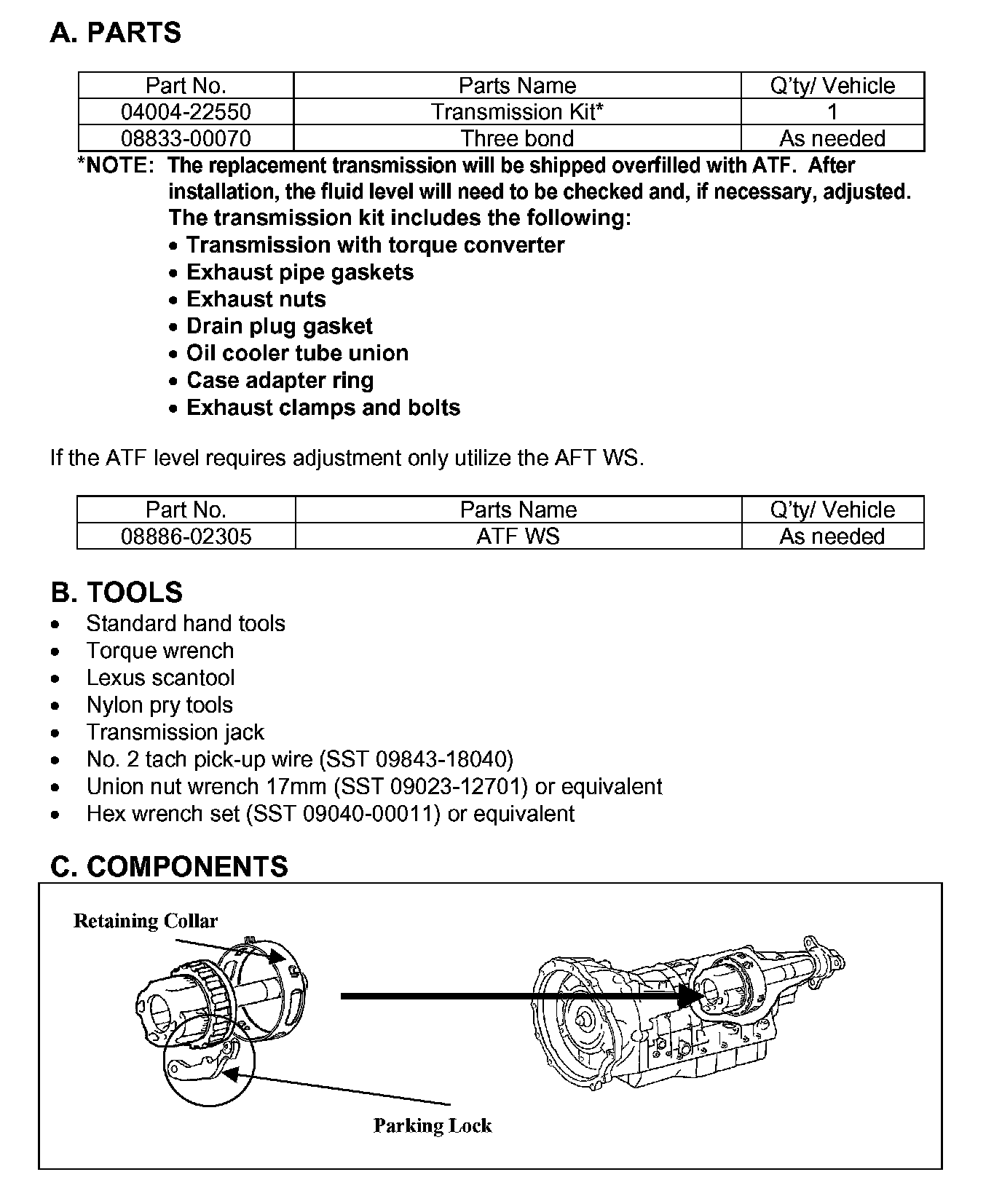

III. Preparation

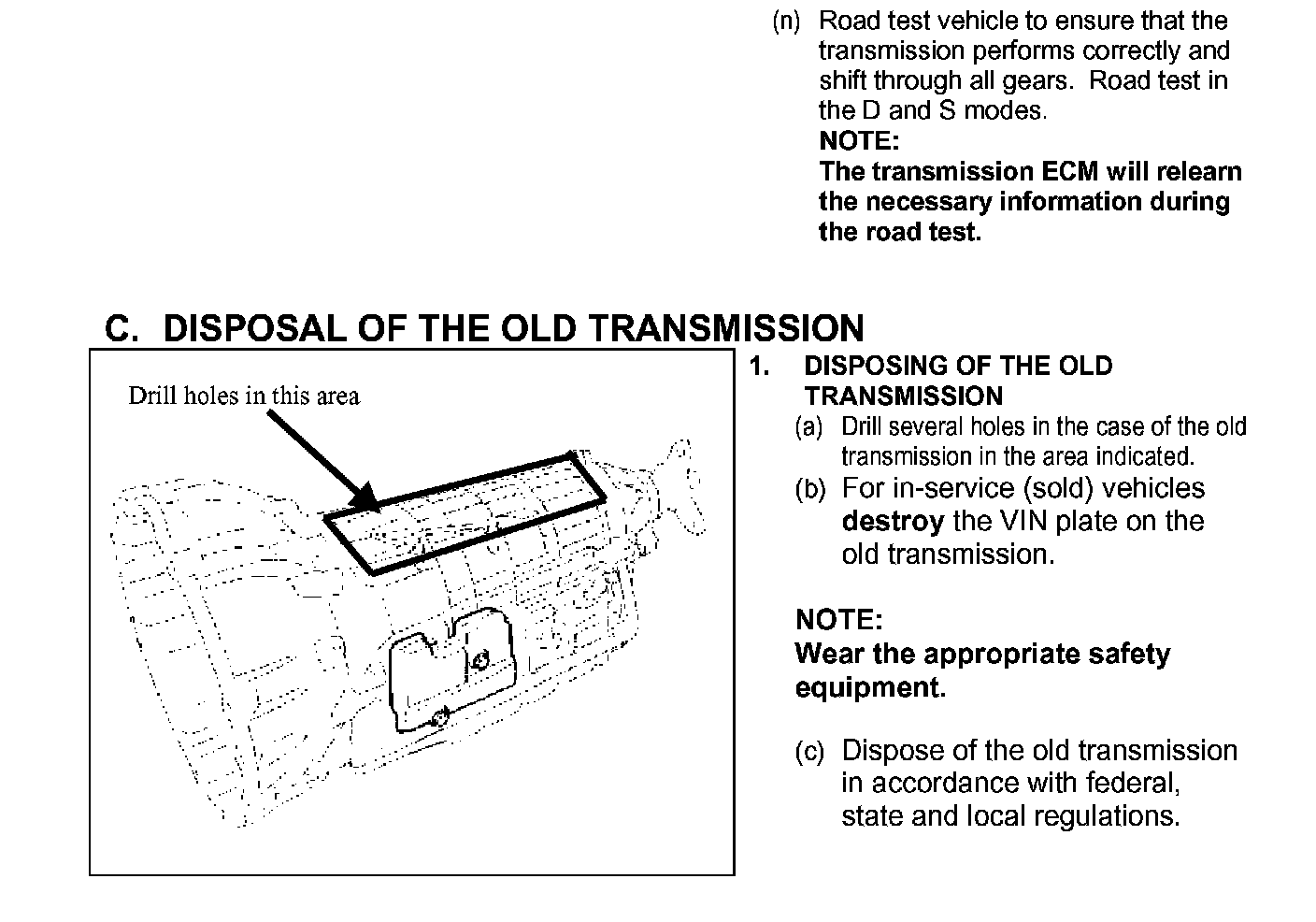

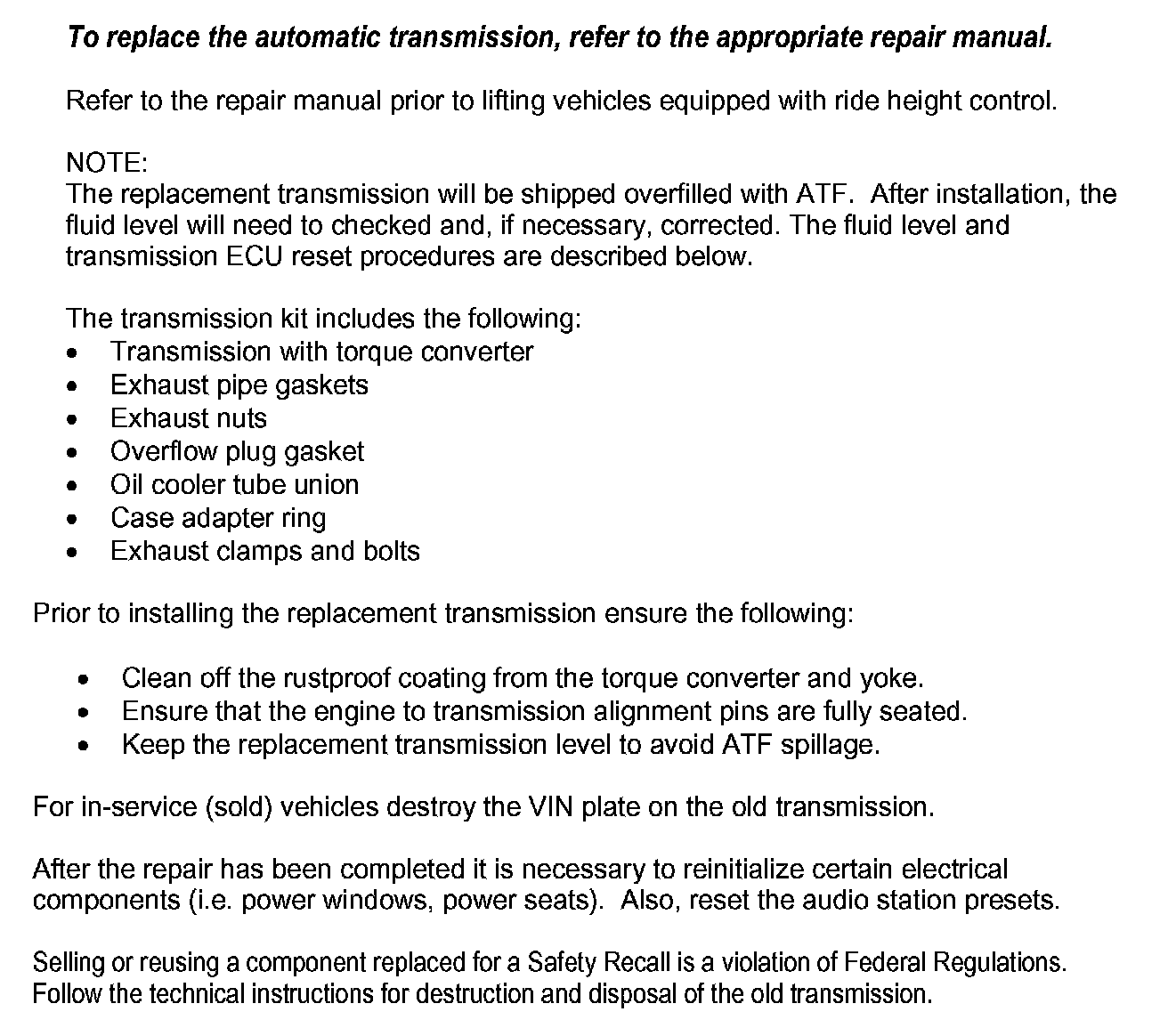

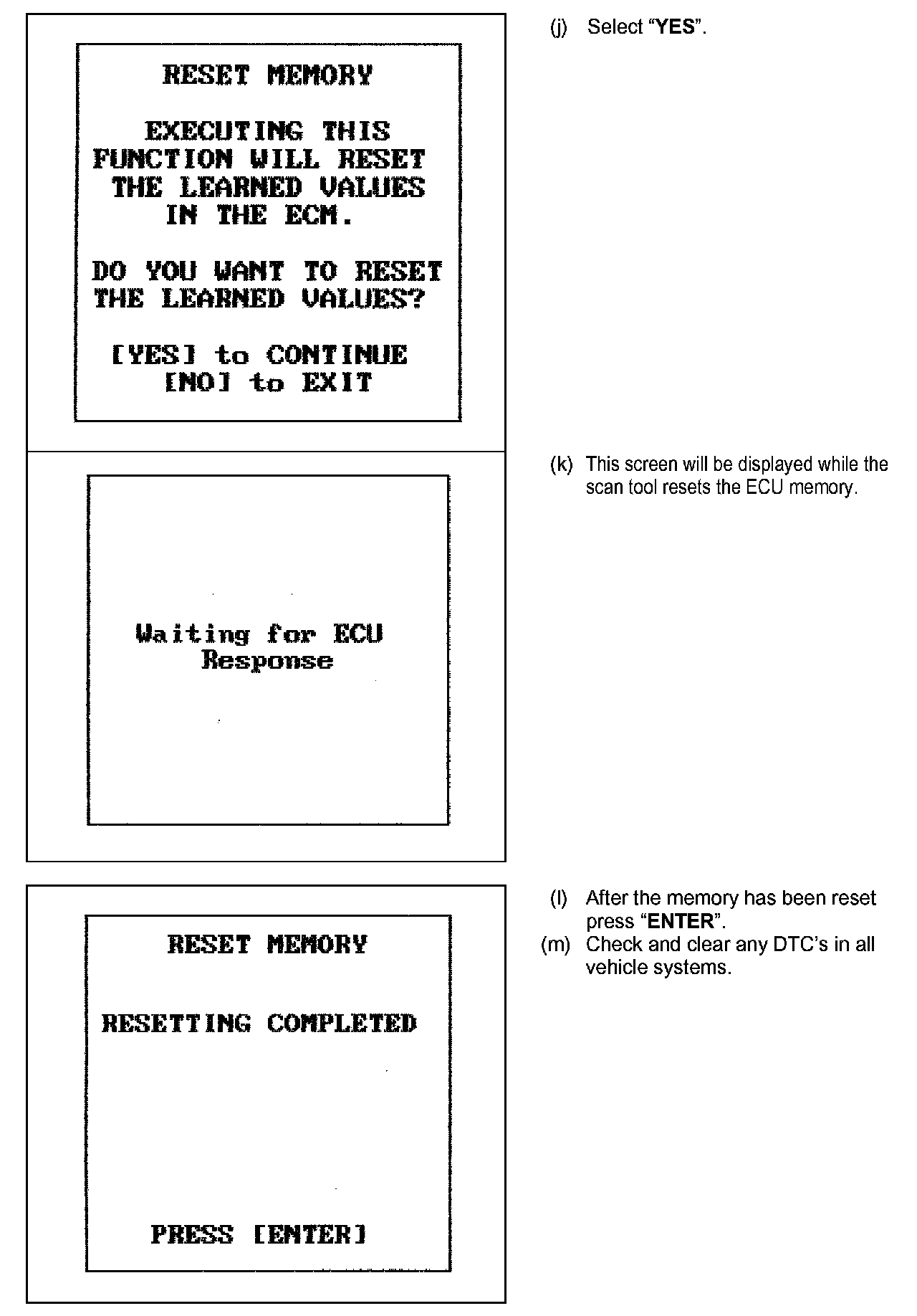

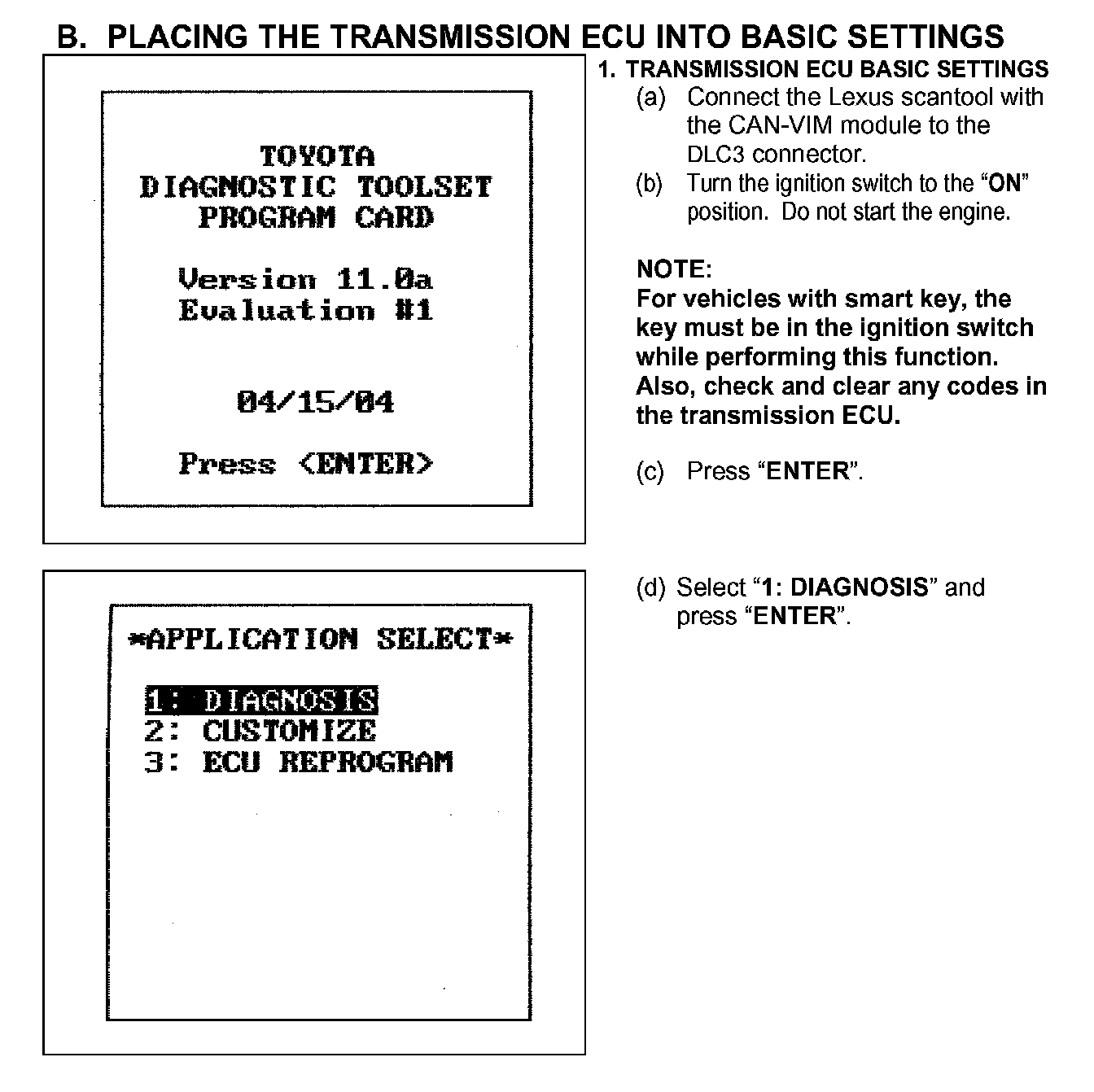

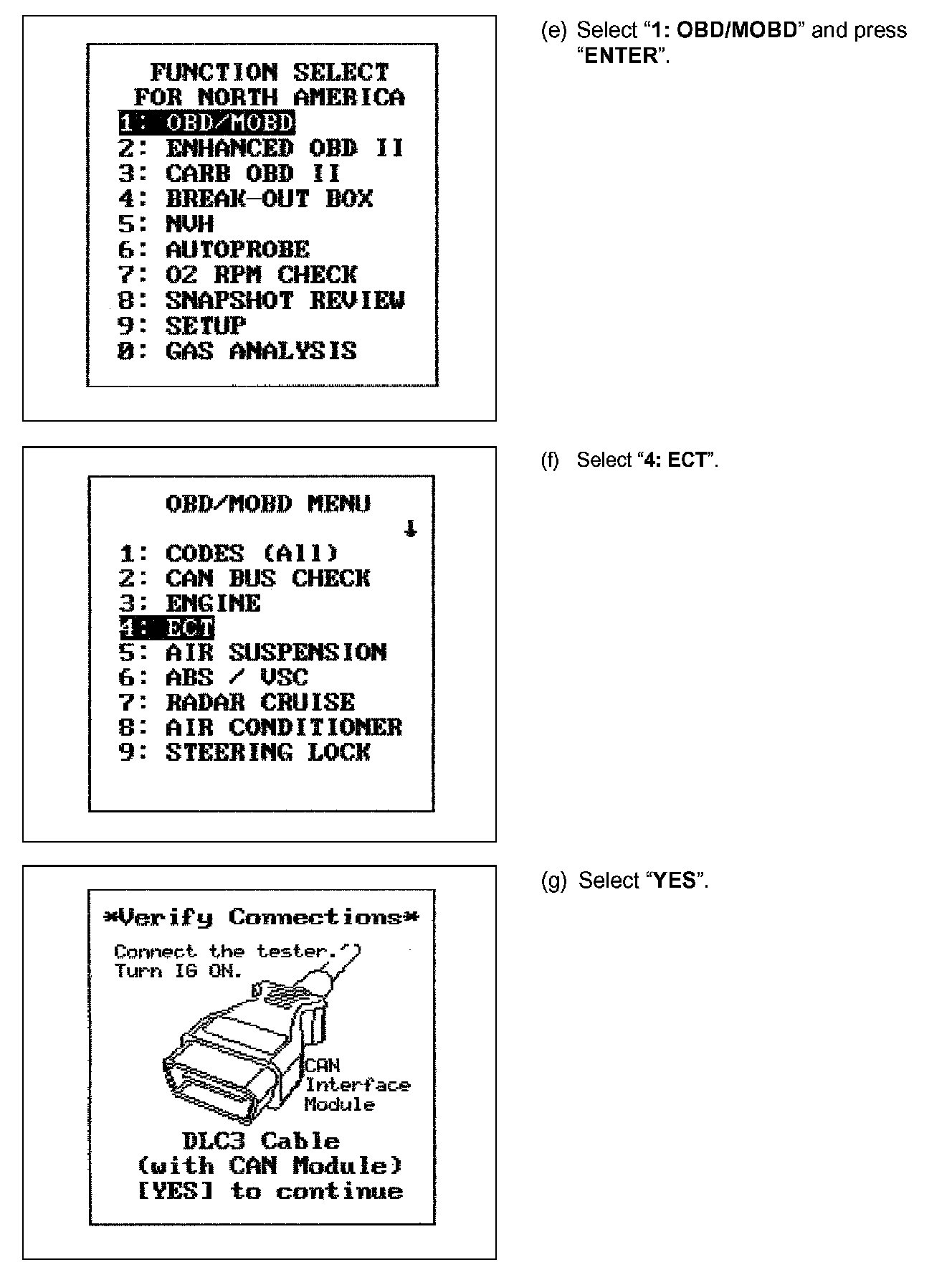

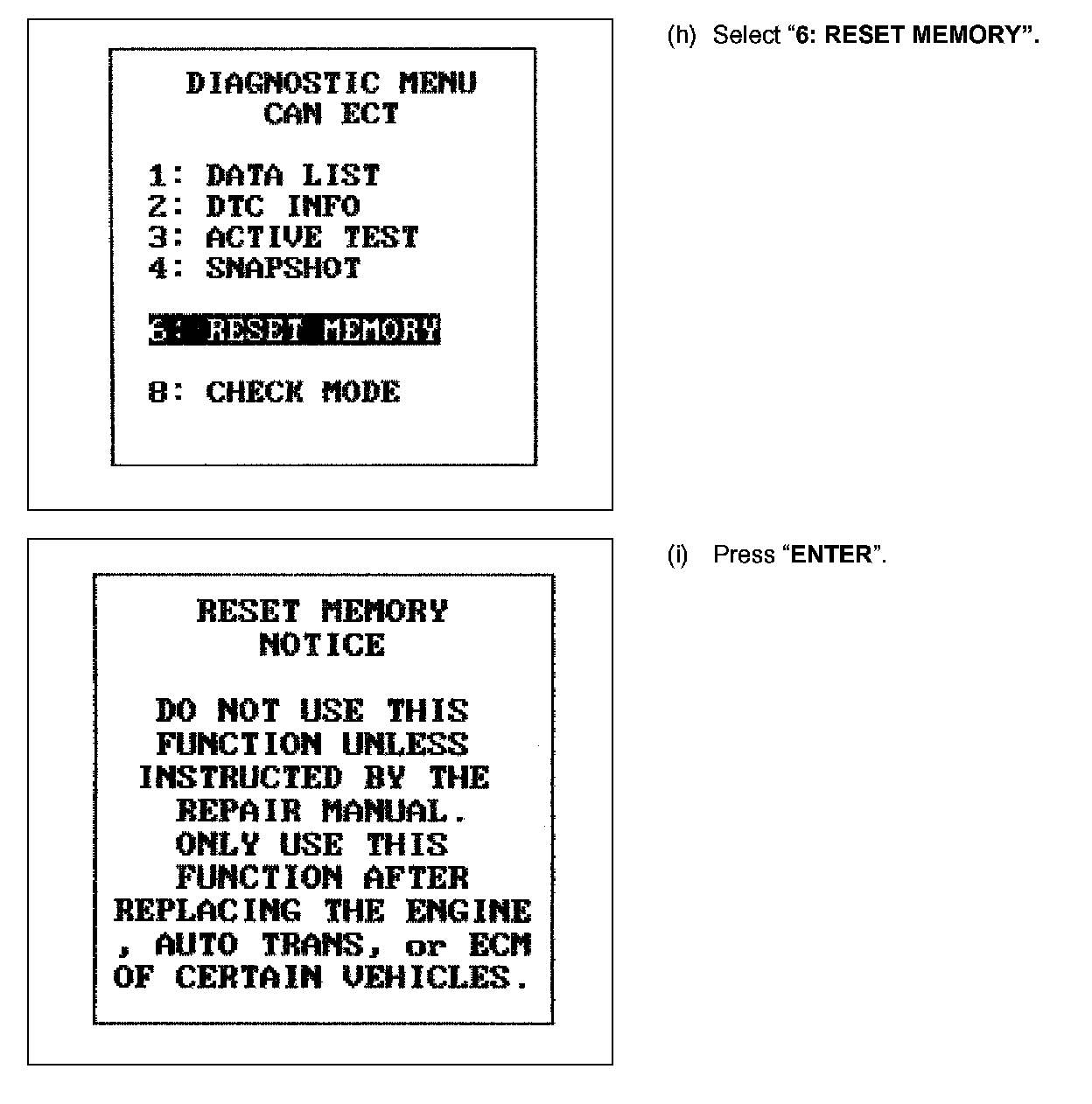

IV. Work Procedure

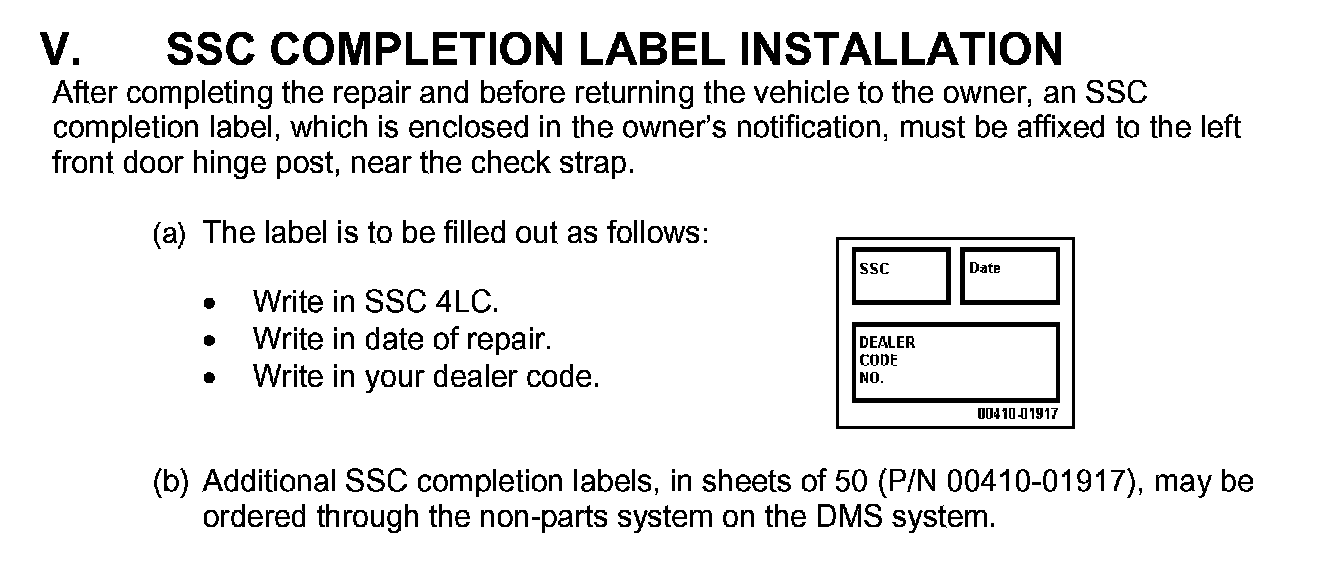

SSC Completion Label Installation
