Disposal

SHOCK ABSORBER ASSY REAR LH
DISPOSAL





1. DISPOSE OF SHOCK ABSORBER ASSY REAR LH
a. Fully extend the shock absorber rod.

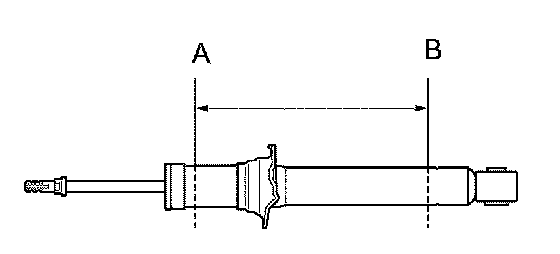

b. Using a drill, make a hole in the cylinder somewhere between A and B as shown in the illustration to discharge the gas inside.

CAUTION:
^ Be careful when drilling as shards of metal may fly about. Always use the proper safety equipment.
^ The gas is colorless, odorless and non-poisonous.
