Fail-Safe Operation

FAIL-SAFE FUNCTION
a. When an air suspension system malfunction is detected under the normal control operation, the suspension control ECU will suspend the switch control of the height control operation.

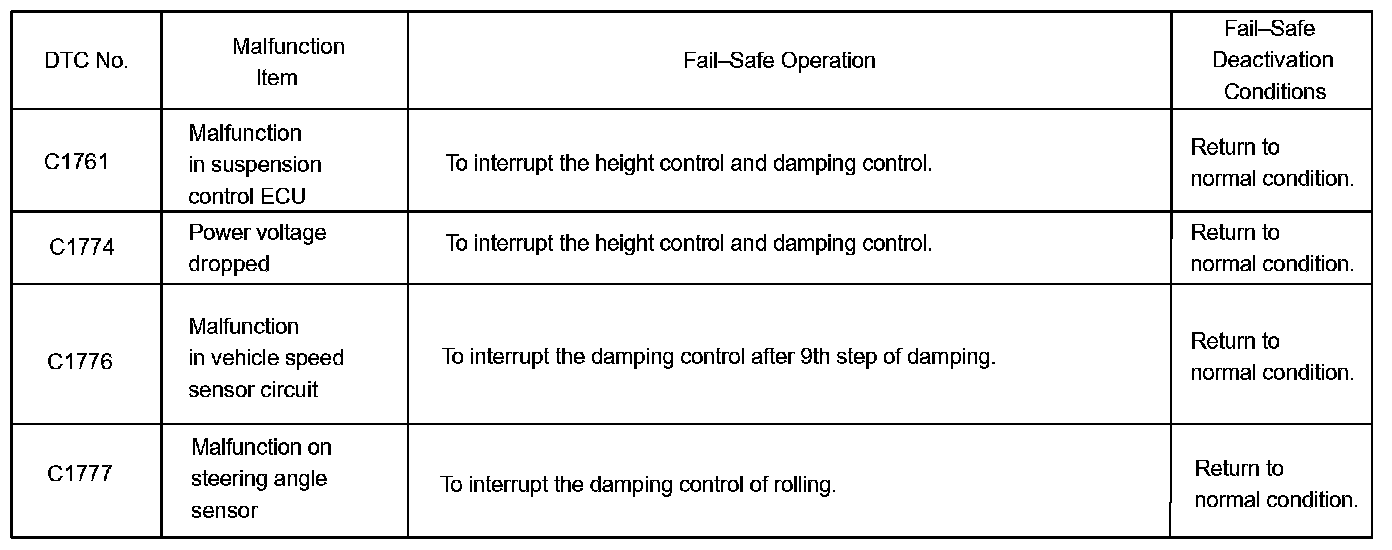

Fail-Safe Chart Part 1:




Fail-Safe Chart Part 2:




FAIL-SAFE CHART
