Home >> Lexus >> 2004 >> LS 430 V8-4.3L (3UZ-FE) >> Repair and Diagnosis >> Steering and Suspension >> Steering >> Steering Column >> Specifications

Steering Column: Specifications

SERVICE DATA

Steering wheel free play Maximum 30 mm (1.18 in.)

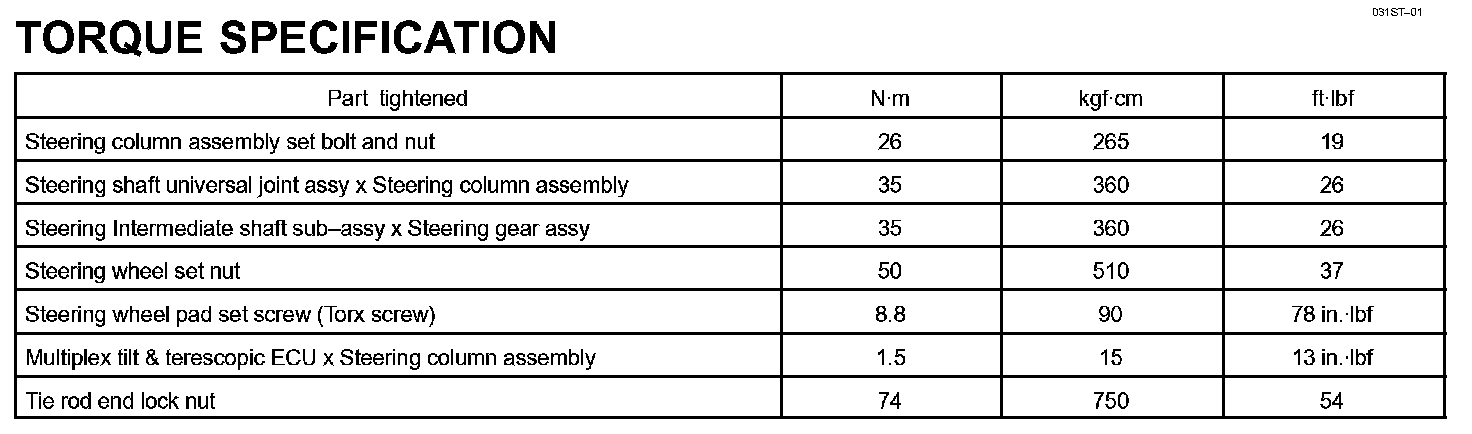

Steering Column - Torque Specification:
