Component Inspection

INSPECTION

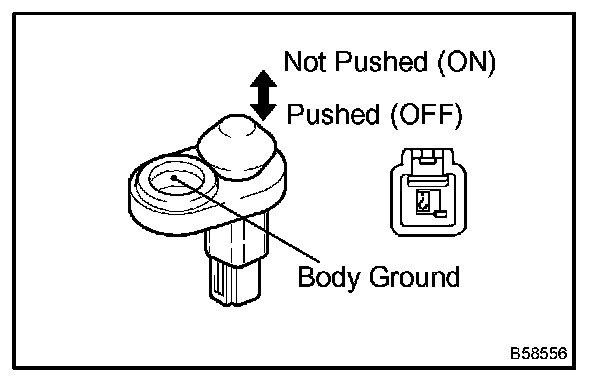

1. INSPECT UNLOCK WARNING SWITCH ASSY







a. Remove the unlock warning switch.

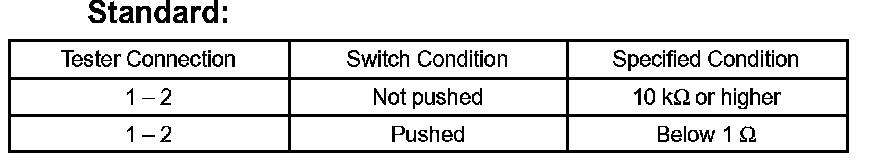

b. Measure the resistance of the switch.

If the result is not as specified, replace the switch assy.

2. INSPECT FRONT DOOR COURTESY LAMP SWITCH ASSY (DRIVER SIDE)







a. Remove the courtesy lamp switch.

b. Measure the resistance of the switch.

If the result is not as specified, replace the switch assy.
