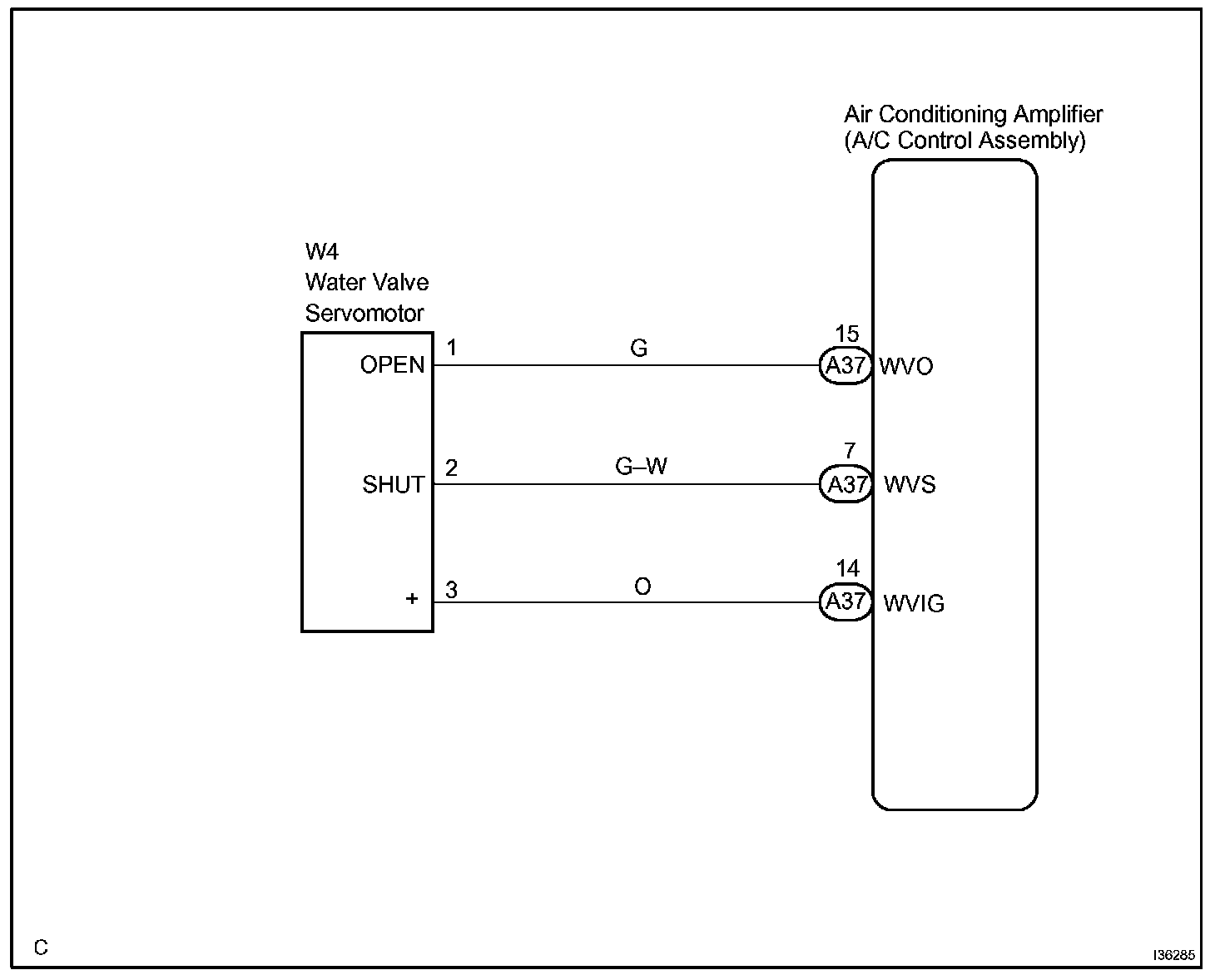

Water Valve Control Servomotor Circuit

CIRCUIT DESCRIPTION

This circuit controls the amount of the coolant flowing to the heater core by a signal from the A/C amplifier, and adjusts the temperature at the air outlets.
