ABS (Antilock Brake System)

PROBLEM SYMPTOMS TABLE

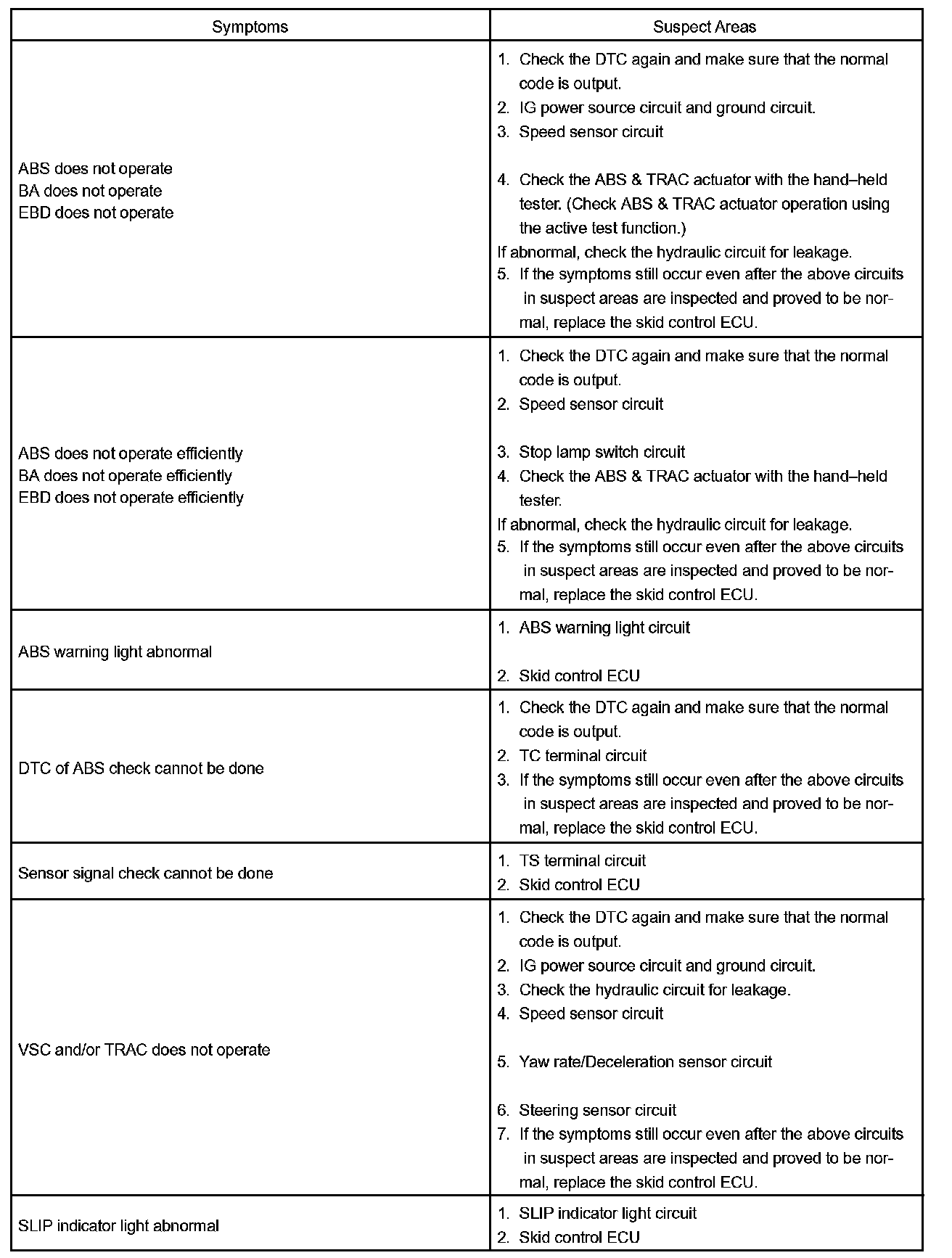

Problem Symptoms Table Part 1:

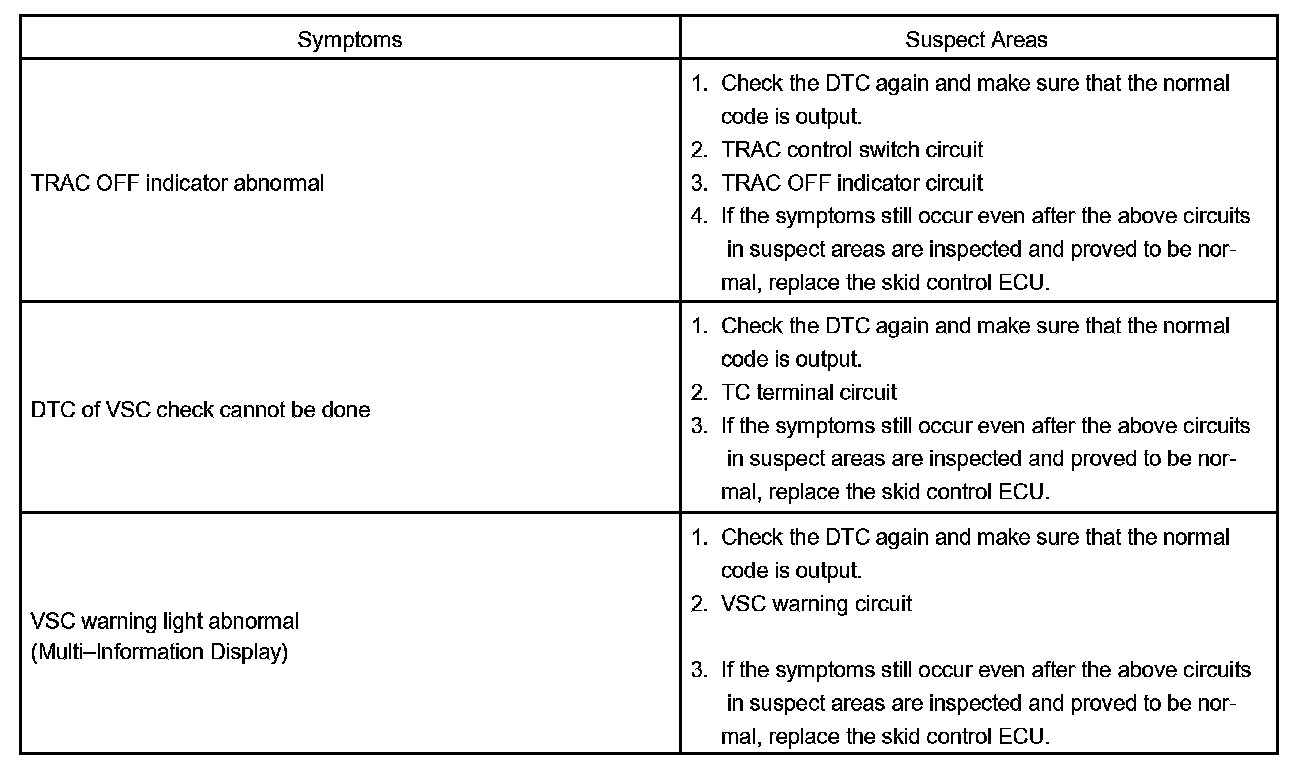

Problem Symptoms Table Part 2:

If there are no DTCs output but the problem still occurs, check the circuits for each problem symptom in the order given in the table and proceed to the relevant troubleshooting.
