Retract Motor Circuit

RETRACT MOTOR CIRCUIT

CIRCUIT DESCRIPTION

Retract motors are built into the remote control mirrors.

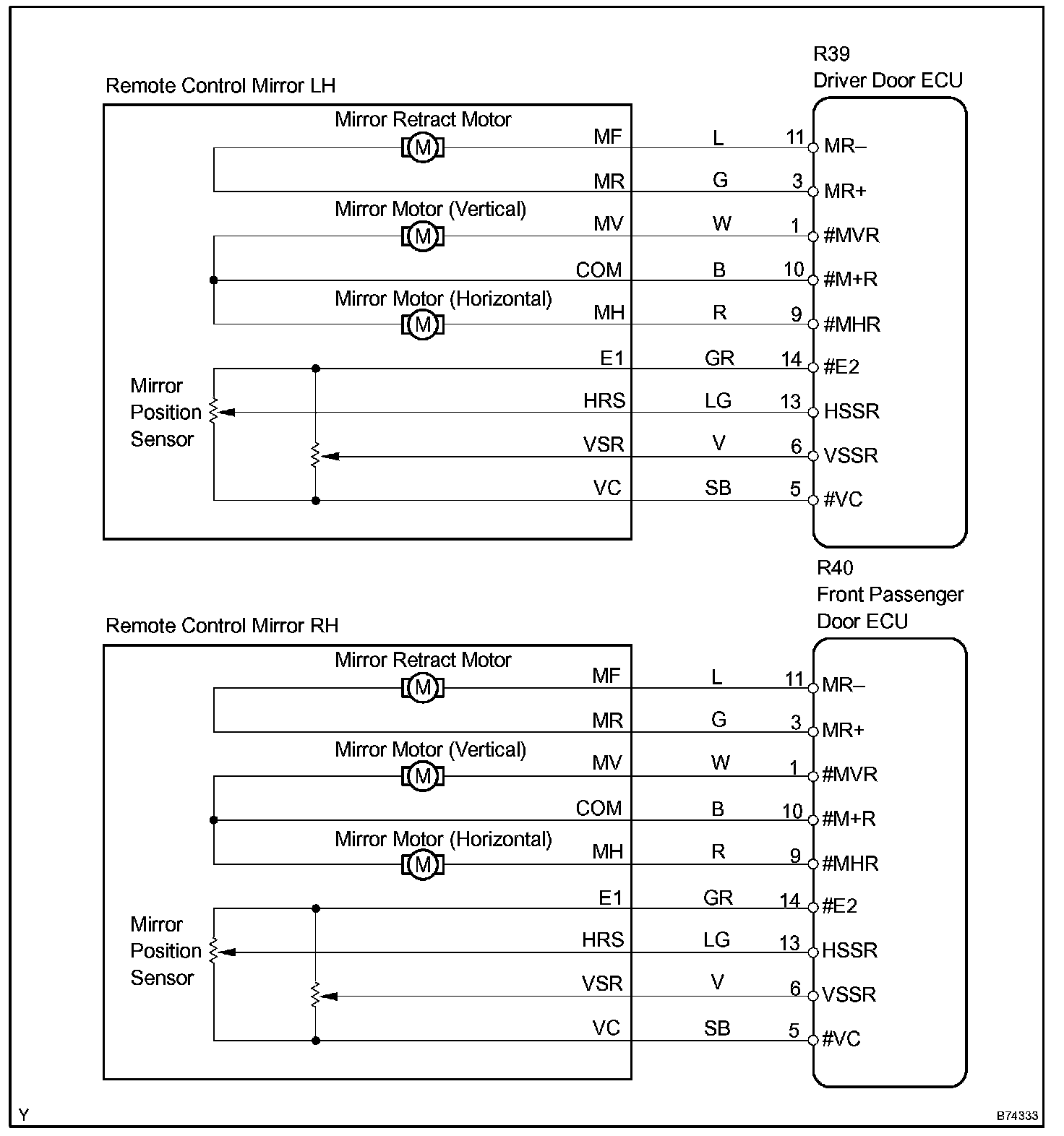

Wiring Diagram:

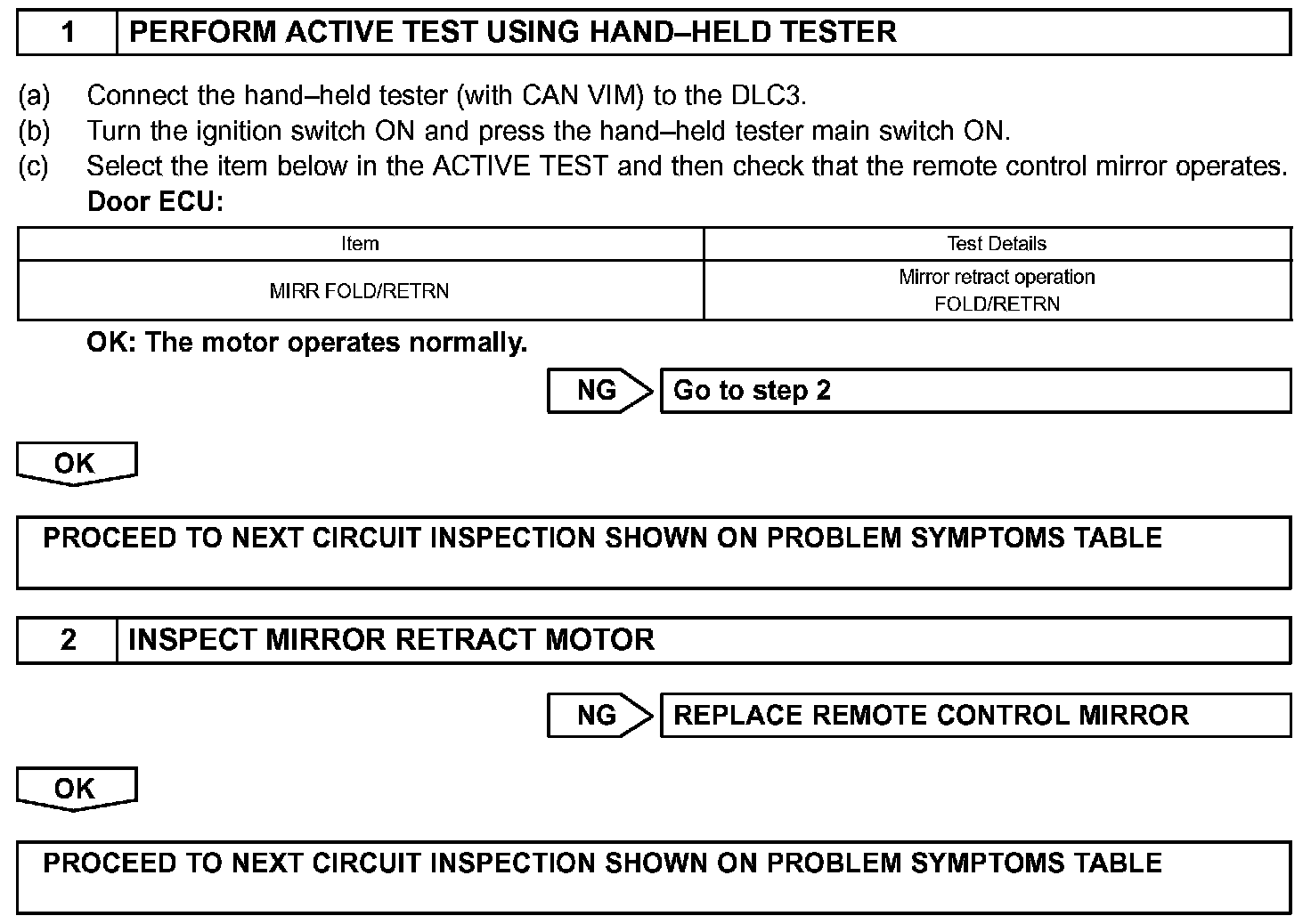

Step 1 - 2:




INSPECTION PROCEDURE
