Mirror Defogger Circuit

MIRROR DEFOGGER CIRCUIT

CIRCUIT DESCRIPTION

The door ECU operates the mirror defogger when it receives signals from the defogger switch, wiper switch and rain sensor.

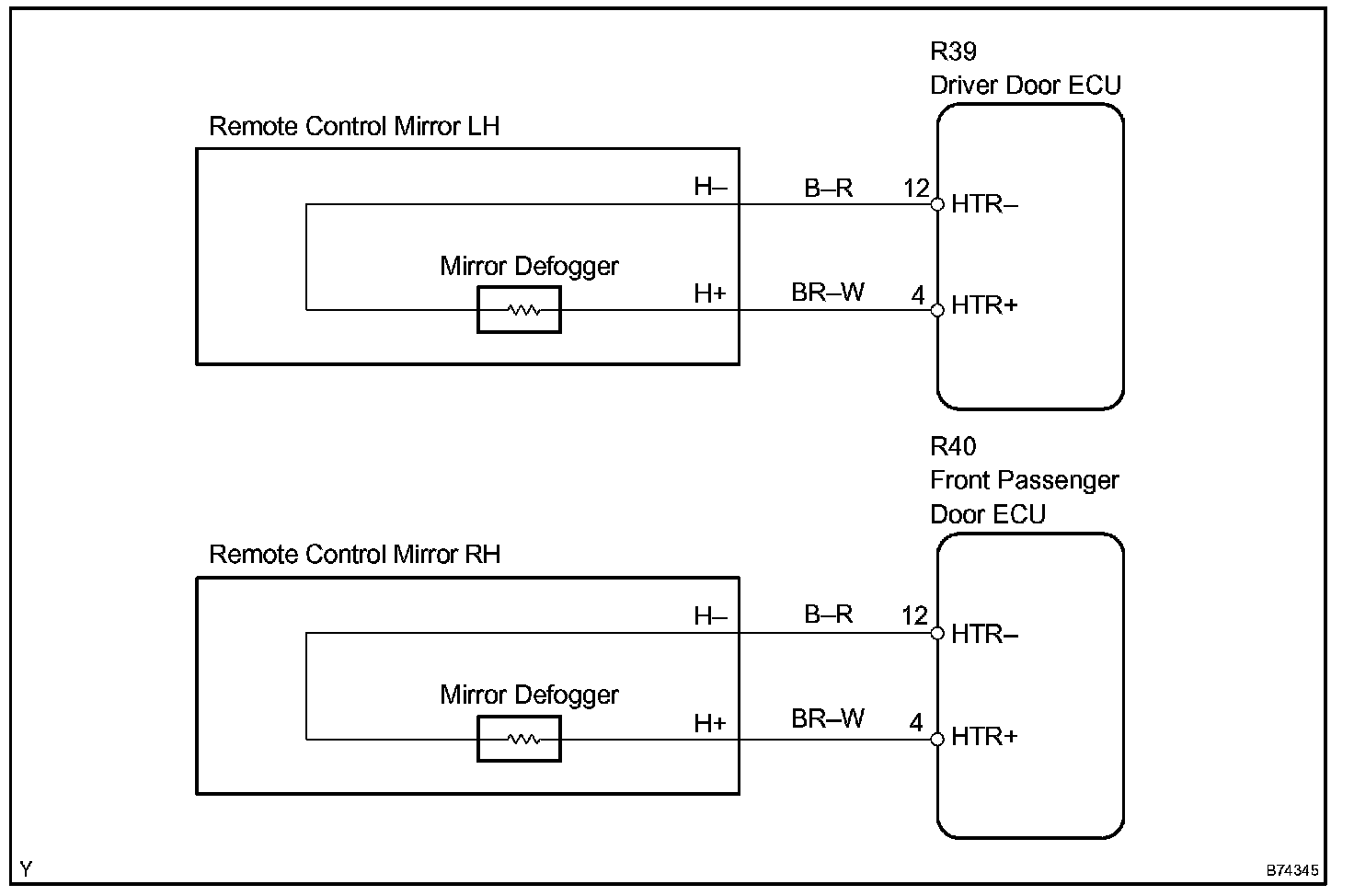

Wiring Diagram:

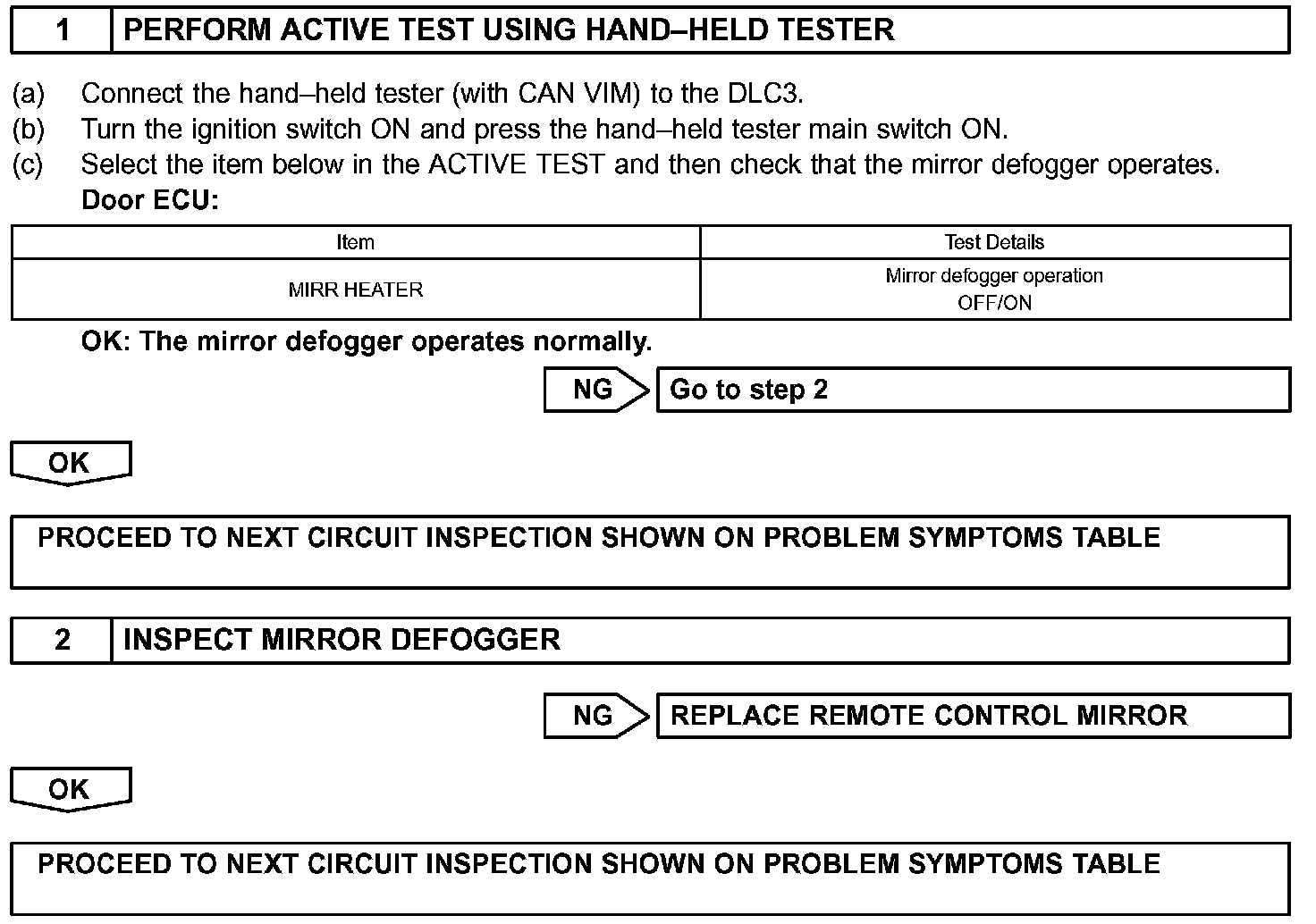

Step 1 - 2:




INSPECTION PROCEDURE
