Front No.2 Speaker Assy

Audio Visual System Part 1:

FRONT NO.2 SPEAKER ASSY

REPLACEMENT

HINT:
- Installation is in the reverse order of removal.

1. REMOVE INSTRUMENT PANEL SAFETY PAD SUB-ASSY

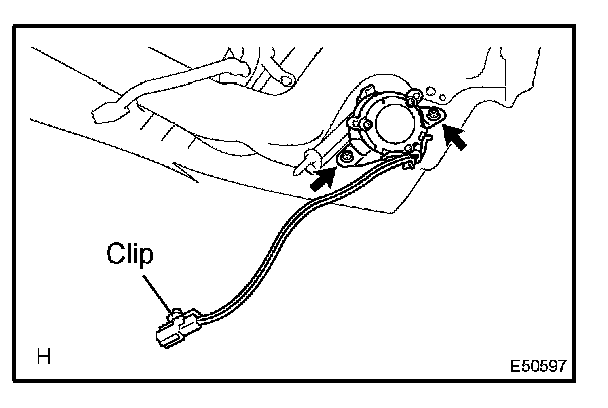

2. REMOVE FRONT NO.2 SPEAKER ASSY
a. Disconnect the connector.
b. Disengage the clip.
c. Remove the 2 nuts and front No.2 speaker assy.
d. Perform the same procedure on the other side.
