Front No.1 Speaker Assy

Front Door:

Audio Visual System Part 1:

FRONT NO.1 SPEAKER ASSY

REPLACEMENT

HINT:
- Installation is in the reverse order of removal.
- The procedure for the left side is the same as that for the right side. The procedure for right side is shown.

1. REMOVE POWER WINDOW REGULATOR MASTER SWITCH ASSY
2. REMOVE FRONT DOOR INSIDE HANDLE BEZEL RH
3. REMOVE FRONT DOOR TRIM BOARD SUB-ASSY RH

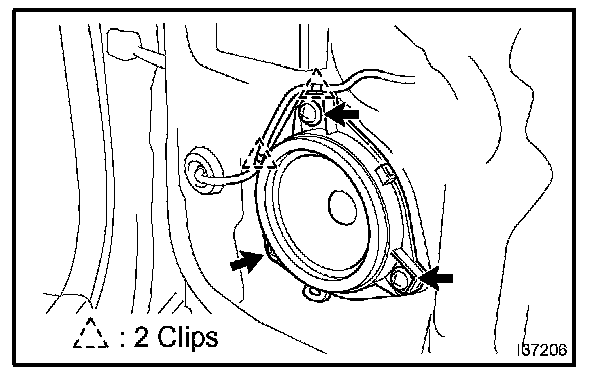

4. REMOVE FRONT NO.1 SPEAKER ASSY
a. Disconnect the connector.
b. Disengage the 2 clips.
c. Remove the 3 screws and front No.1 speaker assy.
