Unnecessary Call Is Sent

UNNECESSARY CALL IS SENT

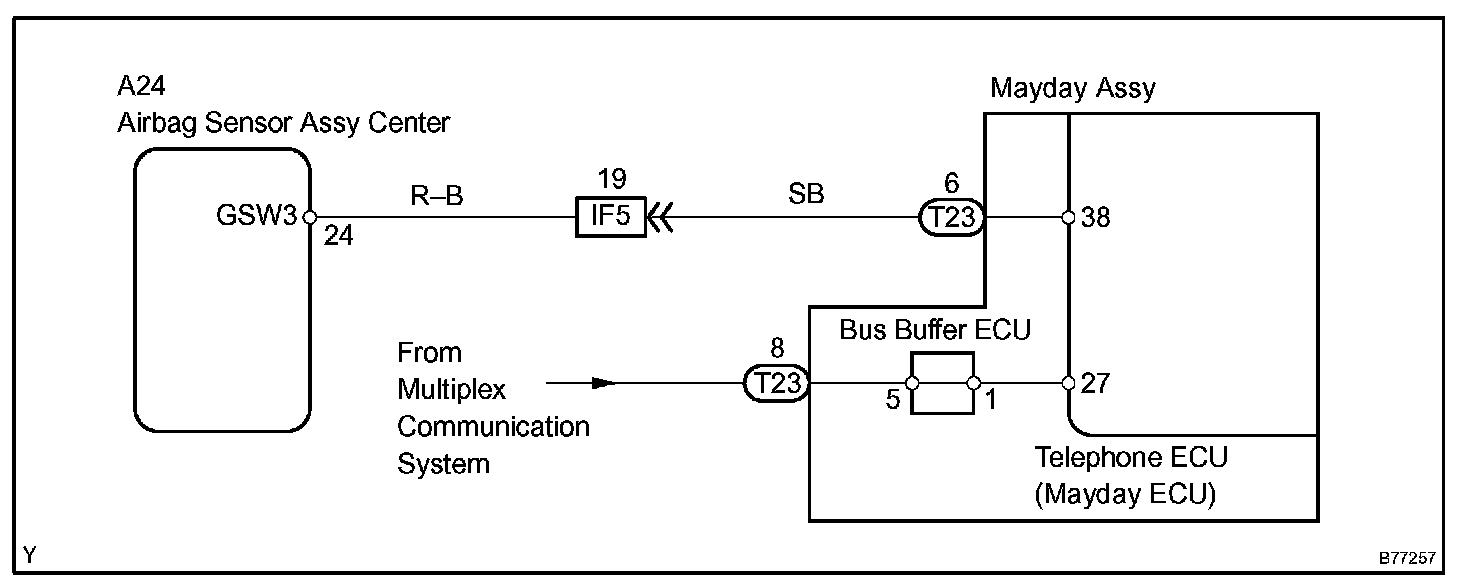

Wiring Diagram:

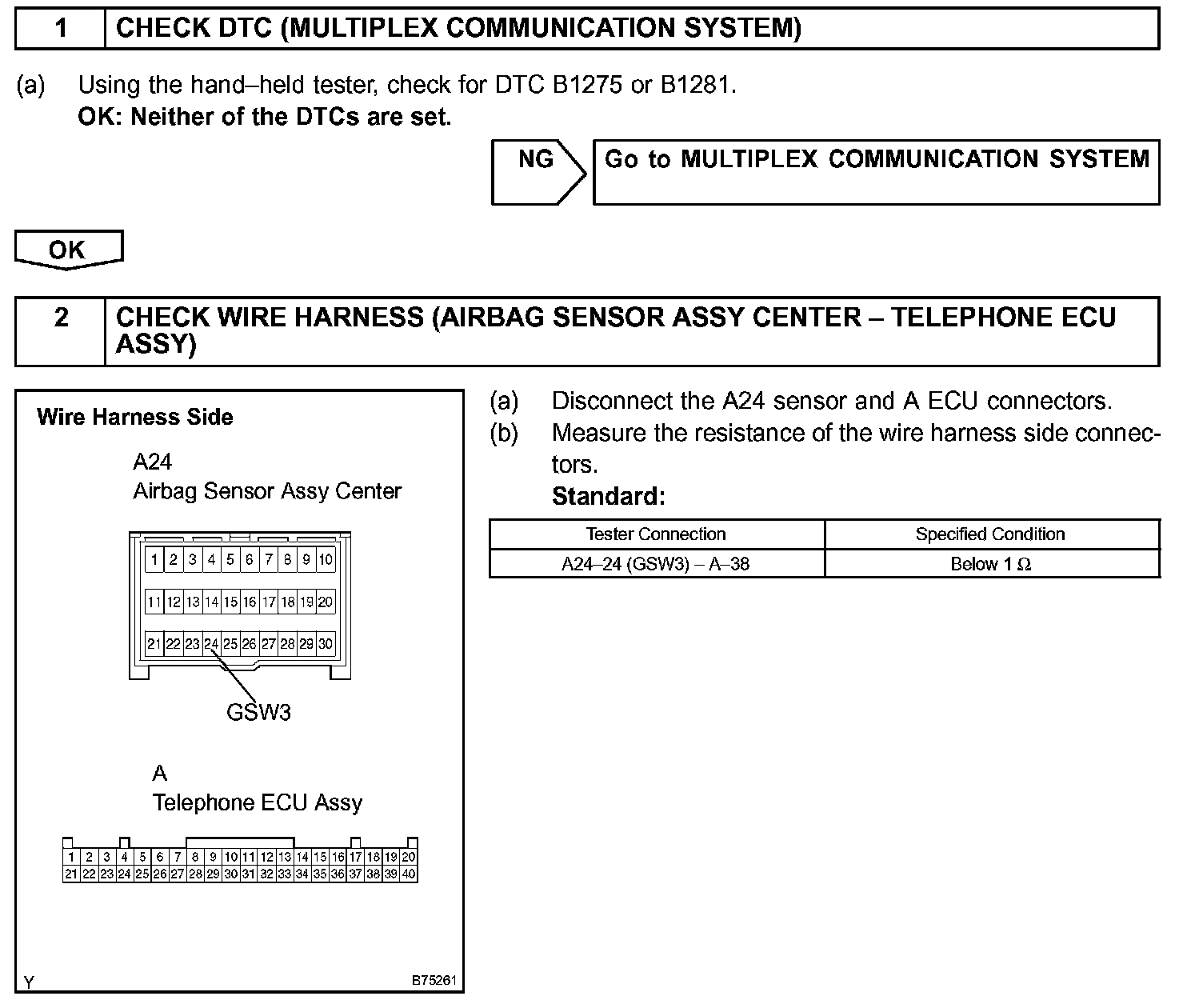

Step 1 - 2:

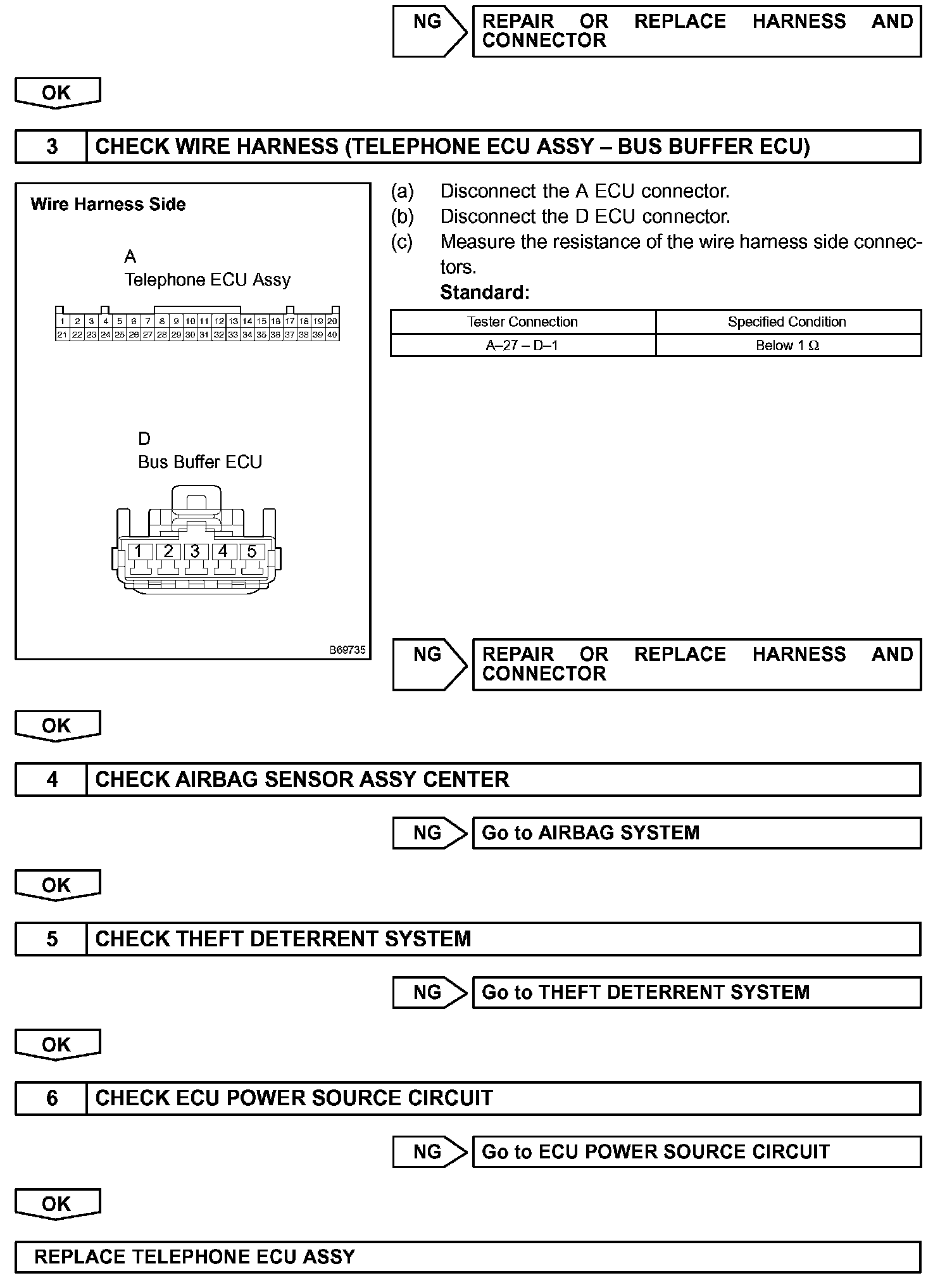

Step 2 (Continued) - 6:




INSPECTION PROCEDURE
