Guidance Voice Does Not Come Out During "Service Call" Function
Guidance Voice Does Not Come Out During "Service Call" Function
Guidance Voice Does Not Come Out During "Service Call" Function
Wiring Diagram:

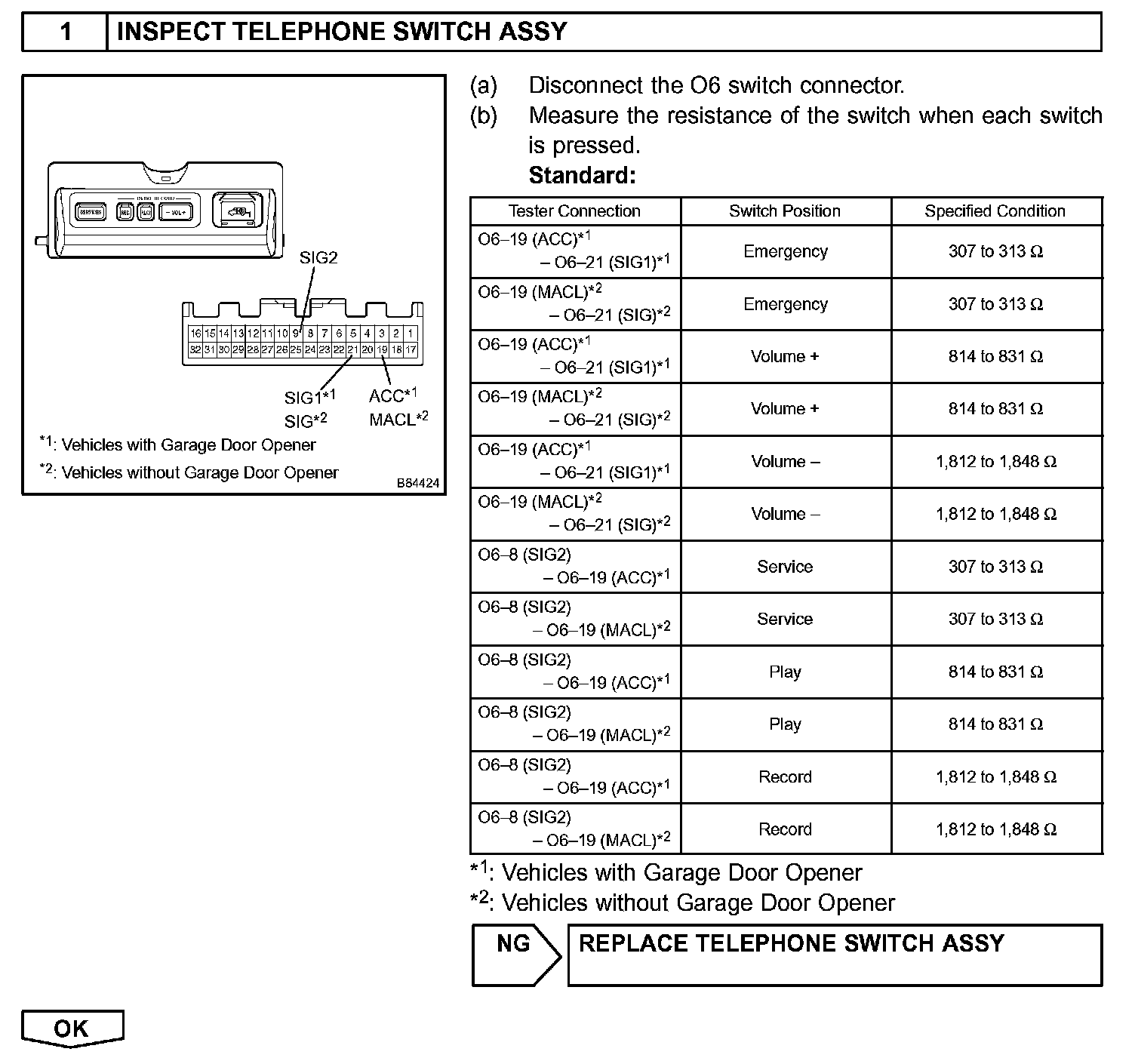

Step 1:

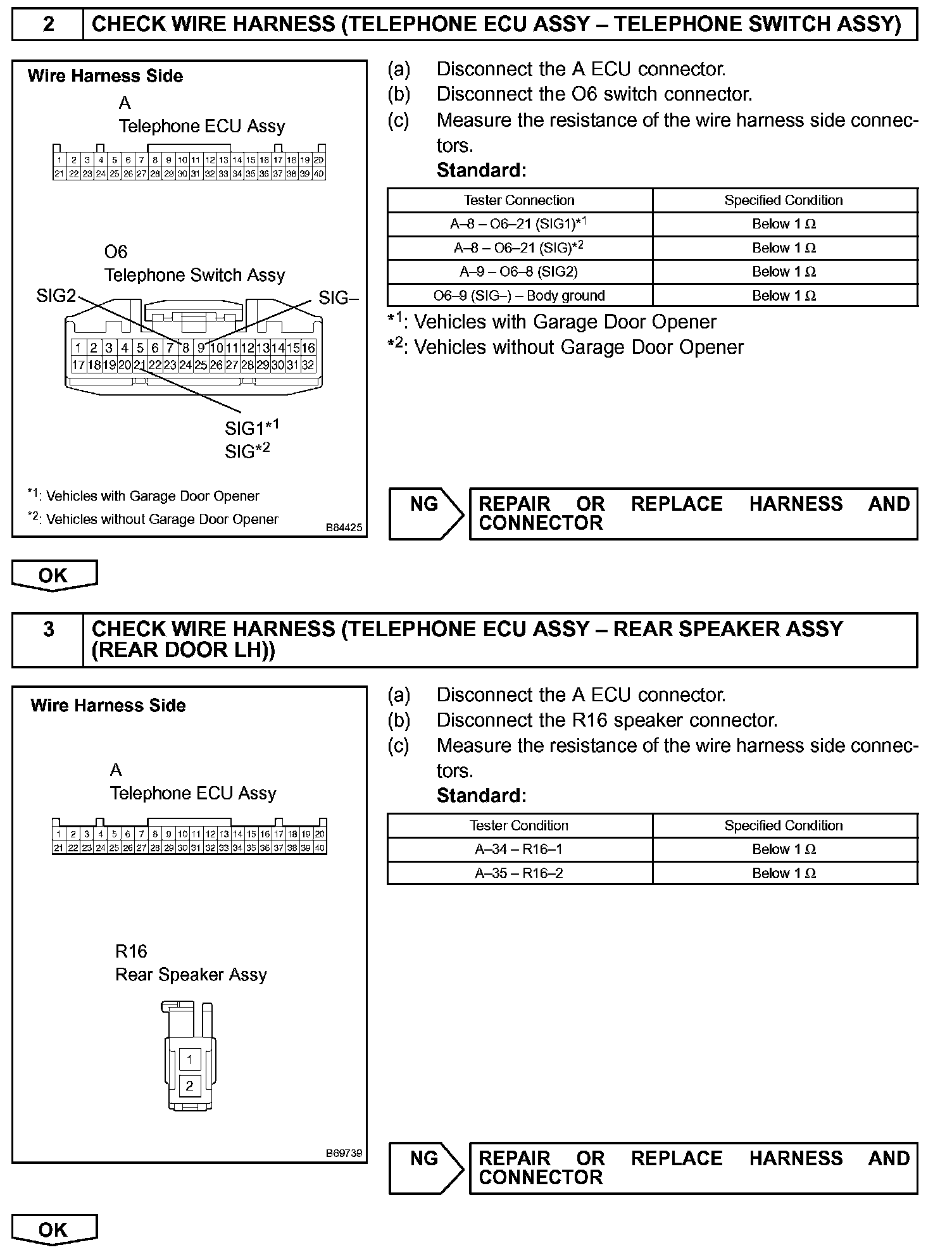

Step 2 - 3:

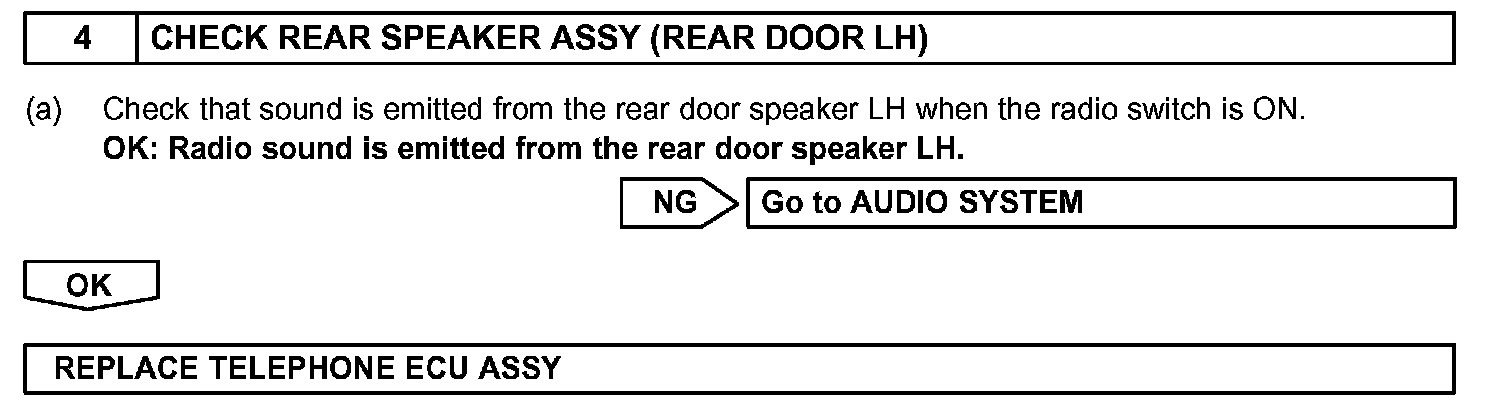

Step 4:
INSPECTION PROCEDURE
