AFTER CONNECTION TO LEXUS LINK CENTER, NO VOICE COMES OUT

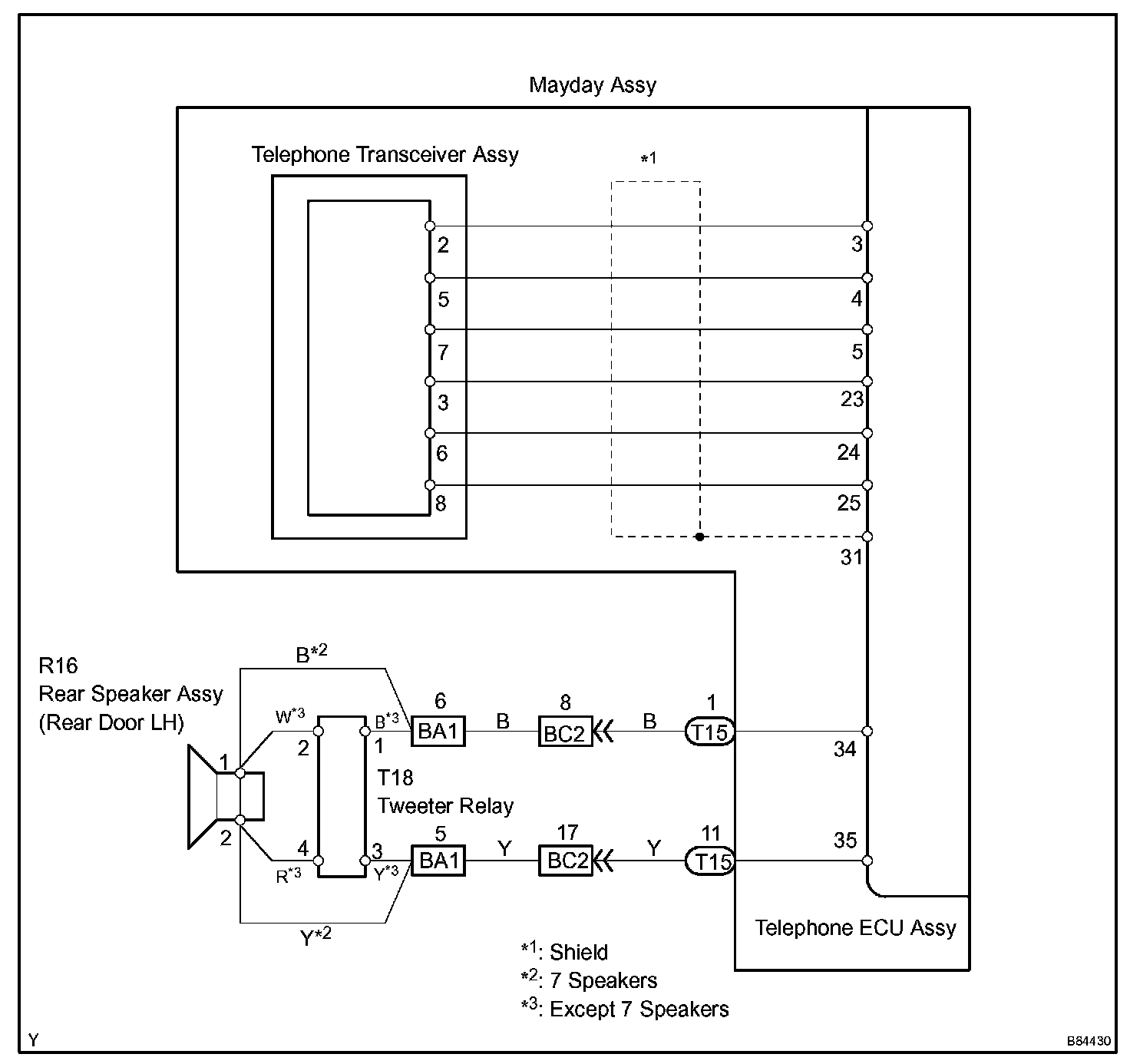

Wiring Diagram:

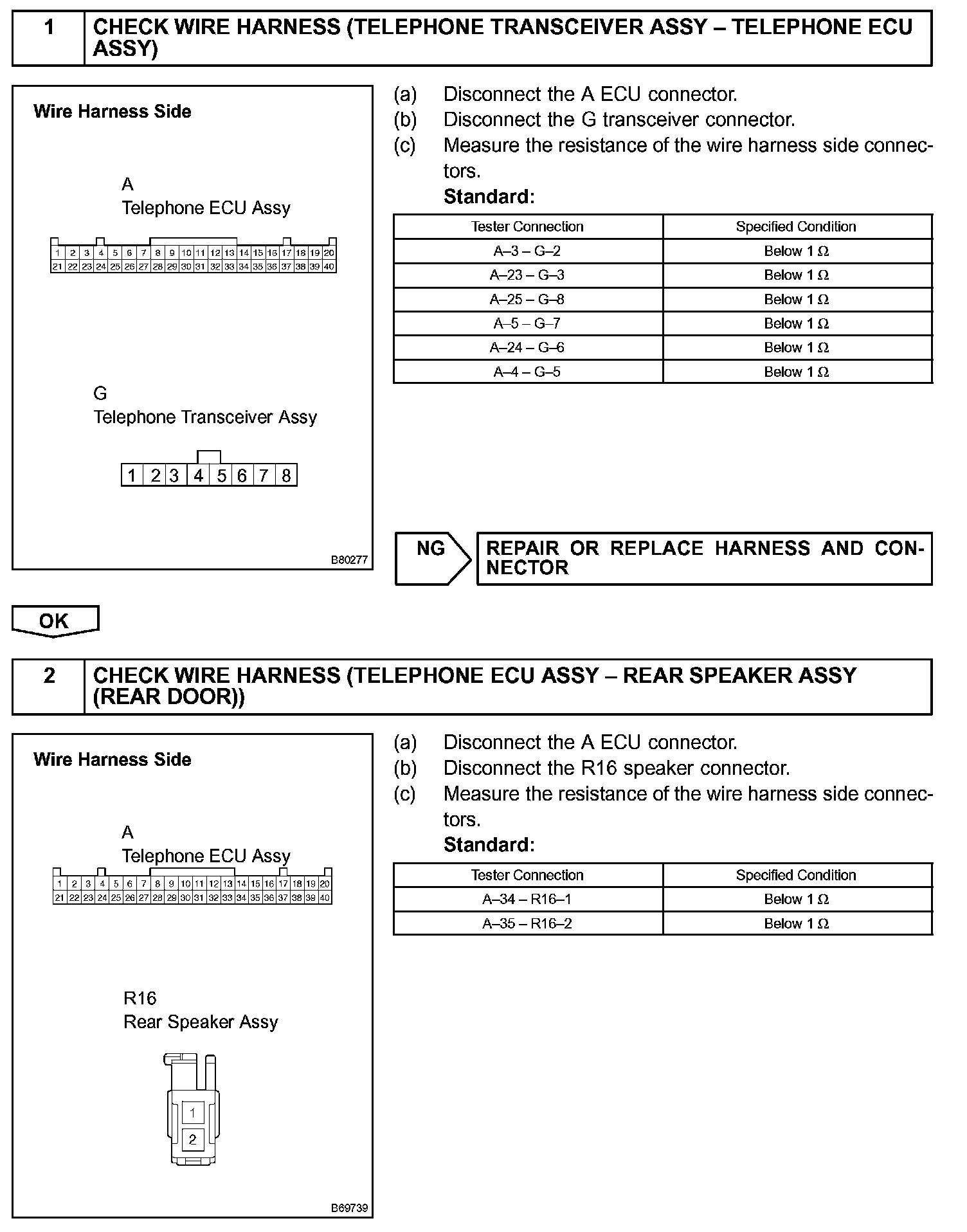

Step 1 - 2:

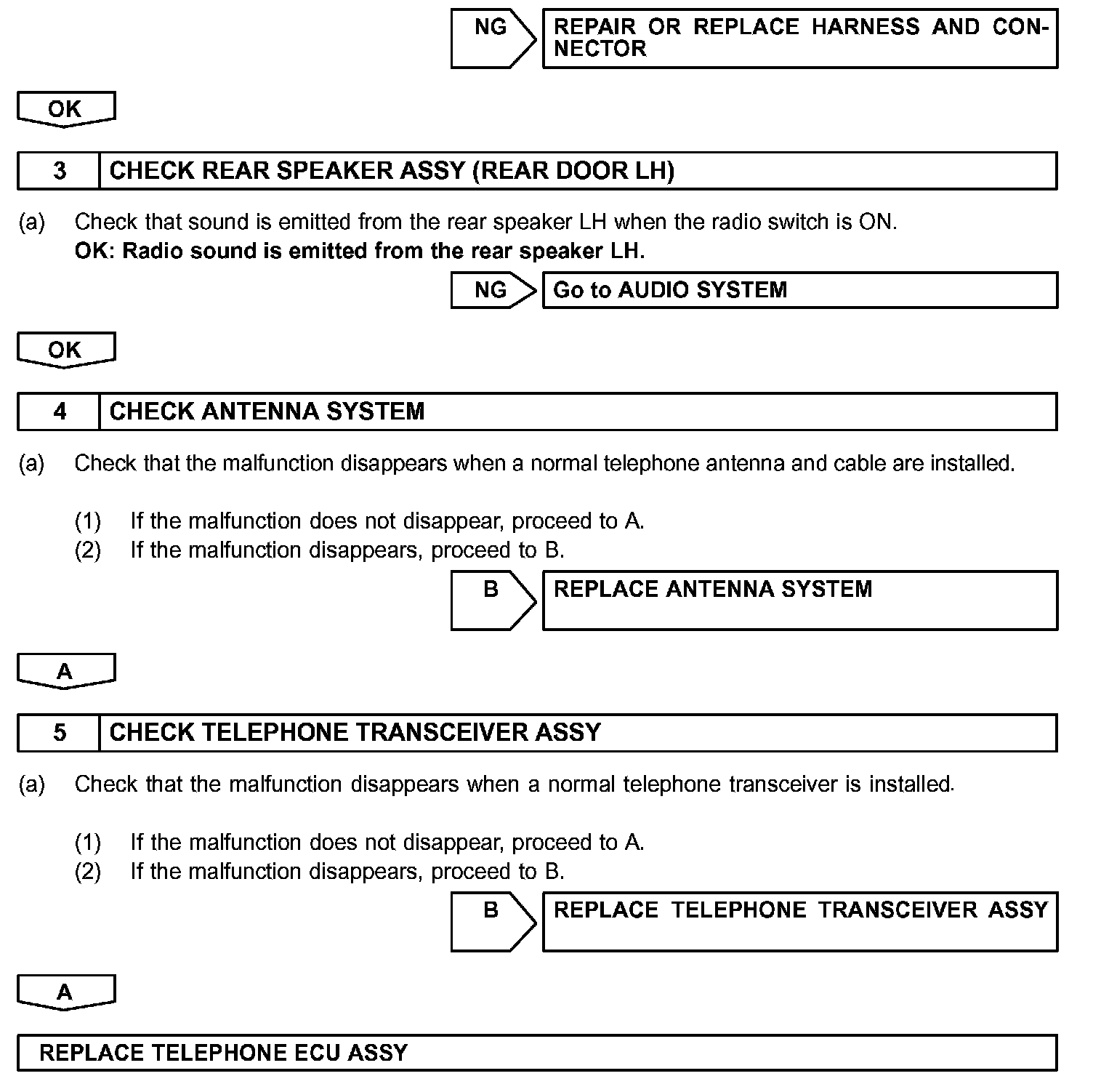

Step 2 (Continued) - 5:
INSPECTION PROCEDURE
