Symptom Index

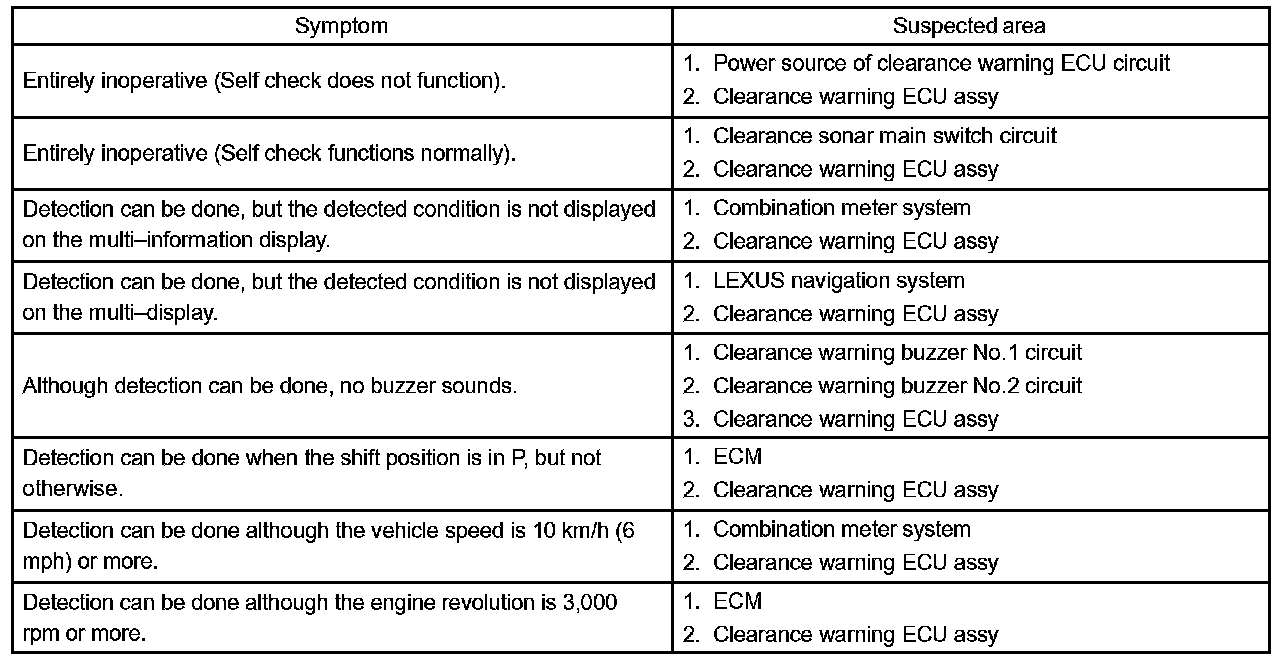

PROBLEM SYMPTOMS TABLE

Problem Symptom Table:




Check the circuits for each problem symptom in the order given in the table, and proceed to troubleshooting.
