Power Window Operation Mode

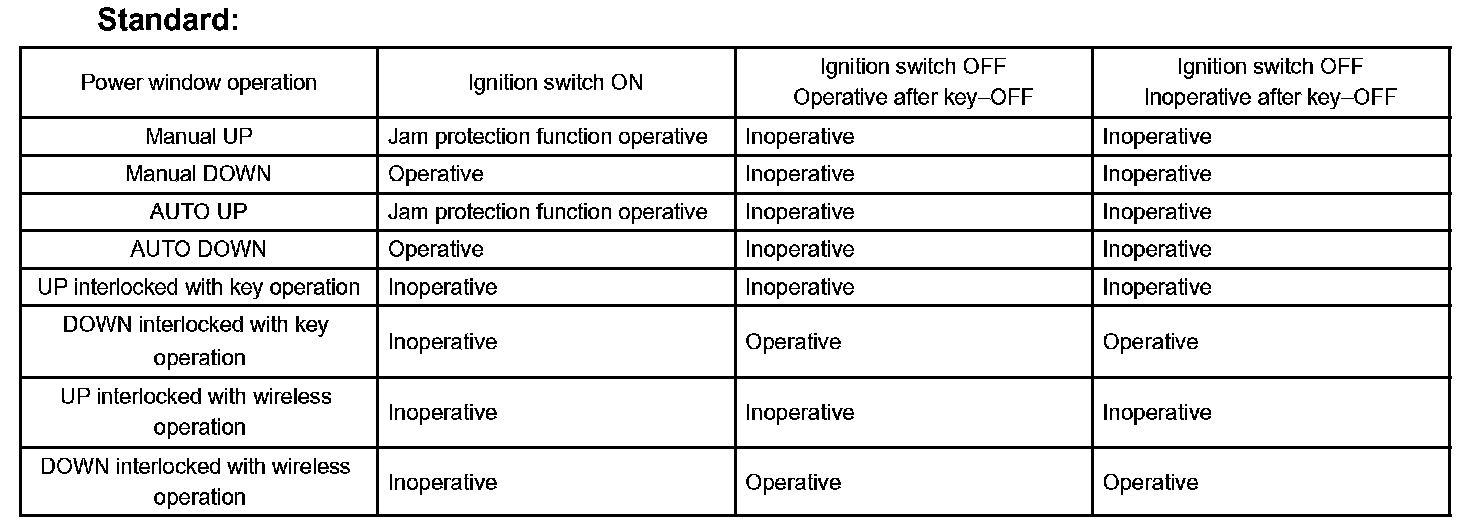

POWER WINDOW OPERATION MODE






HINT: Initial condition that the customizing function by the hand-held tester is not chosen is shown.
