System Specifications

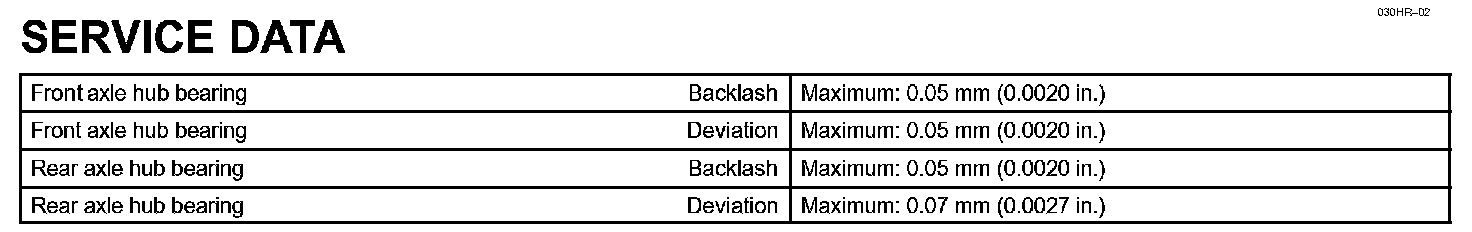

Drive Shaft / Propeller Shaft / Axle - Service Data:

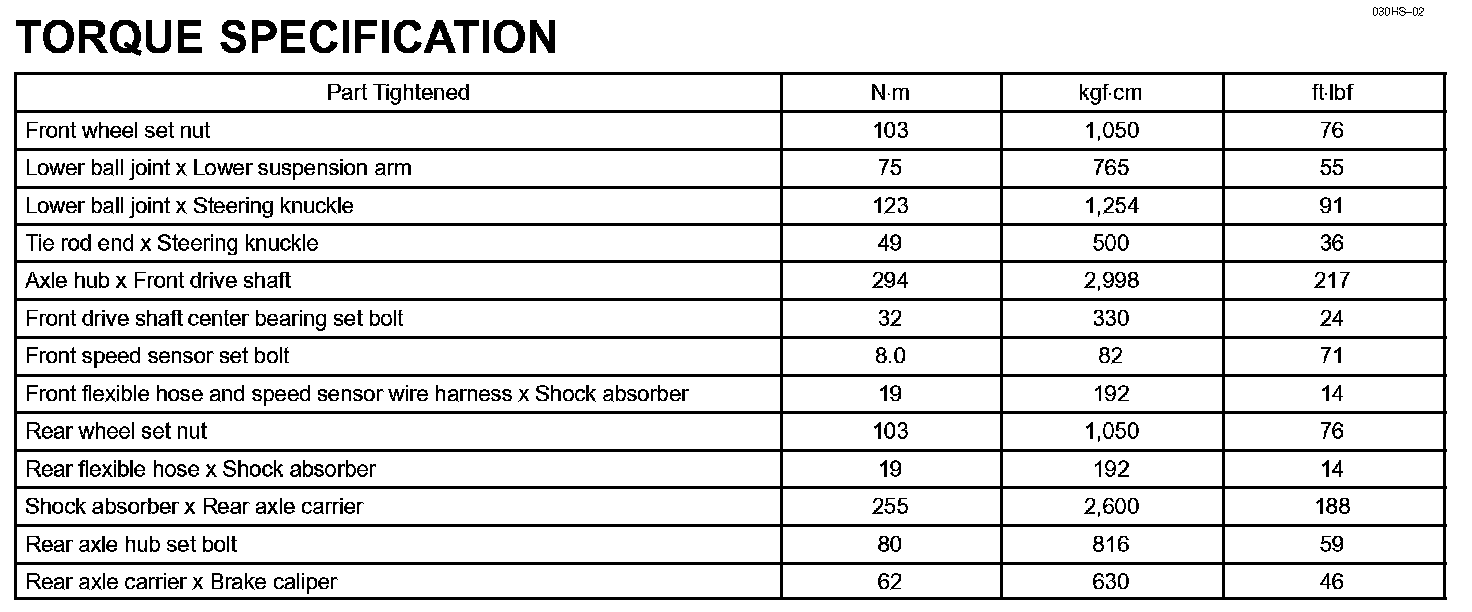

Drive Shaft / Propeller Shaft / Axle - Torque Specification:
