Home >> Lexus >> 2004 >> ES 330 V6-3.3L (3MZ-FE) >> Repair and Diagnosis >> Heating and Air Conditioning >> Tools and Equipment

Heating and Air Conditioning: Tools and Equipment

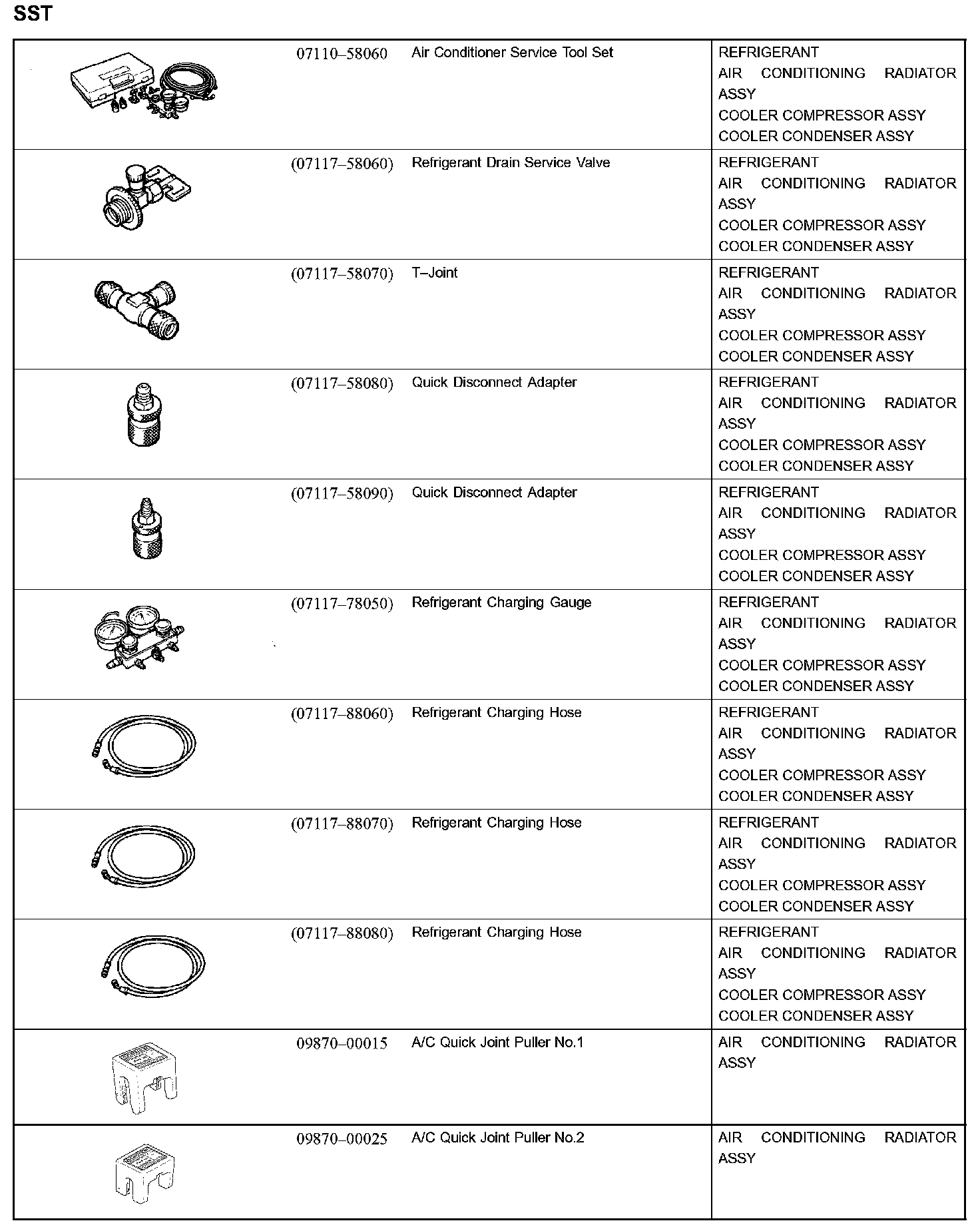

Heater & Air Conditioner - SST Part 1:

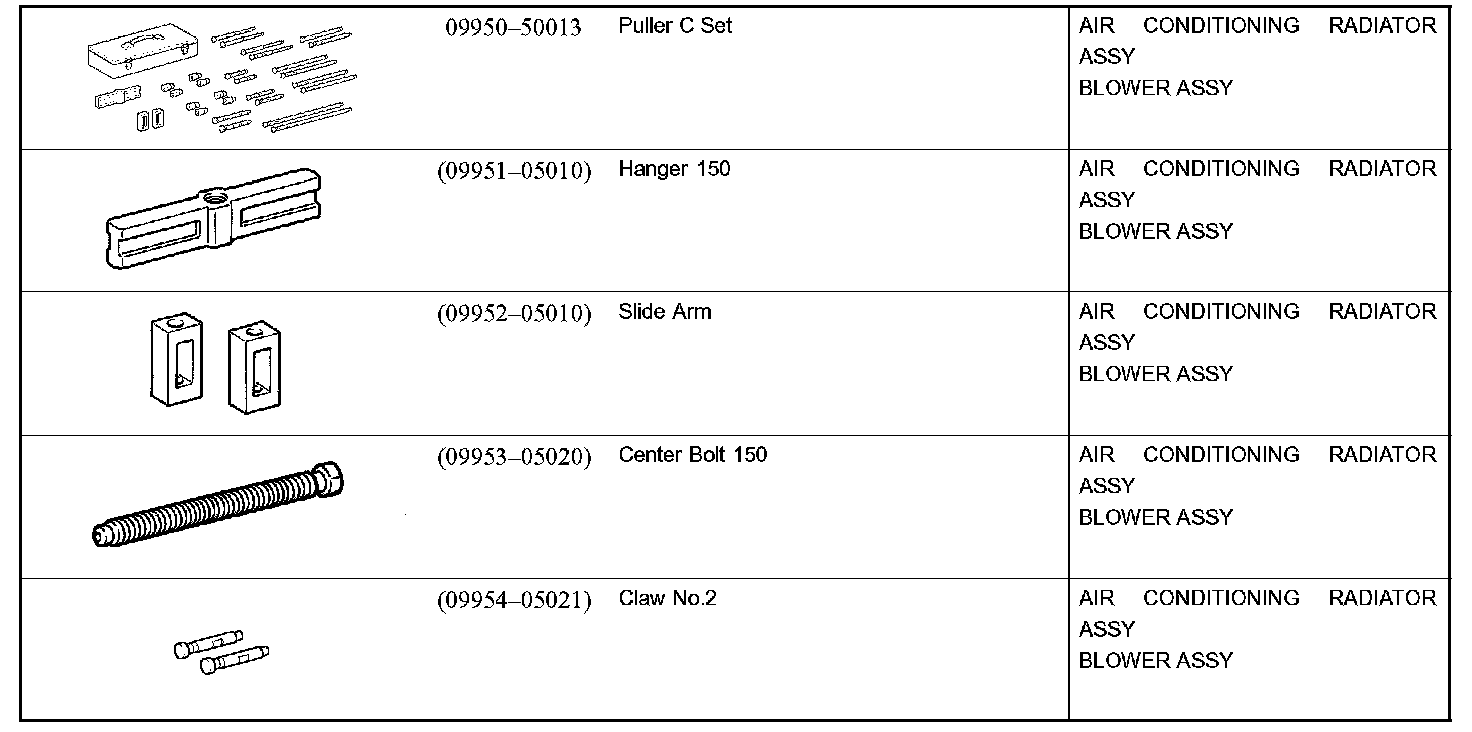

Heater & Air Conditioner - SST Part 2:

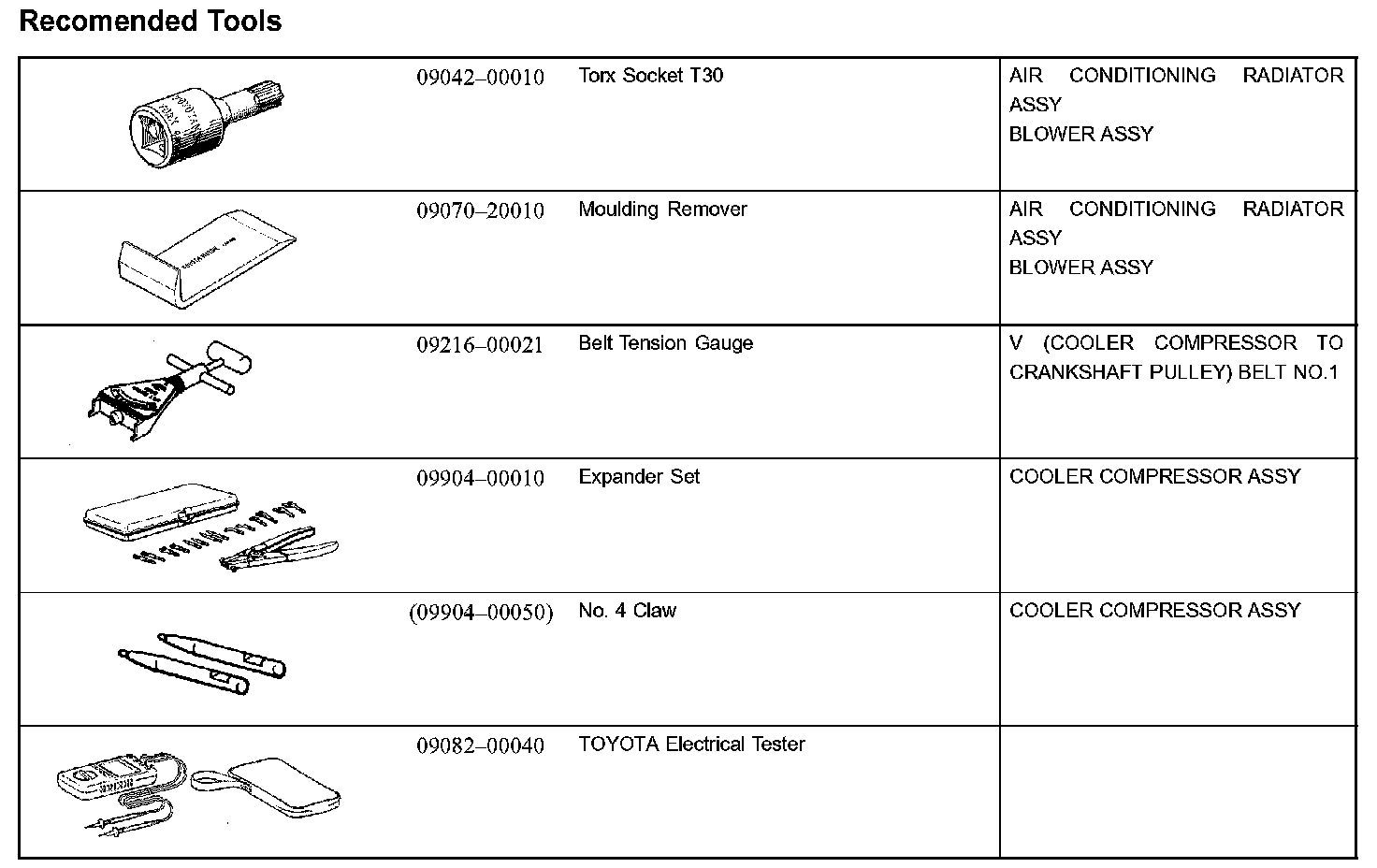

Heater & Air Conditioner - Recommended Tools:

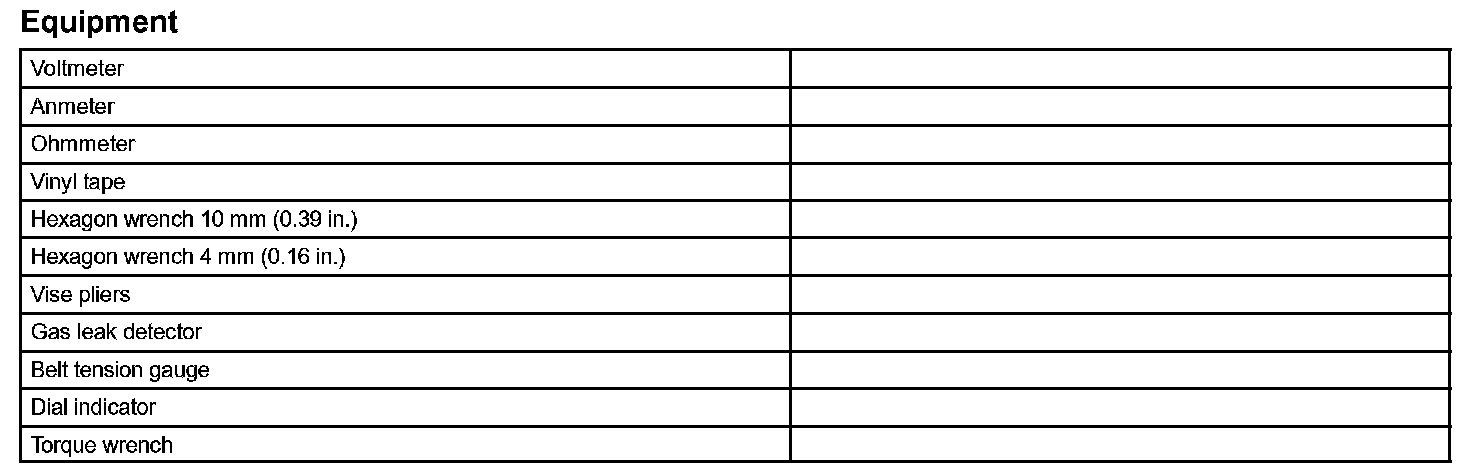

Heater & Air Conditioner - Equipment:
