Home >> Lexus >> 2004 >> ES 330 V6-3.3L (3MZ-FE) >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Cooling System >> Tools and Equipment

Cooling System: Tools and Equipment

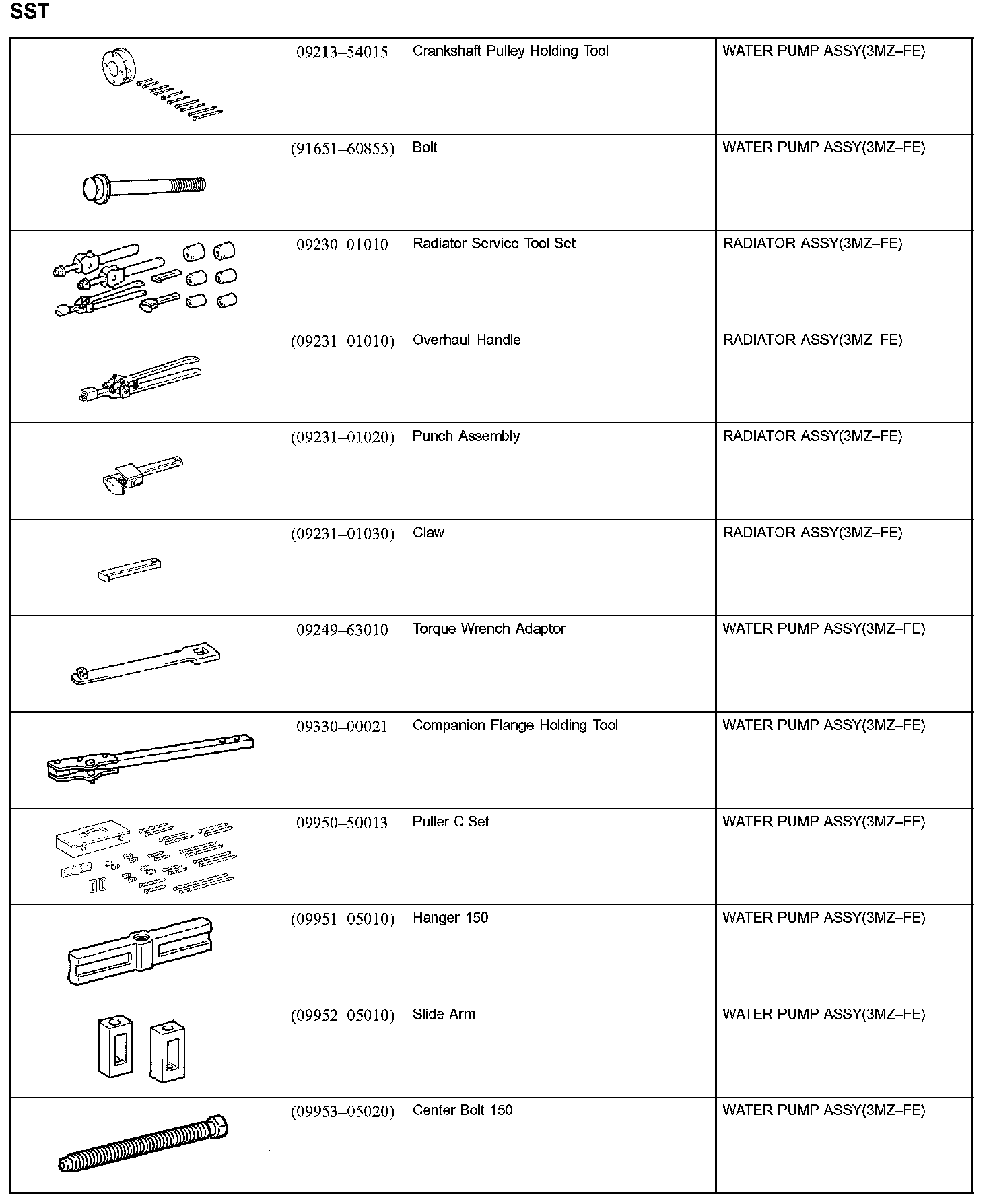

Cooling - SST Part 1:

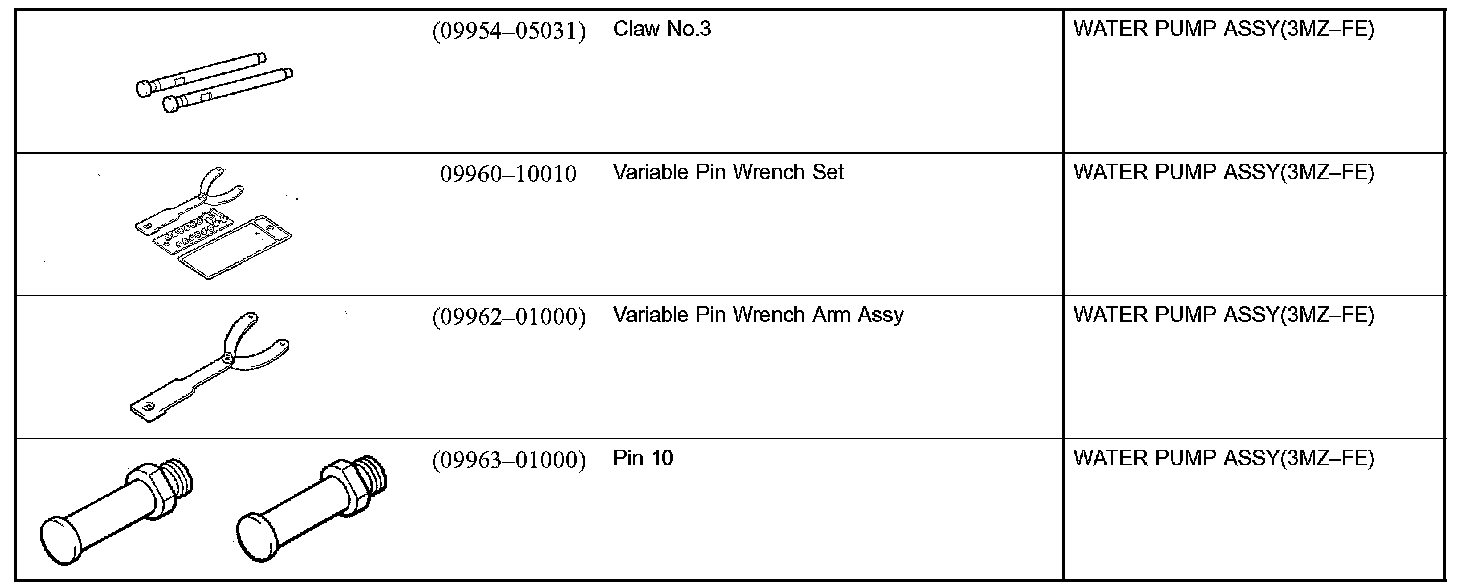

Cooling - SST Part 2:

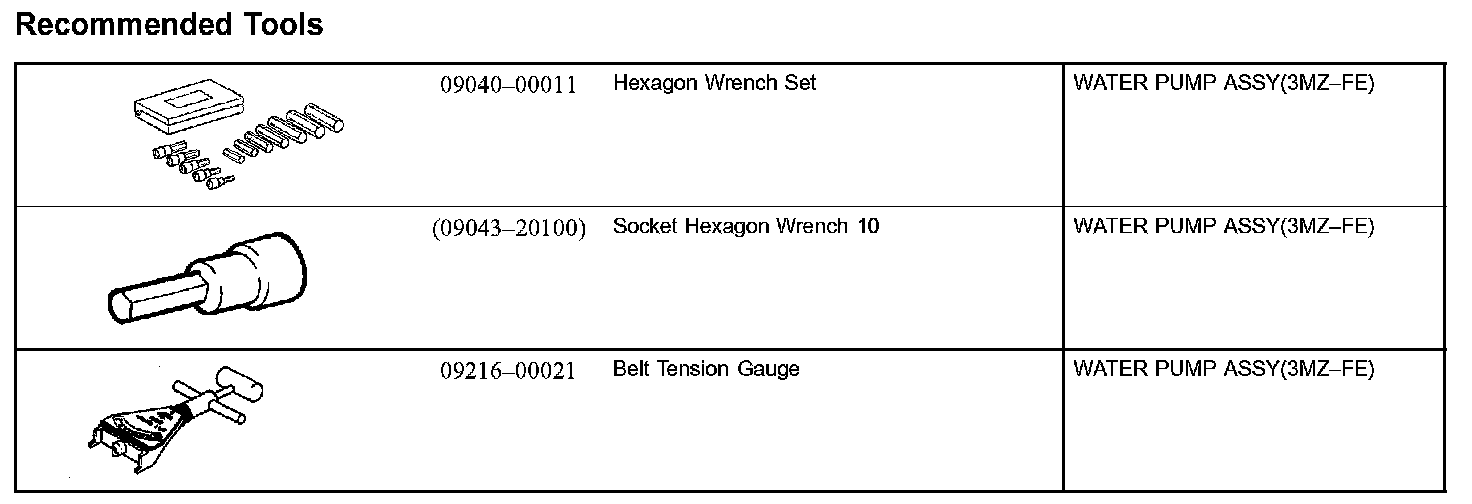

Cooling - Recommended Tools:

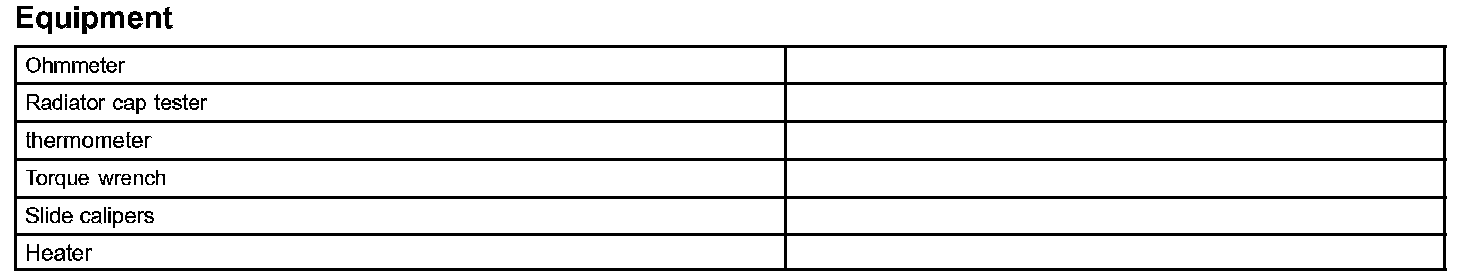

Cooling - Equipment:

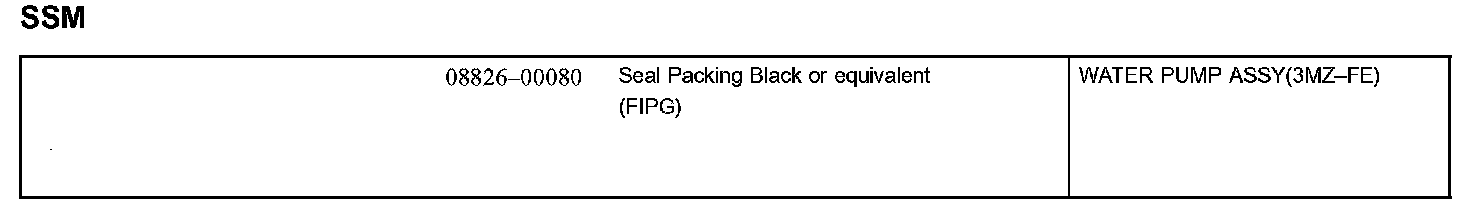

Cooling - SSM:
