Lexus
>>
2004
>>
ES 330 V6-3.3L (3MZ-FE)
>>
Repair and Diagnosis
>>
Accessories and Optional Equipment
>>
Radio, Stereo, and Compact Disc
>>
Testing and Inspection
>>
Symptom Related Diagnostic Procedures
>>
Symptom Diagnostic Procedures
>>
Turning on Light Switch Does Not Illuminate Radio Receiver
Turning on Light Switch Does Not Illuminate Radio Receiver
TURNING ON LIGHT SWITCH DOES NOT COME ON NIGHT TIME ILLUMINATION OF
RADIO RECEIVER

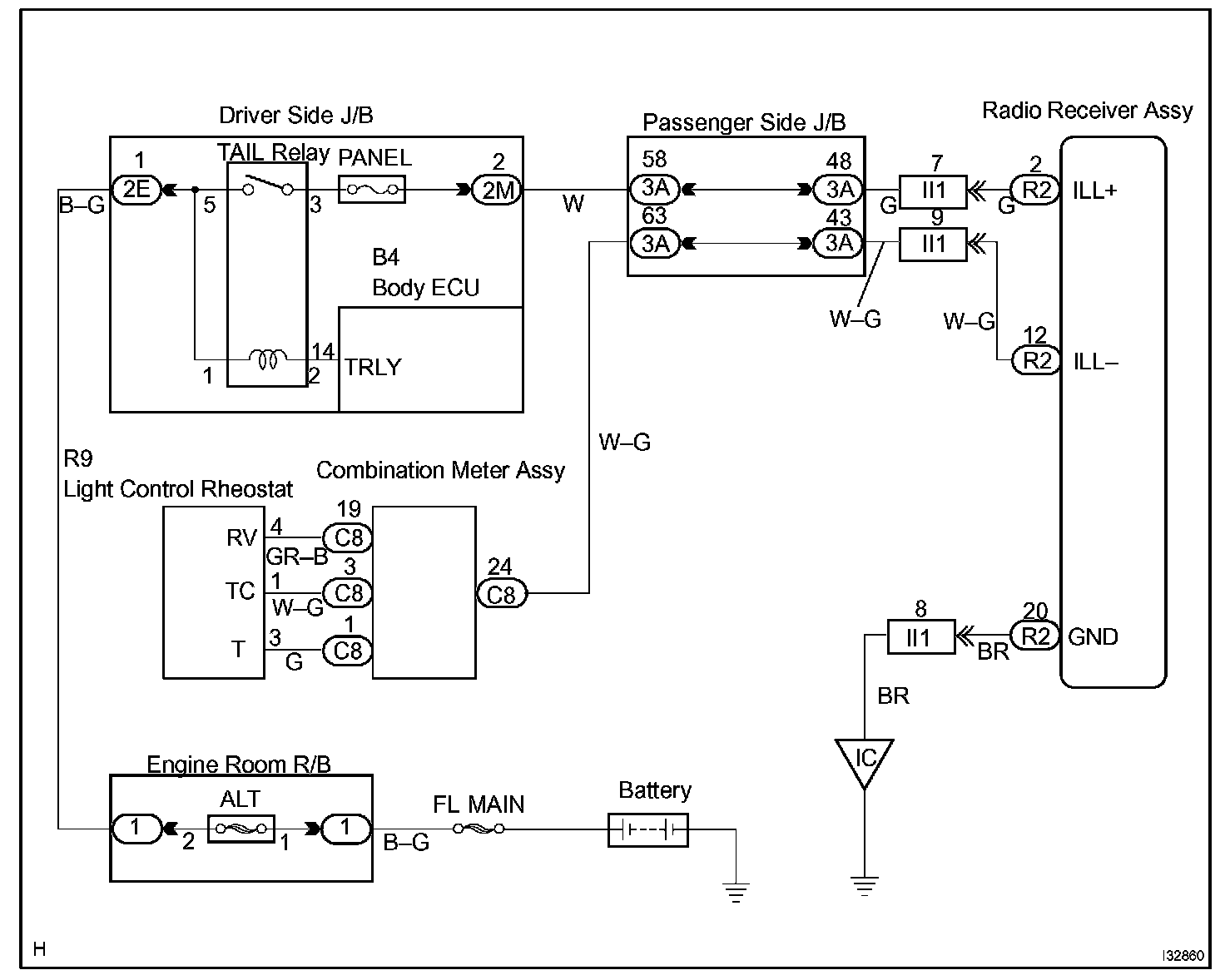

Wiring Diagram:
Step 1 - 3:

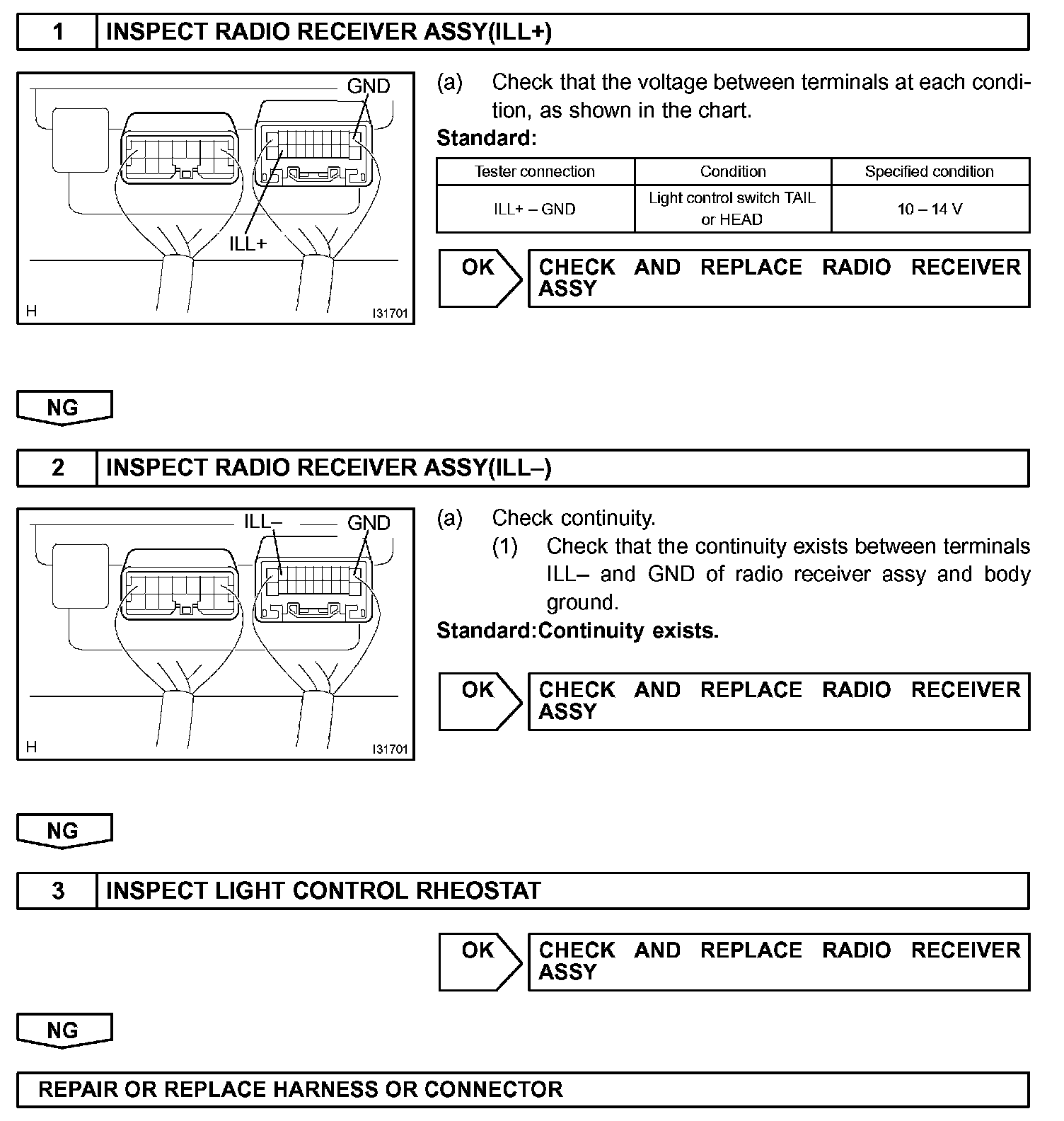

INSPECTION PROCEDURE
