Speed Signal Circuit
SPEED SIGNAL CIRCUITCIRCUIT DESCRIPTION
The radio and navigation assy receives the vehicle speed signal and information about the GPS antenna, and then adjusts the vehicle position.

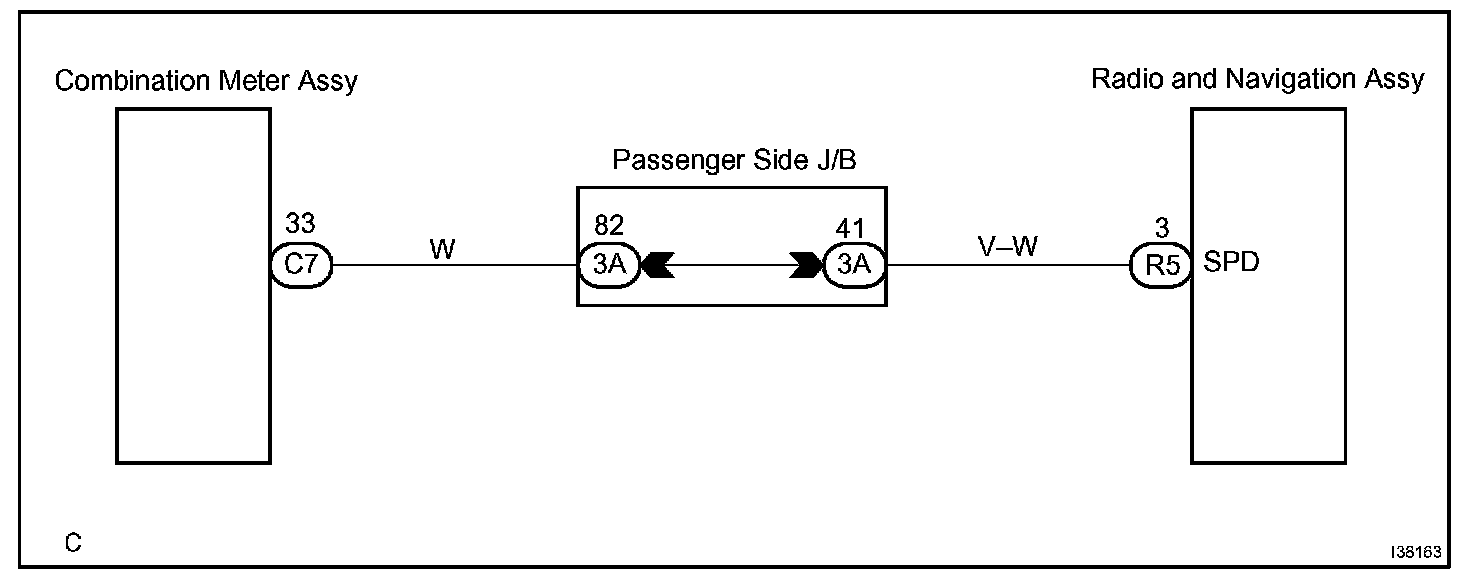

Wiring Diagram:

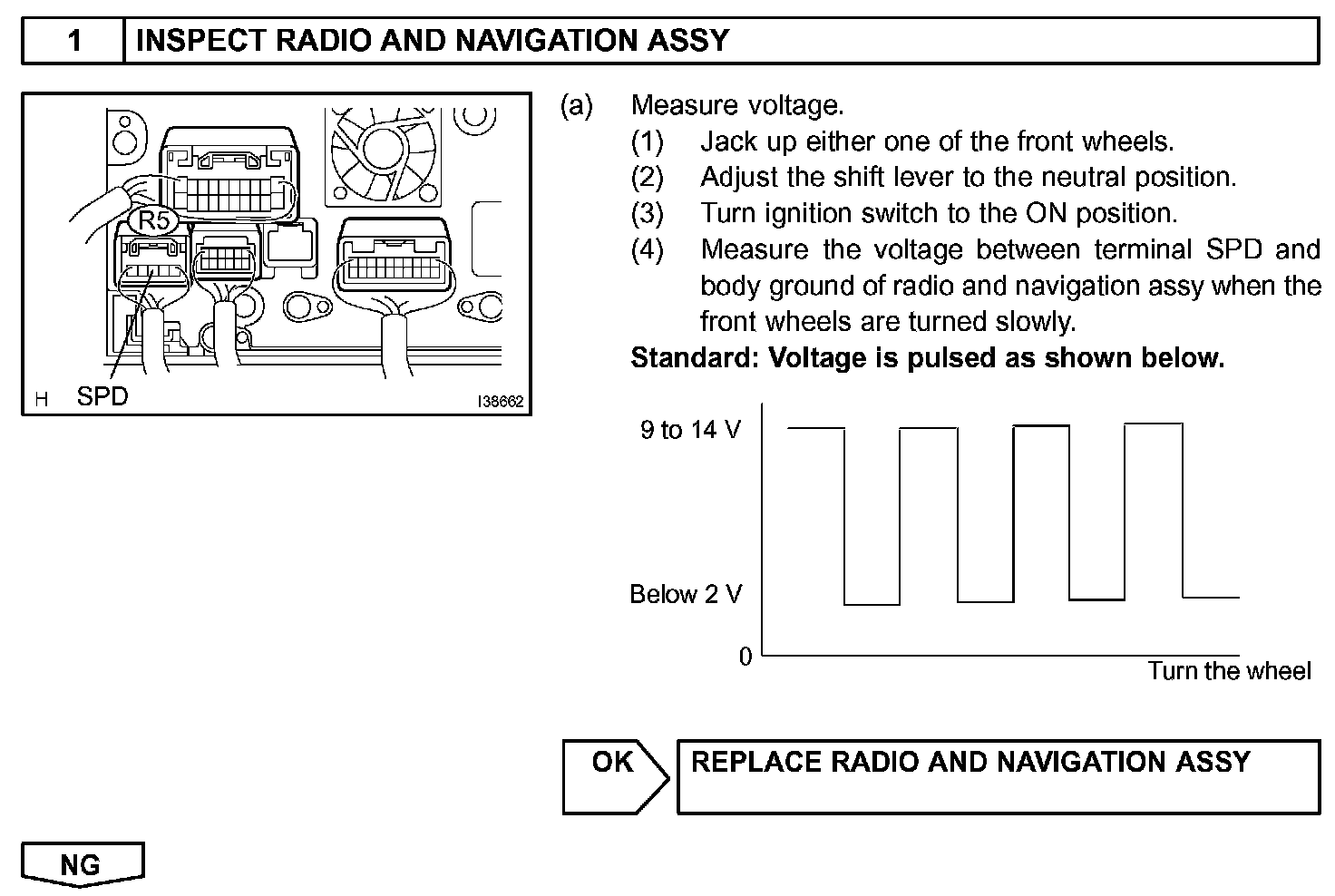

Step 1:

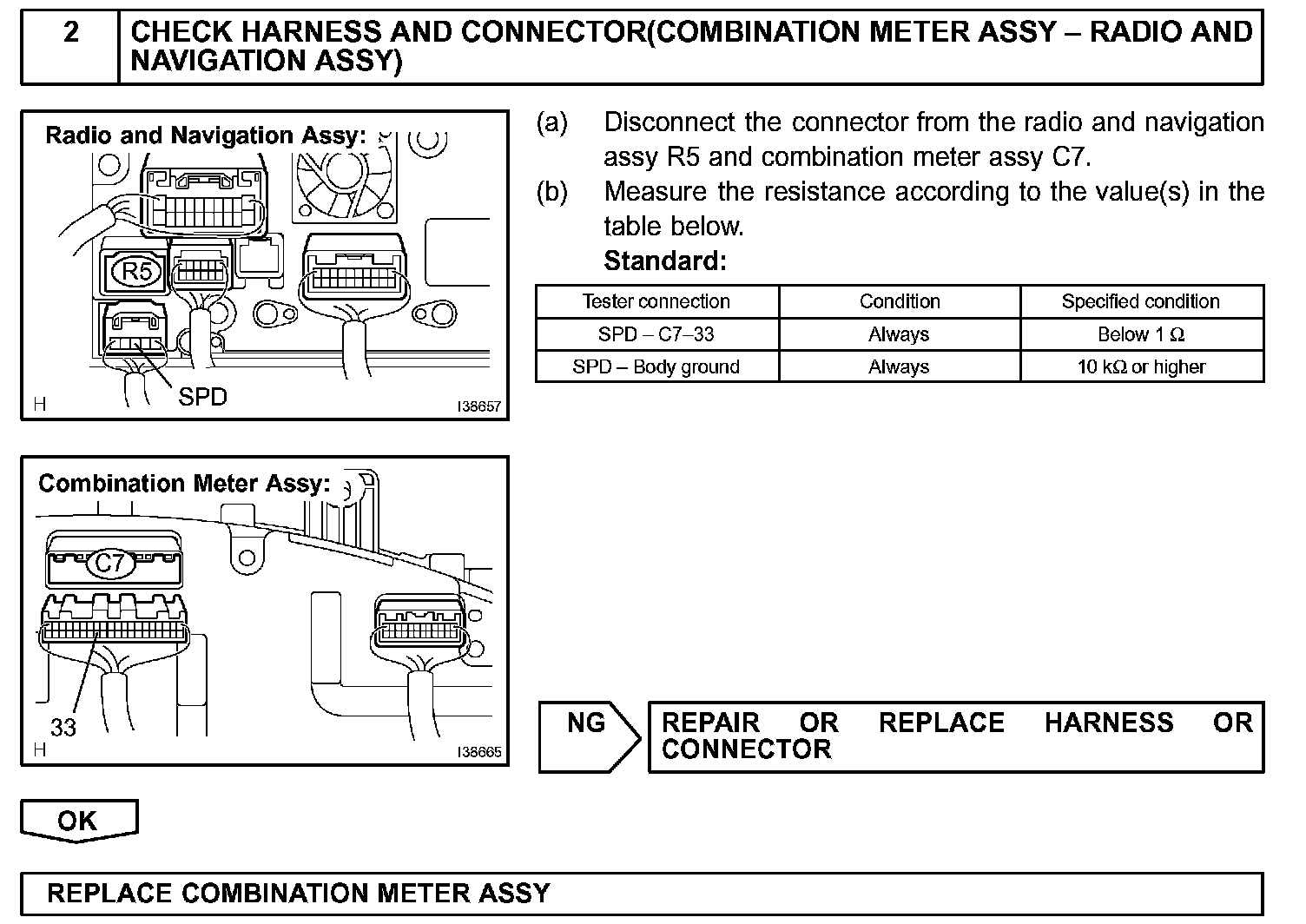

Step 2:
INSPECTION PROCEDURE
