Dimmer Signal Circuit
DIMMER SIGNAL CIRCUITCIRCUIT DESCRIPTION
Receiving the dimmer signal from the tail relay, the radio and navigation assy dims the display and illuminates the panel switches.

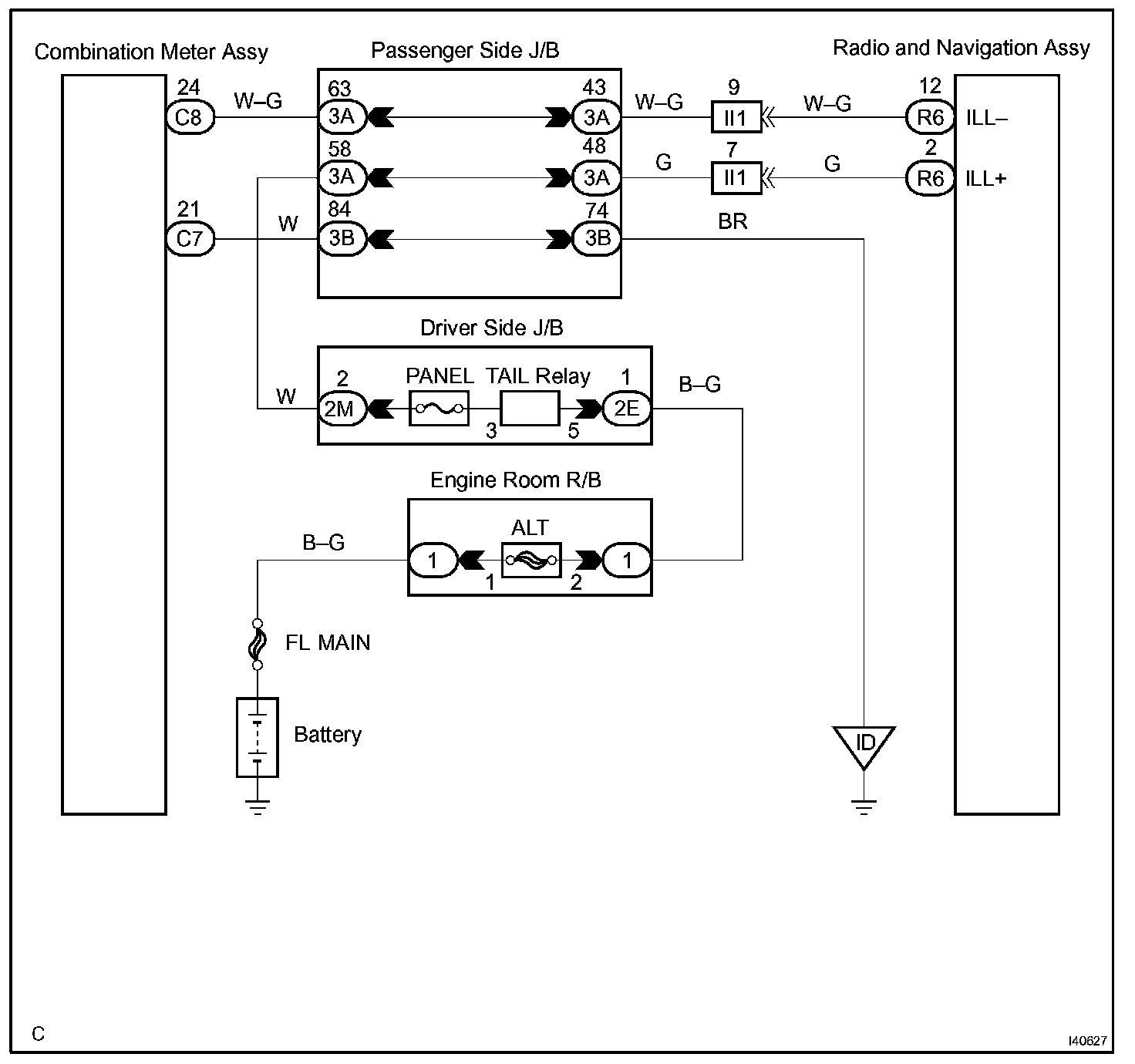

Wiring Diagram:

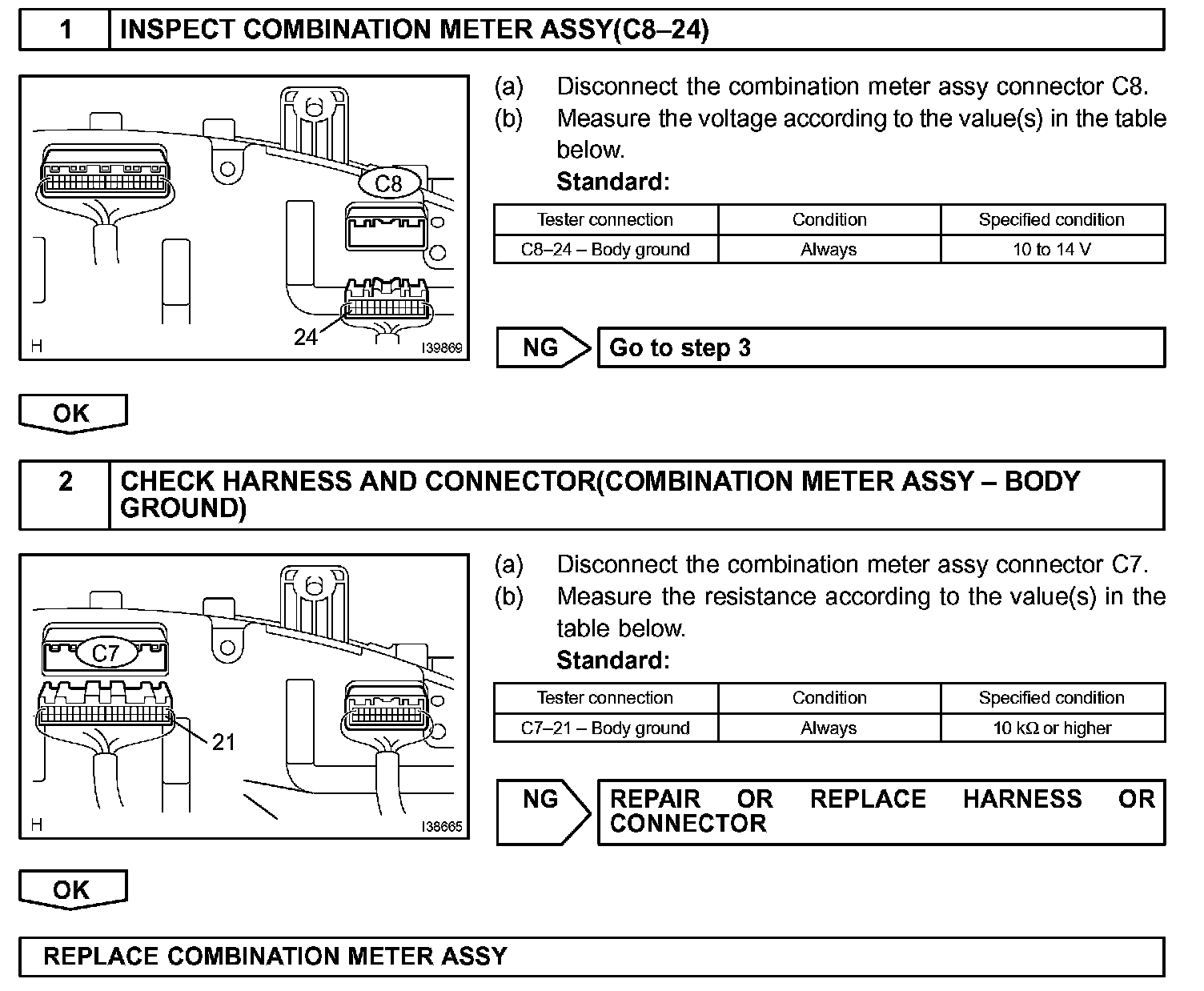

Step 1 - 2:

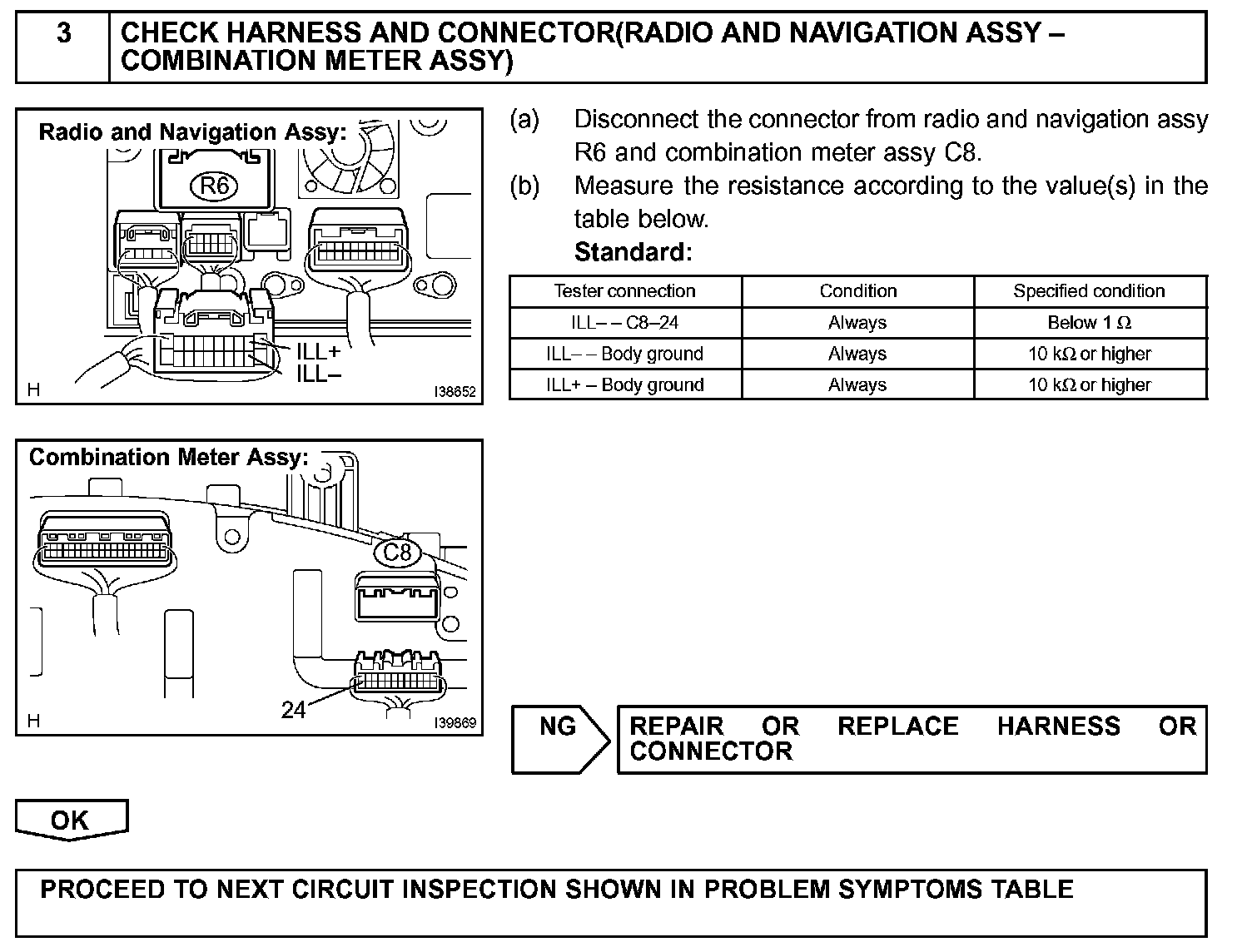

Step 3:
INSPECTION PROCEDURE
