Home >> Lexus >> 2004 >> ES 330 V6-3.3L (3MZ-FE) >> Repair and Diagnosis >> Accessories and Optional Equipment >> Navigation System >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Symptom Diagnostic Procedures >> CD Cannot Be Inserted/Played or Ejected Right After Insertion

CD Cannot Be Inserted/Played or Ejected Right After Insertion

CD CANNOT BE INSERTED/PLAYED OR CD IS EJECTED RIGHT AFTER INSERTION

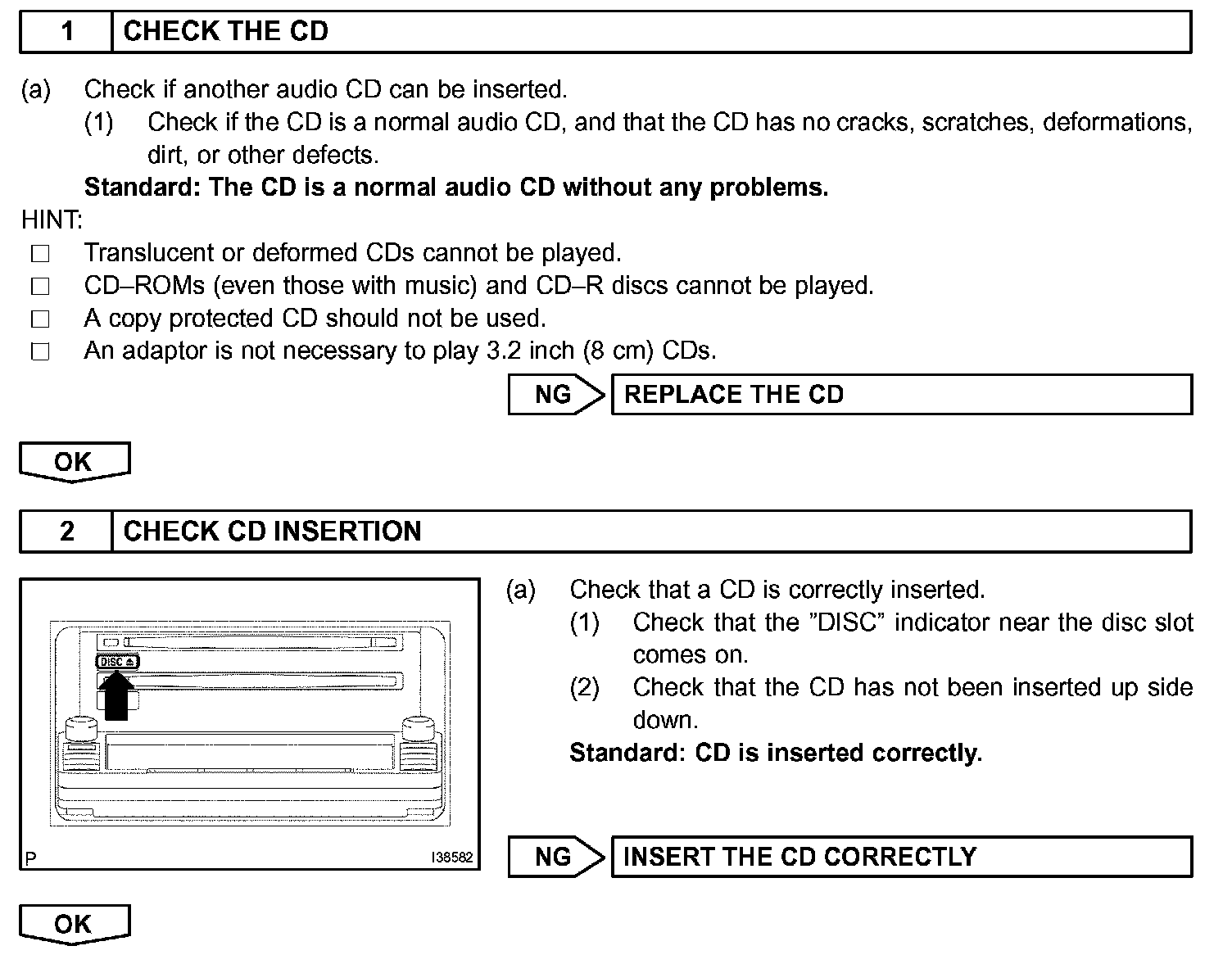

Step 1 - 2:

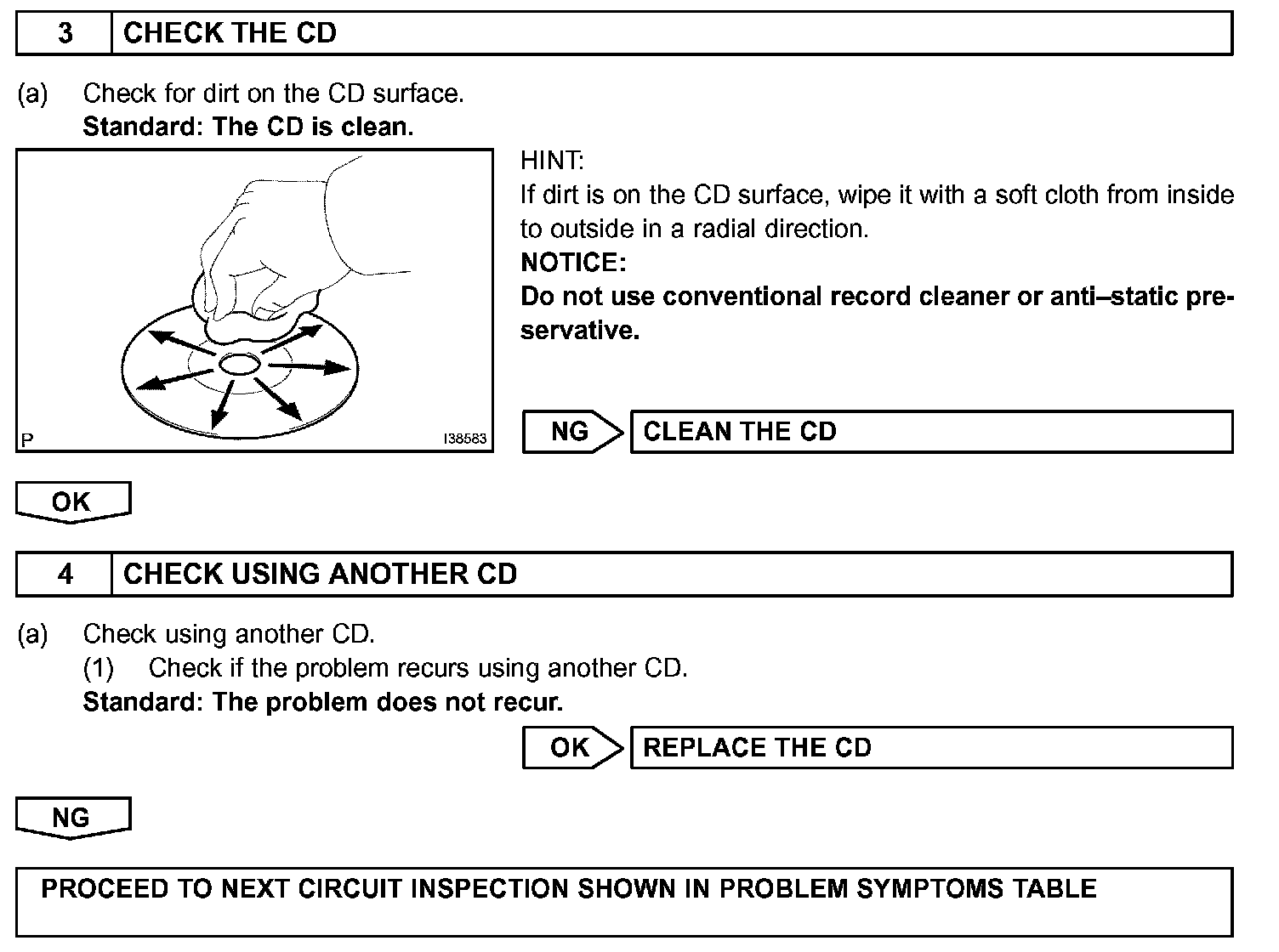

Step 3 - 4:

INSPECTION PROCEDURE
