Antenna, Navigation: Service and Repair

NAVIGATION ANTENNA ASSY (From July, 2003)
REPLACEMENT
1. REMOVE INSTRUMENT PANEL SAFETY PAD SUB-ASSY





2. REMOVE NAVIGATION ANTENNA ASSY

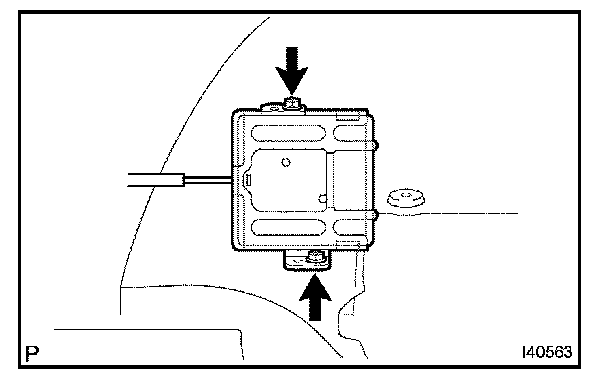

(a) Remove the 2 screws and the navigation antenna assy.
3. INSTALL INSTRUMENT PANEL SAFETY PAD SUB-ASSY
