Symptom Related Diagnostic Procedures

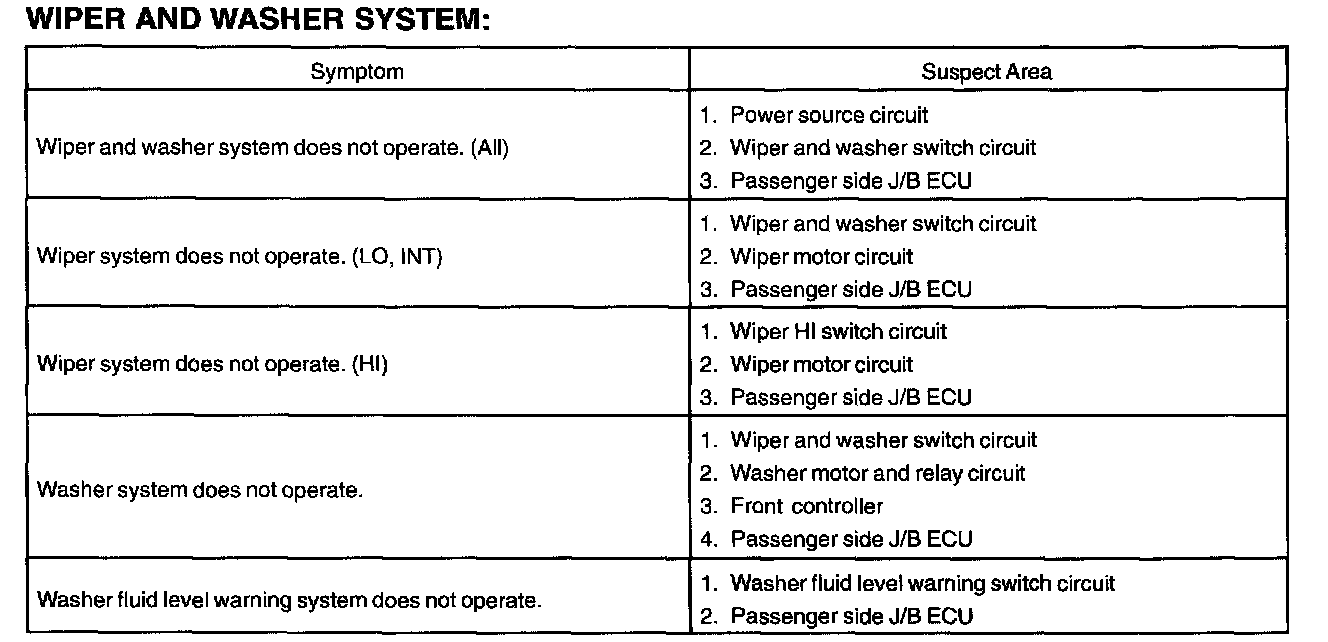

Problem Symptoms Table - Wiper And Washer System:

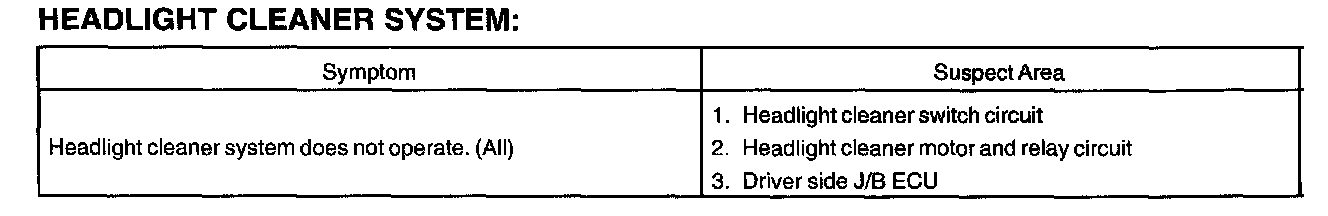

Problem Symptoms Table - Headlight Cleaner System:
